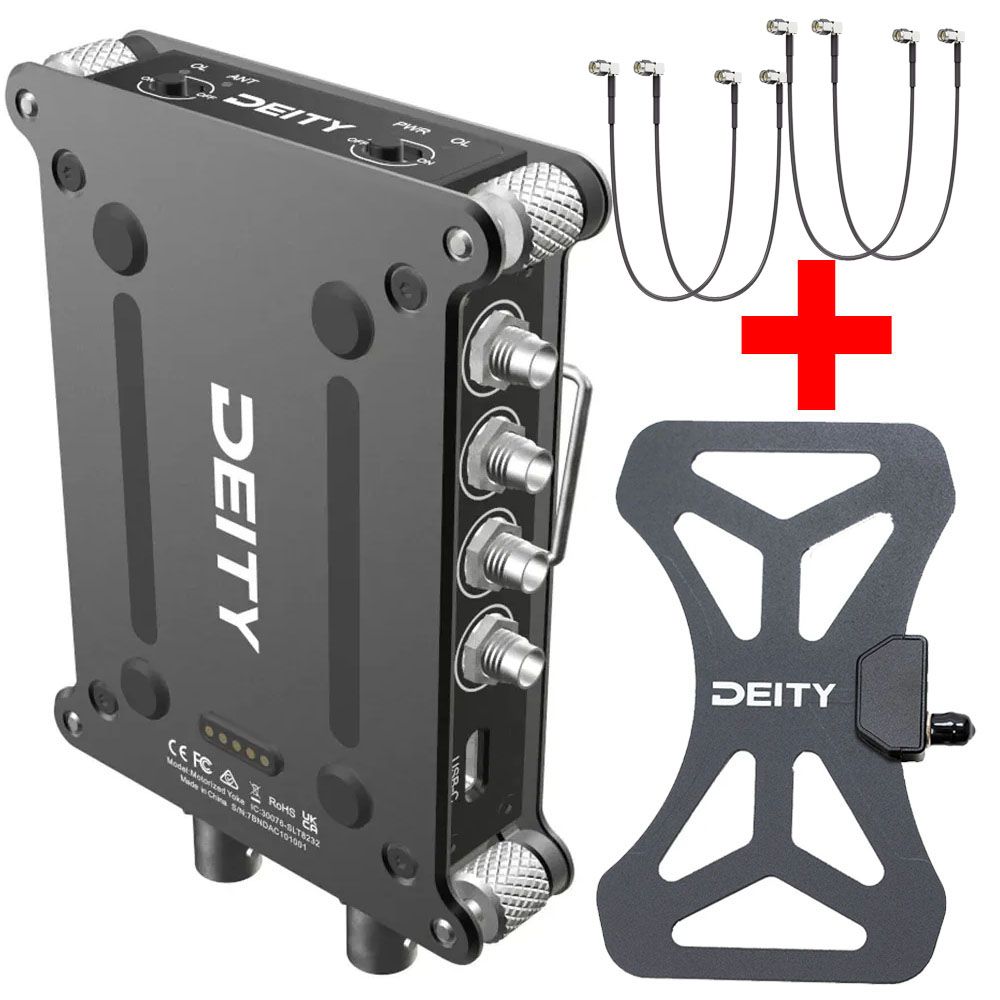

Deity SRD-Mini 4-Ch Antenna Distro System + BONUS BF-1 ANTENNA + 4 SMA - SMA (45cm)

09.DTR0289D51BC

Product Features:

Ultra-Slim RF Distro
Supports Passive and Active Antennas
2-to-8 Active Splitter
1 A In x 4 A Outs / 1 B In x 4 B Outs
Supplies Power to External Antenna
Power: USB, 4-Pin Hirose, RPS Interface
Lightweight CNC Aluminum Construction
BONUS BF-1 ANTENNA
$2,035.00
$1,025.00
Stock Level:
In Stock
Check Location Availability
Make an Enquiry

Deity SRD-Mini 4-Ch Antenna Distro System + BONUS BF-1 ANTENNA + 4 SMA - SMA (45cm)

Add To Cart
$2,035.00
$1,025.00

Essential Add-On's we recommend

You may also like...

Description

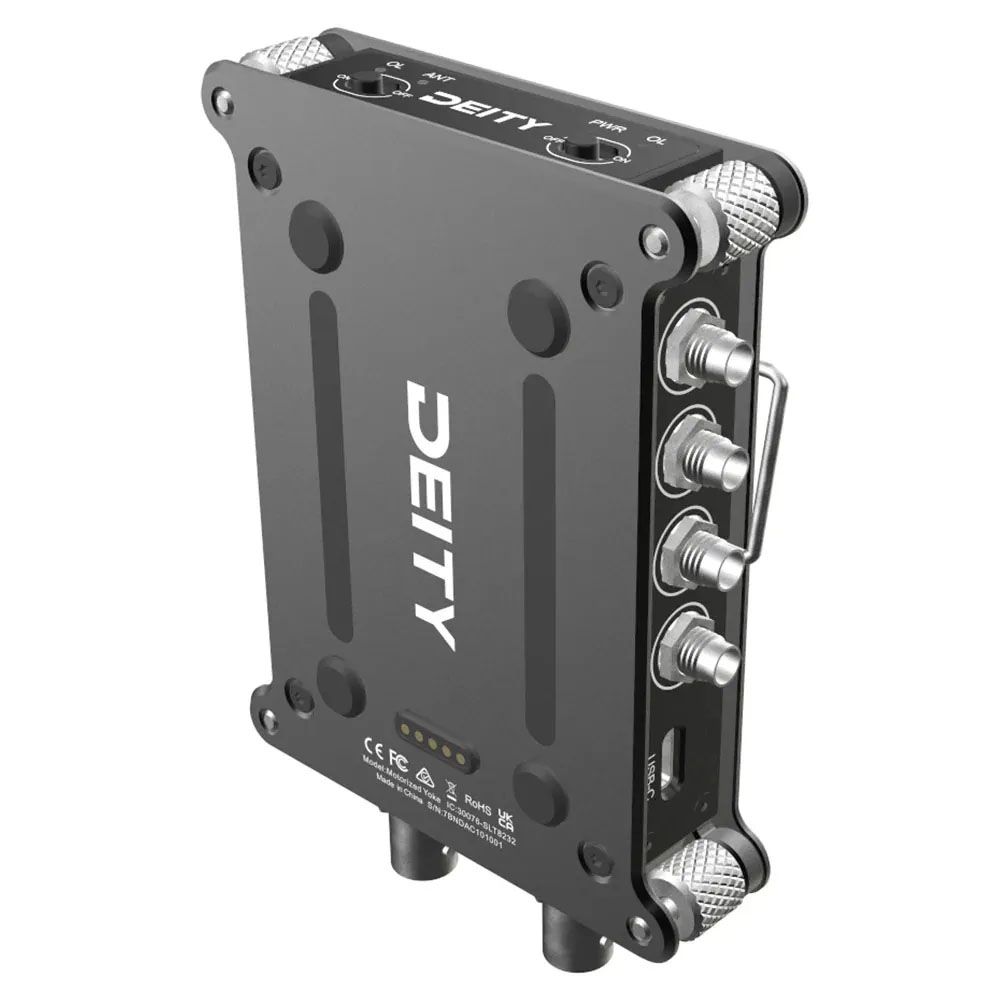

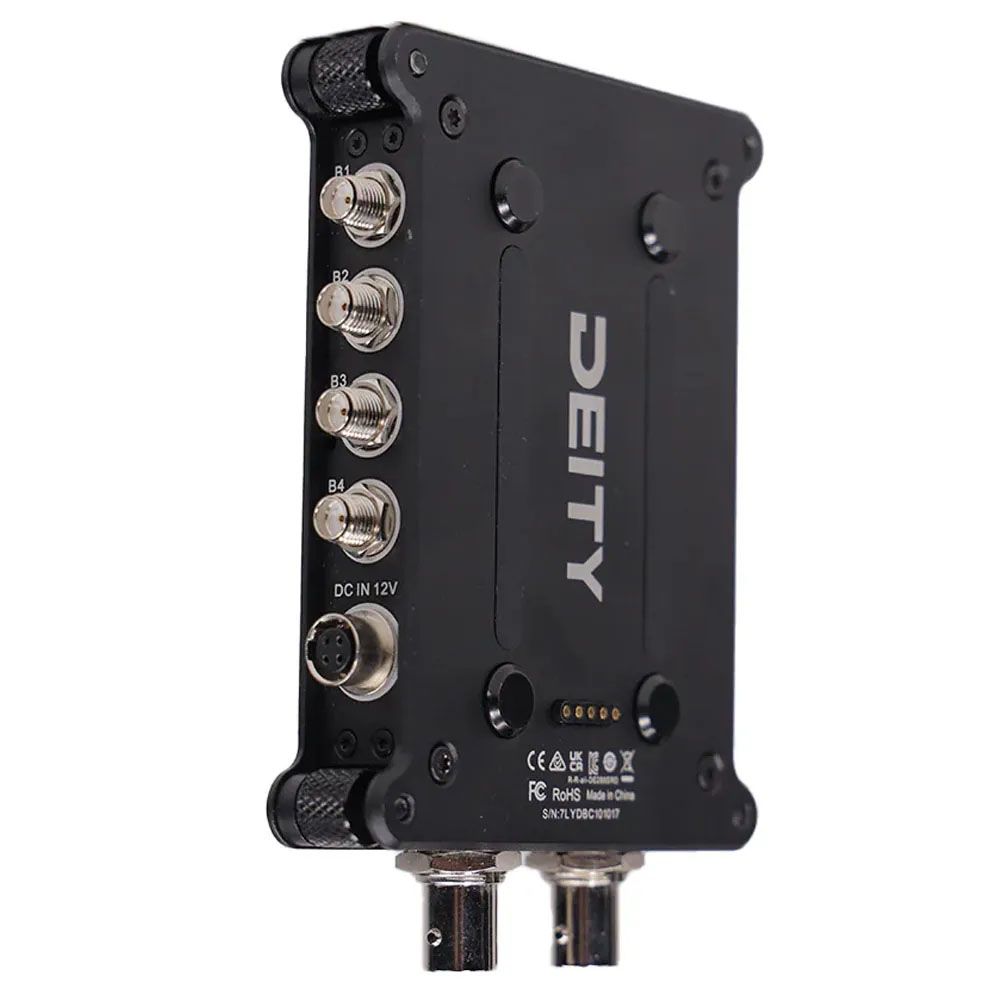

Simplify the management of wireless microphone signals in demanding field conditions with the Deity Microphones SRD-Mini, an ultra-slim, portable 4-channel antenna-distribution system designed specifically for location sound mixers. This RF distro is equipped with two main ins and four outs (A and B), for a 2-to-8 split.

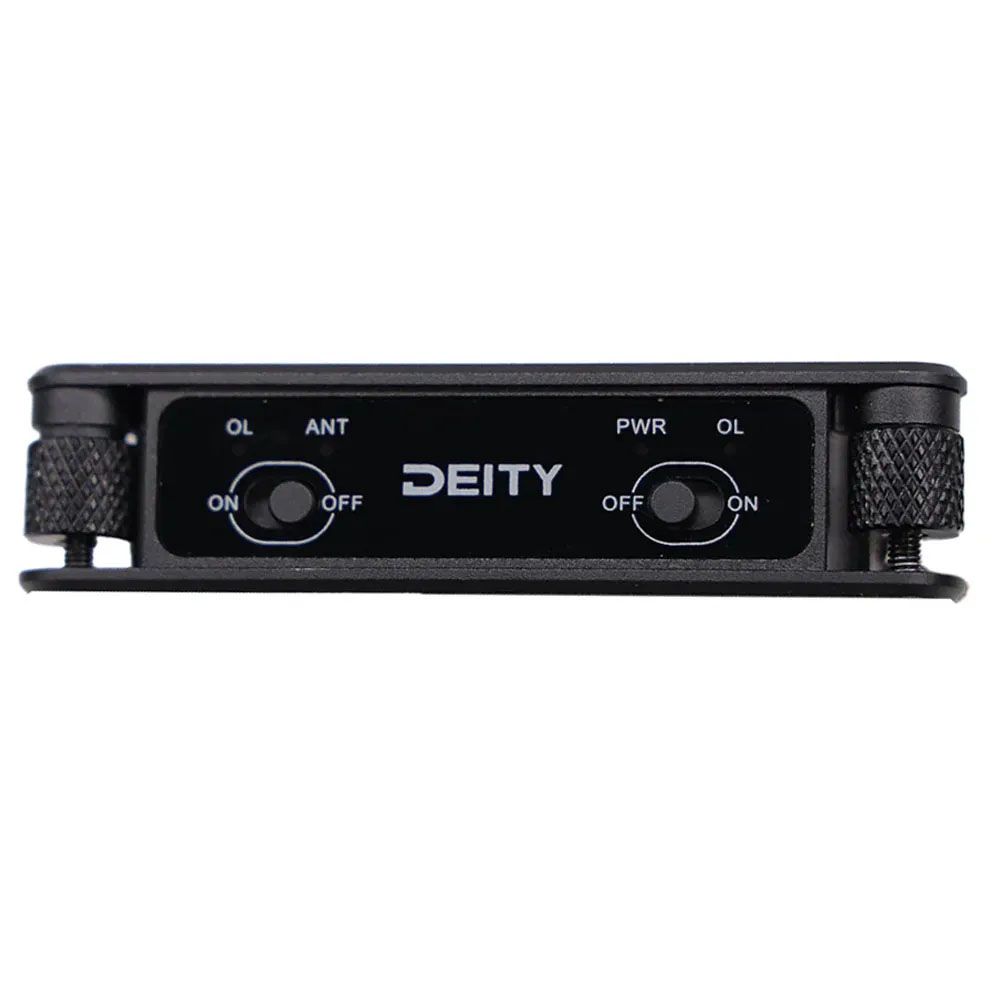

Supporting both passive and active antennas, the SRD-Mini features an active splitter that compensates for gain loss, ensuring that your RF signals remain strong and consistent. The unit also supplies power to external antenna circuitry. Each side of the distro (A / B) can have its external power toggled on or off independently. The SRD-Mini is made of CNC aluminium and is ultralightweight. Its slim and ergonomic design makes it easy to place it wherever you need to in your sound bag.

Industry Standard Connectors
  • The SRD-Mini utilizes standard connectors, ensuring compatibility with a wide range of equipment.
  • Two 50-ohm BNC ports act as the A/B inputs while eight 50-ohm SMA outputs split the incoming signal ( 1 A x 4 A / 1 B x 4 B).
Wide Frequency Range
  • The SRD-Mini operates in the 470 MHz to 1 GHz range, allowing it to operate anywhere in the world and with nearly any UHF wireless microphone system you may already own.
Multiple Power Options
  • The SRD-Mini has traditional power inputs like a 12-16.8 VDC 4-pin Hirose-compatible connector and a 5 VDC USB-C connector.
  • For a cable-less power solution, the unit can also be powered from the SPD-Mini power distributor (available separately) via its pogo pins.



Deity BF1 Antenna

Get better wireless reception with the BF1, a pair of passive omnidirectional butterfly antennas with an ultrawide frequency range, extremely lightweight construction, and precision mounting options in a comprehensive package ready for on-set deployment anywhere in the world. Compatible with a wide variety of wireless systems, the BF1 is a simple, yet powerful, accessory to optimize your wireless audio transmission during critical production work for film, video, events, and journalism.

Ultra-Wideband Coverage
With a frequency range spanning from 470 MHz to 1 GHz, the BF1 ensures seamless transmission across a wide spectrum, allowing you to capture every nuance with clarity and precision. Boasting an average gain of +2.2 dBi, the BF1 enhances signal reception—giving you a distinct advantage in capturing pristine audio in challenging environments.

Featherlight Construction
Weighing in as one of the lightest antennas in its class, the BF1 ensures effortless portability without compromising on durability or performance. Rated IP65, the BF1 is built to withstand the rigors of professional filmmaking, offering resistance against dust and water ingress, so you can focus on capturing the perfect shot without worrying about equipment failure.

Precision Mounting
Equipped with a robust 1/4"-20 threaded metal mount and an articulating mounting arm, the BF1 offers flexible positioning options, allowing you to optimize signal reception with ease and precision.

Comprehensive Kit
Each BF1 kit includes a pair of antennas and all the necessary accessories, so you're ready to tackle any production challenge immediately. The kit features two BNC cables and two BNC to Right Angle SMA cables, ensuring compatibility with a wide range of wireless systems, so you can integrate seamlessly into your existing setup. The included neoprene carrying case provides secure storage and easy transport, ensuring your BF1 stays protected wherever your shoot takes you.


In the Box

  • Deity Microphones BF1 Passive Omnidirectional Butterfly Antenna (Pair, 470 MHz to 1 GHz)
  • 2 x Articulating Mounting Arm
  • 2 x BNC Cable
  • 2 x BNC to Right Angle SMA Cable
  • 4 x SMA - SMA 45cm
  • 1 x BF-1 Antenna
  • Carrying Case
