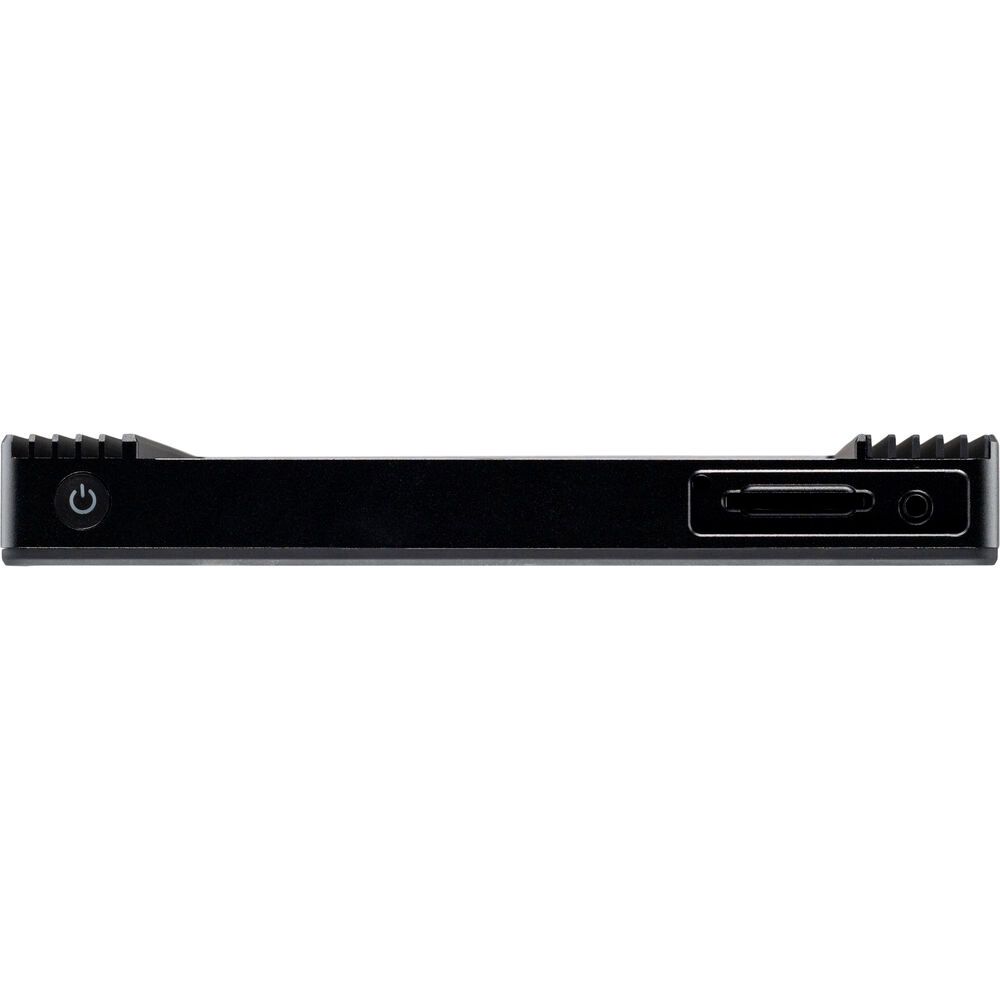

SmallHD Cine 7 Monitor

33.1.MON-CINE-7

Product Features:

Flagship SmallHD Monitor
100% DCI-P3 Colour gamut
1920 x 1200 Touchscreen control
1800nits brightness
2-Pin Lemo Power
Camera Control Optional
$2,795.00
Stock Level:
In Stock

SmallHD Cine 7 Monitor

Essential Add-On's we recommend

Description

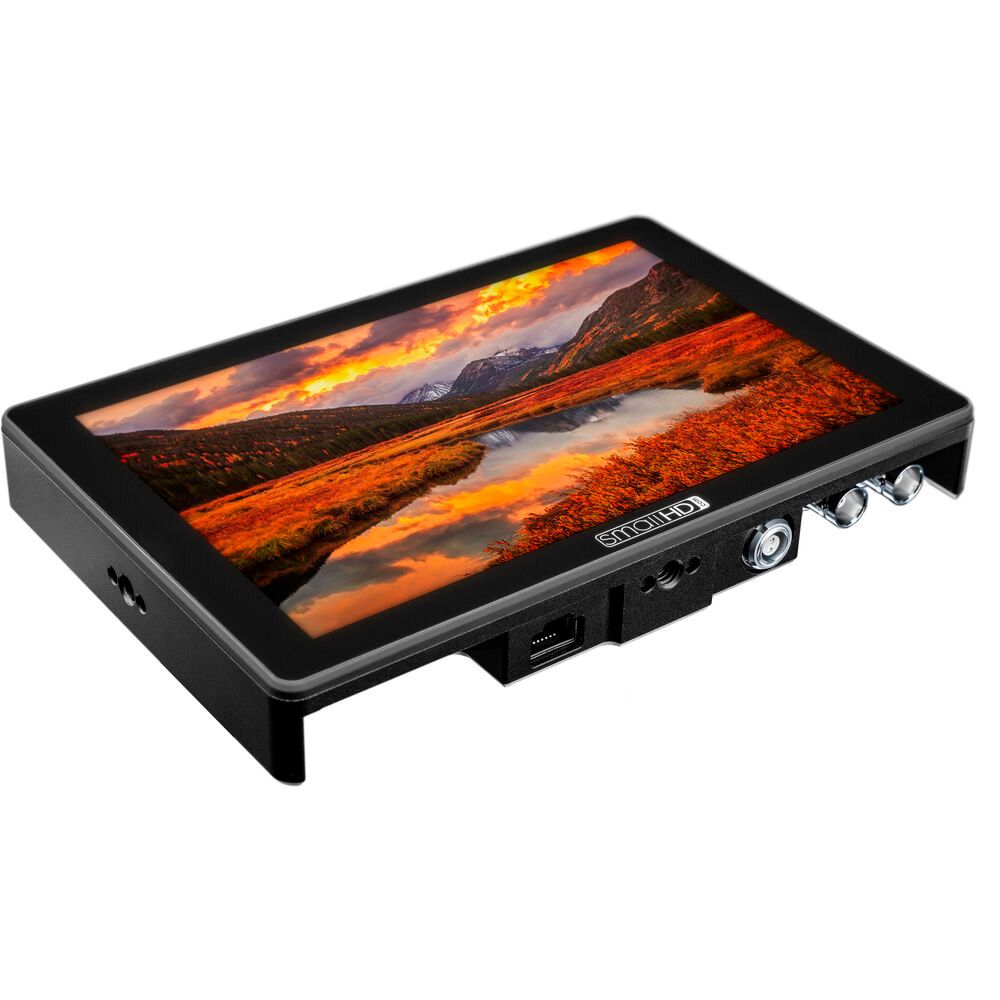

Cine 7 Smart Monitor

Full HD touchscreen monitor with DCI-P3 Color and 1800nits brightness. Access internal camera settings via included camera control software installation.

  • Model: MON-CINE-7
  • Display: 7-inch touchscreen, 1920x1200, 3DCI-P3
  • Input: SDI, HDMI
  • Output: SDI, HDMI , â…›” Headphone Jack, Camera Control
  • Power Input: 2mm barrel connector (DC 10-34v),Sony L-Series dual battery bracket
  • Software: PageOS 4

Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, as well as Teradek RT and Bolt 4K integration.,

PageOS 4 Software Toolset

User page presets, Focus Assist, frame guides, 4K HDR (PQ) waveforms, improved false color, Color Pipe log conversion,Teradek RT Overlays, and more. Monitor camera metadata, lens control, timecode, and start/stop flags.

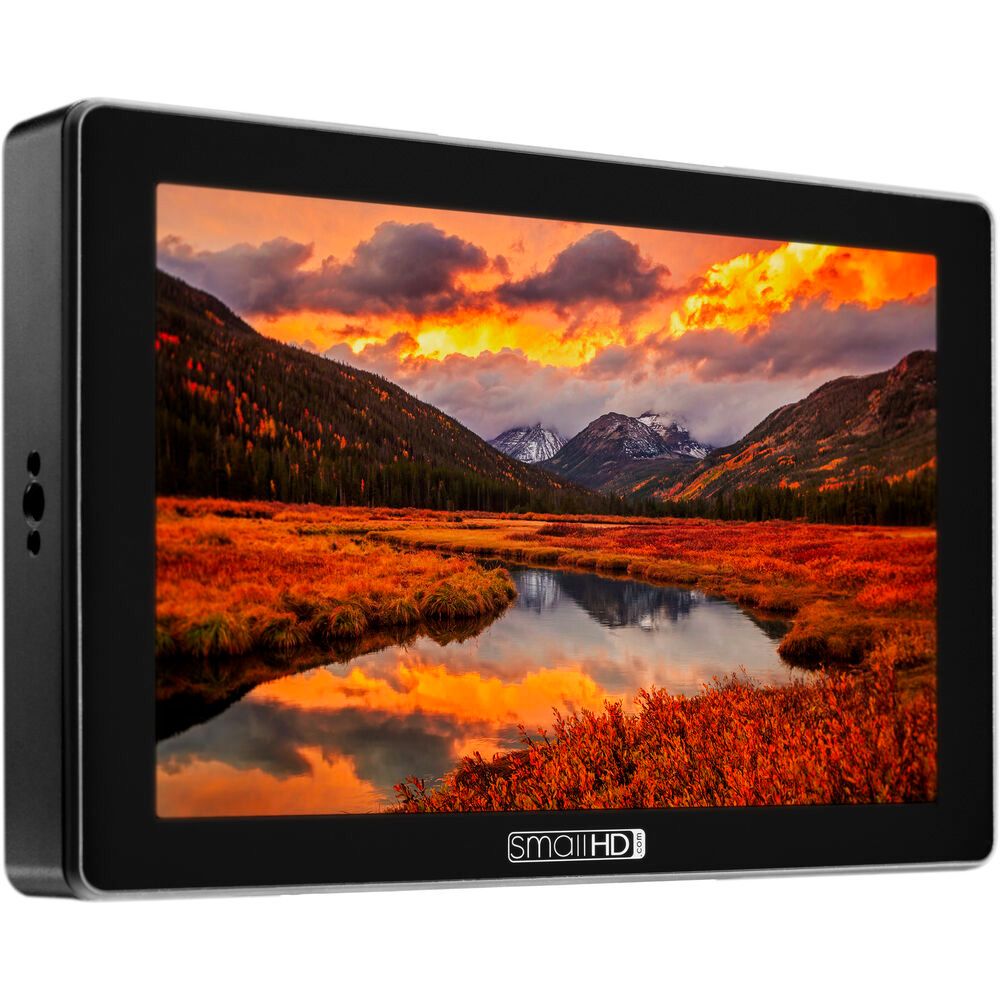

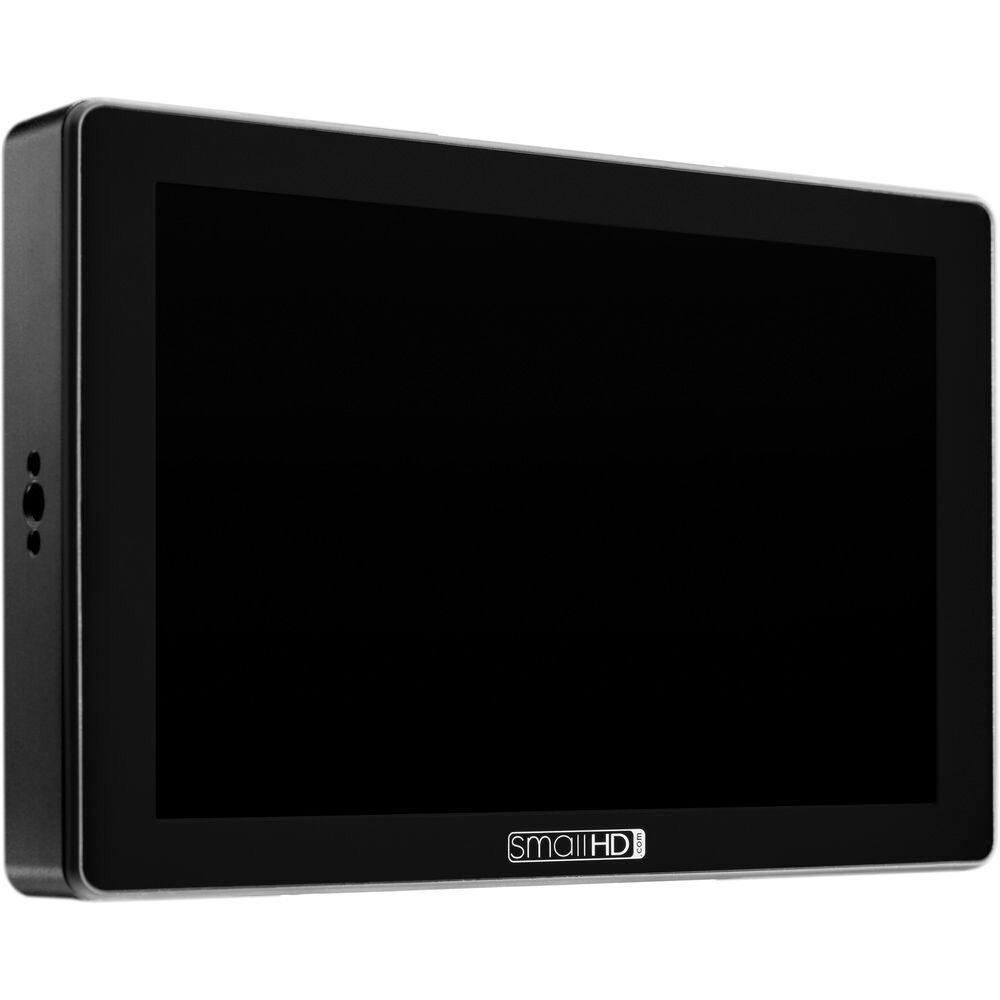

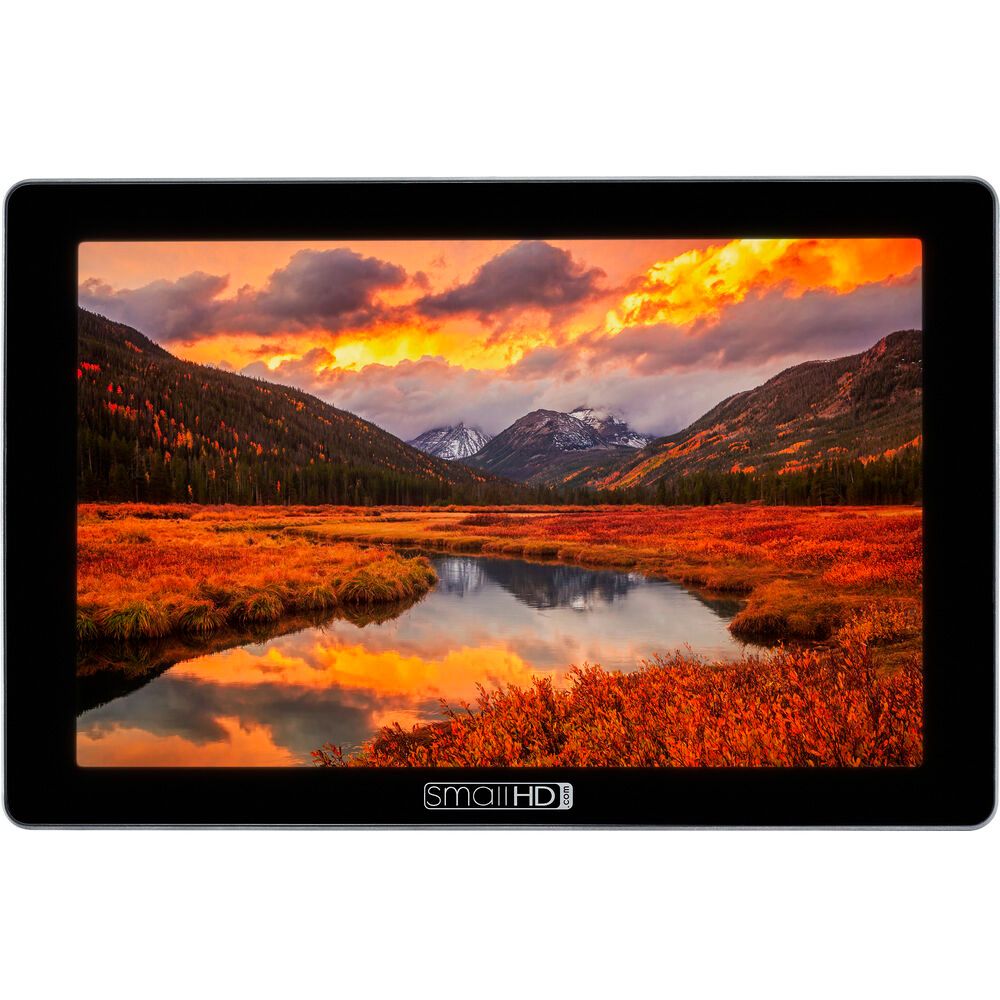

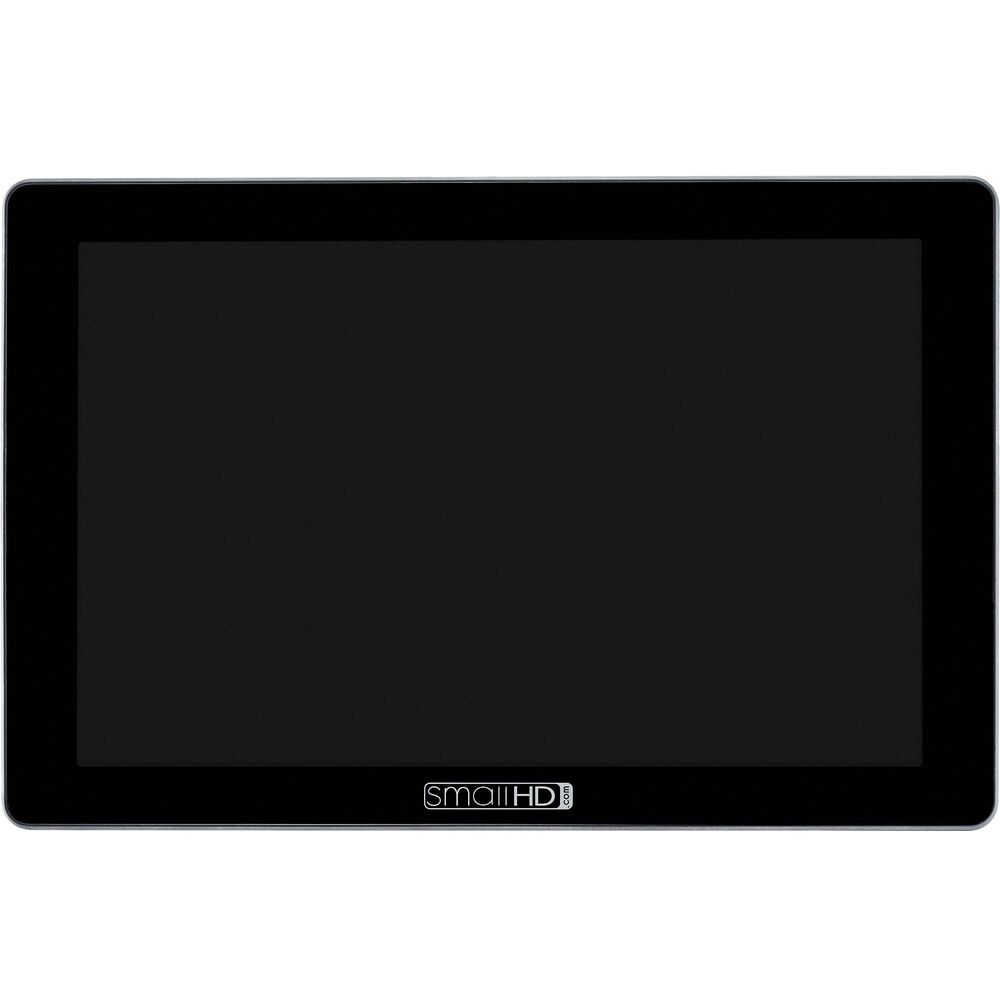

The Industry Standard 7” Monitor

  • Full HD 7-inch IPS LCD with 1920x1200 resolution
  • 10-bit color processing in 100% DCI-P3
  • 1800nits of brightness
  • 4K & HDR compatible
  • 160-degree viewing angle

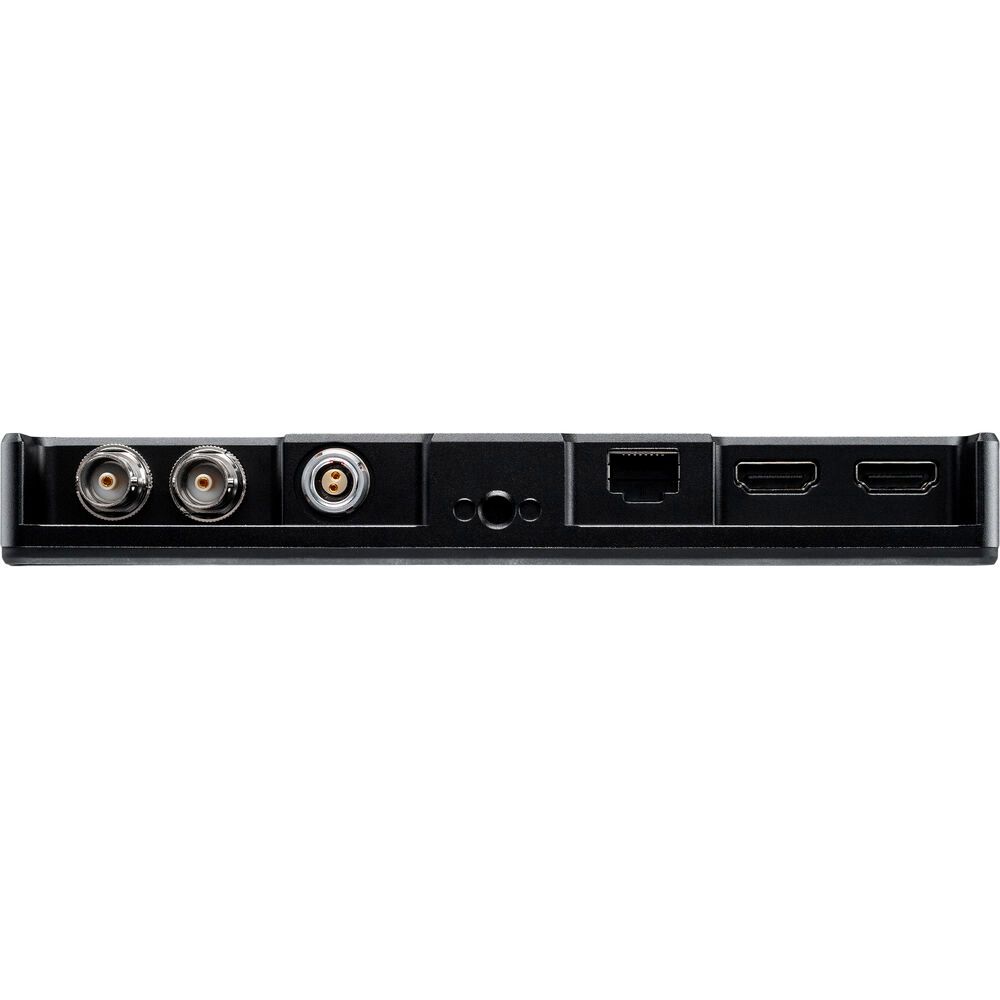

Multiple I/O



  • Input:   1x 3G-SDI, 1x 3G-SDI In/Out, 1x HDMI 2.0, 1x Micro USB, 1x Ethernet Port
  • Output:  1x 3G-SDI, 1x HDMI 2.0

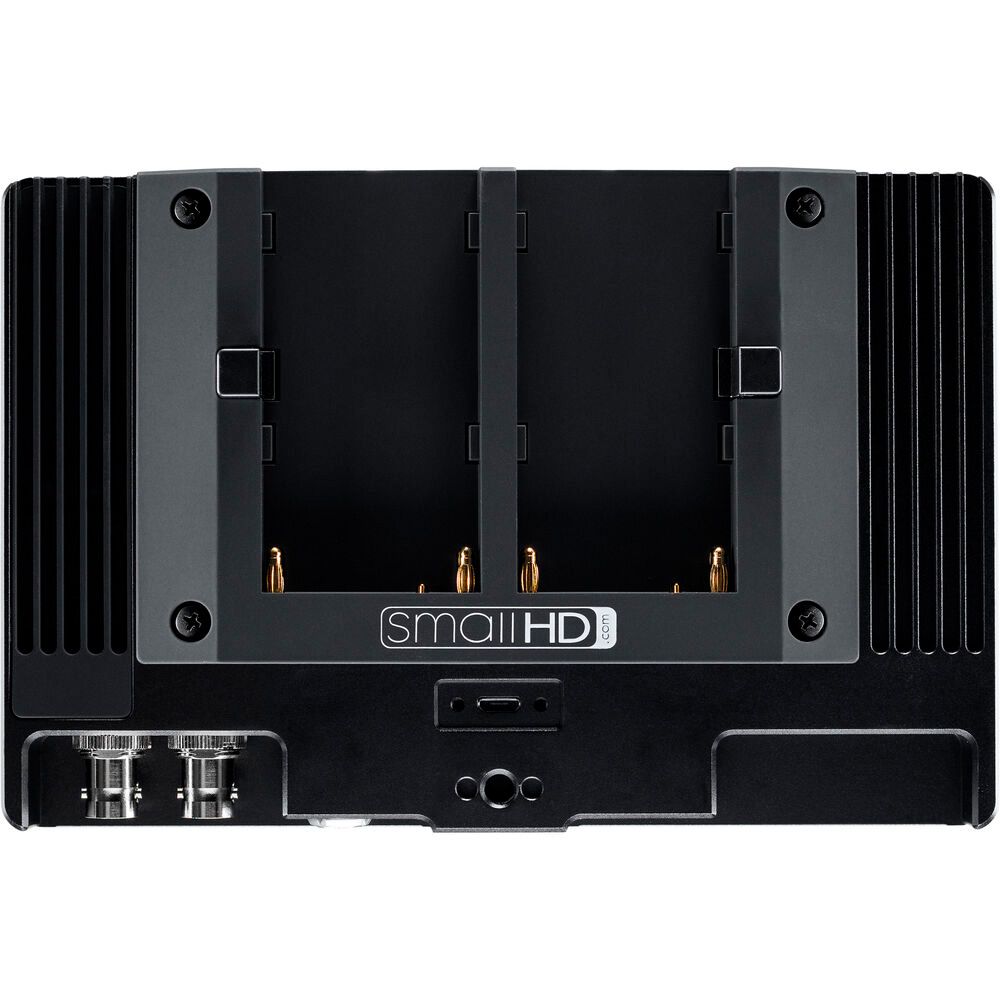

Power Input Options

  • 2mm barrel connector port
  • Included Sony L-Series dual battery bracket
  • Optional Gold Mount & V-Mount battery plate attachments (sold separately)

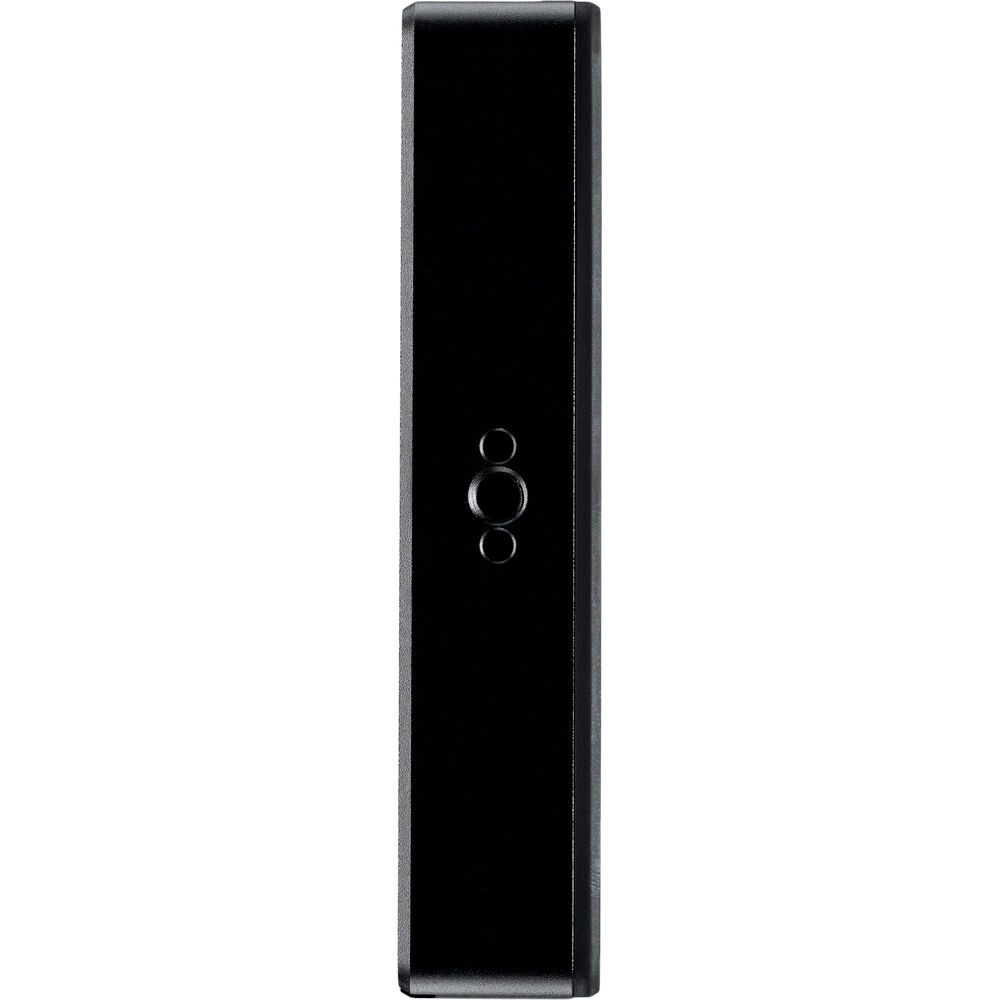

Rugged Lightweight Housing

  • Anodized aluminum chassis
  • Ultralight weight: 1.25lbs (.57kg)
  • Thin body width: 1.32in (3.35cm)
