SmallHD Cine 7 RED DSMC2 Monitor Kit

33.1.MON-CINE7-RED

Product Features:

Flagship SmallHD Monitor
RED Camera Control INCLUDED
100% DCI-P3 Colour gamut
1920 x 1200 Touchscreen control
1800nits brightness
2-Pin Lemo Power
$4,735.01
Stock Level:
In Stock
Check Location Availability

SmallHD Cine 7 RED DSMC2 Monitor Kit

Essential Add-On's we recommend

Description

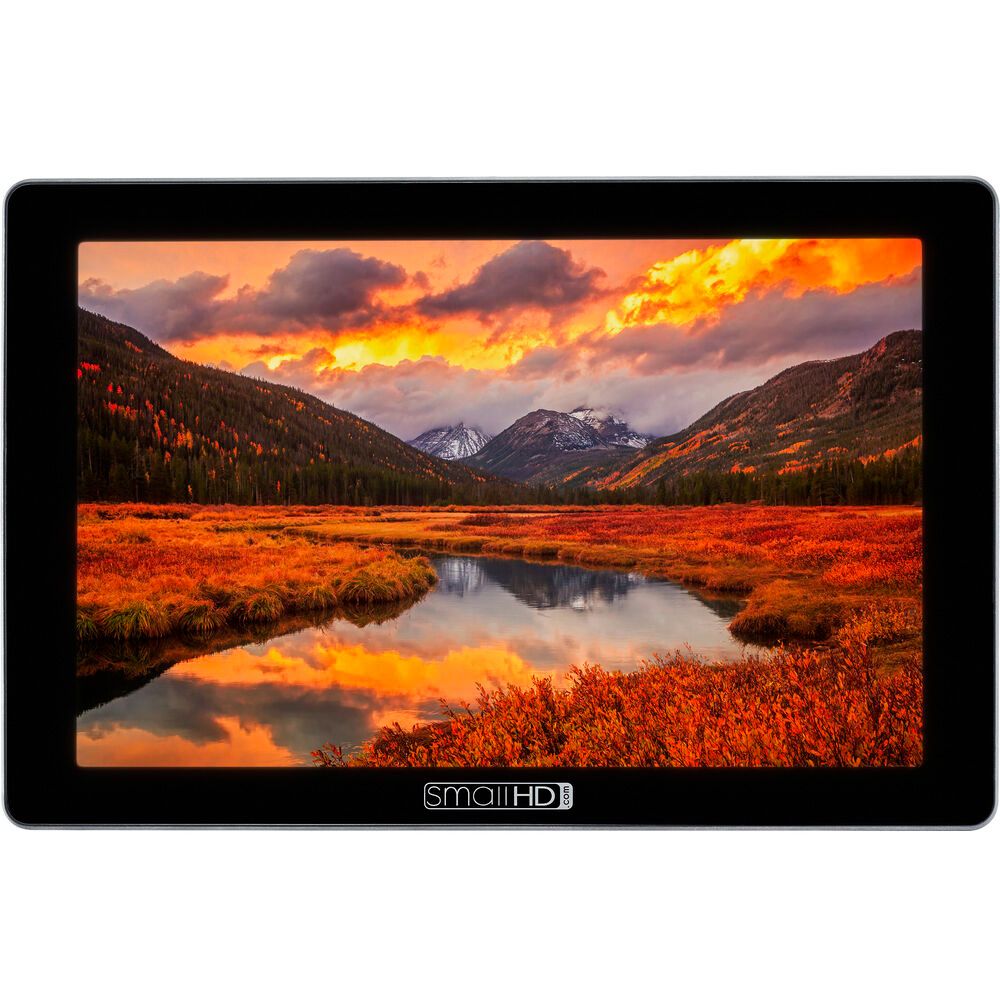

Cine 7 is a top of the line professional 7" monitor with included RED camera control. It's 1800 nit, daylight viewable display and 100% DCI-P3 coverage make this monitor an absolute joy to work with, in any production environment.

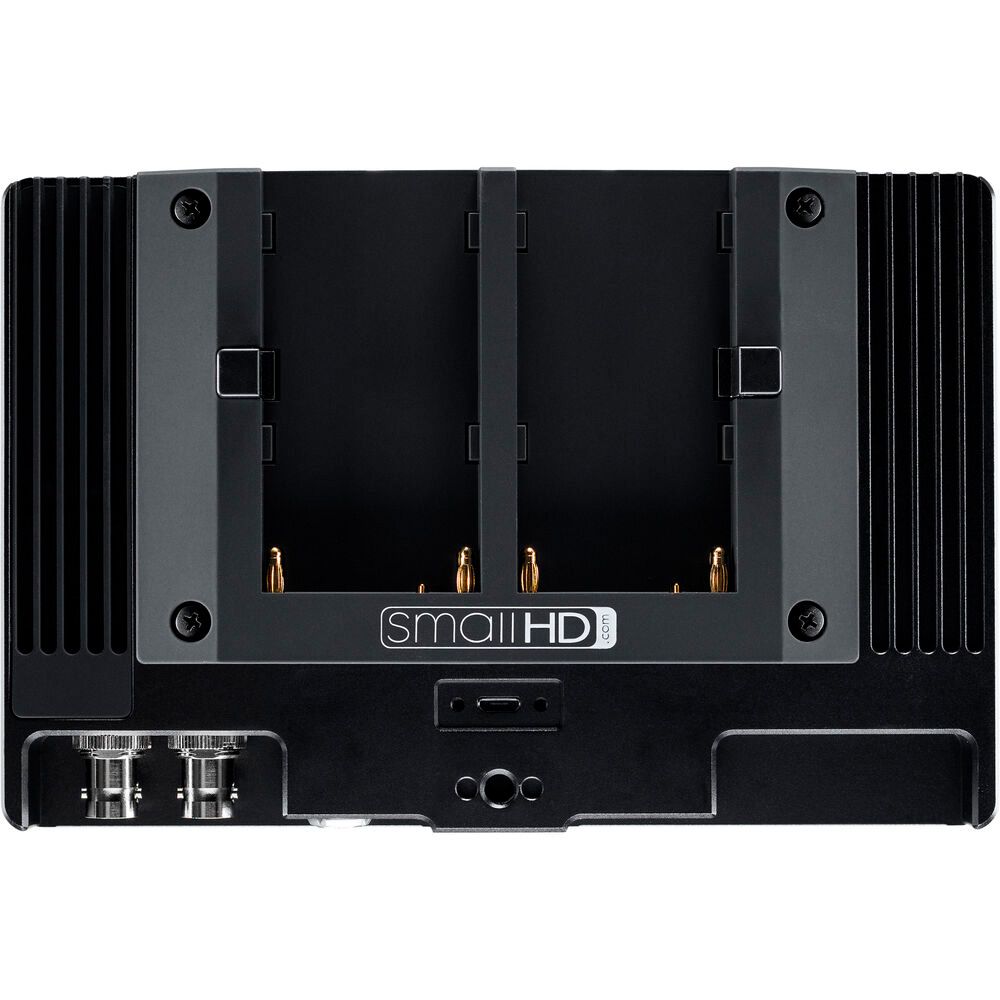

The Cine 7 offers the durability and flexibility required by demanding professionals. With a lightweight milled aluminium frame and several 1/4"-20 mounting points, the 7inch monitor is ready to perform on any rig and in any environment. Cine 7 includes several 3G-SDI and HDMI inputs and outputs, as well as signal cross conversion. Power options include a locking 2-pin connector and interchangeable battery brackets (Gold, V, and Sony L series). An Ethernet port allows for camera control connectivity.

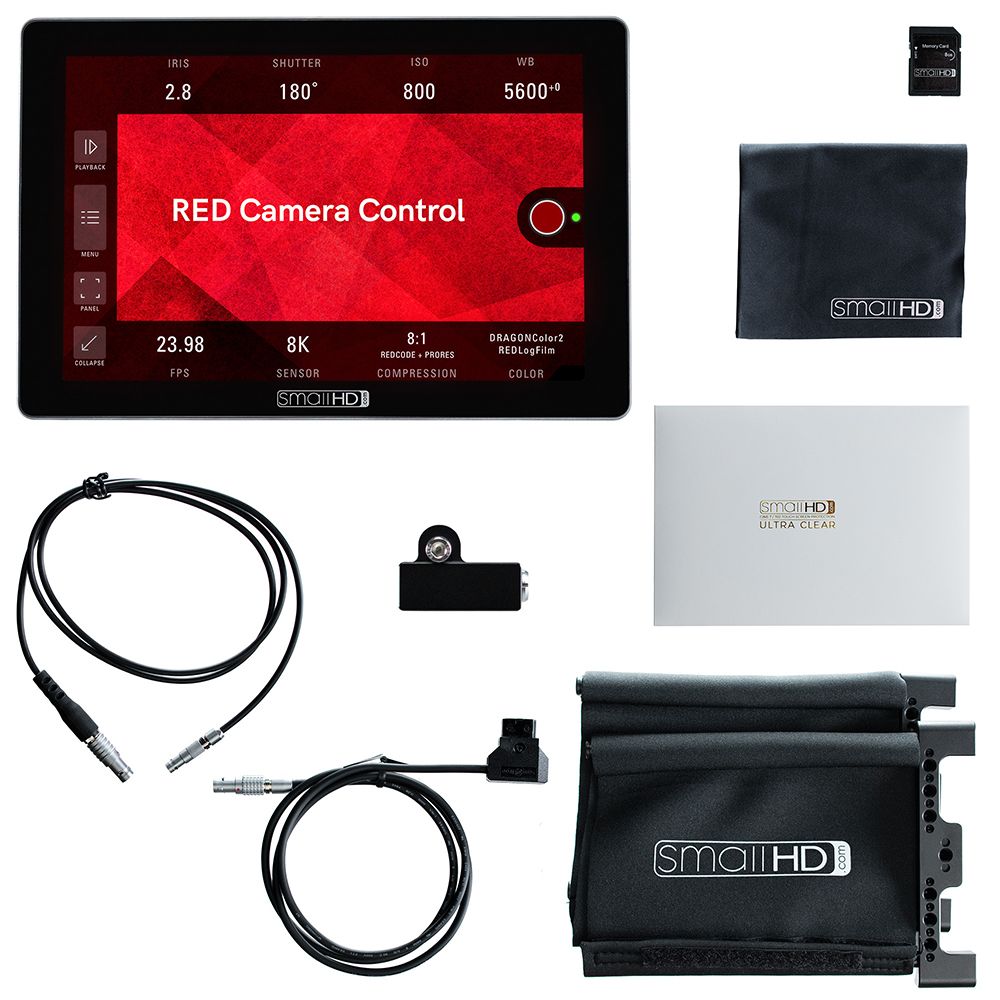

What's Included:

  • SmallHD Cine 7
  • Sony L-Series Battery Bracket
  • D-Tap to 2-Pin LEMO 36"
  • Ultraclear Screen Protector
  • Sunhood
  • SD Card
  • Cleaning Cloth
  • RED Camera Control + Cables

Display

Panel TypeIPS LCD
Size Diagonal7.02
Resolution1920x1200
Pixel Density (PPI)322
Aspect Ratio16:10
Active Area5.95 x 3.72
Contrast1000:1
Color Gamut100% DCI-P3 Coverage
Color Depth8-b Panel with 10-b Scopes
Viewing Angle8-b Panel with 10-b Scopes
Backlight TypeLED
Adjustable BacklightYes

Input Signal Types/Formats

3G-SDIYCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDIYCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDIYCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMIYCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
AudioHDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Output Signal Types/Formats

3G-SDIYCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDIYCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDIYCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMIYCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
AudioHDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

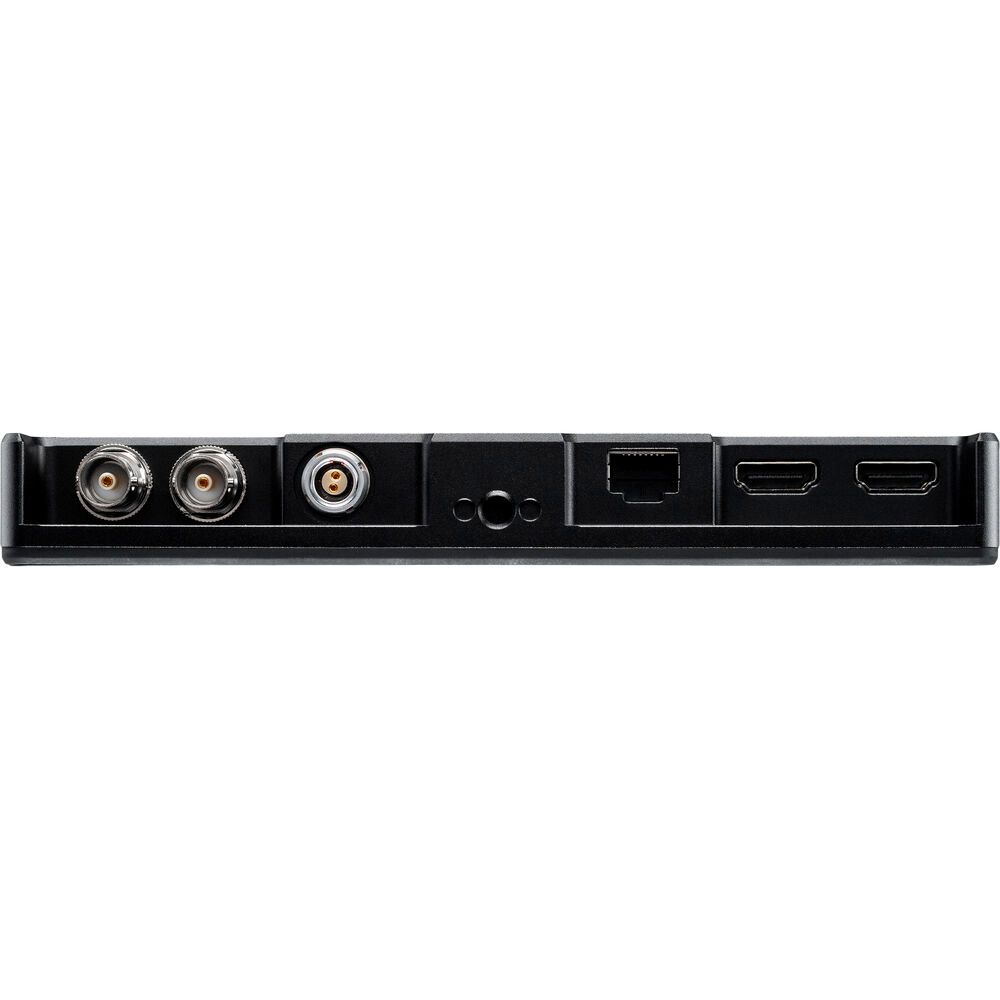

Connector Type

SDI1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio1x 3.5mm 3-pin Stereo Headphone Jack
Power In2-pin Locking
USB1x USB 2.0 Micro-B receptacle

Controls

Primary Control InterfaceTouch Screen
Record/CaptureCapture Tool
RF Wireless Remote / External Control?

Data I/O

Storage?
USB?
Wireless?

Power

Connector TypeLemo
VoltageDC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
Recommended Power SupplyRecommend DC 12~15V at ~2.5 amp or greater
Overload ProtectionDC input: Reverse polarity
Battery TypesL-Series, V Mount, Gold Mount
Battery ChemistryLi-ion
Battery Charging Time (hours)Monitor does not support the charging of batteries

Environmental

ComplianceFCC, IC, CE, RoHS
Operating Temperature30F to 100F
Storage Temperature0F to 120F
Height4.67" (11.86cm)
Width1.32" (3.35cm)
Depth/Length7.09" (18.01cm)
Weight (Packaged)45oz (1275.73g)
Mount PointsFour ¼-20 Mount Points (Left, Right, Bottom, and Back)

Software

Pixel Zoom (type)1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame GuidesPreset Aspect Ratios & Customizable
DSLR ScaleCanon 5DMkii & Canon 7D
Custom ScaleYes (Underscan Only)
Anamorphic De-Squeeze0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate(Manual/Automatic)Automatic or Manual Control
Image Flip (Manual/Automatic)Automatic or Manual Control
Cross ConversionYes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors)User Adjustable Color Style and Intensity
PeakingUser Adjustable Intensity
False ColorRainbow, Arri Style, Custom with up to 10 nodes
ZebraDual - User Configurable
WaveformLuma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
VectorscopeYes
RGB ParadeFully User Customizable
HistogramLuma & RGB Style
Image CaptureYes
Custom LUTSLoadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT DownstreamAvailable on SDI or HDMI Out. Applied on Output Preview Page.
LUT Importvia SD Card or USB Storage Device
Image OverlayWith Opacity Slider and Blink Setting
Audio MetersHDMI & SDI up to 8 channel
