SmallHD Cine 7 Sony Venice Bundle

33.1.MON-CINE7-VENICE
  • Watch Video
  • Product Features:

    Flagship SmallHD Monitor

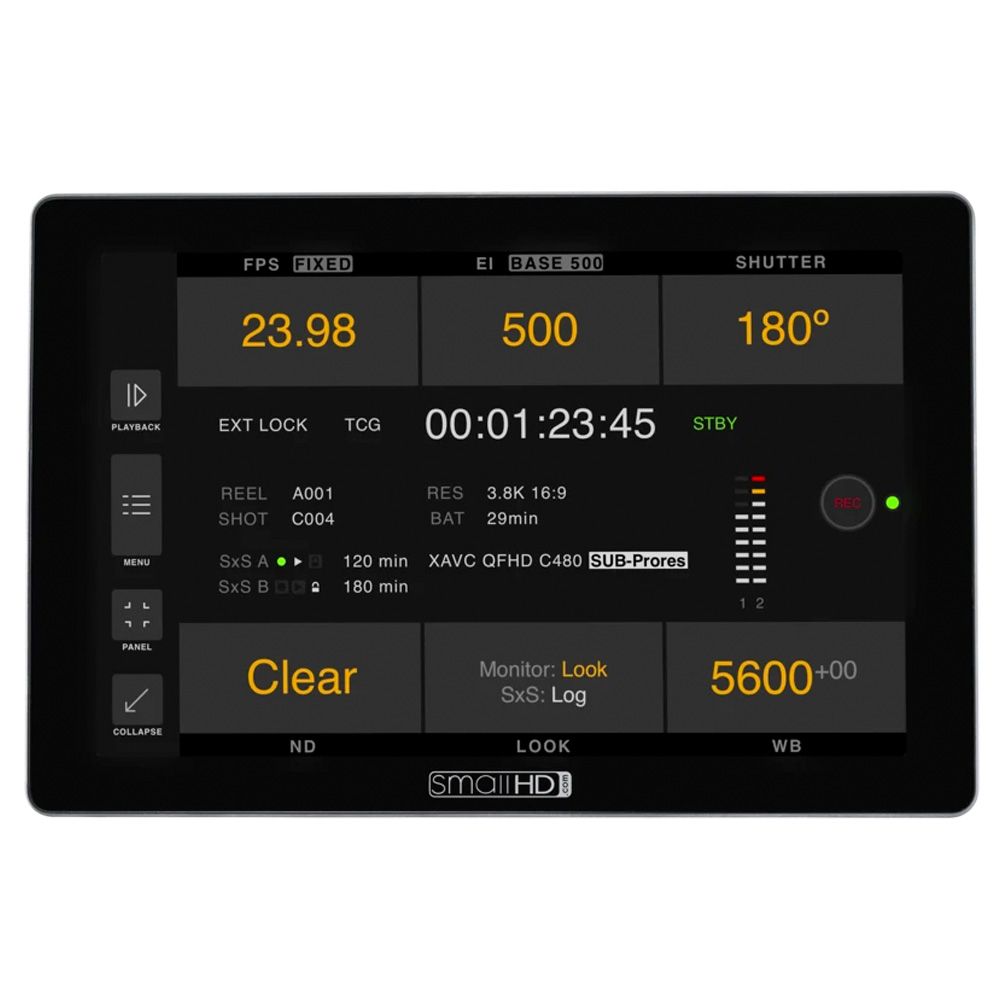

    Sony Venice Camera Control
    100% DCI-P3 Colour gamut
    920 x 1200 Touchscreen control
    1800nits brightness
    2-Pin Lemo Power

    Configuration Options:

    $2,895.00
    Stock Level:
    In Stock

    SmallHD Cine 7 Sony Venice Bundle

    Description

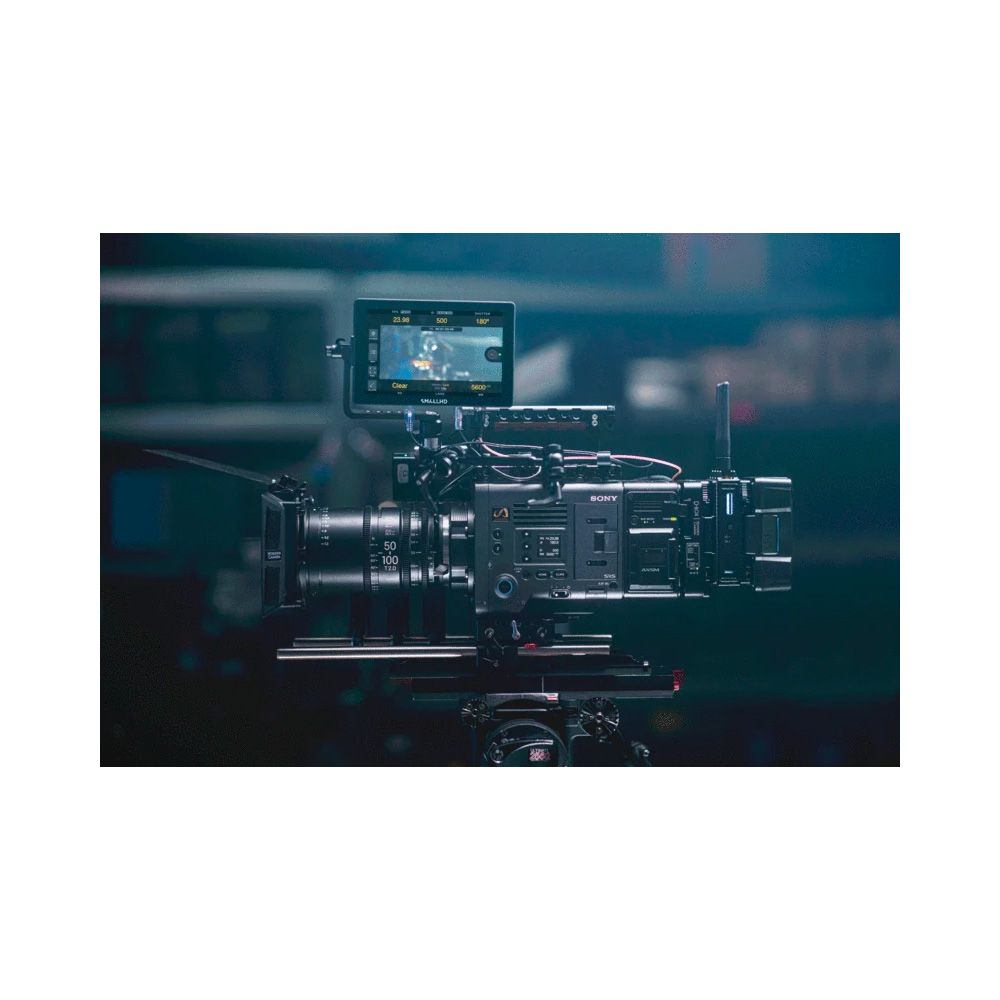

    Cine 7 is a top of the line professional 7" monitor with included Sony Venice camera control. It's 1800 nit, daylight viewable display and 100% DCI-P3 coverage make this monitor an absolute joy to work with, in any production environment.

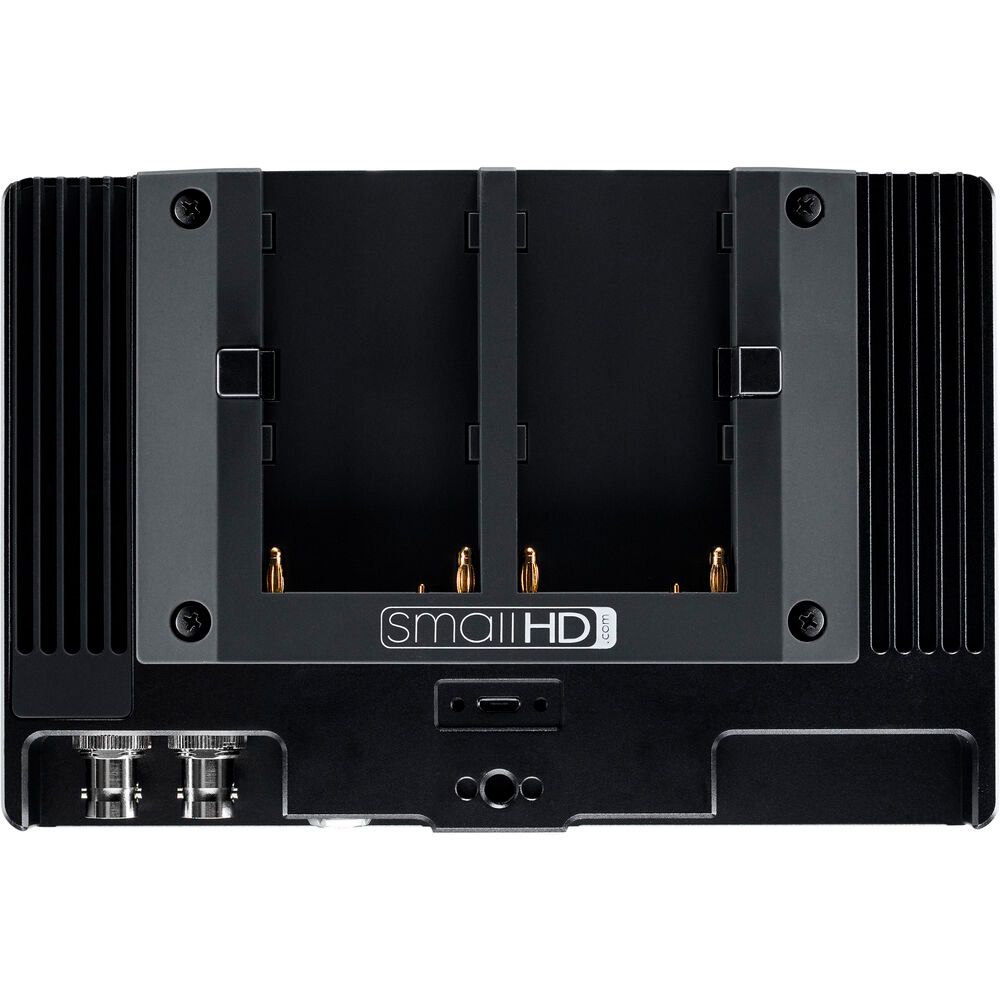

    Cine 7 offers the durability and flexibility required by demanding professionals. With a lightweight milled aluminium frame and several 1/4"-20 mounting points, the 7inch monitor is ready to perform on any rig and in any environment. Cine 7 includes several 3G-SDI and HDMI inputs and outputs, as well as signal cross conversion. Power options include a locking 2-pin connector and interchangeable battery brackets (Gold, V, and Sony L series). An Ethernet port allows for camera control connectivity.

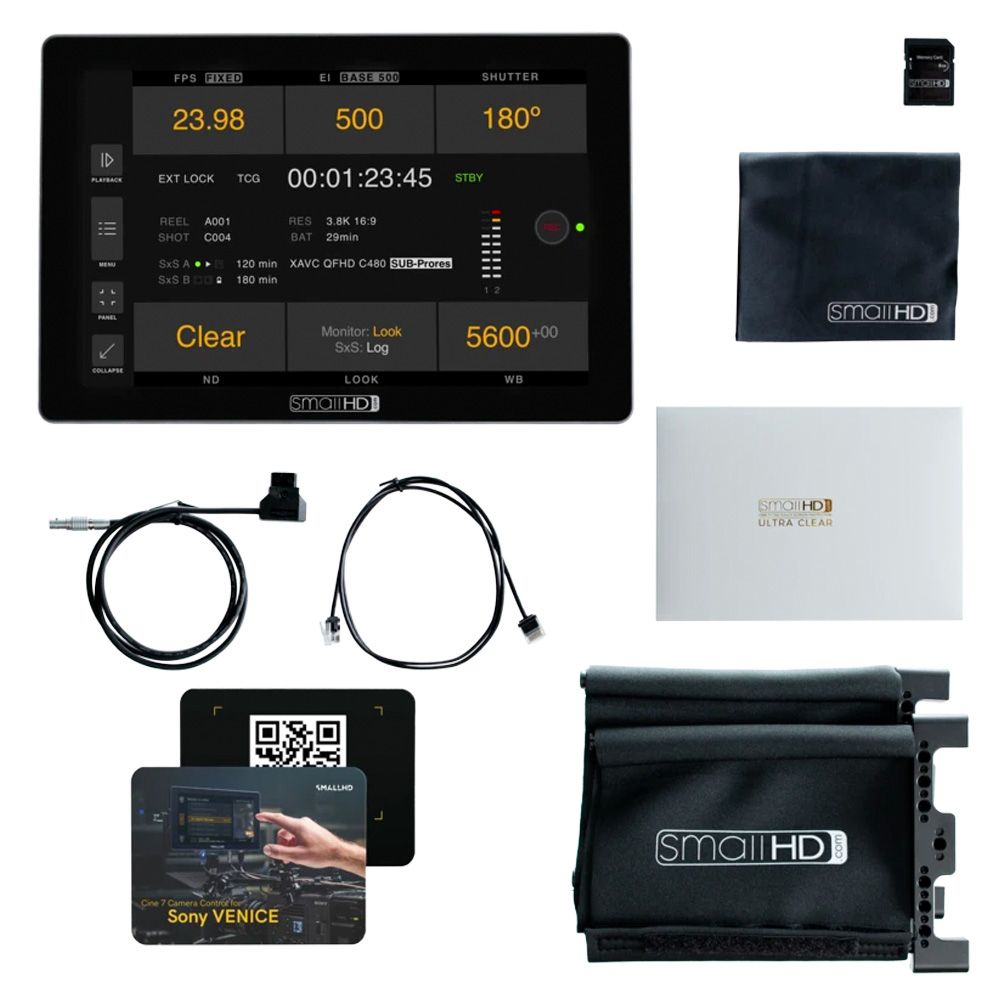

    What's Included:

    • SmallHD Cine 7
    • Sony L-Series Battery Bracket
    • D-Tap to 2-Pin LEMO 36"
    • Ultraclear Screen Protector
    • Sunhood
    • SD Card
    • Cleaning Cloth

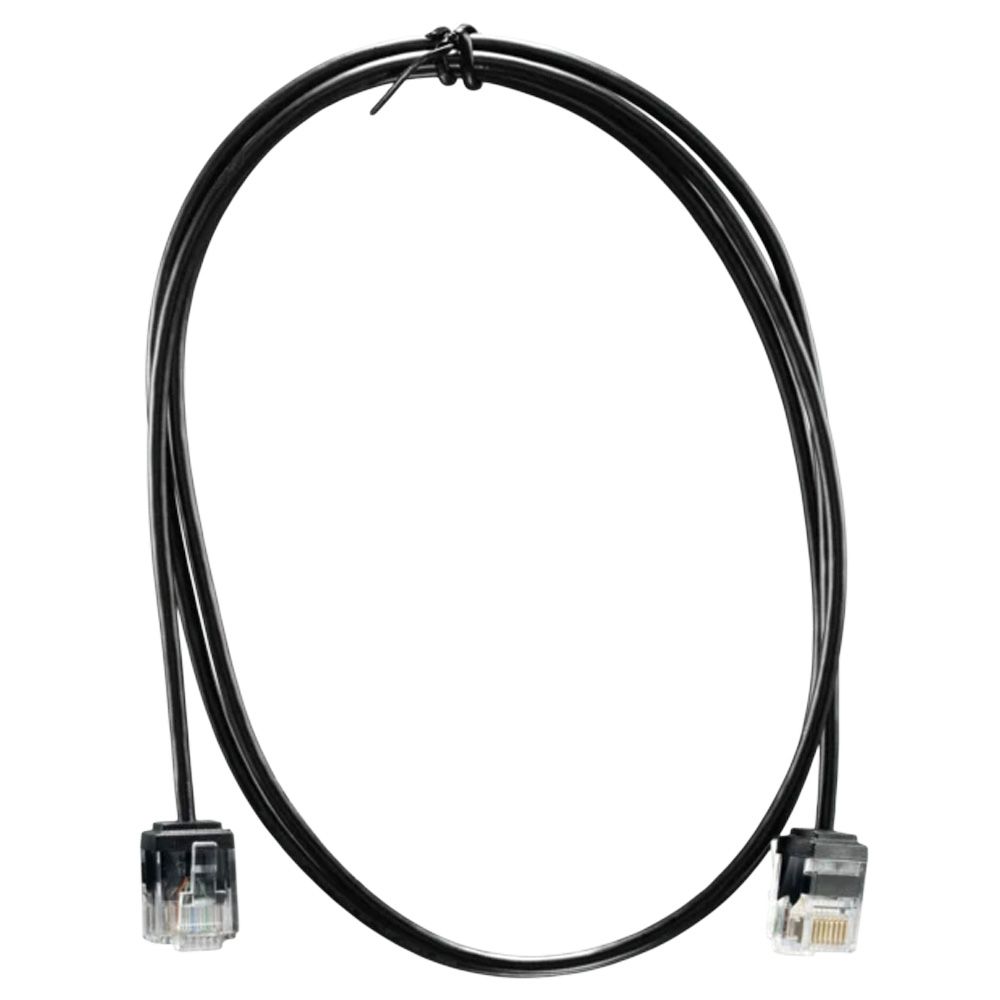

    • Sony Venice Software unlock + Cables

    Display

    Panel TypeIPS LCD
    Size Diagonal7.02
    Resolution1920x1200
    Pixel Density (PPI)322
    Aspect Ratio16:10
    Active Area5.95 x 3.72
    Contrast1000:1
    Color Gamut100% DCI-P3 Coverage
    Color Depth8-b Panel with 10-b Scopes
    Viewing Angle8-b Panel with 10-b Scopes
    Backlight TypeLED
    Adjustable BacklightYes

    Input Signal Types/Formats

    3G-SDIYCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
    HD-SDIYCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
    SD-SDIYCC 4:2:2 @ 10-bits: 480i59.94, 576i50
    HDMIYCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
    AudioHDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

    Output Signal Types/Formats

    3G-SDIYCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
    HD-SDIYCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
    SD-SDIYCC 4:2:2 @ 10-bits: 480i59.94, 576i50
    HDMIYCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
    AudioHDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

    Connector Type

    SDI1x BNC 3G input and 1x BNC 3G selectable input/output
    HDMI1 input and 1 output: HDMI Type-D Receptacles (full size)
    Audio1x 3.5mm 3-pin Stereo Headphone Jack
    Power In2-pin Locking
    USB1x USB 2.0 Micro-B receptacle

    Controls

    Primary Control InterfaceTouch Screen
    Record/CaptureCapture Tool
    RF Wireless Remote / External Control?

    Data I/O

    Storage?
    USB?
    Wireless?

    Power

    Connector TypeLemo
    VoltageDC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max
    Recommended Power SupplyRecommend DC 12~15V at ~2.5 amp or greater
    Overload ProtectionDC input: Reverse polarity
    Battery TypesL-Series, V Mount, Gold Mount
    Battery ChemistryLi-ion
    Battery Charging Time (hours)Monitor does not support the charging of batteries

    Environmental

    ComplianceFCC, IC, CE, RoHS
    Operating Temperature30F to 100F
    Storage Temperature0F to 120F
    Height4.67" (11.86cm)
    Width1.32" (3.35cm)
    Depth/Length7.09" (18.01cm)
    Weight (Packaged)45oz (1275.73g)
    Mount PointsFour ¼-20 Mount Points (Left, Right, Bottom, and Back)

    Software

    Pixel Zoom (type)1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
    Frame GuidesPreset Aspect Ratios & Customizable
    DSLR ScaleCanon 5DMkii & Canon 7D
    Custom ScaleYes (Underscan Only)
    Anamorphic De-Squeeze0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
    Image Rotate(Manual/Automatic)Automatic or Manual Control
    Image Flip (Manual/Automatic)Automatic or Manual Control
    Cross ConversionYes: HDMI → SDI & SDI → HDMI
    Focus Assist (Colors)User Adjustable Color Style and Intensity
    PeakingUser Adjustable Intensity
    False ColorRainbow, Arri Style, Custom with up to 10 nodes
    ZebraDual - User Configurable
    WaveformLuma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
    VectorscopeYes
    RGB ParadeFully User Customizable
    HistogramLuma & RGB Style
    Image CaptureYes
    Custom LUTSLoadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
    LUT DownstreamAvailable on SDI or HDMI Out. Applied on Output Preview Page.
    LUT Importvia SD Card or USB Storage Device
    Image OverlayWith Opacity Slider and Blink Setting
    Audio MetersHDMI & SDI up to 8 channel
