Blackmagic Design ATEM Monitoring Rack Panel 40

88.SWPANELABRMP40
$2,485.00
$2,485.00
$2,259.09
Stock Level:
Out of Stock
Check Location Availability
Make an Enquiry

Blackmagic Design ATEM Monitoring Rack Panel 40

Add To Cart
$2,485.00
$2,259.09

Description

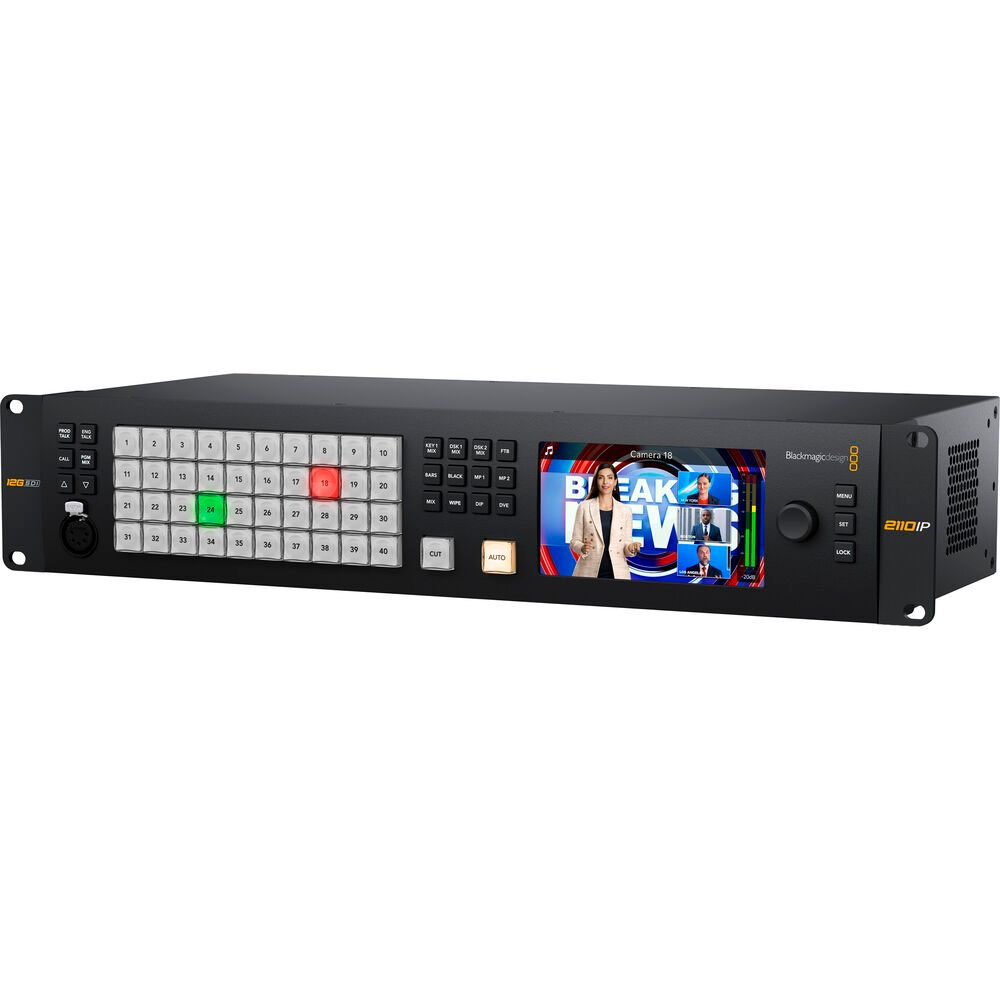

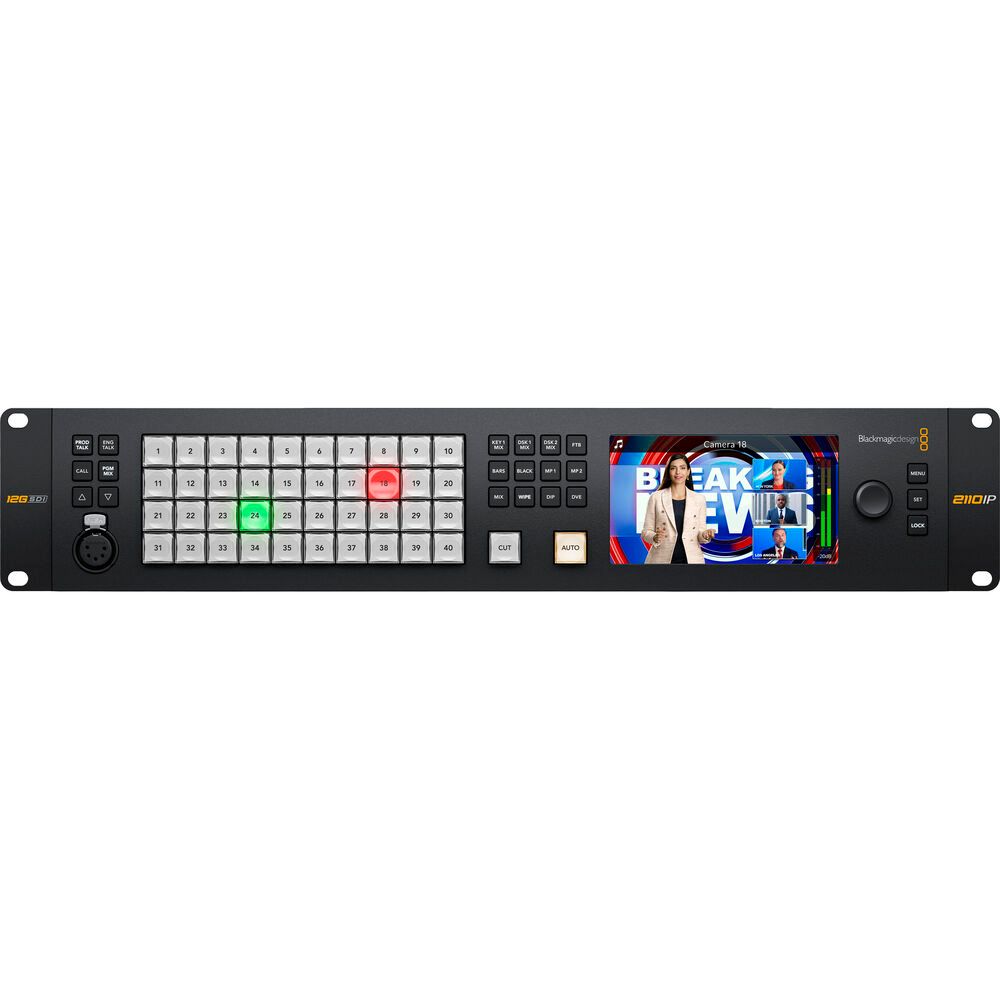

Monitor your SMPTE 2110 IP video using SDI and HDMI monitors with the ATEM Monitoring Rack Panel 40from Blackmagic Design. This video converter comes in a 2 RU form factor that looks like an ATEM switcher, but its basic use is a video converter for monitoring your SMPTE 2110 IP streams on 12G-SDI and HDMI monitors. It features 10G Ethernet ports to source your SMPTE 2110 video, 40 backlit front buttons for easy control, redundant power, a front LCD, a talkback connection, and a 1G Ethernet port that allows control via LAN.

Additional Details

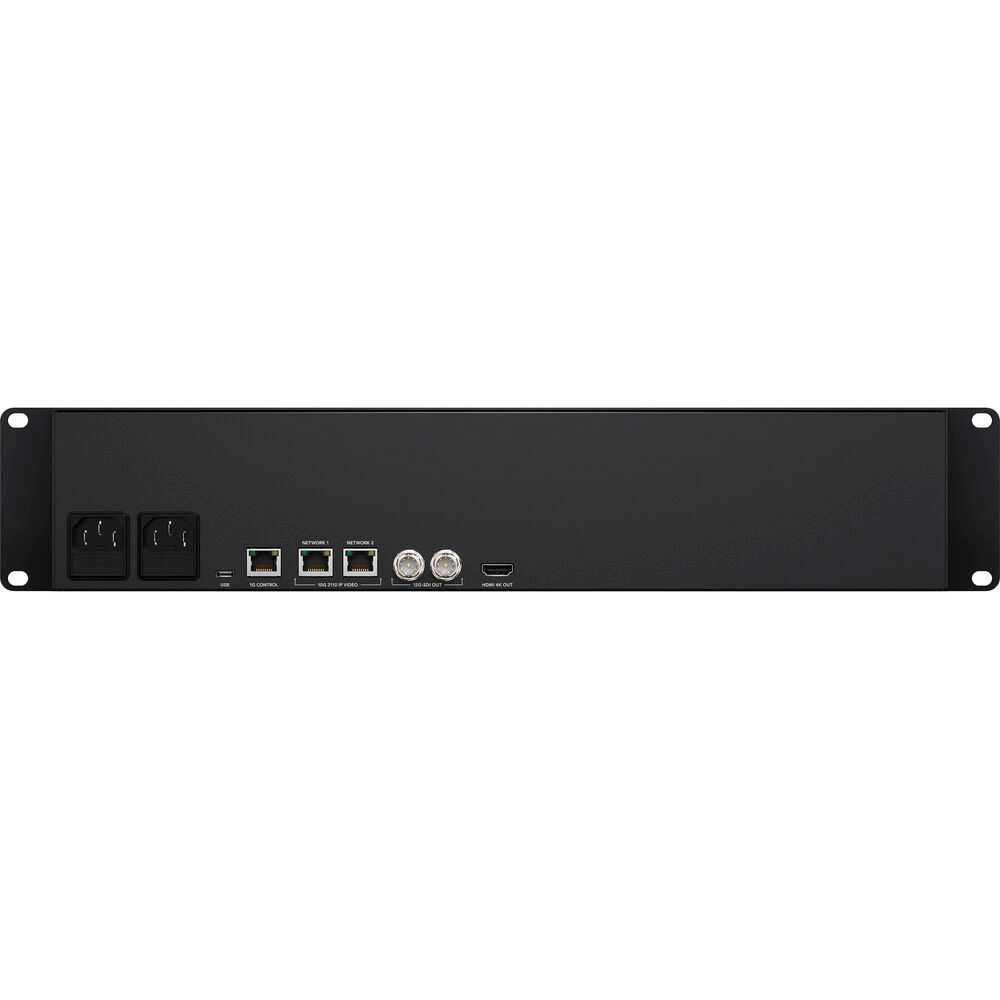

  • Two 10G RJ45 connectors
  • One SMPTE 2110 IP video input to one HDMI and two SDI outputs
  • Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks
  • One 1G RJ45 for connection to the switcher and NMOS control
  • Two SDI Program, two Preview, and two multiview outputs
  • One HDMI multiview output
  • 16-channel embedded audio on both SDI outputs
  • 8-channel embedded audio on HDMI output
  • One 5-pin XLR talkback connection with control buttons on the front
  • Redundant IEC C14 power inputs
  • USB-C input for setup utility and software updates
