Teradek Bolt 6 LT 750 RX

53.10-2262

Product Features:

Supports New 6 GHz Frequency Band
Transmits up to 228m Line of Sight
SDI & HDMI Outputs, Zero Delay
Receive 4K30 Video, 10-Bit 4:2:2
Compatible with all Bolt 4K Transmitters
AES-256 Encryption, 5 x Antennas
Bluetooth Mobile App, Spectrum Analyzer

Configuration Options:

$2,980.00
$2,950.00
Stock Level:
In Stock
Check Location Availability

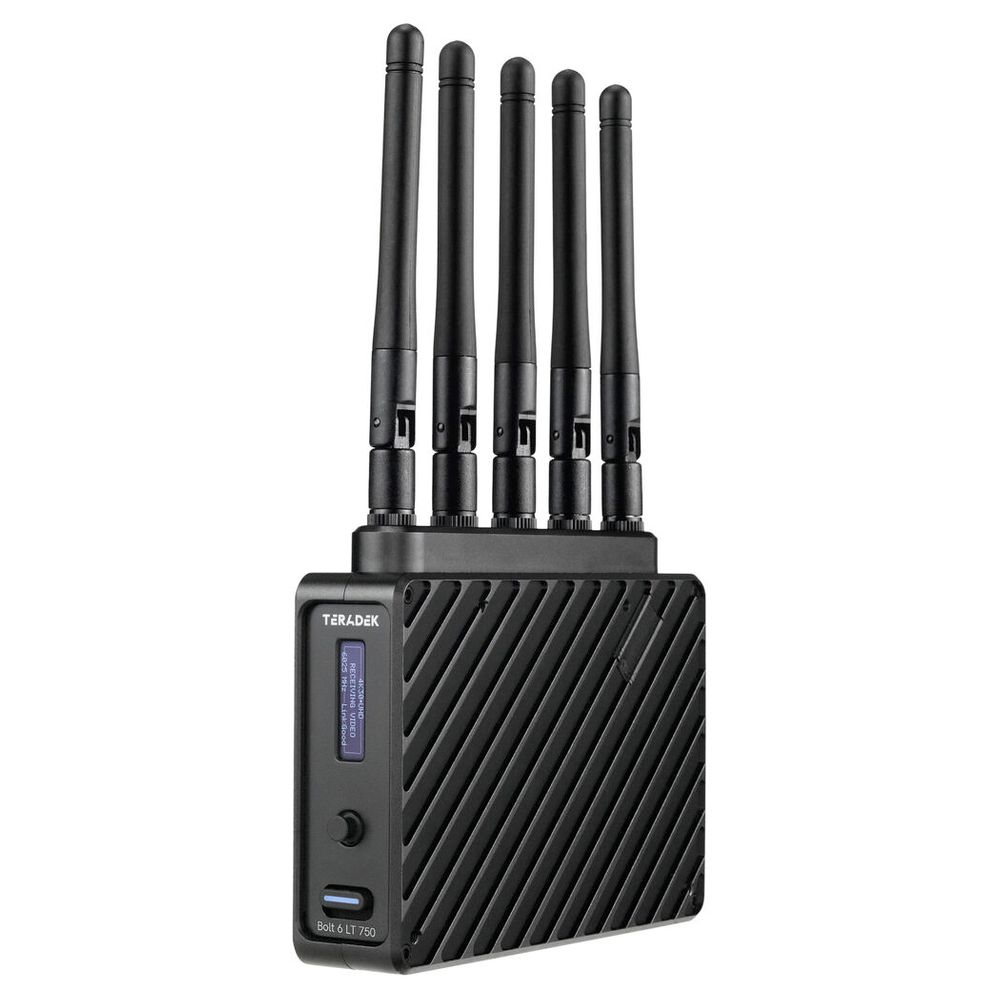

Teradek Bolt 6 LT 750 RX

Essential Add-On's we recommend

Description

Receive lossless HD video from up to 750'(228m) away along line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to 4K30 video with 10-bit HDR support, features a bright OLED display, and features HDMI and 3G-SDI outputs. With the same form factor as the Bolt 4K LT 750, this new line supports the 6 GHz wireless band, which is now freely available.

The receiver supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers and has an improved long-range mode. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT system also supports the transmission of time code and start/stop triggers.

Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.

Key Features
  • Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
  • Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
  • Wirelessly receive up to UHD 4K30 video and output 4K via an HDMI or 1080p via a 3G-SDI output
  • SDI Eye Pattern Tool to check SDI cable integrity
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Improved "long range" mode
  • Small and light chassis design
  • The receiver features five antennas
  • AES-256 encryption and RSA 1024 key pairing support
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration.



Teradek LT 750 Specs

Inputs / Outputs
Antenna Ports5 x RP-SMA Female
Video1 x HDMI Type A (HDMI 1.4b) Output
1 x BNC (3G-SDI) Output
Embedded AudioHDMI: 2-Channel
SDI: 2-Channel
AudioNone
Power I/O1 x LEMO 2-Pin (28 VDC) Input
Other I/O1 x Micro-USB Input
Encryption256-Bit AES
Wireless
Wireless Range750' / 228.6 m (Line-of-Sight)
Channel Bandwidth40 MHz, 20 MHz
Frequency RangeNon-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power21 dBm
Wi-FiNone
BluetoothYes
Format Support
Video FormatHDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format2-Channel 24-Bit 48 kHz
Timecode SupportYes
Power
DC Input Power6 to 28 VDC
Power Consumption11 W
Mounting
Mounting1 x 1/4"-20 Female
1 x 3/8"-16 Female
Environmental
IP RatingNone
Operating Temperature0 to 40°C
General
Material of ConstructionAluminum, Polycarbonate
Dimensions122 x 94 x 27 mm
Weight292 g



In the Box

  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver
  • 2-Pin to D-Tap Power Cable (18")
  • USB Type-A to Micro-USB Type-B Cable (3')
  • Ultra-Thin HDMI Type A to HDMI Type A Cable (18")
  • BNC to BNC SDI Cable (10")
  • AC Adapter with Cable (6')
  • 5 x Antenna
  • Limited 1-Year Warranty
