Teradek Bolt 6 LT 750 TX/RX
53.10-2260
Product Features:
3G-SDI/HDMI Transmitter & Receiver Set
Supports New 6 GHz Frequency Band
Transmits up to 228m Line of Sight
Supports up to 4K30 Resolution Input
3G-SDI/HDMI Inputs & Outputs
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K Series 5G TX/RX
AES-256 Encryption, 7 x Antennas
Bluetooth Mobile App, Spectrum Analyzer
Configuration Options:
$5,075.00
$5,050.00
Stock Level:
In Stock
Check Location Availability
Essential Add-On's we recommend
You may also like...
-
Brand
Stock Level:In StockStock Code:54.A00054Was:$810.00Now:$730.00Price:$730.00 -
Brand
Stock Level:Out of StockStock Code:33.1.MON-CINE-7Price:$3,995.00 -
Brand
Stock Level:In StockStock Code:52.NEO-9SWas:$445.01Now:$399.00Price:$399.00 -
Brand
Stock Level:In StockStock Code:54.278800Was:$190.00Now:$170.01Price:$170.01
Description
Transmit and receive lossless HD video from up to 750' (228m) line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver that support the new 6 GHz wireless frequency and feature bright OLED displays and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.
The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.
Key Features
- Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
- Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
- SDI Eye Pattern Tool to check SDI cable integrity
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Improved "long range" mode
- Small and lightweight chassis design
- Transmit to up to six Bolt 4K or Bolt 6 series receivers
- AES-256 encryption support
- Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Teradek LT 750 Specs
Inputs / Outputs
| Antenna Ports | Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female |
| Video | Transmitter: 1 x HDMI Type A (HDMI 1.4b) Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI Type A (HDMI 1.4b) Output Receiver: 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
Wireless
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
Format Support
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
Power
| DC Input Power | 6 to 28 VDC |
| Power Consumption | Transmitter: 9 W Receiver: 11 W |
Mounting
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
Environmental
| IP Rating | None |
| Operating Temperature | 0 to 40°C |
General
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 103 x 60 x 33 mm Receiver: 122 x 94 x 27 mm |
| Weight | Transmitter: 206 g Receiver: 292 g |

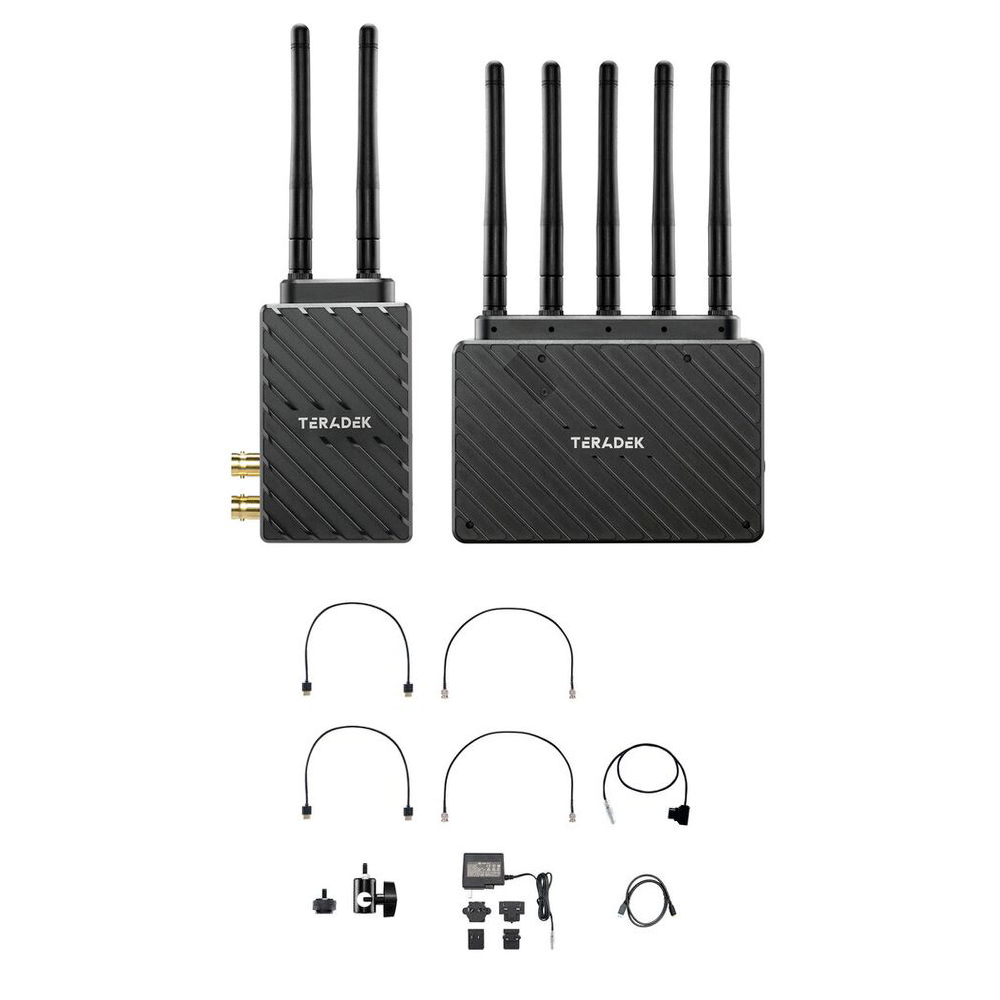

In the Box
- Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
- Bolt 6 LT 750 3G-SDI/HDMI Transmitter
- Bolt 6 LT 750 3G-SDI/HDMI Receiver
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- 2 x HDMI Type A Male to HDMI Type A Male Cable (18")
- 2 x BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 7 x Antenna
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- Carry Case
- Limited 1-Year Warranty
