Wooden Camera Top Plate (Sony FX9)

54.275100

Product Features:

Top plate specifically for the Sony FX9
Arrays of various mounting points
Can be used with original Sony handle
Sony XDCA-FX9 Extension Unit can also be attached to the rear of the camera without obstruction
$550.00
Stock Level:
In Stock

Wooden Camera Top Plate (Sony FX9)

Description

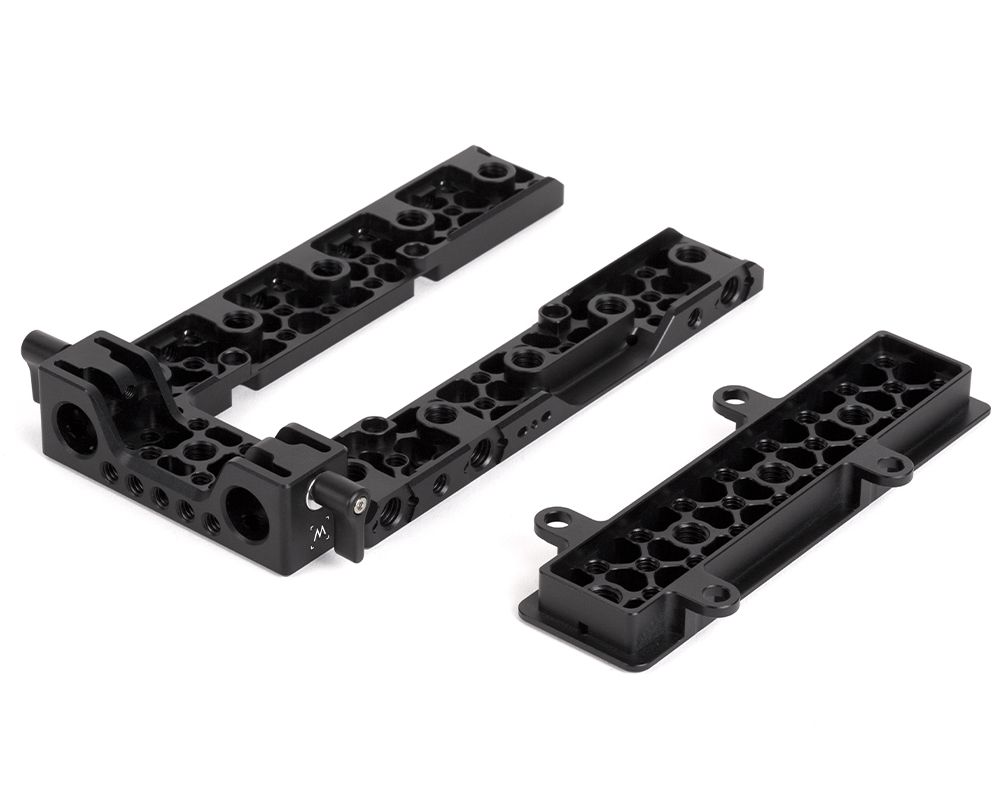

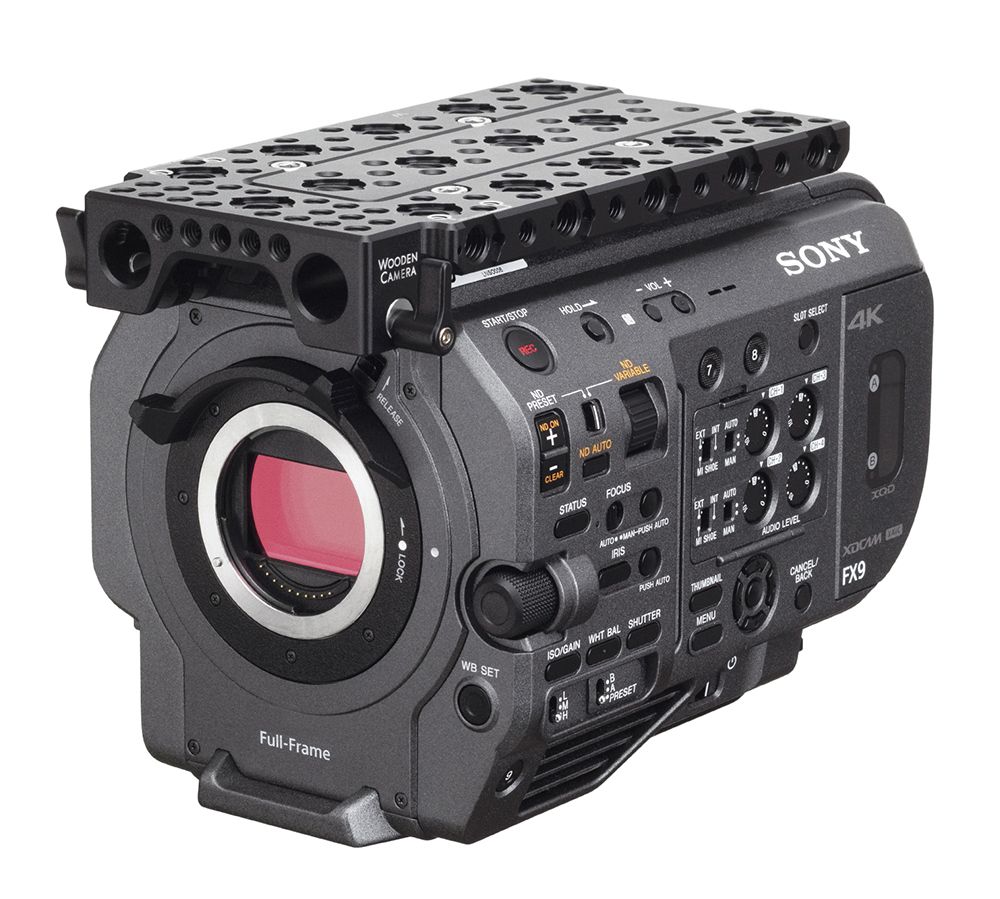

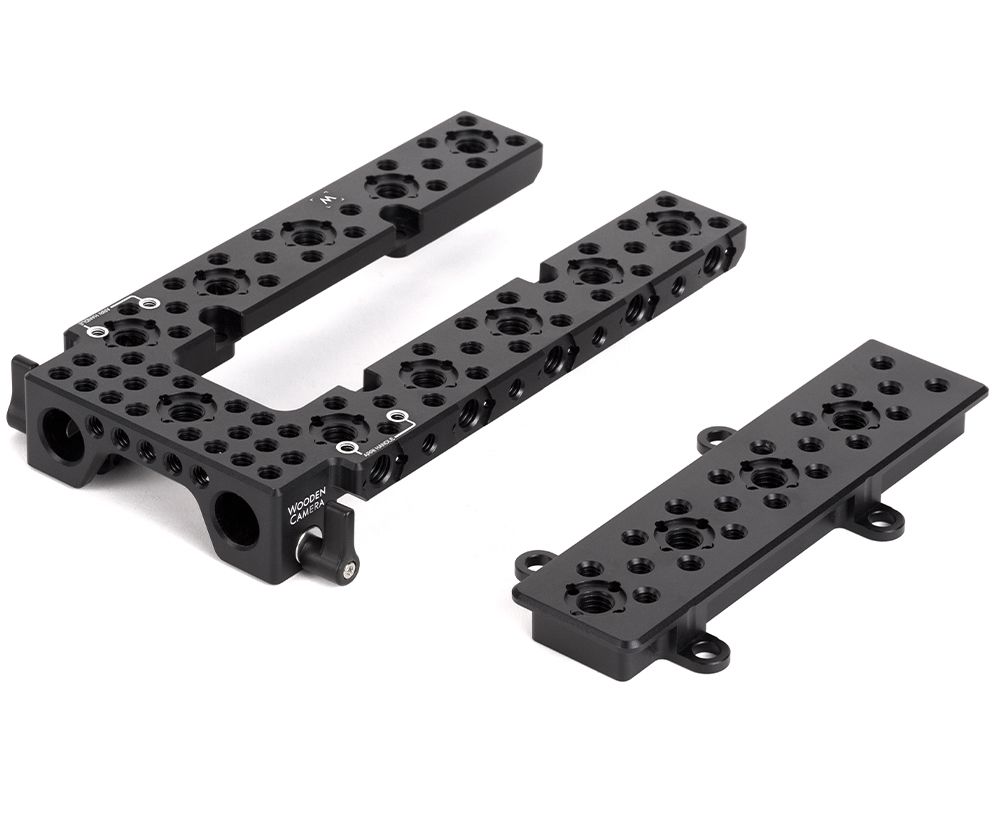

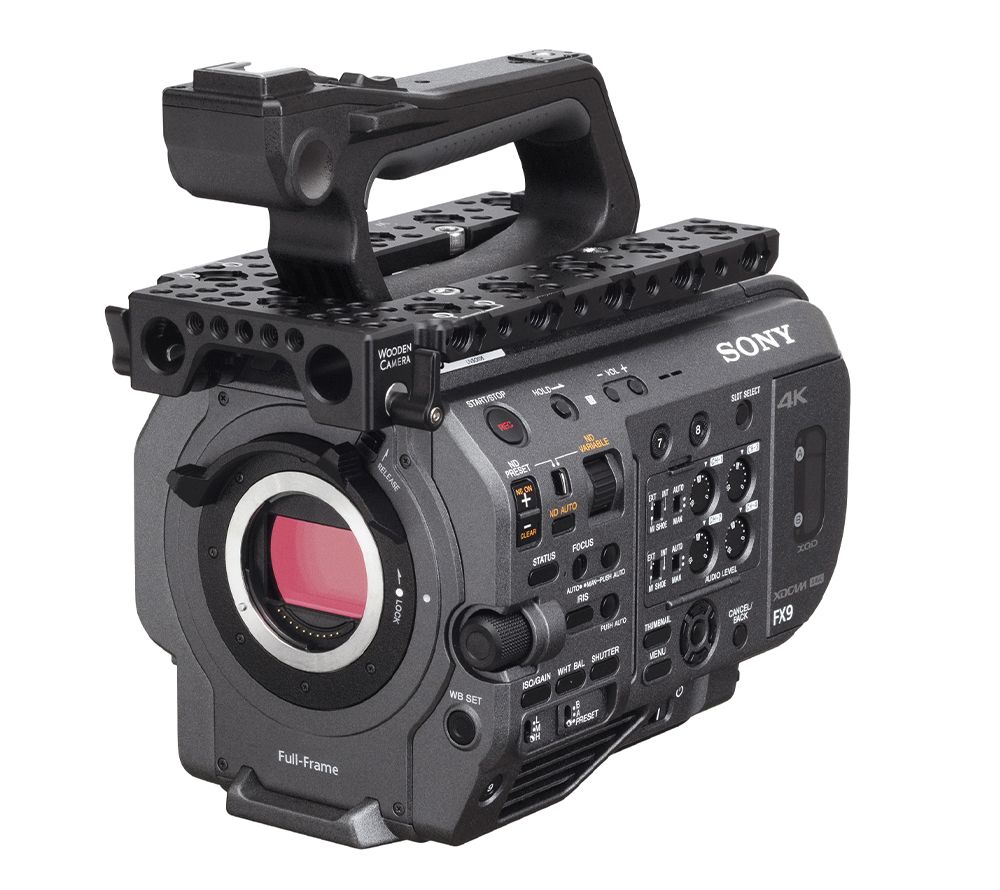

Top Plate (Sony FX9) is a top cheeseplate for the Sony FX9 that contours to the shape of the camera body. Arrays of 1/4-20 holes in standard spacing and multiple 3/8-16 holes with ARRI accessory mounts are also available in several places. Original Sony handle can be reinstalled by removing the centre section of the top plate. Communication between the handle and the Sony body is possible by using just the U shaped portion of the top plate. The Sony XDCA-FX9 Extension Unit can also be attached to the rear of the camera without obstruction.

See also: E-Mount to PL Mount Pro (Sony Alpha, FS7mkII, FX9)

Includes:

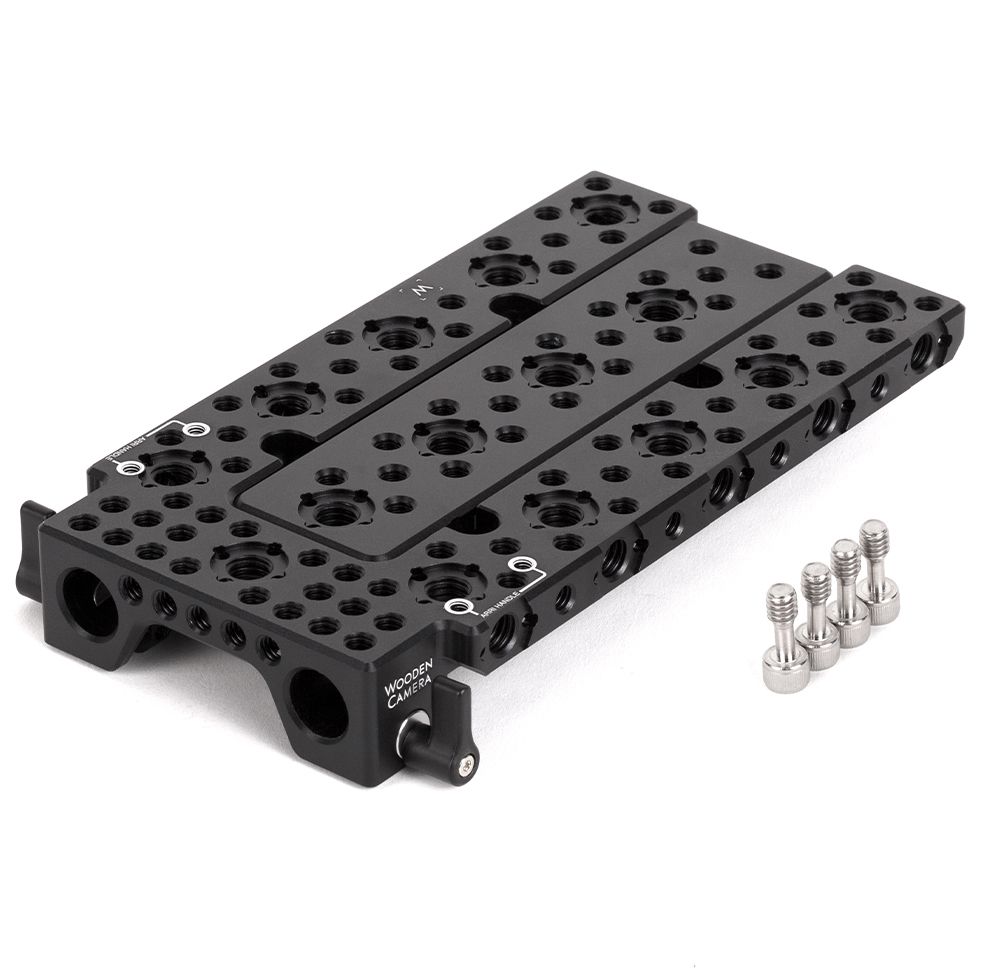

  • (4) 1/4-20 x 1/2" screws (for attaching top plate directly to camera)
  • (1) M2 Philips screw (for relocating the Sony cable clamp onto the side of the top plate)

Specifications:

  • Weight: 273g (0.6 lbs)
  • Dimensions: 193.8 x 101.6 x 28.7 mm
