Wooden Camera - E-Mount to PL Mount Pro (1/4-20 Support Foot)

54.233400

Product Features:

For All Sony E Mount Cameras
1/4"-20 Threaded Support Foot
Supports new FX9
$990.00
$890.00
Stock Level:
In Stock
Check Location Availability

Wooden Camera - E-Mount to PL Mount Pro (1/4-20 Support Foot)

Essential Add-On's we recommend

Description

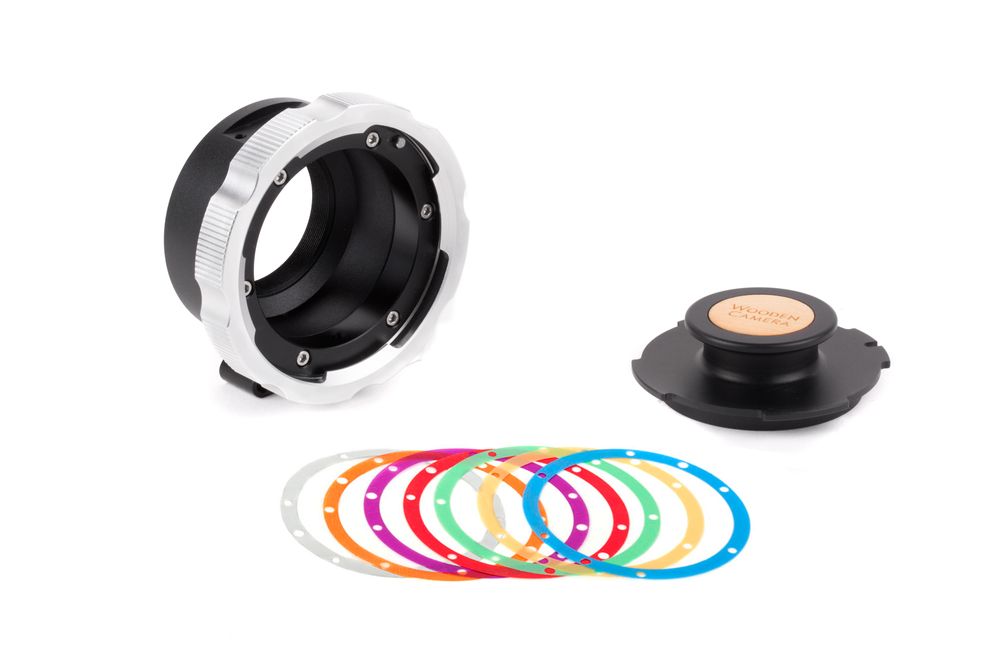

E-Mount to PL Adapter Pro is a shimmable version of our popular Sony E-Mount lens mount adapter that enables mounting of PL mount lenses onto the Sony E-Mount cameras. Mount includes a foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The support foot can also be attached to the Unified Baseplate (FS7) or (FS5) using the vertical support hole and the Unified Lens Adapter Support Kit. PL Cap included to prevent dust from entering sensor area when lens is not attached.

If you are using the E-Mount to PL Mount Pro without a camera cage, you can use the included WC Lens Adapter Universal Support Foot to attach directly to the bottom of your camera and lens mount. This allows all the weight to be transferred from the lens mount to the bottom of the camera to avoid any flexing or damage that could occur when using heavier lenses.

In our factory, we set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding colour coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.

Includes:

  • (2) M4x20mm socket cap screw
  • (1) 1/4-20 Support Foot
  • (1) Universal Support Foot
Compatibility:

This adapter will also work with any Sony E-Mount camera like the below:

  • Sony FX9
  • Sony FS7
  • Sony FS5
  • Sony A7s, A7sII, A7r, A7rII, A6300
  • Sony FS700
  • Sony FS100
  • Many more!

Specifications:

  • Weight: 251g (0.6 lbs)
  • Dimensions: 85.1 x 81.8 x 48 mm

Features:

Features:
- 1/4-20 foot for attaching tripod plate or support

Shim set (stackable to achieve necessary thickness)

  • Silver .0127mm (0.0005")
  • Amber .0254mm (0.001")
  • Purple .0381mm (0.0015")
  • Red .0508mm (0.002")
  • Green .0762mm (0.003")
  • Tan .1016mm (0.004")
  • Blue .127mm (0.005")
