Description

Premium-quality imaging – PrecisionCore MicroTFP printhead, 11-colour UltraChrome GS3 ink, including Red, Orange and new Green Consistent quality – integrated printhead temperature sensor and nozzle verification technology for consistent colour Efficient production – minimises downtime with user-replaceable printheads, requiring no specialist tools Sleek and compact – low-profile design with a precise, space-efficient footprint and a flat-top surface for streamlined operation Efficient and flexible ink system – 800/1500 ml ink packs to suit different production needs Low maintenance – hassle-free automatic printhead cleaning system for optimal performance Seamless integration – supplied with Epson Edge Print Pro RIP software. Epson Cloud Solution PORT for advanced job management, cost tracking and service support Reduced running cost – energy-efficient design and cost-effective ink packs help reduce print costs. Comprehensive warranty, extendable up to five years with CoverPlus, minimising TCO

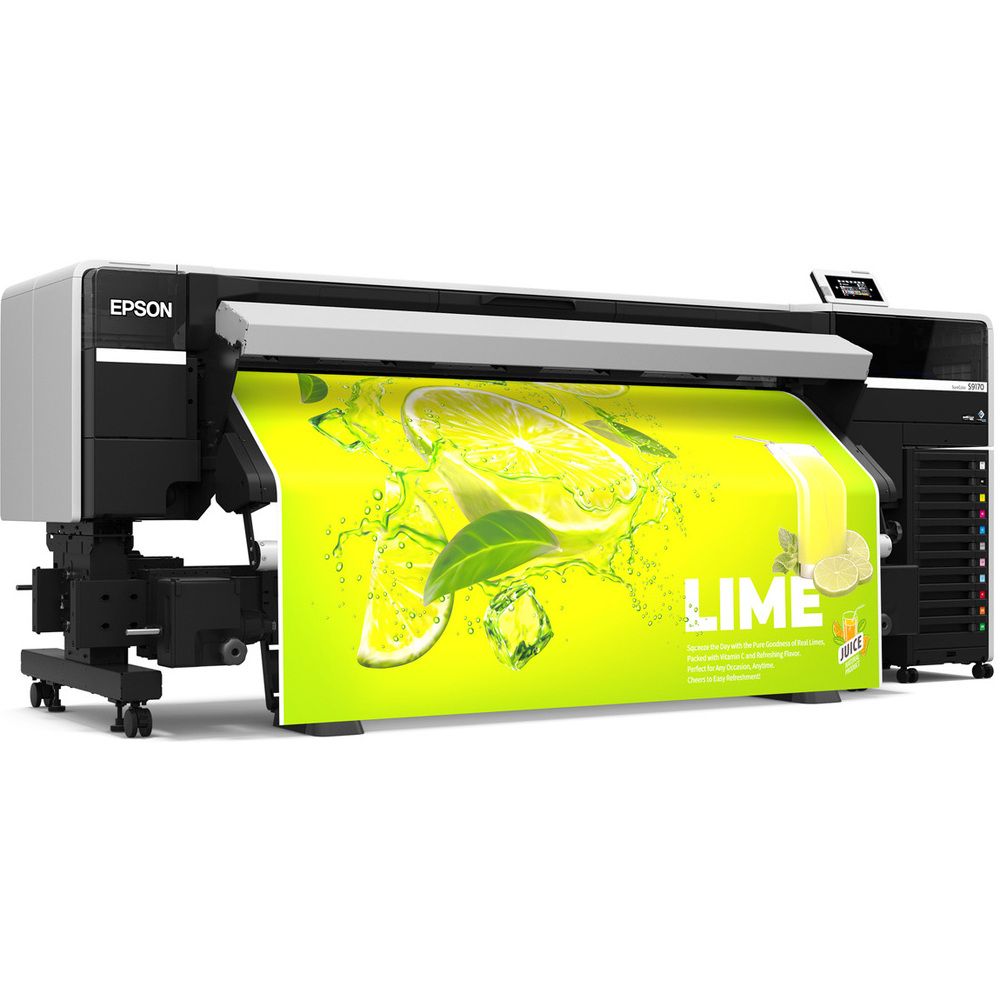

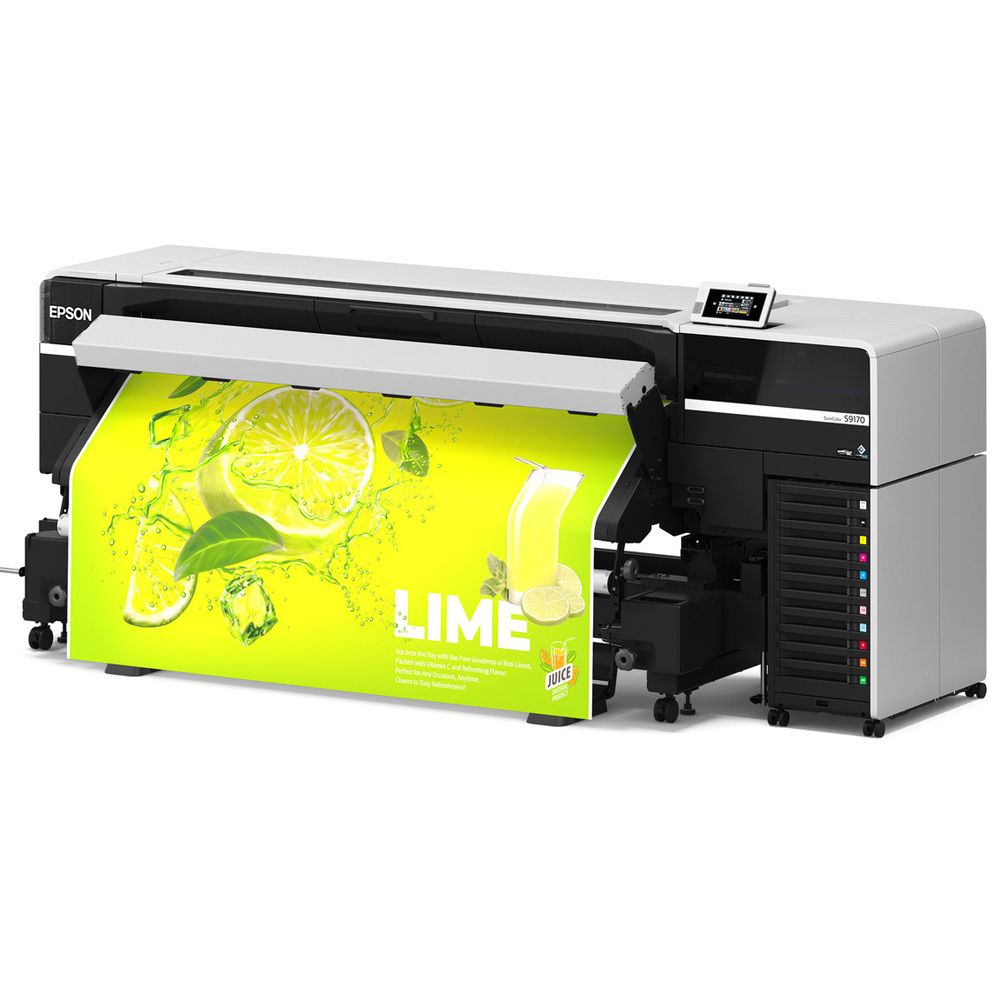

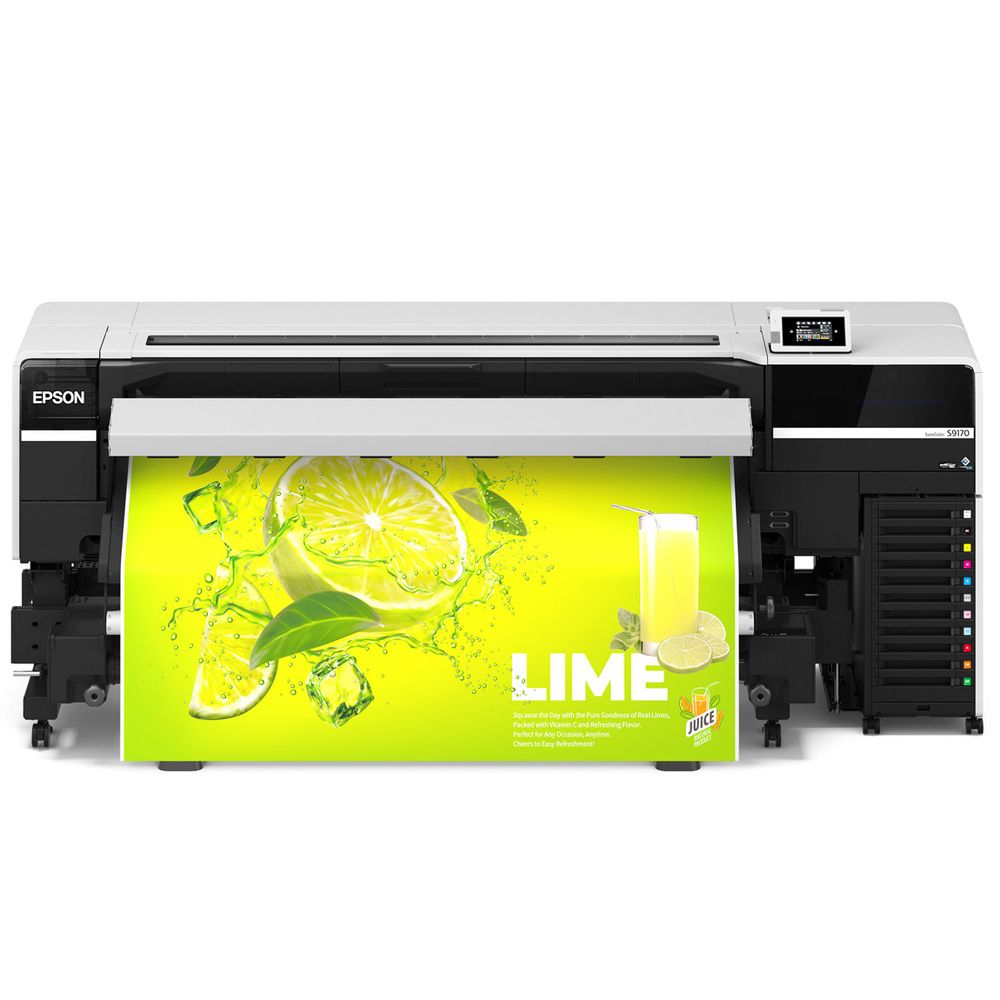

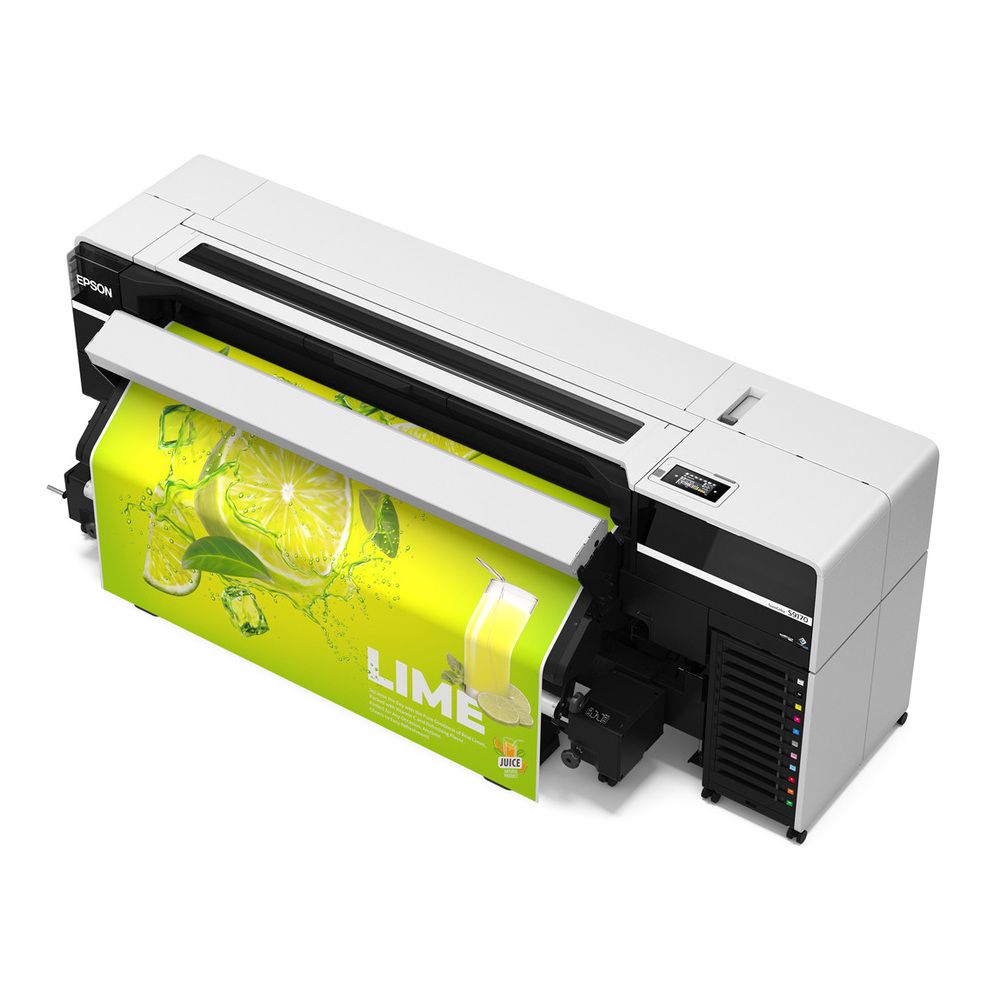

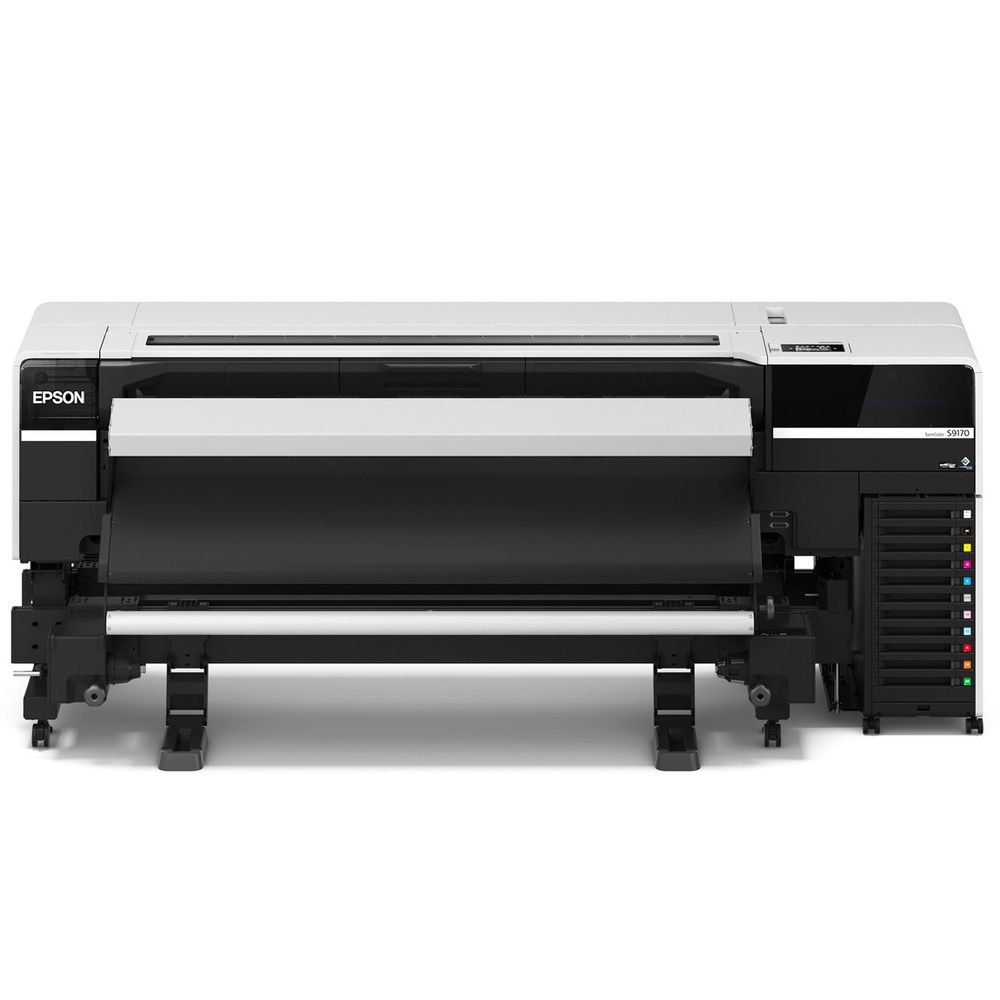

The SureColor S9160 sets a new standard in signage printing, delivering exceptional image quality and an expanded colour gamut with an 11-colour UltraChrome GS3 ink set, including Red, Orange and an all-new Green.	Equipped with a PrecisionCore MicroTFP printhead, the SC-S9160 features an integrated temperature sensor and nozzle verification technology to ensure consistent colour accuracy, reliable image quality and enhanced productivity. Engineered with Epson’s latest technology, the user-replaceable printhead minimises downtime, providing a seamless and efficient printing experience.
Superior Quality & Consistency The SureColor S9160 delivers exceptional image quality and consistent results thanks to Epson's PrecisionCore MicroTFP printhead and UltraChrome GS3 inks. The SC-S9160 utilises an advanced 11-colour ink set, including Red, Orange and an all-new Green for vibrant, high-impact prints with true-to-life colours, as well as opaque white ink, which can be used on clear or dark substrates to add versatility and enhance colour. This expanded ink set delivers a broad colour gamut and enables vibrant and accurate prints on a variety of media types, including vinyl, canvas, film, wallpaper and other roll media up to 1625 mm.	The PrecisionCore MicroTFP printhead with integrated temperature sensor and nozzle verification technology ensure consistent colour accuracy and reliable performance - job to job, panel to panel, even during long print runs.
Fast, efficient and reliable production Whether printing signage, graphics or other large-format jobs, the SC-S9160 delivers exceptional speed without compromising quality. Engineered for maximum efficiency, the printer is faster1 and is further enhanced by its advanced drying system, which minimises downtime by ensuring prints are fully cured and ready for handling almost immediately. The user-replaceable printhead saves time and hassle, allowing for quick replacement without a technician or specialist tools2, keeping production smooth and uninterrupted. Its enhanced media wiper system reduces dust and particle interference for consistent print quality. Equipped with a media lifter, which allows a single user to handle heavy media easily and securely. Paired with a precise media take-up system and advanced auto tension control, it optimises handling for large and complex print jobs for exceptional control, reliability and efficiency in high-production environments. The printer allows for flexible ink configuration, enabling the installation of either 800 ml or 1,500 ml of any colour to optimise workflow efficiency while minimising plastic waste.	Smart, compact design for seamless operation The SureColor S9160 boasts a sleek, space-saving build and a low-profile design. Its flat-top surface includes a transparent window with built-in lighting, offering clear visibility of the platen from both the front and back of the printer.
The large 4.3" touchscreen control panel is adjustable for optimal viewing and features an intuitive interface with built-in support. The hassle-free automatic printhead cleaning system ensures consistent performance with minimal maintenance, reducing downtime.	Bundled with Epson Edge Print Pro RIP software, the SC-S9160 streamlines workflow management with effortless optimisation. Epson's Cloud Solution PORT enables real-time printer monitoring and remote troubleshooting, which maximises uptime and ensures smooth, efficient production. The printer comes with a comprehensive onsite warranty, extendable up to five years with optional CoverPlus service.

•


















  64" SIGNAGE PRINTER
  PRODUCT NAME	SureColor S9160 - 64"

  SIZE
  Max media width	64 inches (1625 mm)

  PRINT TECHNOLOGY
  Printhead	2.64" PrecisionCore MicroTFP
  Print modes	Uni & bi-directional
  Nozzle configuration	Colour: 800 nozzles per colour White: 1600 nozzles per colour
  Maximum resolution	1200 x 1200 dpi
  Minimum droplet size	4.3 pl

  INK SYSTEM
  Family	Epson Ultrachrome GS3
  Type	Eco-solvent
  Colours	C, M, Y, K, Lc, Lm, Lk, Rd, Or, Gr, W or Cl
  Capacity	800 ml or 1500 ml

  PERFORMANCE
  Max speed	119.4 m²/hr	1 pass 300 x 300 dpi
  Billboard	63.0 m²/hr	2 pass 300 x 600 dpi
  Banner high speed	35.6 m²/hr	4 pass HS 600 x 600 dpi
  Banner speed	29.9 m²/hr	4 pass 600 x 600 dpi
  Banner production	20.1 m²/hr	6 pass 600 x 600 dpi
  Banner quality	14.8 m²/hr	8 pass 600 x 600 dpi
  Vinyl, canvas, paper & textile production	14.0 m²/hr	10 pass 1200 x 600 dpi
  Film production (1 layer)	7.2 m²/hr	17 pass 1200 x 600 dpi
  Film production (2 layer)	4.0 m²/hr	30 pass 1200 x 600 dpi
  Speeds are bi-directional engine only for 64" wide output. Figures provided for reference only and based on standard applications and quality levels with output produced via Epson Edge Print. Actual performance will depend on the individual user application and quality requirements. Alternative RIPs may operate with different modes and speeds. Total throughput times will depend on a number of factors, including workflow, paper type, RIP, file format & size, print resolution & ink coverage, networking, etc.

  MEDIA SUPPORT
  Format	Single roll with 2" or 3" core, 250 mm max outer diameter 45 kg max weight
  Thickness	1.0 mm max
  Width	300 - 1625 mm (12" - 64")
  Minimum margins	5 mm left & right
  Loading	rear, single operator with supplied media lifter
  Output	Sheet-based with manual cut Roll-based with integrated auto-take-up (ATU)

  OPERATION
  Control panel	4.3" colour touchscreen LCD
  Interface	USB 3.0, Ethernet 100Base-TX/ 1000 Base-T
  Memory	4 GB
  Utility Software	Epson Edge Dashboard, Epson Epson Edge Print PRO, Communications Driver, Epson Cloud Solution PORT, Web Installer, Firmware Updater, Epson Manual Launcher
  Additional software	Works with a range of common workflow and RIP applications
  OS compatibility	Windows 11, 10, 8.1 (64-bit), Mac OS X 10.7 or later
  Printer language	ESC/P Raster

  ENVIRONMENTAL
  Power supply	200 - 240 V, 50/60 Hz AC, 10 A
  Power consumption	1190 W operating, 500 W ready, 3.4 W sleep
  Operating noise	60.5 dB
  Operational space (W x D)	3.6 m x 2.9 m (recommended)
  Operational temp	15° - 35°C (20° - 32°C recommended)
  Operational humidity	20 to 80% with no condensation (40 - 60% recommended)

  PHYSICAL (W x D x H)
  Dimensions	2620 x 1004 x 1021 mm
  Weight (no ink or media)	342 kg
  Packaging	2980 x 1130 x 1099 mm (520 kg)

  WHAT'S IN THE BOX

  Printer, ink supply system, a set of 800 ml ink pouches (excl. White), 1 x 800 ml cleaning fluid, 1 x roll of GS Poster Paper, 1 x 2 L waste ink bottle, 1 x maintenance parts kit, 1 x media lifter, 1 x ink cleaner, 1 x cleaning wipes, 20 x cleaning sticks, 6 x pairs of gloves, 1 x media cleaner brush, 1 x paper tape, 1 x tweezers, 1 x metal tray, 2 x AC power cables, Epson Edge Print PRO, user manual

  CONFIGURATION OPTIONS
  SCS91601Y	Printer with 1-year onsite wty
  SCS91603Y	Printer with 1-year onsite wty + 2-year CoverPlus
  SCS91605Y	Printer with 1-year onsite wty + 4-year CoverPlus

  ACCESSORIES & OPTIONS
  YR2S9160	Year 2 onsite CoverPlus
  YR3S9160	Year 3 onsite CoverPlus
  YR4S9160	Year 4 onsite CoverPlus
  YR5S9160	Year 5 onsite CoverPlus

  SERVICE & SUPPORT

  The printer and any associated options purchased with it are supplied with a 1-year onsite warranty that covers parts and labour including the printhead. The printer may be ordered with additional CoverPlus for a total maximum cover of up to 5 years. Customers who want 2 or 4 years of cover may order the additional cover separately. Limitations apply to the provision of warranty and CoverPlus (see below). Support is only provided for product supplied through Epson Australia or Epson New Zealand. The facility is provided in conjunction with the authorised large format reseller through which the product is ordered and Epson's network of authorised service partners. Service will be provided onsite at no charge for equipment located in major metropolitan areas with ready access. Regional locations and installations with difficult access may receive onsite service subject to imposition of a travelling/access charge. IMPORTANT NOTES Epson Cloud Solution PORT is a secure cloud-based service that is used to facilitate the provision of support on this model. Agreement to the terms of supply and registration under the program is required to enable fulfilment of CoverPlus. During operation, the printer must remain connected to a network with Internet access via a router configured for two-way data transfer. This model supports user self-replacement of the printhead. Operation requires Epson Cloud Solution PORT and nomination of one or more staff members to perform the process. Staff should have a moderate level of technical skill and must undertake training (can generally be performed during the installation process). In the event that the nominated staff member leaves employment, a replacement will need to be nominated and undertake training (may attract additional charges). Service may be restricted or limited if equipment is not installed in an appropriate environment, not appropriately maintained, be modified, used outside of specification, with non-Epson consumables or without activation of Epson Cloud Solution PORT. For further details on cover, terms and conditions please review the warranty terms and CoverPlus sections of this web-site. If you have additional questions, please contact Epson directly.

  Usage Conditions

  Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to – do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

  ---

  1. Compared to the same pass rates of its predecessor models, the SC-S80600 and SC-S80660L.
  2. To enable the user-replacement feature, the printer must be registered and remain connected to Epson Cloud Solution PORT. Additionally, the operator is required to complete the necessary training.
