Blackmagic Design Teranex Mini - SDI To Analog 12G

88.CONVNTRMBASDIAN

Product Features:

Advanced High-Data Rate Signal Converter
Down-Convert 12G-SDI 4K Signal to Analog
Supports Up to 4K DCI 4096x2160p Signals
12G-SDI Input and Loopout
XLR Connections Switchable to AES/EBU
Ethernet Port for Remote Control or PoE
Supports Optional LCD Smart Front Panel
Intelligent Thermal Heat Dissipation
3 Units 1U Rack-Mountable in 19" Rack
Manage Numerous Units from a Mac or PC
$899.00
$809.10
Available Soon
Check Location Availability

Blackmagic Design Teranex Mini - SDI To Analog 12G

Essential Add-On's we recommend

Description

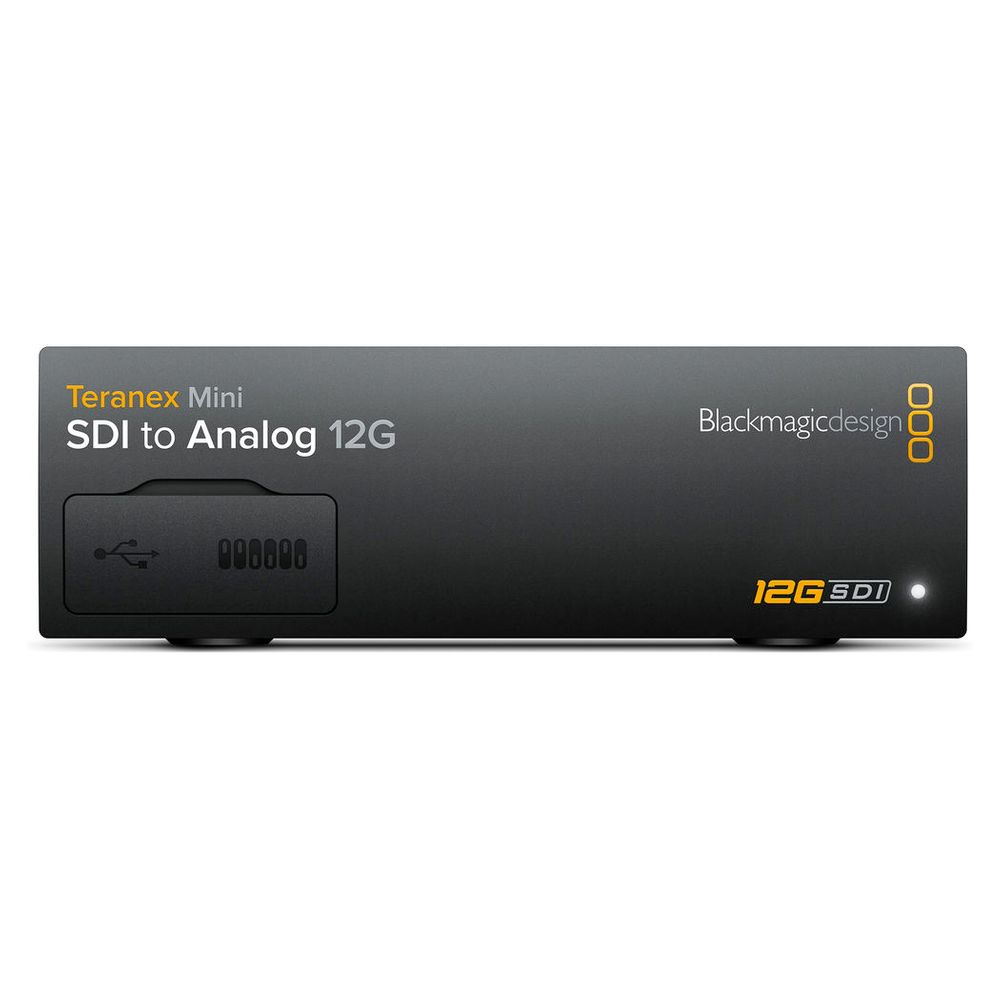

Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, the Teranex Mini SDI to Analog 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Down-convert up to a 12G-SDI Full 4K DCI 4096x2160p signal to analog so you can connect high-resolution sources to component video equipment in HD or SD. You can also output the audio of the SDI signal via full-size XLR outputs that are switchable between balanced analog and AES/EBU digital audio.

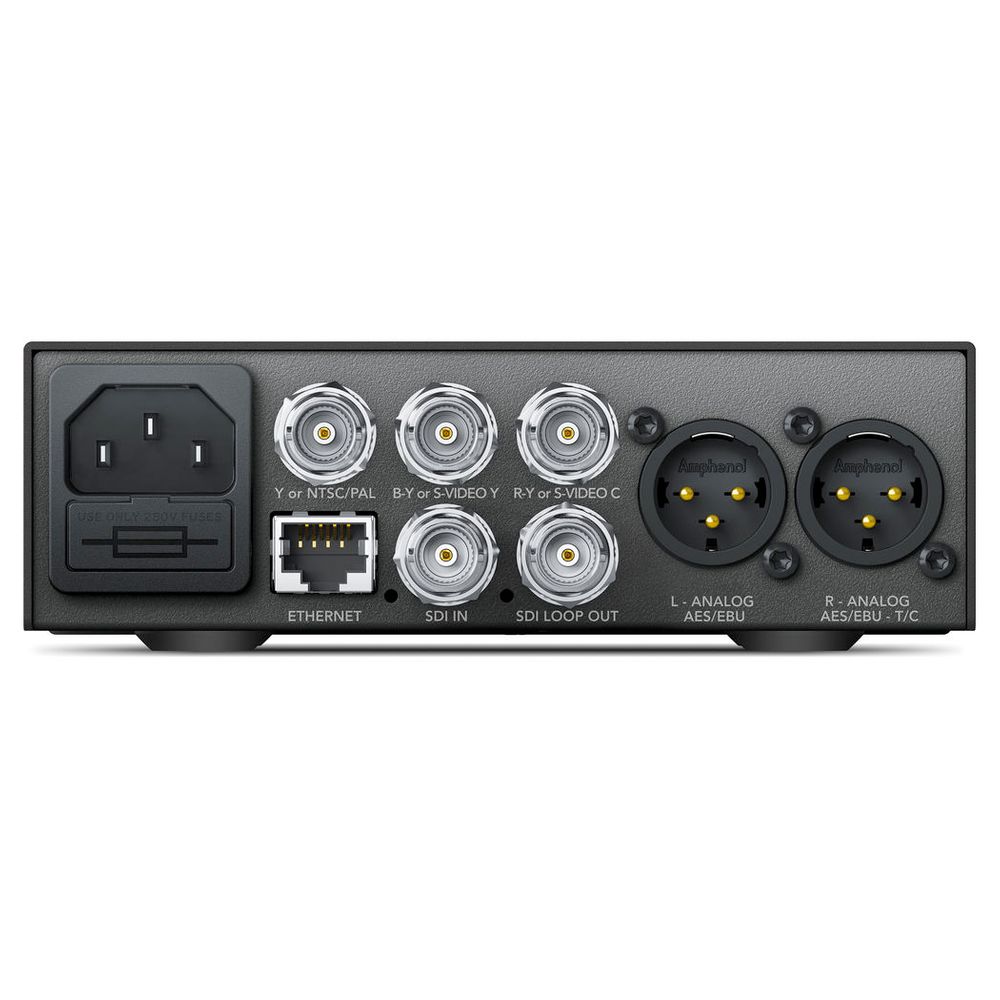

The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 19" rack tray, and they can just as easily be removed, and all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet. If you don't want to use power over Ethernet, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.

A major benefit of the Teranex Mini is that the standard front panel can be replaced with an optional Smart Panel that features a spin knob, color LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will also let you monitor audio levels as well as verify timecode and the video standard being converted. The standard front panel simply comes off and the Smart Panel easily attaches in its place. When you're using the standard front panel, you'll have access to an array of mini switches that will let you change settings instantly in correspondence with a diagram printed on the converter. If you swap in the optional Smart Panel, you'll instead be able to use simple on-screen menus as well as see exactly what you're converting. If you're in a larger facility using numerous converters, you can manage all of them over Ethernet from a Mac or Windows computer using the included Converter Utility software.

What enables the Teranex Mini to dissipate heat so effectively and prevent overheating is a smart thermal design with crossflow cooling that achieves the optimal heat dissipation even when you have units rack-mounted side-by-side one another. An intelligent thermal subsystem and internal heat pipe assist with cooling and keep the air flowing at all times while minimizing noise. Moreover, if the Teranex Mini gets too hot, you'll instantly receive a notification through the remote control Ethernet utility and on the front panel. When multiple units are rack-mounted side by side, each Teranex Mini works together to pull air through the rack keeping all units cool and providing redundancy for each one.

The Teranex Mini SDI to Analog 12G Converter is built using high-quality Teranex video processing technology and is ideal for all broadcast, post production, and other professional video applications.

Key Features
  • Down-convert up to a 12G-SDI Full 4K DCI 4096x2160p signal to analog
  • Connect high-resolution sources to component video equipment in HD or SD
  • Full-size XLR connections switchable between balanced analog and AES/EBU audio
  • Ethernet remote control and PoE port
  • Intelligent thermal design heat dissipation effectively prevents overheating
  • Three units are rack-mountable in a 1U 19" rack using an optional rack tray
  • Can be used desktop mounted or installed concealed in cable ducts
  • Built-in 90-240V power supply requiring only a standard IEC power cable, sold separately
  • An array of mini switches allow instant settings changes
  • Front panel is replaceable with an optional Smart Panel featuring controls and an LCD
  • Manage numerous units simultaneously using the included Converter Utility software
  • Full SDI re-clocking and low jitter

Blackmagic Design Teranex Mini Specs

SDI Video Input
1x 12G-SDI SD/HD/2K/4K auto switching
SDI Video Output
1x 12G-SDI loop output
Analog Video Output
Component SD/HD, NTSC, PAL, and S‑Video
Analog Audio Output
2 channels professional balanced analog audio via XLR connectors
Right XLR can be configured for timecode output
AES/EBU Audio Output
4 channels professional 110 ohm balanced digital audio via XLR connectors
Right XLR can be configured for timecode output
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Updates and Configuration
USB or Ethernet
Re-Clocking
Yes
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
2K Format Support
2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates
SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV
Analog Format Support
525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
Analog Color Space
REC 601, REC 709
Analog Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
Format Conversion
HD down conversion
Software Control
Mac OS X and Windows software upgrade via USB and Ethernet
Internal Software Upgrade
Via included updater application
Basic Settings Control
Mini Switches, USB, and Ethernet via free software utility
Power Supply
1x built-in international AC power supply with IEC C14 inlet
IEC power cable required (not included)
90 - 240 VAC input
Power Over Ethernet
Can be powered via 48 VDC using PoE (Power-over-Ethernet)
Power Consumption
15 W
Operational Voltage Range
90 - 240 VAC
Operating Temperature
0 to 40°C
Storage Temperature
-20 to 60°C
Relative Humidity
0 to 90% non-condensing
Dimensions
W x H x D: 14 x 4.6 x 17 cm (with SDI port included)
Weight
0.7 kg



In the Box

  • Blackmagic Design Teranex Mini SDI to Analog 12G Converter
  • Software SD Card
  • Limited 3-Year Manufacturer Warranty
