Blackmagic Design Mini Converter - SDI To Audio 4K

88.CONVMCSAUD4K

Product Features:

De-Embeds Audio from SDI Signal
Single Link 6G-SDI Input
Supports SD, HD, UHD 4K & DCI 4K Signals
Automatic Input Signal Detection
Redundant SDI Input
4x 1/4" Audio Output Jacks
4 Analog or 8 AES/EBU Audio Channels
24-Bit, 48 kHz Audio
Control via DIP Switches or Software
12V Universal Power Supply Included
$535.00
$481.50
Available Soon
Check Location Availability

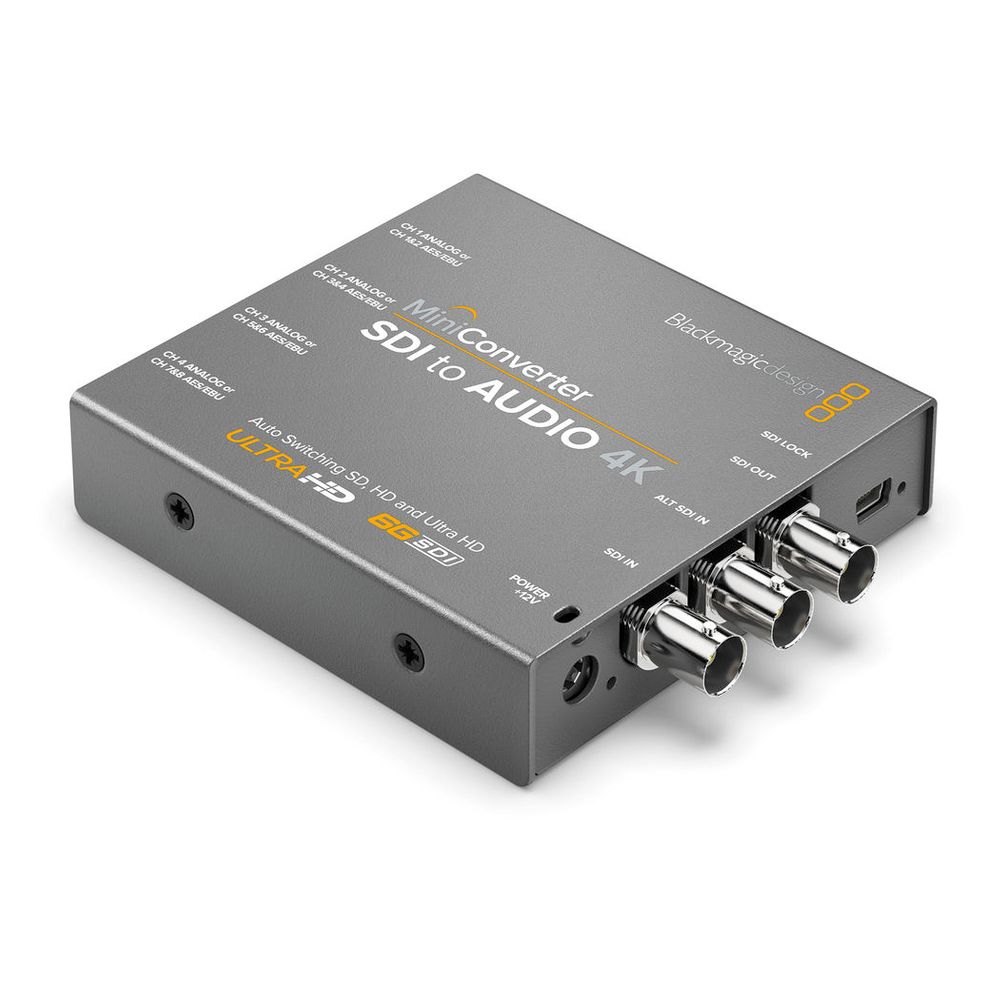

Blackmagic Design Mini Converter - SDI To Audio 4K

Essential Add-On's we recommend

Description

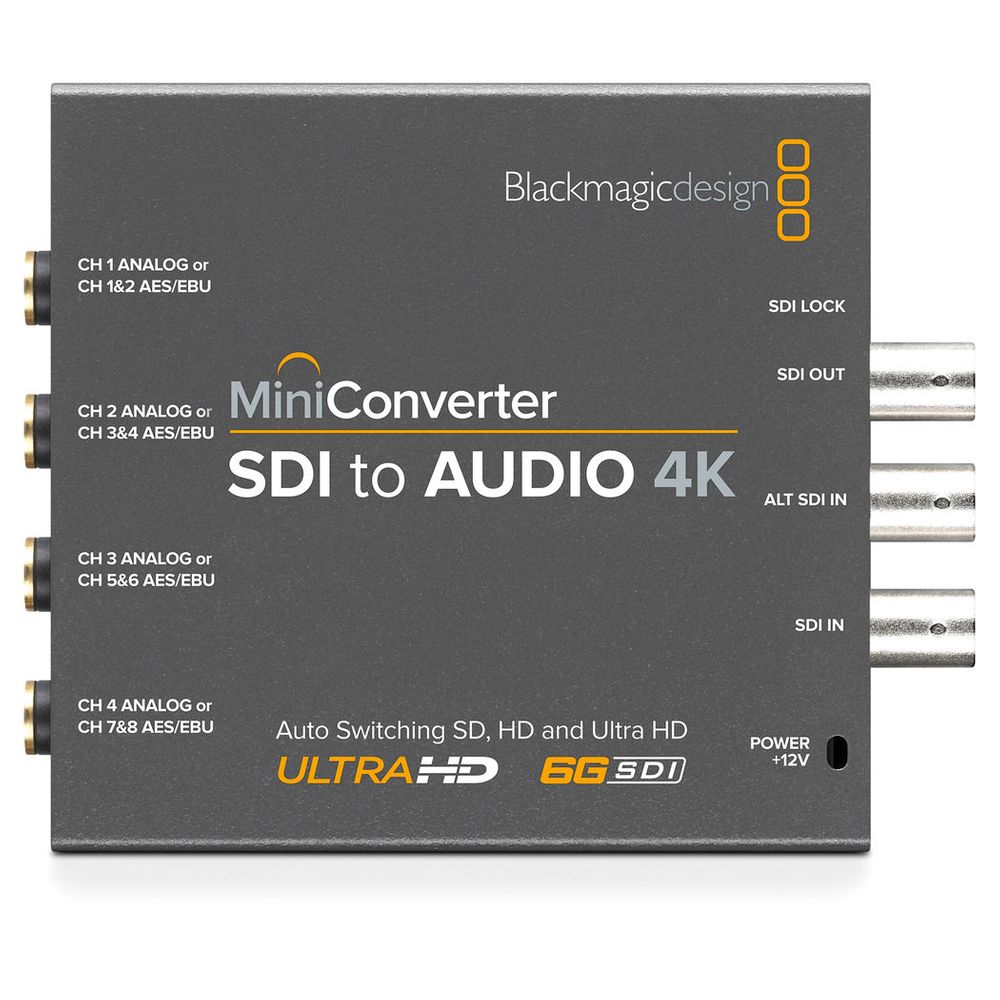

The Mini Converter SDI to Audio 4K from Blackmagic Design allows you to de-embed four channels of analog audio or eight channels of AES/EBU digital audio from any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and provides four 1/4" audio jack connectors for outputting the embedded analog or digital audio channels to an audio monitor, mixer, or other audio equipment. The SDI signal is output over a single 6G-SDI connector, with the resolution and frame rate matching that of the original input source.

Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.

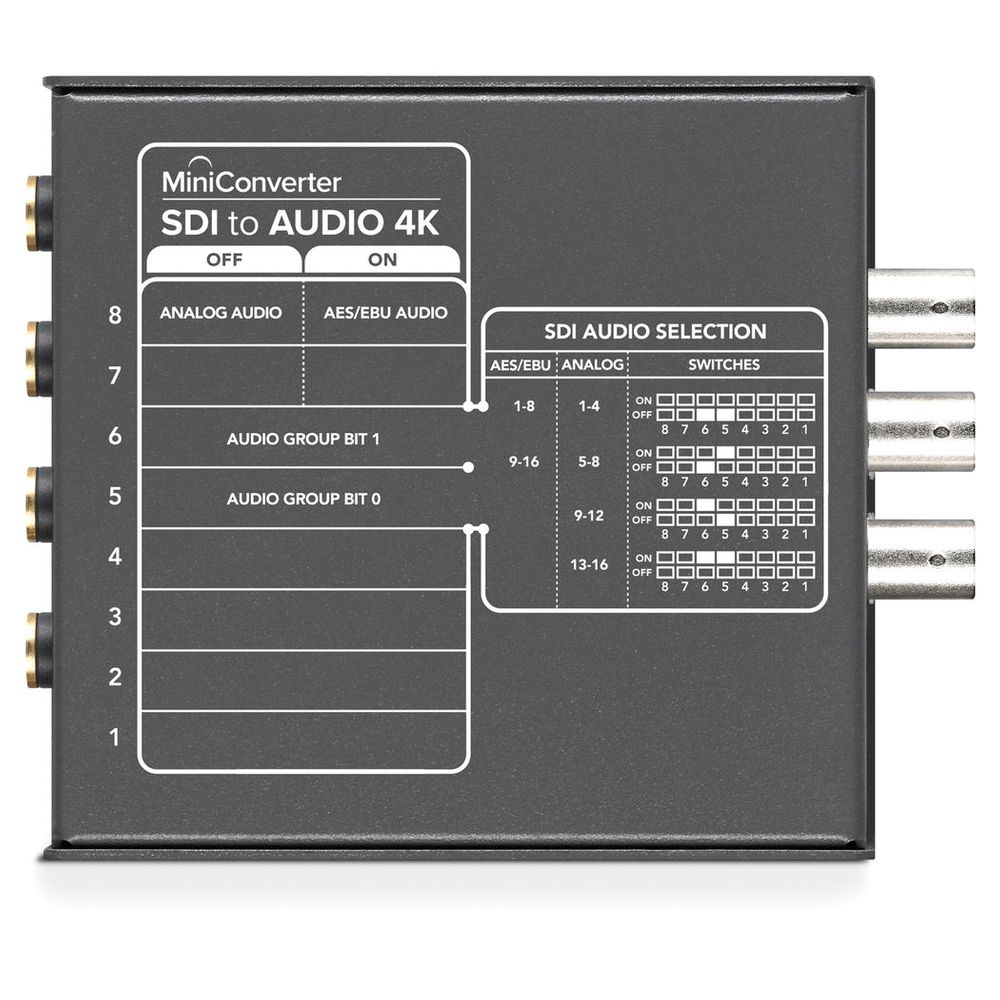

The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12VDC power supply is included with international socket adapters.

Additional Features
  • 4:2:2 and 4:4:4 sampling and color precision
  • 24-bit, 48 kHz audio sampling
  • Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601

Blackmagic Design CONVMC Specs

SDI Video Input
1 x SD/HD/3G/6G-SDI
1 x SD/HD/3G/6G-SDI-SDI redundant input
SDI Video Output
1 x SD/HD/3G/6G-SDI
Audio Output
4 x 1/4" jacks
4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio
Multi-Rate Support
Auto detection of SD, HD, 2K, UHD, and 4K signals
Reclocking
Yes
Format Support
SD:
NTSC 525/29.97 and 525/23.98
PAL 625/25

HD:
720p 59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K:
2048x1080PsF 23.98/24/25
2048/1080p 23.98/24/25

UHD/4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 23.98/24/25/29.97/30
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601
SDI Video Rates
Switchable between SD, HD, 3G, and 6G-SDI
SDI Auto Switching
Automatically detects SD, HD, 3G, or 6G-SDI
SDI Video Sampling
4:2:2, 4:4:4
SDI Audio Sampling
24-bit, 48 kHz
SDI Color Precision
4:2:2, 4:4:4
SDI Color Space
YUV, RGB
Settings Control
DIP switches or USB software for Mac OS X and Windows
Firmware Upgradeable
Via USB 2.0
Power Supply
12 VDC
Power Consumption
8.4 W
Operational Voltage Range
12 to 31 VDC
Operating Temperature
0 to 40 ° C
Storage Temperature
-20 to 45 ° C
Relative Humidity
0 to 90% non-condensing
Dimensions
11.48 x 9.22 x 2.29 cm
Weight
215.74 g

In the Box

  • Blackmagic Design Mini Converter SDI to Audio 4K
  • 12VDC Power Supply with International Socket Adapters
  • Limited 3-Year Manufacturer Warranty
