Blackmagic Design Decklink Duo 2
88.BDLKDUO2
Product Features:
SD/HD/3G-SDI Input/Output
PCI-E Interface
1080p 4:4:4 by Single-Link 3G-SDI
10/12-Bit Processing
Down/Up/Cross Conversions
Mac OS X, Windows, and Linux Compatible
$809.00
$728.10
Available Soon
Check Location Availability
Essential Add-On's we recommend
You may also like...
-
Brand
Available SoonStock Code:44.4.STHJ40000800Was:$3,298.90Now:$2,999.00Price:$2,999.00 -
Brand
Available SoonStock Code:44.1.STHR4000800Was:$1,648.90Now:$1,430.00Price:$1,430.00 -
Brand
Stock Level:In StockStock Code:25.LS600DSTDWas:$1,799.00Now:$1,745.00Price:$1,745.00 -
Brand
Stock Level:In StockStock Code:24.NOVAP600CWas:$4,195.00Now:$4,095.00Price:$4,095.00 -
Brand
Available SoonStock Code:99.BM.CINEURSAMWC6KG2Was:$6,875.00Now:$6,250.00Price:$6,250.00 -
Brand
Available SoonStock Code:99.BM.CINECAMPOCHDEF06PWas:$4,155.00Now:$3,777.27Price:$3,777.27 -
Brand
Stock Level:In StockStock Code:33.1.MON-VISION-17Was:$17,995.00Now:$16,425.00Price:$16,425.00 -
Brand
Stock Level:In StockStock Code:33.1.16-1801Was:$10,895.01Now:$10,115.00Price:$10,115.00
Description

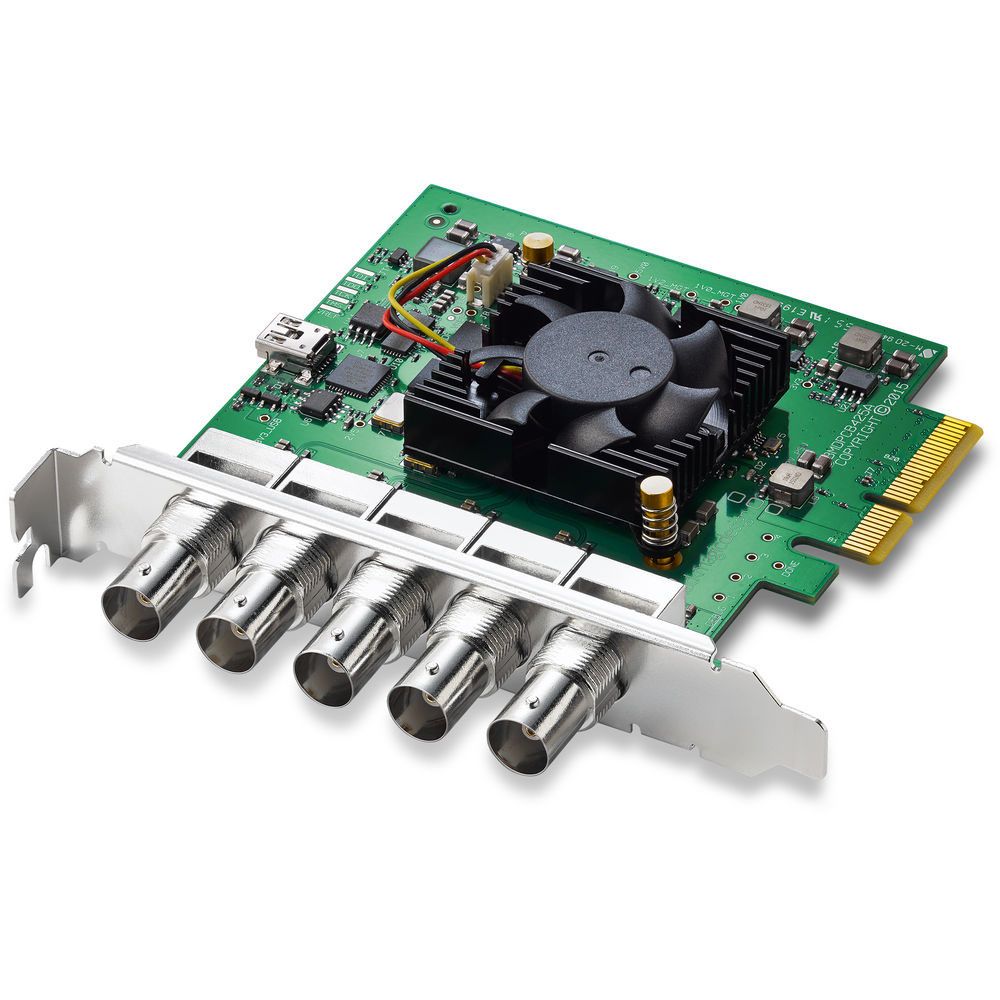

With four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server, a live keyer, a real-time multi-channel capture system, or a combination of the above to fit your specific workflow of the moment. A reference input is also available for syncing with other studio equipment.
Processing
- Colour space conversion: Hardware based real time
- HD down conversion: Built-in, high-quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9, and center cut 4:3 styles.
- HD up conversion: Built-in, high-quality software up conversion from SD to 720 or 1080 HD on input. Selectable between 4:3 pillarbox, 14:9 zoom, and 16:9 zoom.
- Cross conversion: Built-in, high-quality hardware cross conversion from 720 to 1080 HD, and 1080 to 720 on playback.
- Real-time effects support: Final Cut Pro X internal effects, Premiere Pro CC Mercury Playback Engine effects, and Avid Media Composer internal effects.
Software Compatibility
The DeckLink Duo 2 interfaces with many popular NLE, DAW, and professional software programs including:
- Blackmagic Design: DaVinci Resolve, Fusion 8
- Apple: Final Cut Pro X
- Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
- Avid: Media Composer, Pro Tools
- Steinberg: Cubase, Nuendo
Blackmagic Design Duo 2 Specs
| System Connection | |
| Video Inputs | |
| Audio Inputs | |
| Other I/O | |
| Simultaneous Multi-Input Support | |
| Input Video Format | |
| Input Audio Format | |
| Embedded Audio |
Standards
| Video Standard Compliance | |
| HDR Compatibility |
Hardware
| OS Compatibility | |
| Power Consumption |
Environmental
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity |
General
| Certifications | |
| Dimensions | |
| Weight |
In the Box
- Blackmagic Design DeckLink Duo 2
- Limited 3-Year Manufacturer Warranty
