Blackmagic Design Decklink SDI 4K

88.BDLKSDI4K

Product Features:

SD/HD/3G/6G-SDI Input/Output
PCIe Interface
UHD / DCI 4K 4:2:2 by Single-Link 6G-SDI
1080p 4:4:4 by Single-Link 3G-SDI
10-Bit Processing
RS-422 Deck Control
Internal Keying
Reference Input
Down/Up/Cross Conversions
Mac OS X, Windows, and Linux Compatible
$495.00
$445.50
Available Soon
Check Location Availability

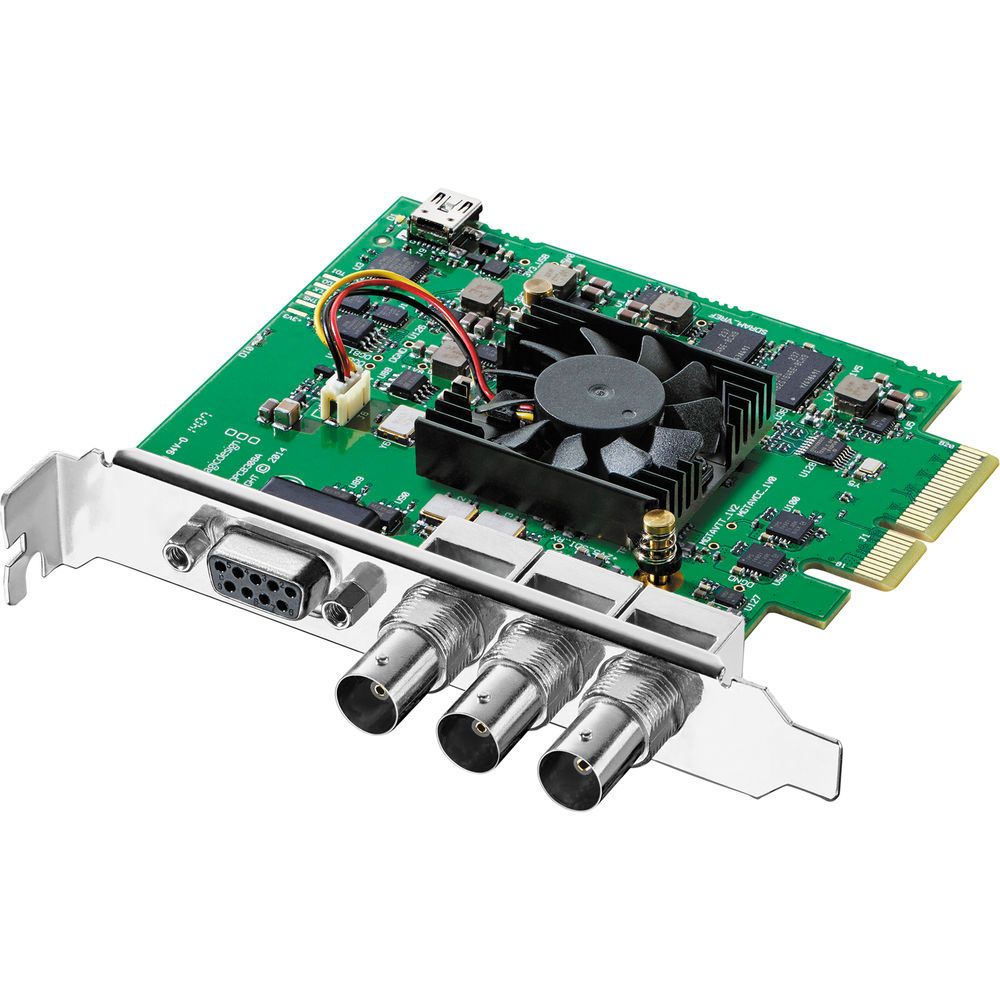

Blackmagic Design Decklink SDI 4K

Essential Add-On's we recommend

Description

The Decklink SDI 4K Capture & Playback Card from Blackmagic Design features a single multi-rate SDI input and multi-rate SDI output. These multi-rate connections accept single-link SD, HD, 3G, and 6G-SDI signals, providing support for resolutions from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the Decklink SDI 4K includes RS-422 deck control, internal keying, and a reference input.

Decklink SDI 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. Decklink SDI 4K is compatible with Mac, Windows, and Linux based workstations.

Key Features
  • PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
  • 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
  • 10-bit, 4:4:4 1080p by single-link 6G-SDI
  • HD to SD down-conversion
  • SD to HD up-conversion
  • Hardware cross conversion between 720p and 1080p on playback
  • RS-422 deck control
  • Internal keying
  • Reference input
  • Blackburst and tri-sync
  • Supports 16 channels of embedded SDI audio in HD, 2K, and 4K resolutions; 8 channels in SD

Blackmagic Design DeckLink SDI Specs

System Connection
PCIe 1.0 x1
Video Inputs
1 x BNC (6G-SDI)
Video Outputs
1 x BNC (6G-SDI)
Input Video Format
SDI (10-Bit 4:4:4/4:2:2)
576i / 625 lines at 50 fps
480i / 525 lines 59.94 fps
720p 50/59.94/60 fps
1080p 23.98/24/25/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30 fps
DCI 4K 23.98/24/25 fps
DCI 2K 23.98/24/25 fps
Output Video Format
SDI (10-Bit 4:4:4/4:2:2)
576i / 625 lines at 50 fps
480i / 525 lines 59.94 fps
720p 50/59.94/60 fps
1080p 23.98/24/25/30/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30 fps
DCI 4K 23.98/24/25 fps
DCI 2K 23.98/24/25 fps
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/372M/425M/ST-2081
ITU -R BT.601/BT.656
HDCP Support
No
HDR Compatibility
Not Specified by Manufacturer
Environmental
Operating Temperature
5 to 40°C
Storage Temperature
-20 to 45°C
General
Certifications
C-Tick, CE, FCC
Dimensions
9.53 cm
Weight
128 g
