Aputure INFINIBAR PB12

24.APL0300A1J
  • Watch Video
  • Watch Video
  • Watch Video
  • Product Features:

    4-Foot (120cm) 27W RGBWW Full Color LED Pixel Bar
    96 Individual Pixels (Lighting Zones)
    Infinite Blending Design
    Frosted Diffusion Layer
    Approx. 80 Min Battery Life at Max Output (59.2Wh)
    0-100% Brightness Control in 0.1% Increments
    Advanced HSI with White Point CCT Control
    Fully Tunable CCT from 2,000K-10,000K + G/M Adjustment
    Industry-standard xy (CIE 1931), RGB, 300+ Gel Presets
    Supports SidusPro® FX: Including Manual FX, System FX, Picker FX, Magic Program, and Music FX
    $950.00
    $475.00
    Stock Level:
    Out of Stock
    Check Location Availability

    Aputure INFINIBAR PB12

    Description

    Product Description

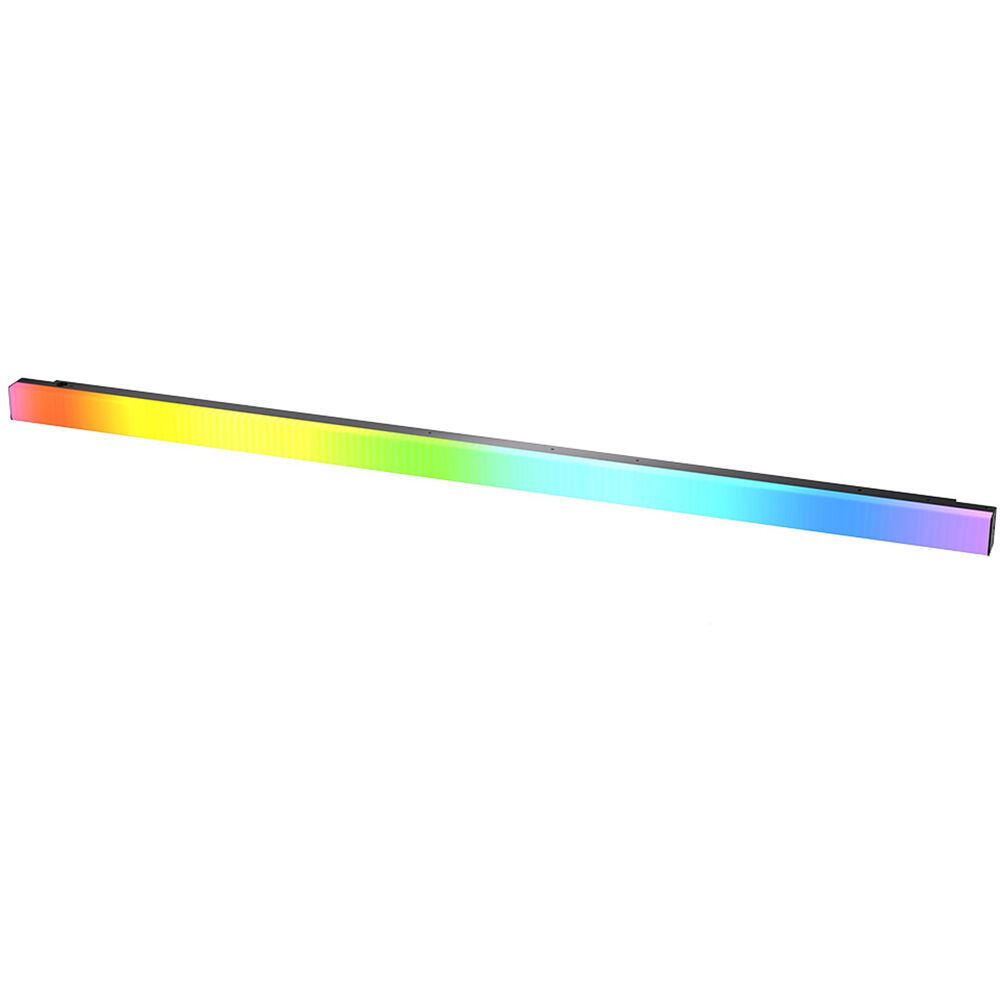

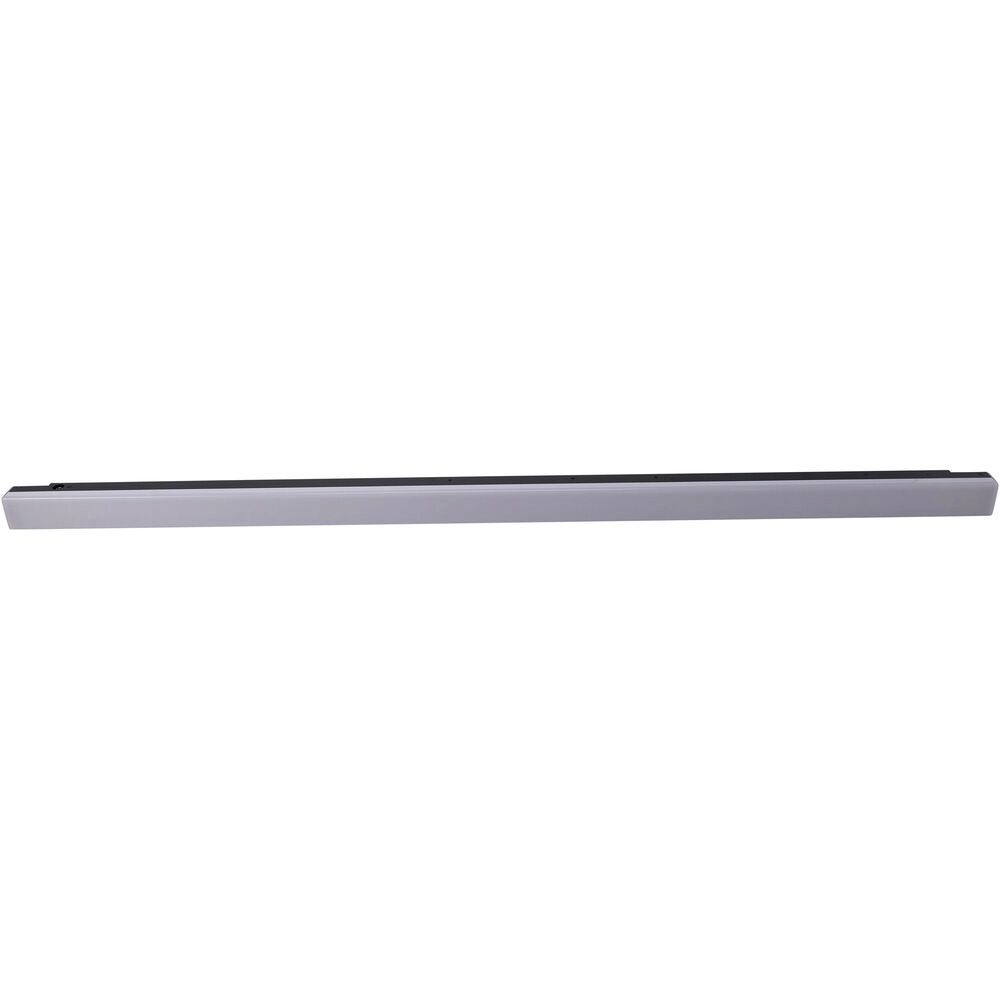

    The INFINIBAR Pixel Bar is Aputure’s first RGBWW full-color LED pixel bar. Featuring 96 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB12 is a 4-foot (120cm) pixel bar that excels in constructing unique, colorful designs that bring scenes to life in new and exciting ways.

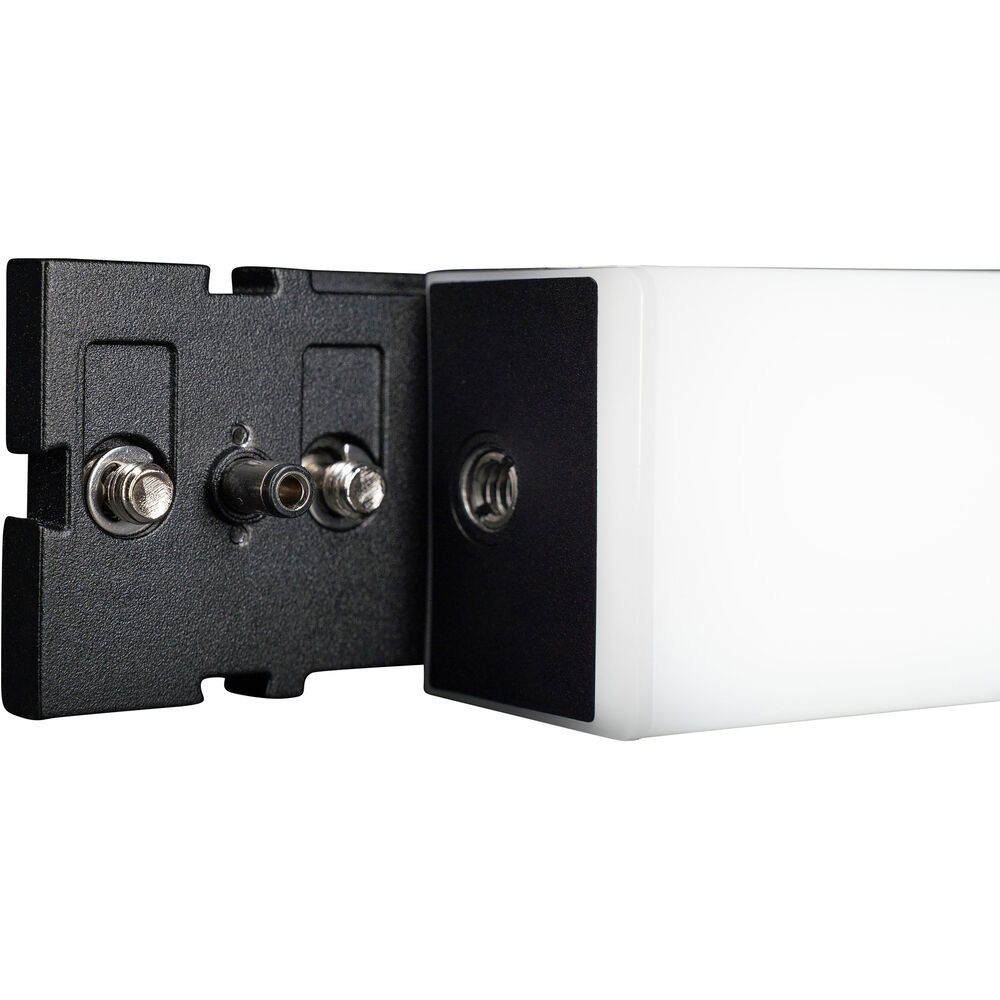

    The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB12’s 96 RGB pixels.

    Featuring advanced wireless connectivity, the INFINIBAR PB12’s 96 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter.2 It also incorporates critical color controls (including advanced HSI with white- point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.

    The INFINIBAR PB12’s proprietary RGBWW chipset produces stunning color quality throughout its wide CCT range of 2,000K to 10,000K with full green-magenta adjustment and can reproduce >90% of colors within the Rec.2020 Color Space. Matching Aputure’s high standards for color, the INFINIBAR PB12 also produces accurate skin tones, measuring scores of CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.

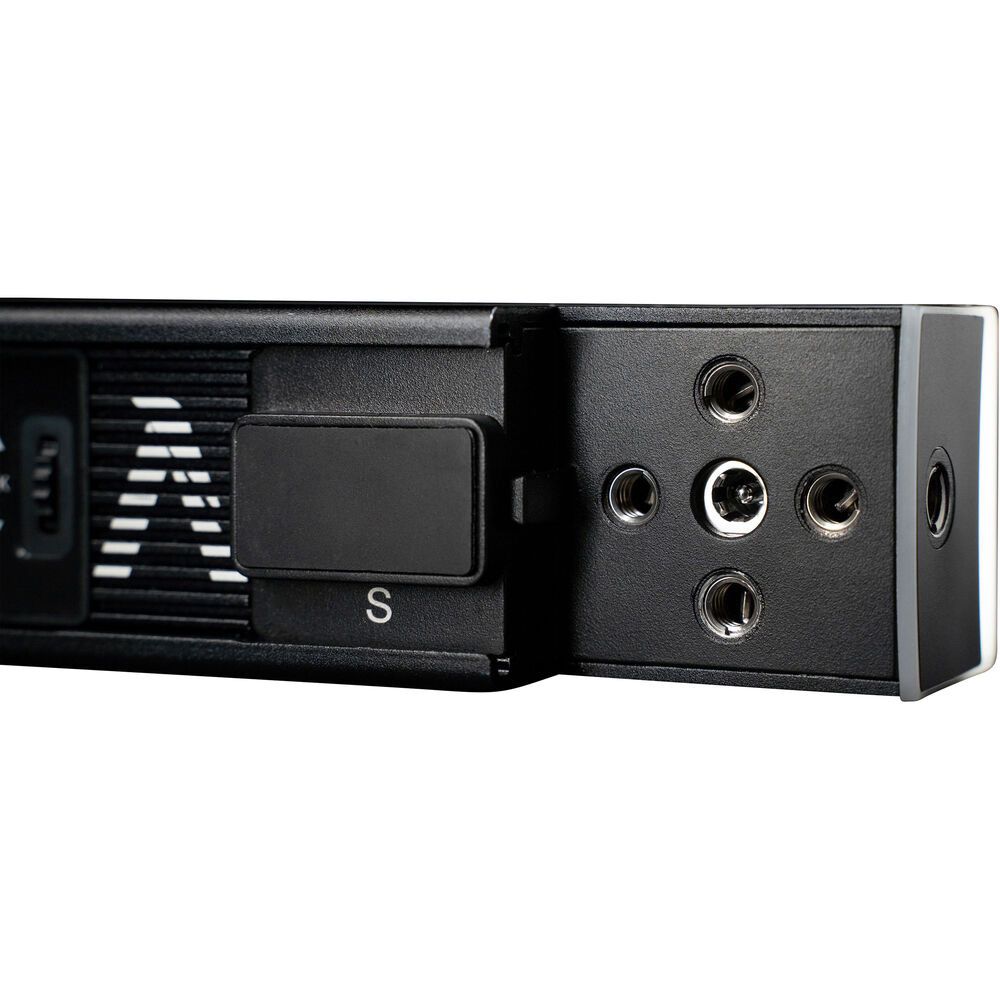

    With its lightweight yet durable aluminum housing, the INFINIBAR PB12 provides ultimate flexibility across all shooting environments. Whether linked together or used independently, the INFINIBAR’s built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two 1⁄4-20in threads allow the PB12 to be mounted with ease. And with its built-in 59.2Wh Lithium battery, the INFINIBAR PB12 can operate at its 27W max output for 80 minutes, making it a versatile fixture for your lighting toolkit.



    INFINIBAR PB12 Photometrics

    CCT

    Dis.

    Photometrics

    2,000K

    0.5m

    975lux/91fc

    1m

    350lux/33fc

    2,700K

    0.5m

    1,350 lux / 125 fc

    1m

    532lux/49fc

    3,200K

    0.5m

    1,410 lux / 131 fc

    1m

    542lux/50fc

    4,300K

    0.5m

    1,500 lux / 139 fc

    1m

    564lux/52fc

    5,600K

    0.5m

    1,600 lux / 149 fc

    1m

    593lux/55fc

    6,500K

    0.5m

    1,650 lux / 153 fc

    1m

    607lux/56fc

    7,500K

    0.5m

    1.650 lux / 153 fc

    1m

    617lux/57fc

    10,000K

    0.5m

    1,510 lux / 140 fc

    1m

    563lux/52fc

    Red

    0.5m

    227lux/21fc

    1m

    85lux/8fc

    Green

    0.5m

    793lux/74fc

    1m

    297lux/28fc

    Blue

    0.5m

    131lux/12fc

    1m

    49lux/5fc

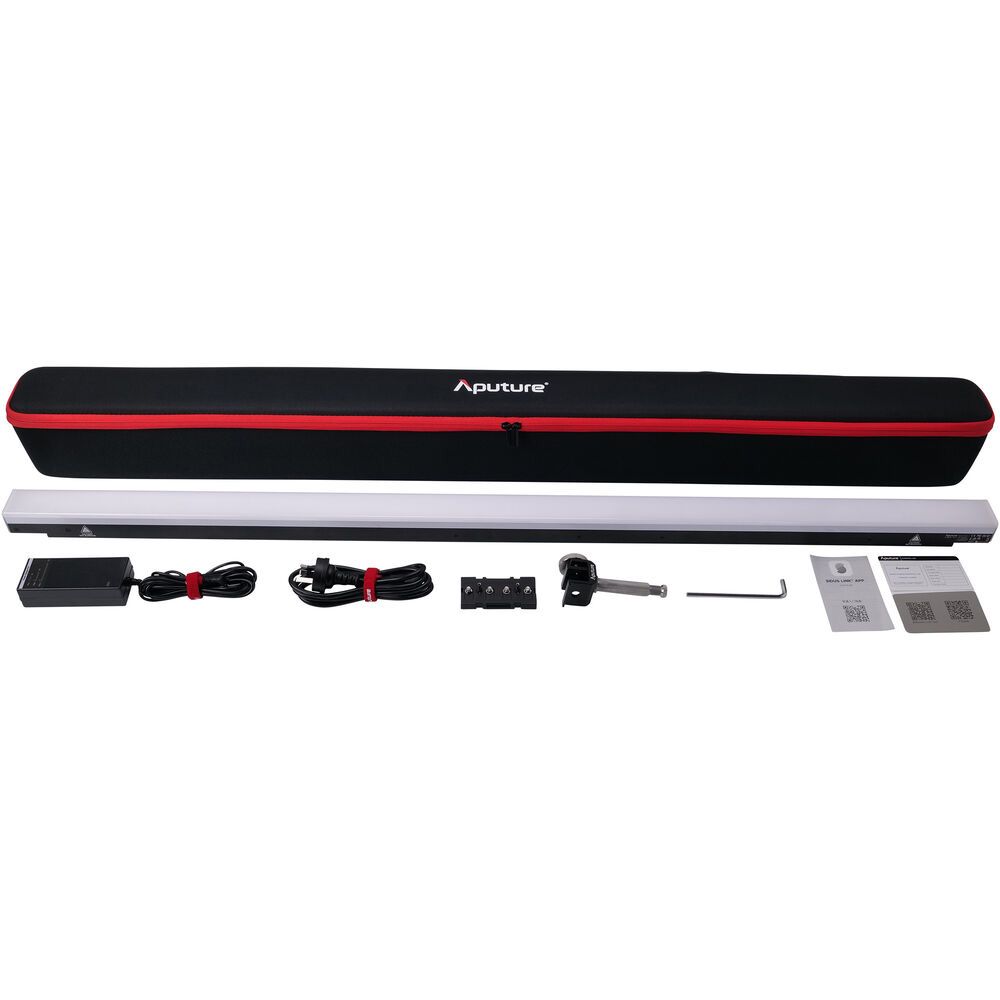

    What’s in the Box

    INFINIBAR PB12 x 1

    48W DC Power Adapter (3m) x 1

    AC Locking Power Cable (1.5m) x 1

    Magnetic Spacer x 2

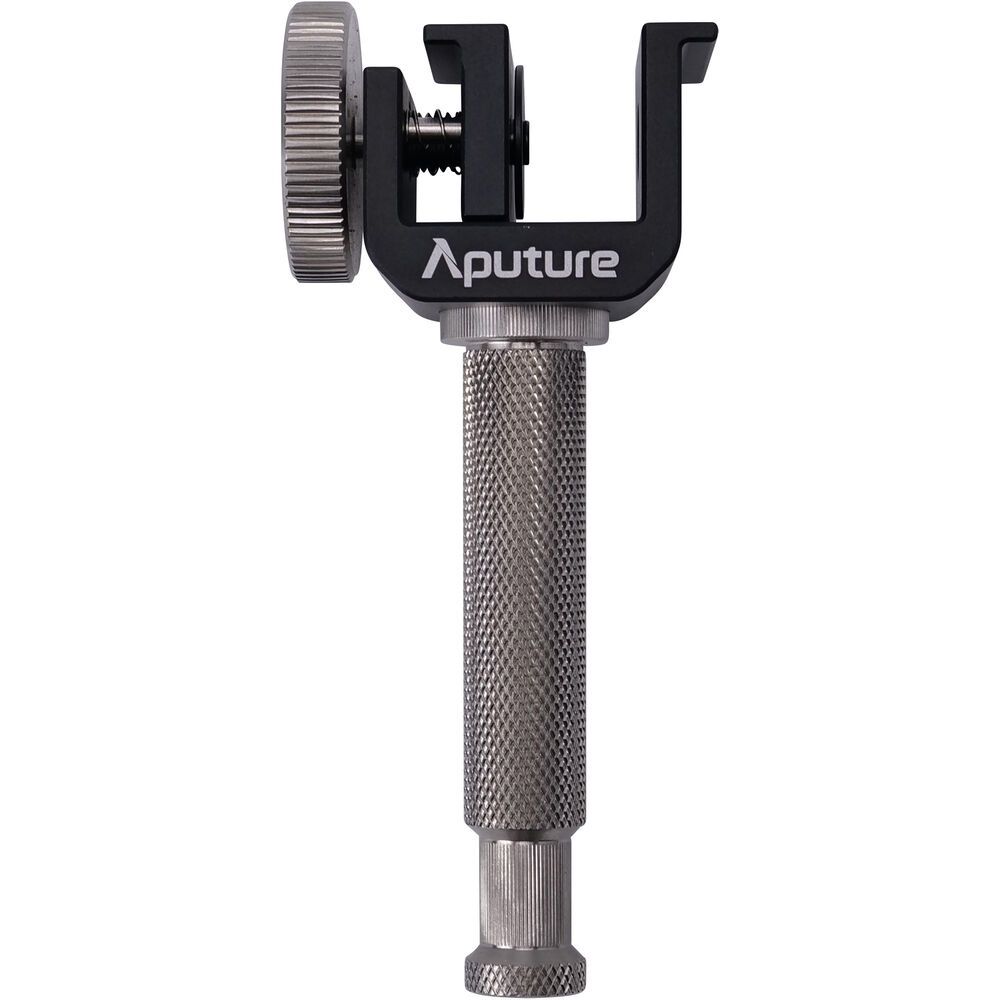

    INFINIBAR Clamp to Baby Pin Adapter x 1

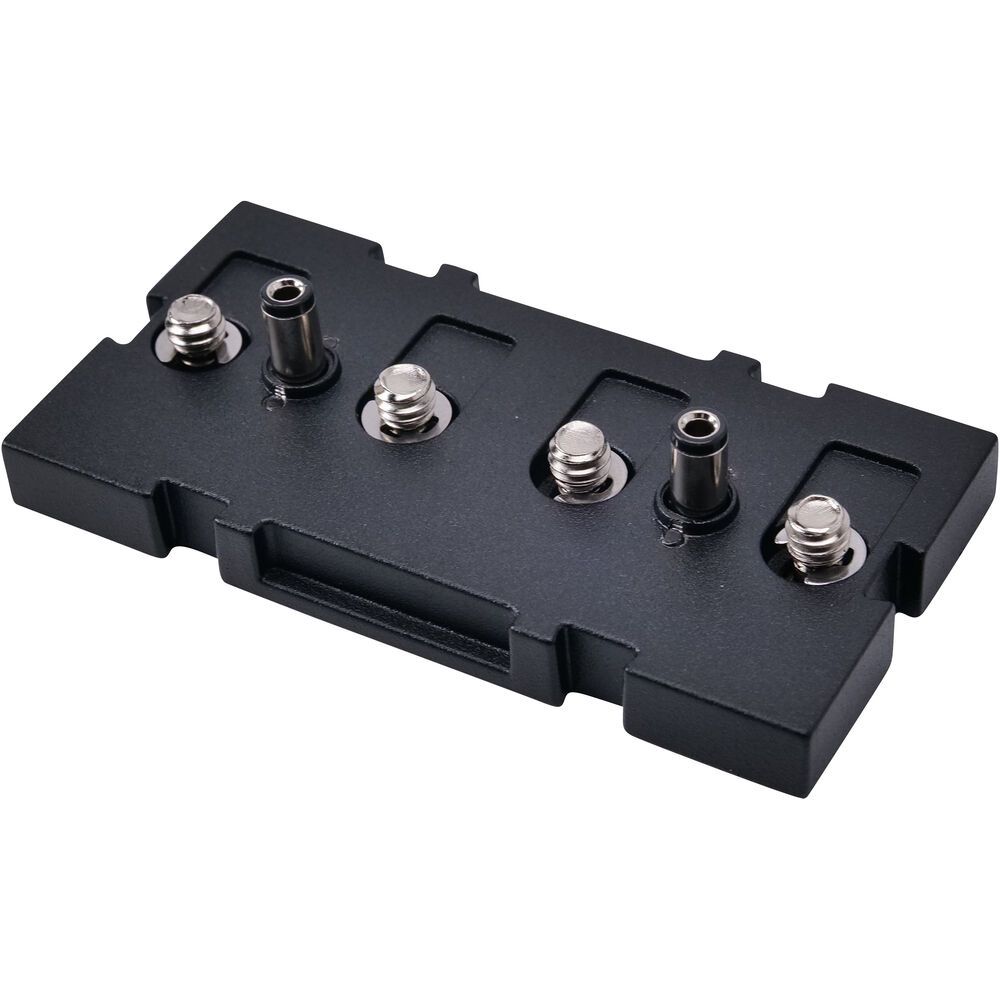

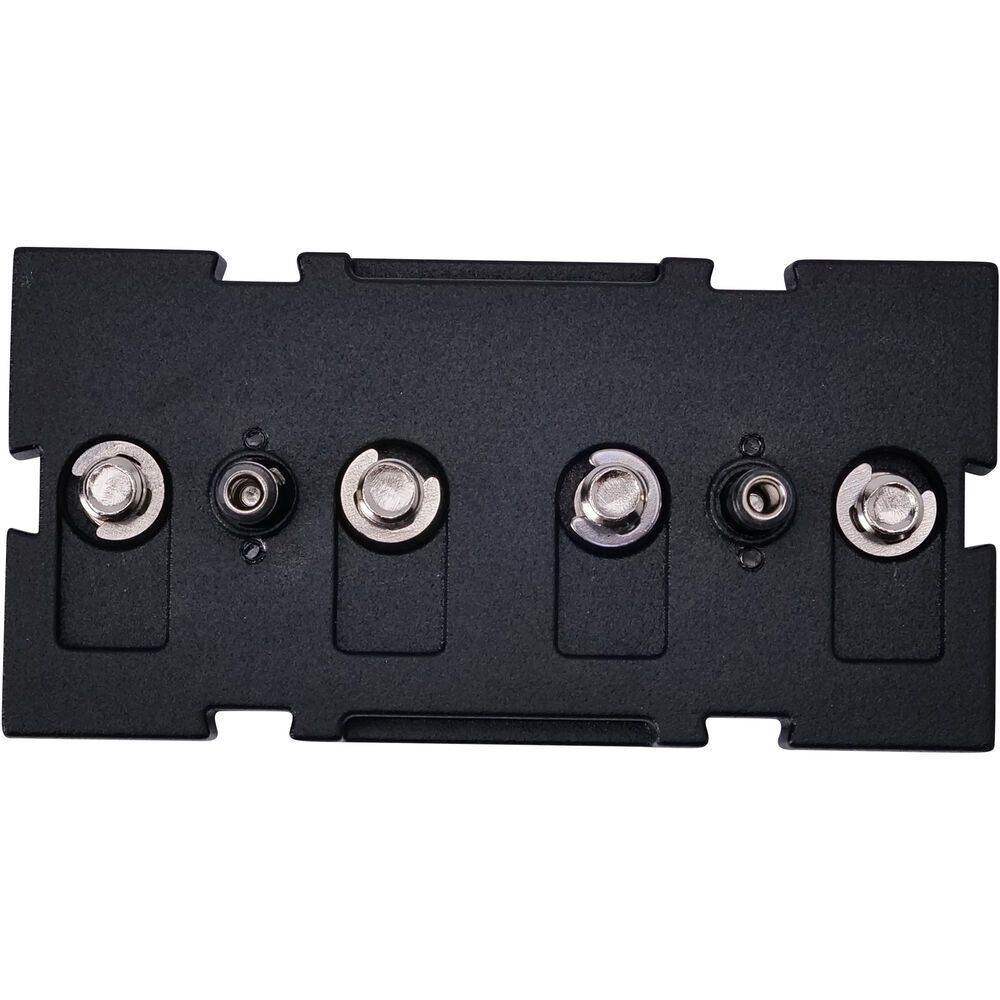

    INFINIBAR Straight Connector x 1

    5mm Hex Wrench x 1

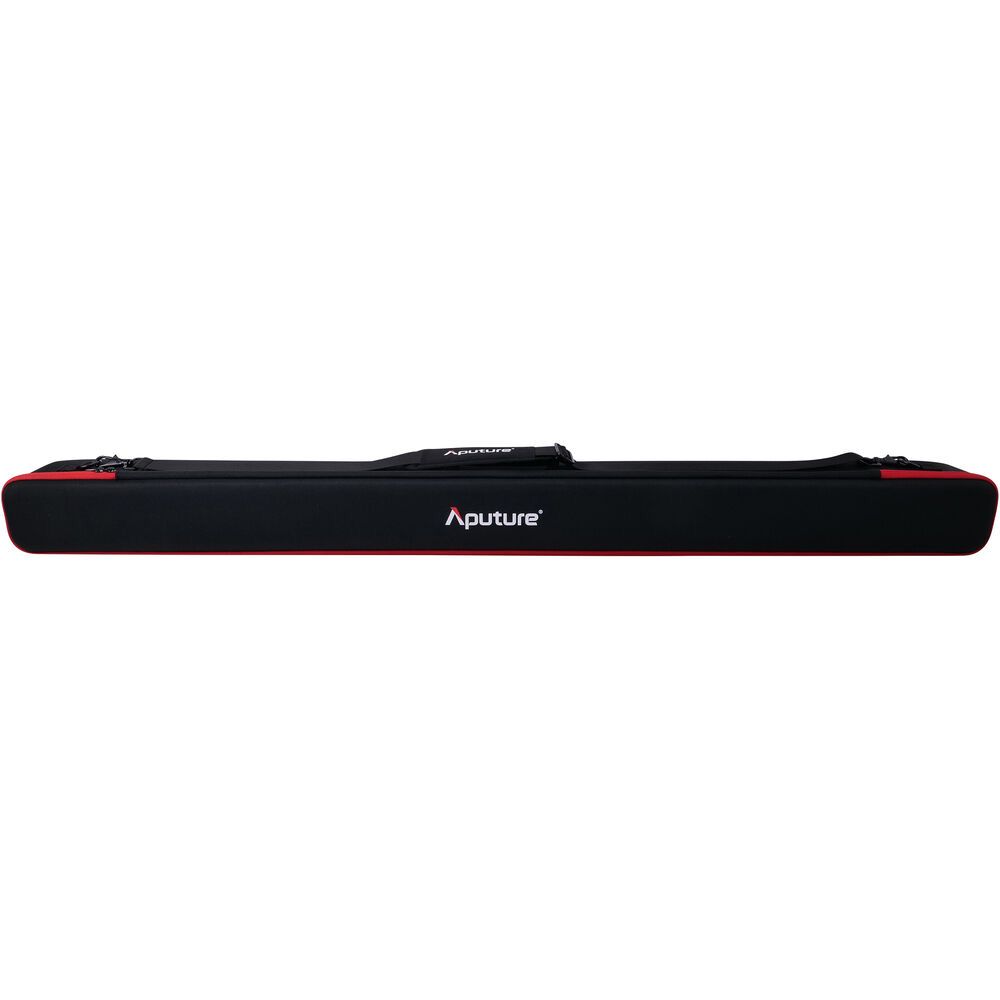

    Carrying Case x 1
