Aputure INFINIBAR PB6
Product Features:
Aputure INFINIBAR PB6
Description
Product Description

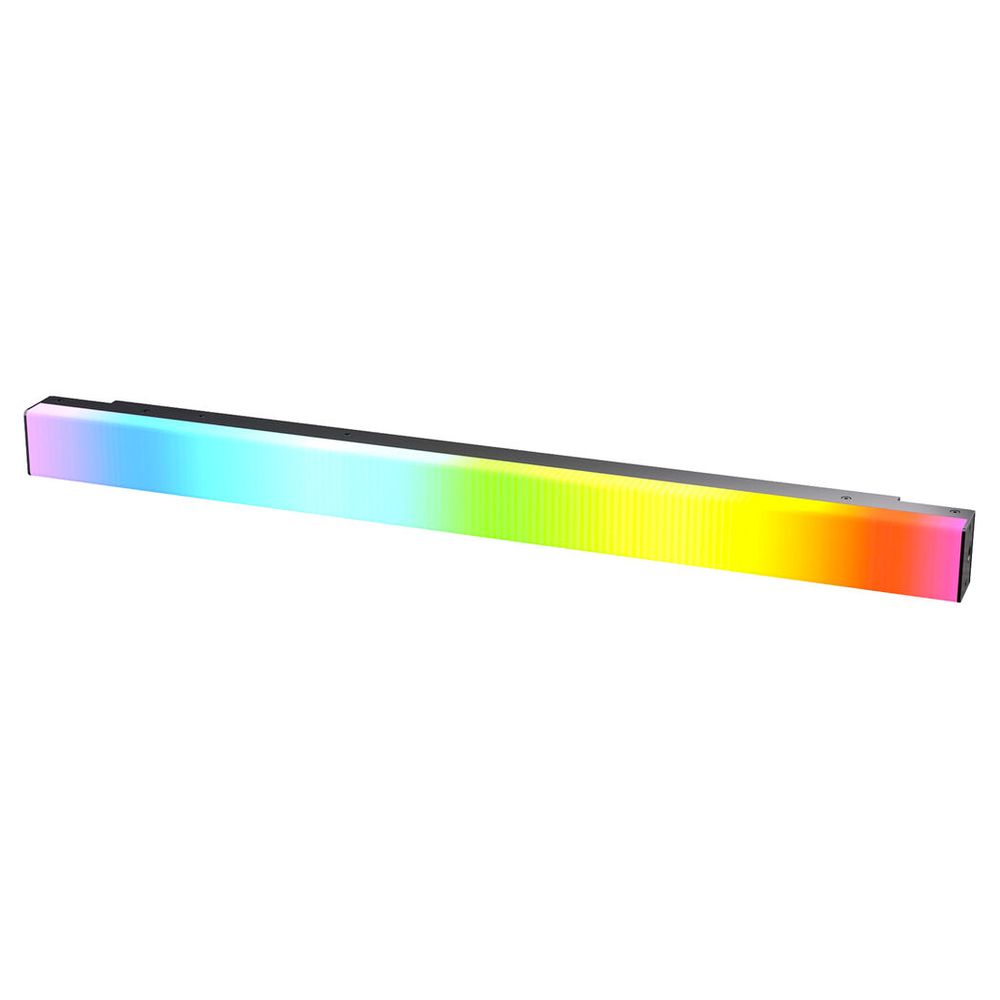

The INFINIBAR Pixel Bar is Aputure’s first RGBWW full-color LED pixel bar. Featuring 48 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB6 is a 2-foot (60cm) pixel bar that excels in constructing unique, colorful designs that bring scenes to life in new and exciting ways.
The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB6’s 48 RGB pixels.
Featuring advanced wireless connectivity, the INFINIBAR PB6’s 48 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter.2 It also incorporates critical color controls (including advanced HSI with white- point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.
The INFINIBAR PB6’s proprietary RGBWW chipset produces stunning color quality throughout its wide CCT range of 2,000K to 10,000K with full green-magenta adjustment, and can reproduce >90% of colors within the Rec.2020 Color Space. Matching Aputure’s high standards for color, the INFINIBAR PB6 also produces accurate skin tones, measuring scores of CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.
With its lightweight yet durable aluminum housing, the INFINIBAR PB6 provides ultimate flexibility across all shooting environments. Whether linked together or used independently, the INFINIBAR’s built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two 1⁄4-20in threads allow the PB6 to be mounted with ease. And with its built-in 29.6Wh Lithium battery, the INFINIBAR PB6 can operate at its 14W max output for 100 minutes, making it a versatile and compact fixture for your lighting toolkit.
INFINIBAR PB6 Photometrics
CCT | Dis. | Photometrics |
2,000K | 0.5m | 635lux/59fc |
1m | 200lux/19fc | |
2,700K | 0.5m | 935lux/87fc |
1m | 282lux/26fc | |
3,200K | 0.5m | 940lux/87fc |
1m | 288lux/27fc | |
4,300K | 0.5m | 978lux/91fc |
1m | 301lux/28fc | |
5,600K | 0.5m | 1,026 lux / 95 fc |
1m | 317lux/29fc | |
6,500K | 0.5m | 1,048 lux / 97 fc |
1m | 328lux/30fc | |
7,500K | 0.5m | 1,046 lux / 97 fc |
1m | 328lux/30fc | |
10,000K | 0.5m | 960lux/89fc |
1m | 288lux/27fc | |
Red | 0.5m | 189lux/16fc |
1m | 78lux/7fc | |
Green | 0.5m | 608lux/56fc |
1m | 188lux/17fc | |
Blue | 0.5m | 97lux/9fc |
1m | 39lux/4fc |

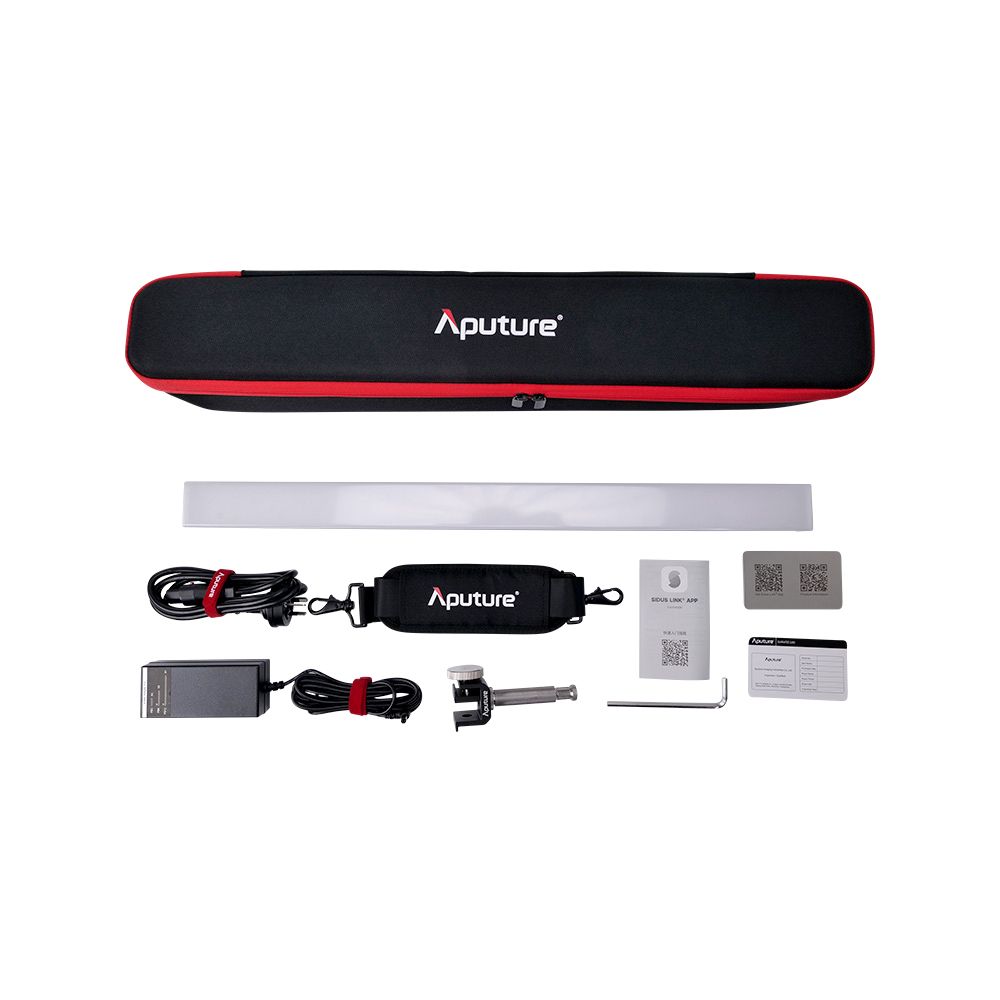

What’s in the Box
INFINIBAR PB6 x 1
48W DC Power Adapter (3m) x 1
AC Locking Power Cable (1.5m) x 1
Magnetic Spacer x 2
INFINIBAR Clamp to Baby Pin Adapter x 1
INFINIBAR Straight Connector x 1
5mm Hex Wrench x 1
Carrying Case x 1
