Teradek Bolt 6 LT Max TX/RX

53.10-2279

Product Features:

Supports New 6 GHz Frequency Band

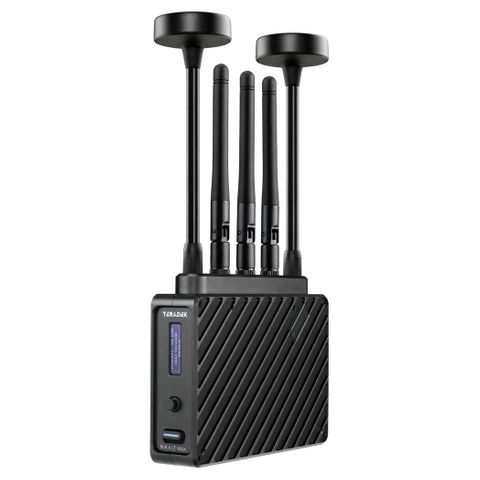

Bolt 6 LT MAX Transmitter & Receiver
Transmits up to 1524m Line of Sight
Integrated Flexible H Antennas
Supports up to 4K30 Resolution Input
HDMI/3G-SDI Inputs & Outputs
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K Series
AES-256 Encryption, 7 Antennas
Bluetooth Mobile App, Spectrum Analyzer
$22,350.00
$21,895.01
Stock Level:
In Stock
Check Location Availability

Teradek Bolt 6 LT Max TX/RX

Essential Add-On's we recommend

Description

Transmit and receive lossless HD video from up to 5000'(1524m) line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit from Teradek. The kit includes a Bolt 6 wireless transmitter and Bolt 6 receiver featuring bright OLED displays and able to wirelessly receive up to UHD 4K30 HDR video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to 4K video over HDMI or up to 1080p30 video via 3G-SDI, and the receiver outputs up to 4K30 video via HDMI and up to 1080p60 3G-SDI.

The transmitter sends up to 4K30 video to the Bolt 4K LT MAX receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors, and it supports HDMI/SDI cross conversion. Though the transmitter can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. A carry case is included to store and transport the kit.

Key Features
  • Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
  • Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
  • Transmits to an unlimited number of receivers in broadcast mode
  • SDI Eye Pattern Tool to check SDI cable integrity
  • Improved "long-range" mode
  • Input up to 4K via HDMI video; input/output 1080p via 3G-SDI, and transmit up to 4K30 video
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • HDR workflow support with HDR-10, PQ, and HLG standards
  • Smaller and lighter chassis design than other Bolt transmitters
  • Transmit metadata, timecode, and stop/start triggers over a wireless connection
  • Simultaneously transmit to up to six Bolt 6 or Bolt 4K series receivers
  • AES-256 encryption support
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration



Teradek LT MAX Specs

Inputs / Outputs
Antenna PortsTransmitter: 2 x RP-SMA Female
Receiver: 5 x RP-SMA Female
VideoTransmitter: 1 x HDMI Type A (HDMI 1.4b) Input
Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 1 x HDMI Type A (HDMI 1.4b) Output
Receiver: 1 x BNC (3G-SDI) Output
Embedded AudioHDMI: 2-Channel
SDI: 2-Channel
AudioNone
PowerTransmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/OTransmitter/Receiver: 1 x Micro-USB Input
Encryption256-Bit AES
Wireless
Wireless Range5000' / 1524 m (Line-of-Sight)
Channel Bandwidth40 MHz
Frequency RangeNon-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power23 dBm
Wi-FiNone
BluetoothYes
Format Support
Video FormatHDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format2-Channel 24-Bit 48 kHz
Timecode SupportYes
Power
DC Input Power6 to 28 VDC
Power ConsumptionTransmitter: 9 W
Receiver: 11 W
Mounting
Mounting1 x 1/4"-20 Female
1 x 3/8"-16 Female
Environmental
IP RatingNone
Operating Temperature0 to 40°C
General
Material of ConstructionAluminum, Polycarbonate
DimensionsTransmitter: 103 x 60 x 33 mm
Receiver:  122 x 94 x 27 mm
WeightTransmitter:  206 g
Receiver:  292 g

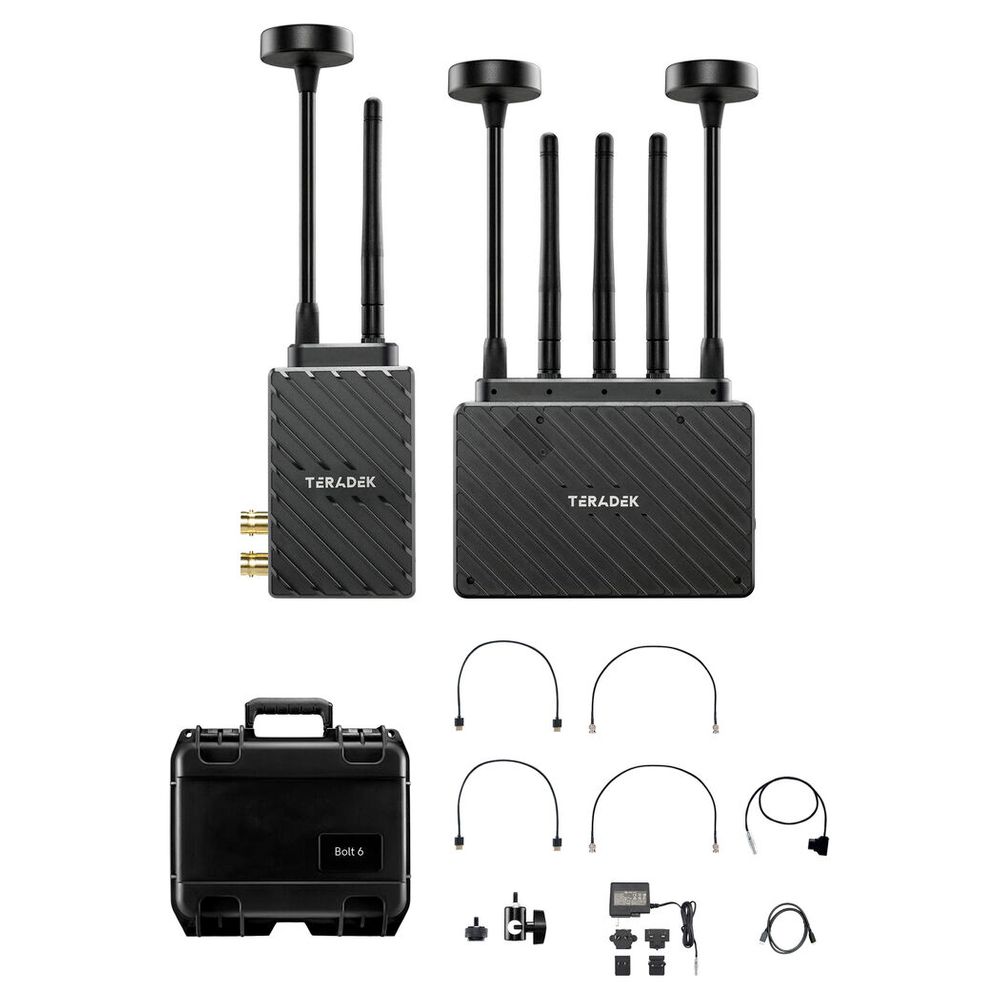

In the Box

  • Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit
  • Bolt 6 LT MAX 3G-SDI/HDMI Transmitter
  • Bolt 6 LT MAX 3G-SDI/HDMI Receiver
  • 2-Pin to D-Tap Power Cable (18")
  • USB 2.0 Type-A Male to Micro-USB Male Cable (39")
  • 2 x HDMI Type A Male Cable (18")
  • 2 x BNC SDI Cable (10")
  • AC Adapter with Cable (6')
  • 5 x Standard Antenna
  • 3 x Mushroom Antenna
  • 1/4"-20 Light Stand Adapter
  • Shoe Adapter
  • Carry Case
  • Limited 1-Year Warranty
