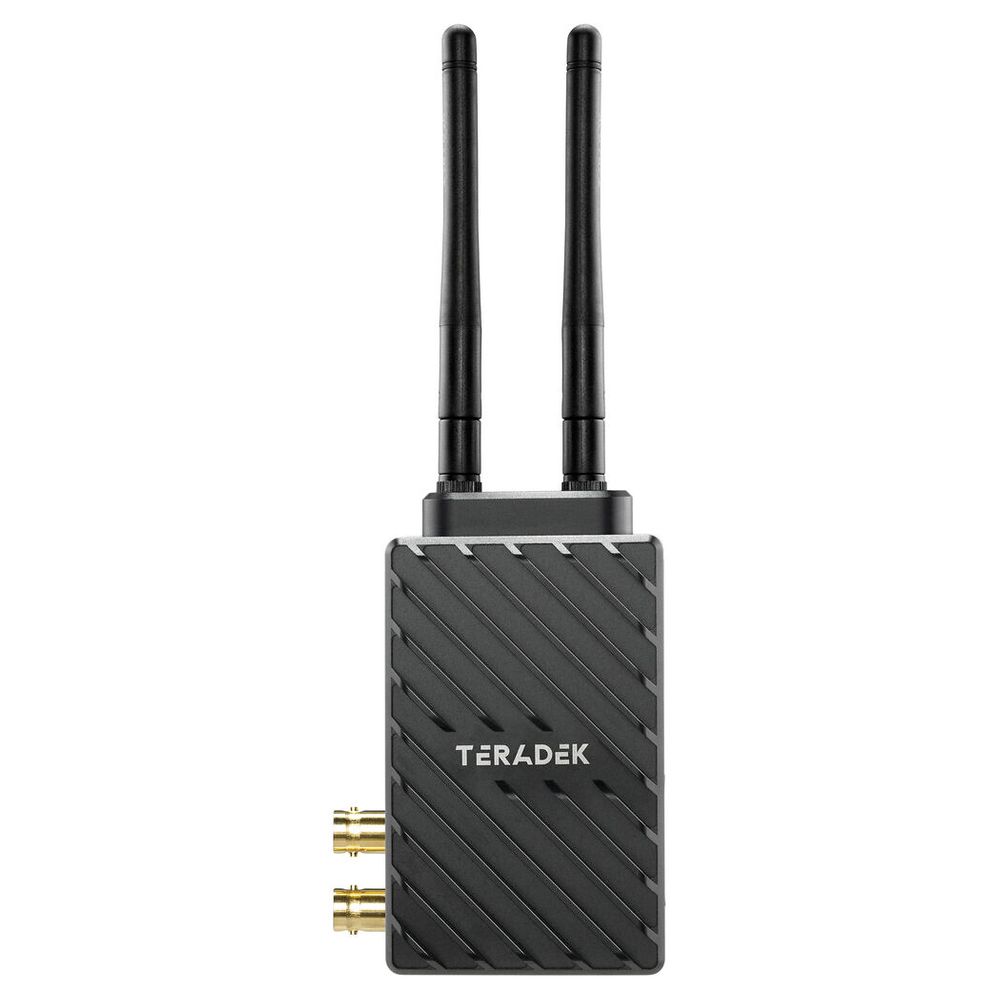

Teradek Bolt 6 LT 750 TX

53.10-2261

Product Features:

Supports New 6 GHz Frequency Band
Transmits up to 228m Line of Sight
3G-SDI and HDMI Input, SDI OutputTransmit to up to 6 x RXs
10-Bit 4:2:2 Support, No Delay
Compatible with all Bolt 4K 5G Devices
AES-256 Encryption, 5 x Antennas
Bluetooth Mobile App, Spectrum Analyzer
$2,980.00
$2,950.00
Stock Level:
Out of Stock
Check Location Availability

Teradek Bolt 6 LT 750 TX

Essential Add-On's we recommend

Description

Transmit lossless HD video up to 750'(228m) with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter from Teradek. With the same form factor as the Bolt 4K LT 750, this transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter unit provides a powerful signal that can travel up to 750' line of sight. It also features a bright OLED display and an SDI loop output.

The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.



Key Features

  • Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
  • Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
  • Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
  • SDI Eye Pattern Tool to check SDI cable integrity
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Improved "long range" mode
  • Small and light chassis design
  • Transmit to up to six Bolt 4K or Bolt 6 series receivers
  • AES-256 encryption support
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Teradek LT 750 Specs

Inputs / Outputs
Antenna Ports2 x RP-SMA Female
Video1 x HDMI Type A (HDMI 1.4b) Input
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Loop Output
Embedded AudioHDMI: 2-Channel
SDI
AudioNone
Power I/O1 x LEMO 2-Pin (28 VDC) Input
Other I/O1 x Micro-USB Input
Encryption256-Bit AES
Wireless
Wireless Range750' / 228.6 m (Line-of-Sight)
Channel Bandwidth40 MHz, 20 MHz
Frequency RangeNon-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power23 dBm
Wi-FiNone
BluetoothYes
Format Support
Video FormatHDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format2-Channel 24-Bit 48 kHz
Timecode SupportYes
Power
DC Input Power6 to 28 VDC
Power Consumption9 W
Mounting
Mounting1 x 1/4"-20 Female
Environmental
IP RatingNone
Operating Temperature0 to 40°C
General
Material of ConstructionAluminum
Dimensions103 x 60 x 33 mm
Weight342 g



In the Box

  • Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter
  • 2-Pin to D-Tap Power Cable (18")
  • USB 2.0 Type-A Male to Micro-USB Male Cable (39")
  • HDMI Type A Male to HDMI Type A Male Cable (18")
  • BNC to BNC SDI Cable (10")
  • AC Adapter with Cable (6')
  • 2 x Antenna
  • Limited 1-Year Warranty
