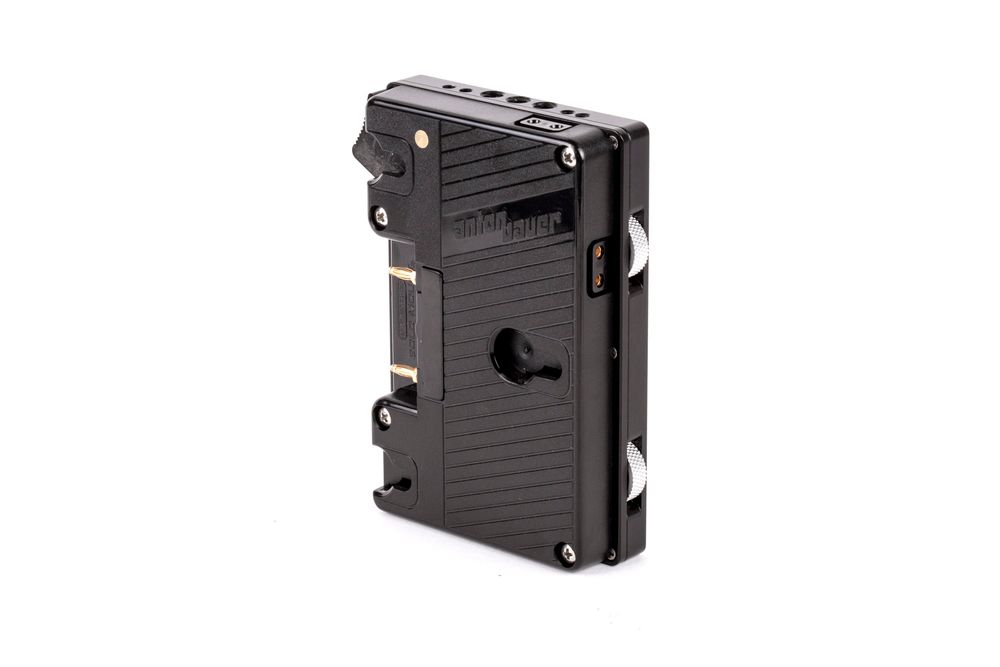

Wooden Camera - Cable-Less Gold Mount RED DSMC2

DM.54.220800

Product Features:

Showroom Demo Stock
Attach directly to DSMC2
$979.00
$495.00
Stock Level:
In Stock
Check Location Availability

Wooden Camera - Cable-Less Gold Mount RED DSMC2

Essential Add-On's we recommend

Description

All Cable-less products now ship with a 7.0+ firmware compatible board. Additional boards may be ordered per each serial or order number by selecting Cable-Less PCB Upgrade (Wooden Camera V8.0).

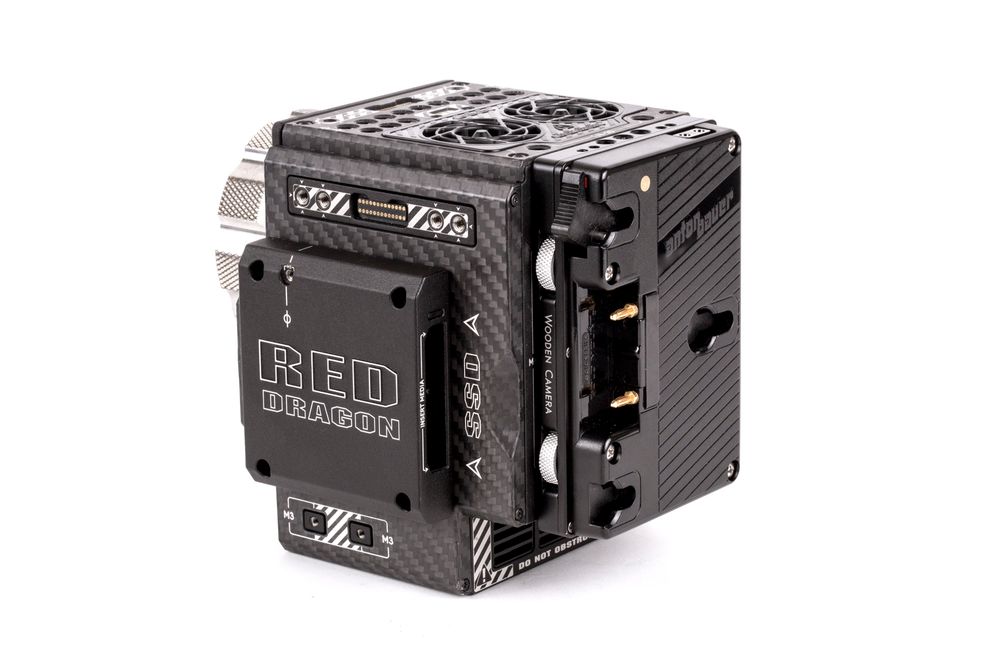

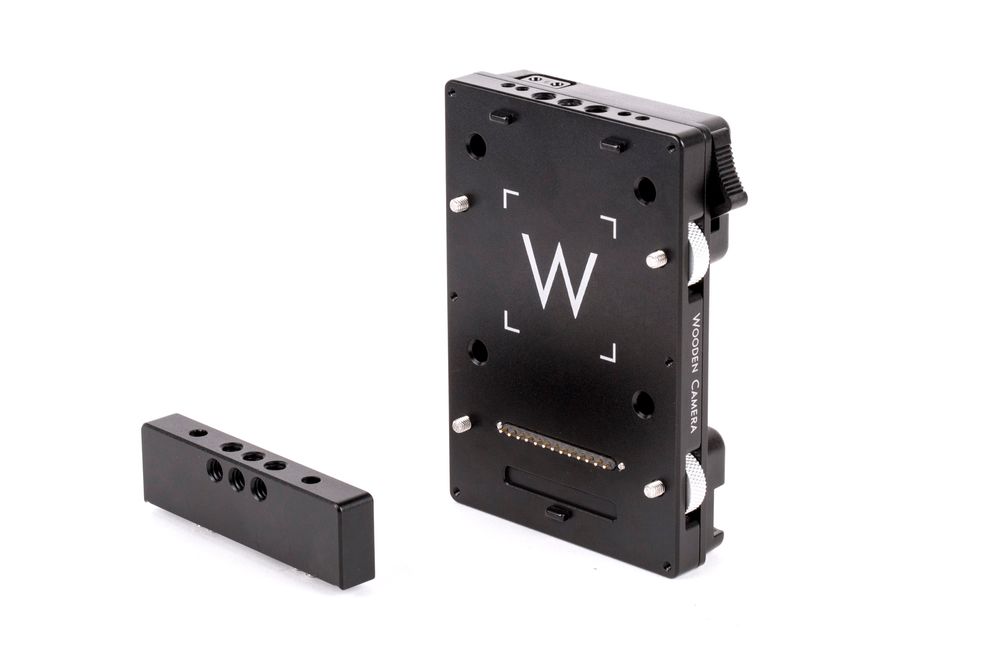

Cable-less V-Mount system for the RED Weapon, Epic Weapon (Epic-W), Scarlet Weapon (Scarlet-W), and Raven cameras which utilises an IDX brand plate with two D-Taps and the Wooden Camera pogo interface module. The assembly will attach without tools directly to the back of the RED Weapon/Scarlet-W/Epic-W/Raven camera, Base Expander Module, REDVolt Expander Module, and some third party modules like OMODs.

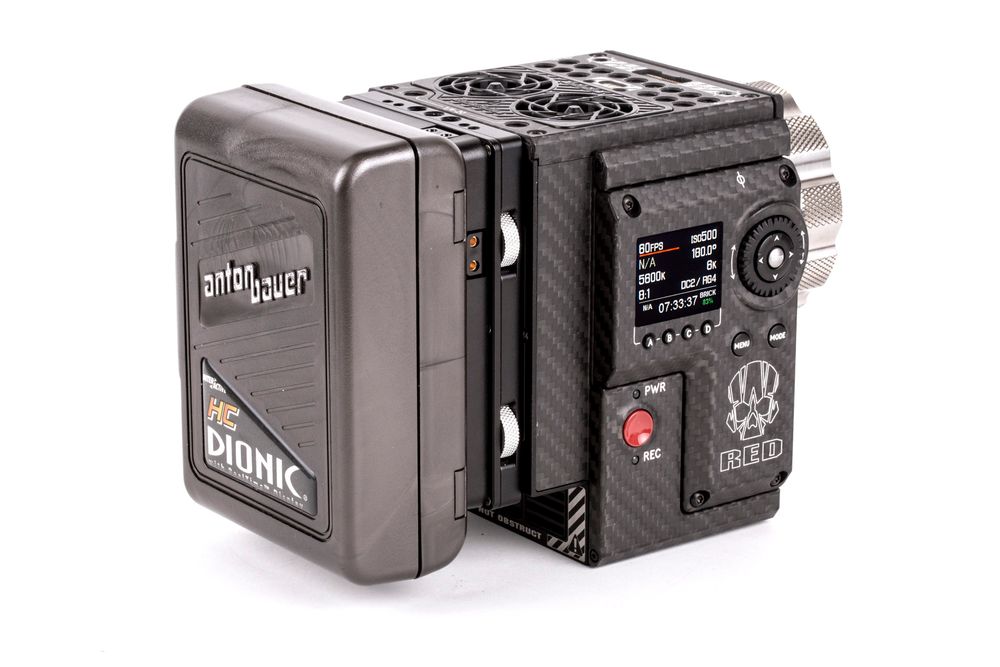

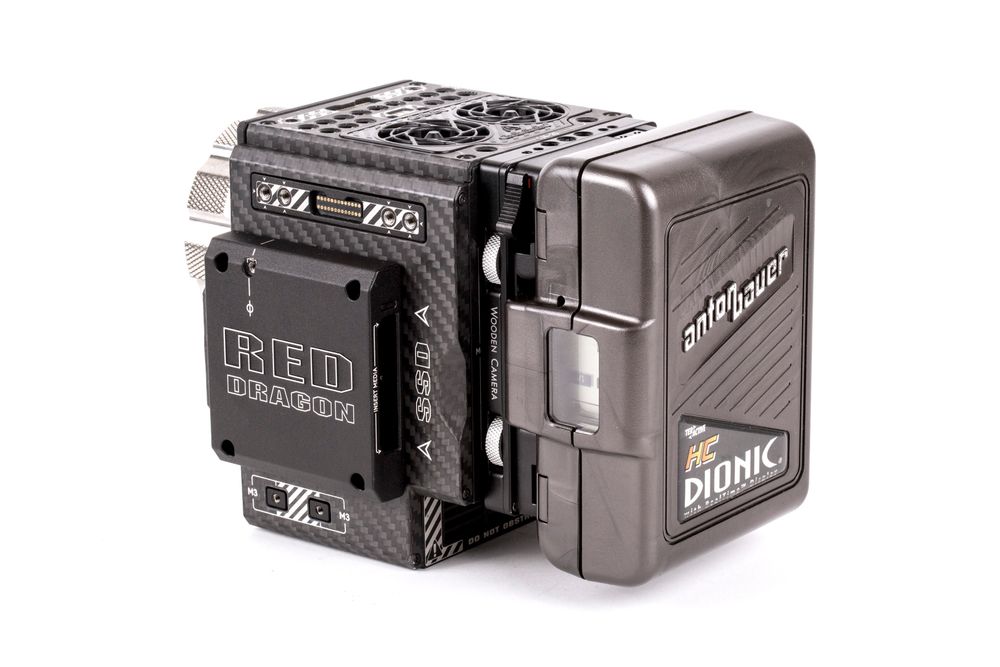

This system can be converted between high and low modes. High mode is where the battery plate sits above the back of the camera. Low mode is where the plate is configured to be flush with the top of the camera body leaving batteries in a very compact configuration. An important note is that the RED DSMC2 top handle will clear RED Brick batteries when our Cable-less V-Mount plate is configured in low mode.

The Cable-less V-Mount will communicate percentage or voltage data to the camera's LCD display. Intelligent batteries like RED Bricks, Blueshape, Switronix, PAG, and other batteries utilising SMBUS or reversed SMBUS will allow for the module to communicate percentage data and estimated run time. Non-SMBUS batteries like some IDX and other low cost batteries will only provide voltage data to the camera through our module.

2x D-Tap ports for accessory power

Special Note:

When using Cable-less and D-Box battery modules it is important to know what amount of power your batteries are capable of providing. A RED Brick battery can supply up to 10A with the camera generally consuming 4-6A in standard configuration. Although the remaining power is available from the D-Taps, LEMO compatible connectors, Fischers, etc., it is best to limit the power draw to 4A or less for best results. Consuming more power than a battery is capable of providing will cause the battery to shut itself off, killing the camera and accessory power.

Connectors used in this assembly are not manufactured by LEMO but are made to the same specifications and are LEMO compatible.

Specifications:

  • Weight: 453.592 g
  • Dimmension: 14cm x 8cm x 3cm
