Description

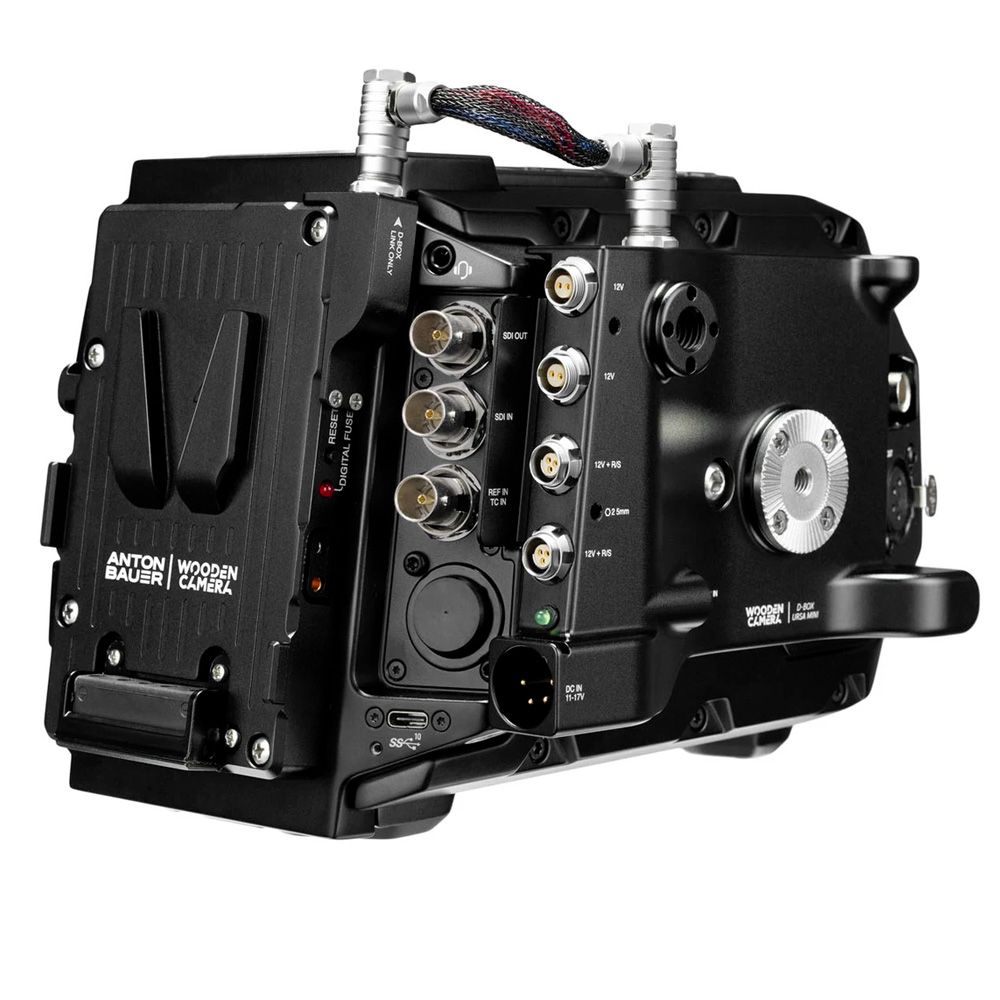

D-Box™ Plus (URSA Mini Pro 12K) is a form fitting combination power distribution and breakout box for the URSA Mini Pro 12K and URSA Mini Pro cameras featuring 1x 4-Pin XLR for a DC Input and hotswapping (11-17v), 2x 2-Pin LEMO (12v) Outputs for accessories, 2x 3-Pin Fischer (12v) Outputs with Trigger Control, 1x LANC Input on the side plate, and 2x D-taps on the power plate for accessories. The D-Box™ Plus (URSA Mini Pro 12K) also features a green light on the distribution Side Plate that will illuminate to indicate the proper DC voltage of 13v is connected to the XLR input.

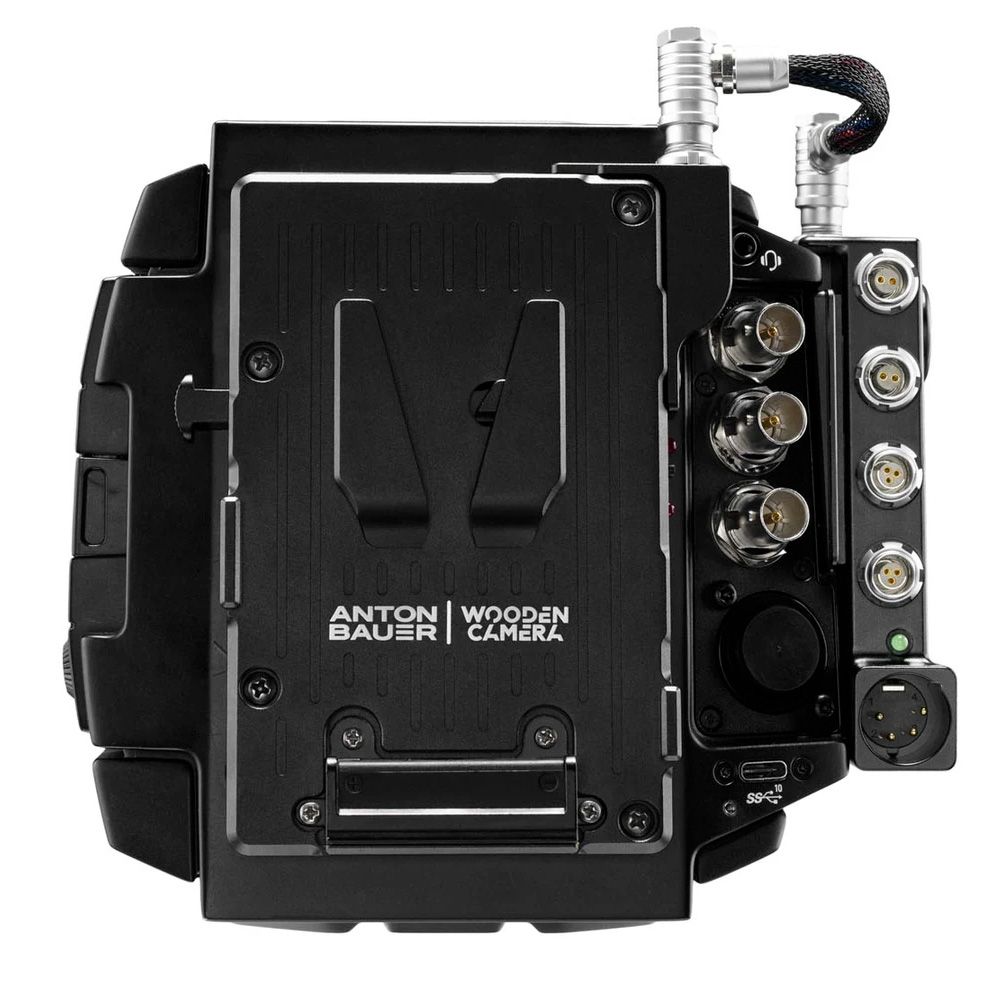

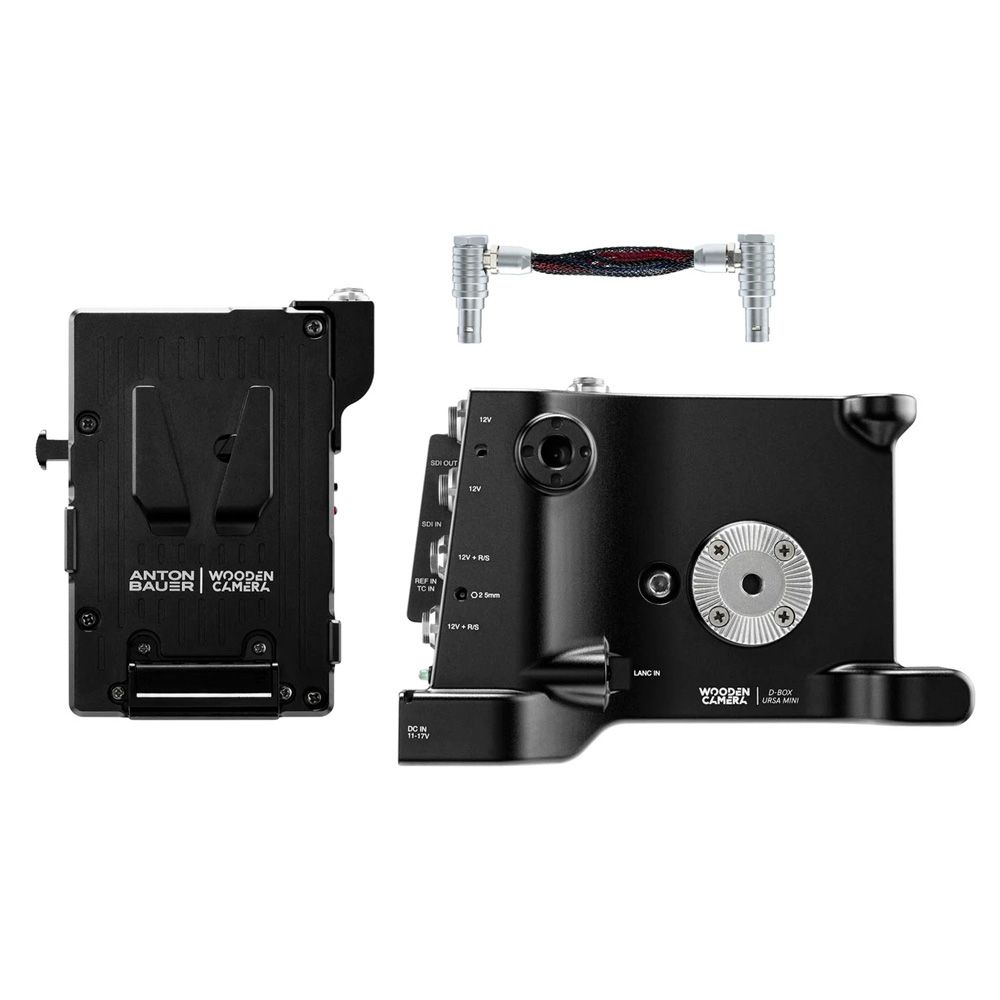

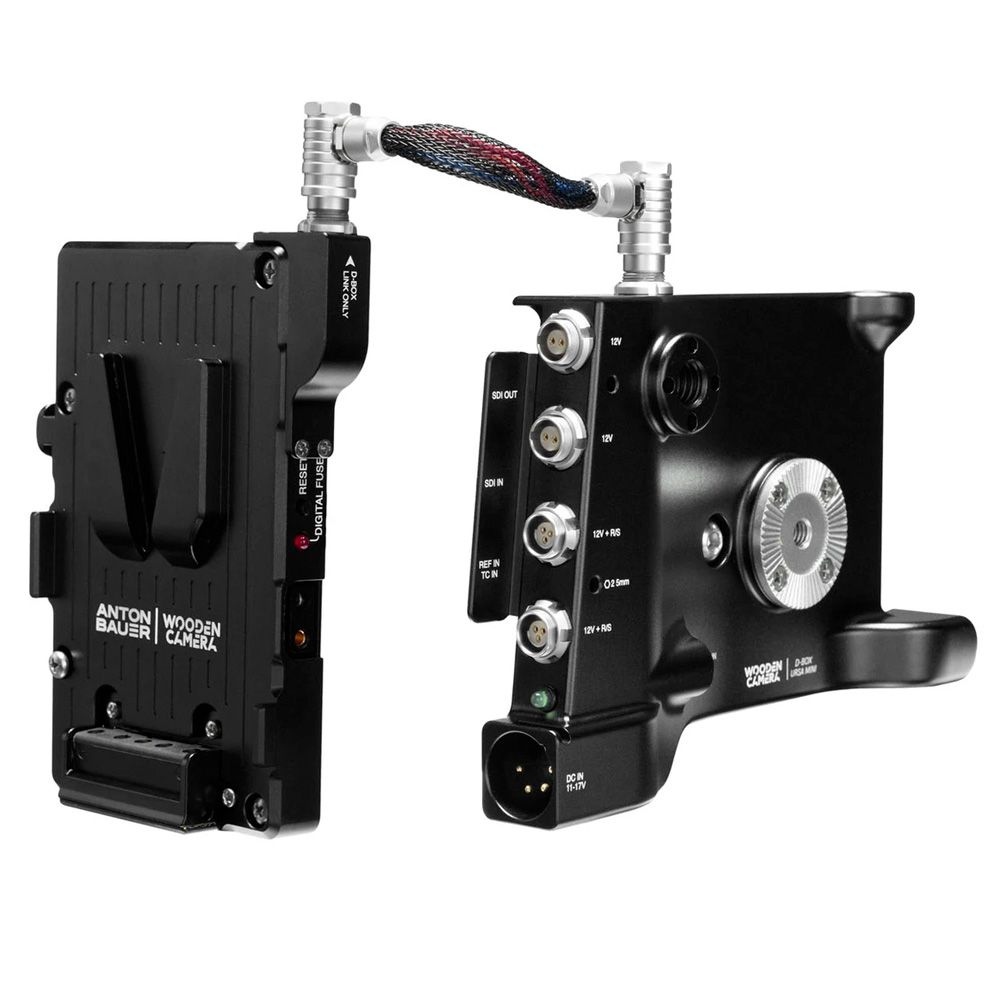

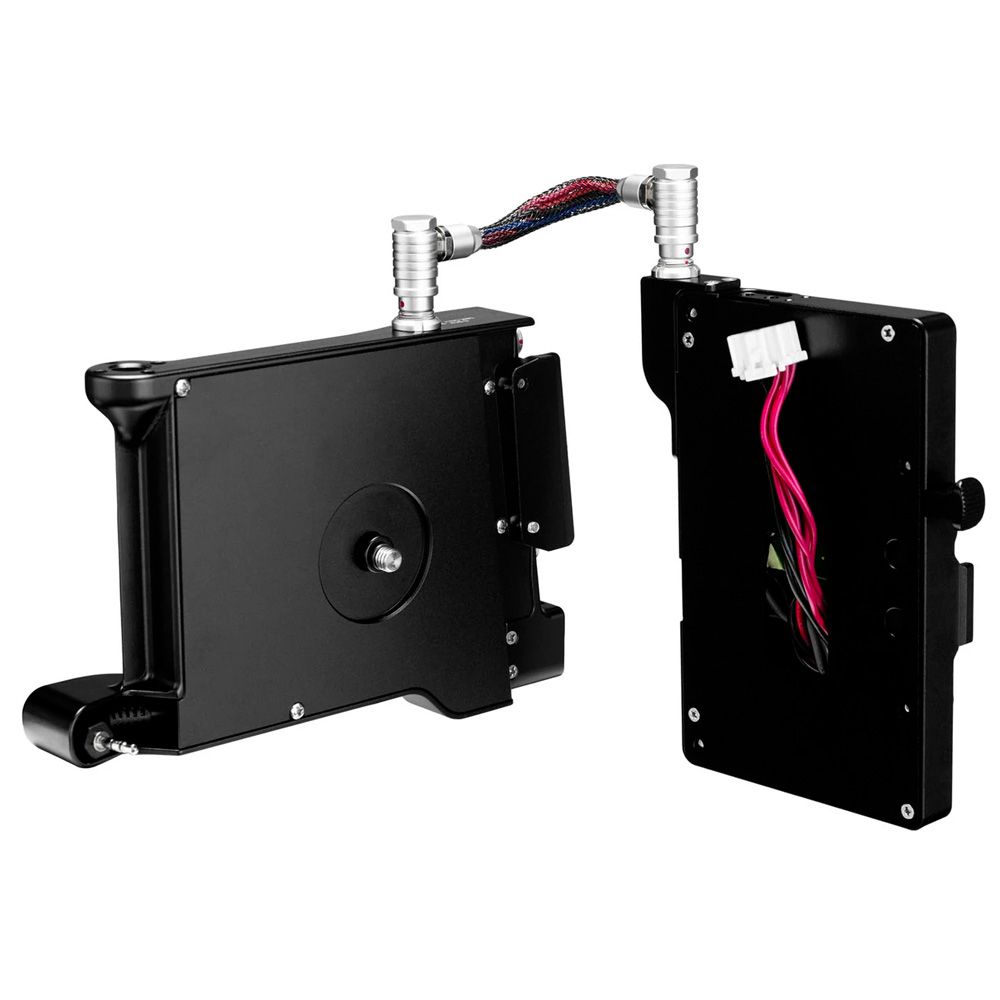

The Pro Battery Plate interfaces directly to the back of the camera body using a Molex connector eliminating external cabling. The plate features a rugged aluminium body for durability and secure battery mounting, 2x D-Taps for accessory power at battery voltage (11-17V), and a digital fuse with a reset button. Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.

The Side Plate attaches via the ARRI Standard Rosette on the side of the camera for Power Distribution and Camera Control Syncing. A cable connects the two plates, allowing users to hot-swap between the DC input and the onboard battery. The Side Plate features three mounting points for accessories. One 3/8-16 mounting point with ARRI-standard locating pins can be found on the front of the side plate and another can be found on the top. Since the side plate attaches to the native ARRI-Standard rosette on the side of the camera, an ARRI-Standard rosette has been added to the front of the side plate so as to not lose existing accessory compatibility that relies on the camera’s native rosette.

The side plate features:
- 2x 2-Pin LEMO (12v) Outputs
- 2x 3-Pin Fischer (12v) Outputs with Trigger Control
- 1x 4-Pin XLR for a DC Input (11-17v)
- 1x LANC Input

The Pro Battery Plate features:
- 2x D-Taps for accessory power at battery voltage (11-17V)
- Digital fuse with reset button

Connectors used in this assembly are not manufactured by LEMO or Fischer but are made to the same specifications and are LEMO and Fischer compatible.

Specifications:
Weight: 475 grams (1.05 lbs)
Dimensions: 210 x 150 x 28 mm (8.3 x 5.9 x 1.1 inches)
