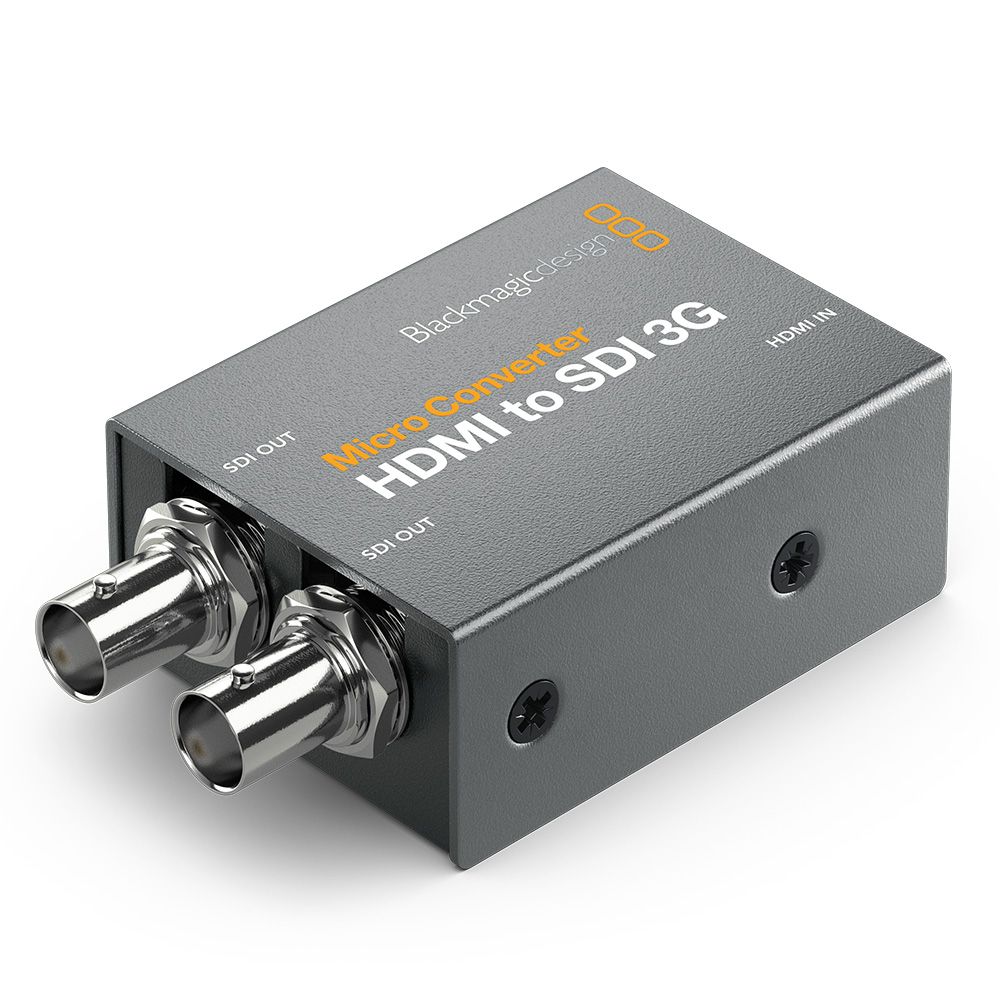

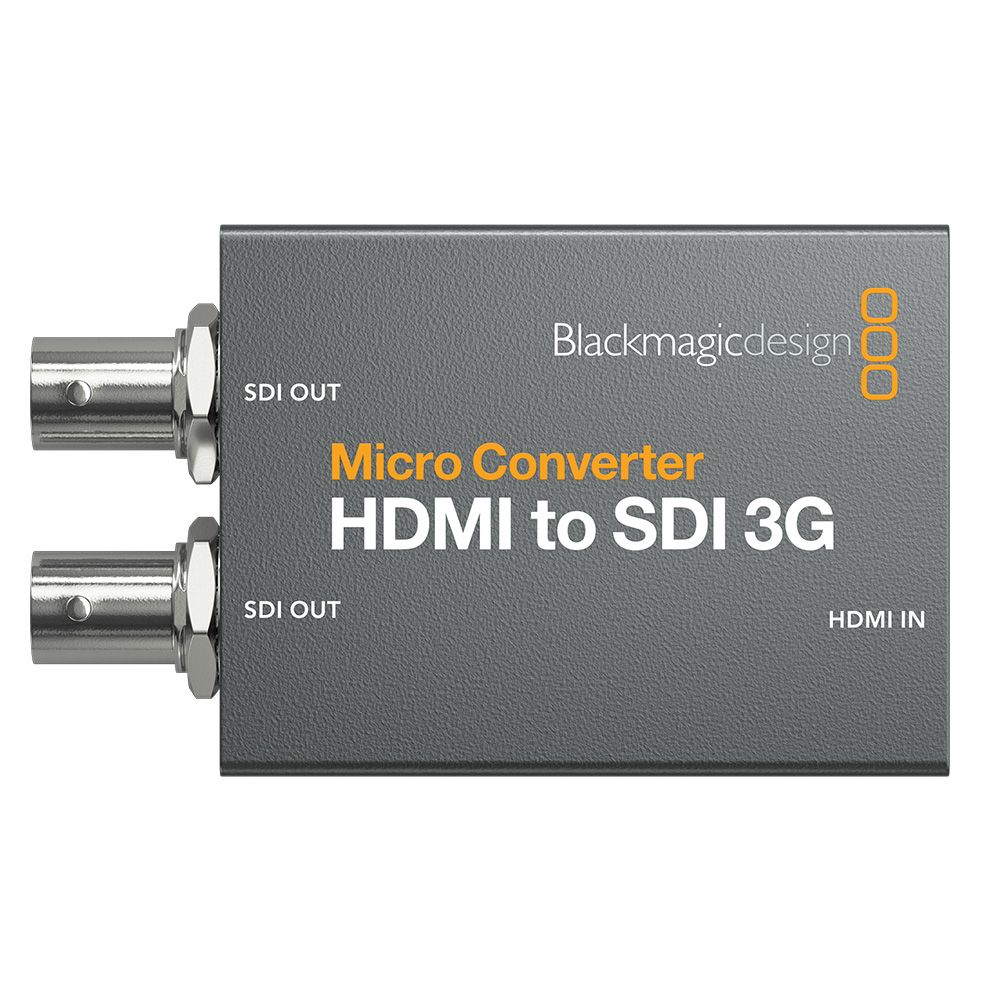

Blackmagic Design Micro Converter HDMI to SDI 3G with PSU

99.BM.CONVCMICHS03GWPSU

Product Features:

Converts HDMI to a SDI signal
Includes Power supply unit
Can be powered over USB
Broadcast quality SD, HD and Ultra HD converters
Simple, Compact and Rugged
Advanced Video Technology
HDMI Instant Lock
SDI Loop Outputs
SD/HD/3G-SDI Input
Automatic Input Signal Detection
$109.00
$90.00
Stock Level:
In Stock
Check Location Availability

Blackmagic Design Micro Converter HDMI to SDI 3G with PSU

Essential Add-On's we recommend

Description

Super compact and rugged, the Micro Converter HDMI to SDI 3G enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

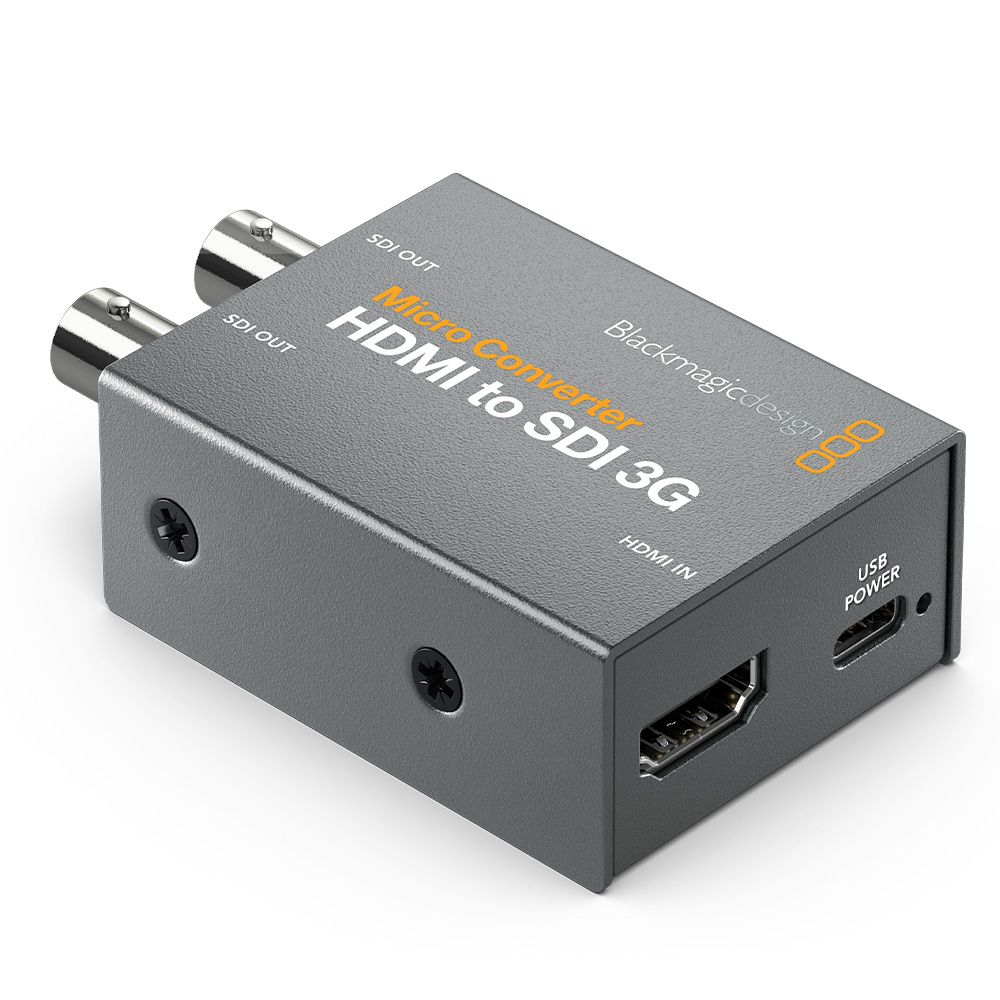

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the included 100-240 VAC power supply, complete with four international socket adapters.

Features

Dual SDI Outputs

  • One HDMI input
  • Two 3G-SDI outputs
  • Selectable A and B level formats

Compact, Rugged Design

  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC

SDI & HDMI Timecode

  • HD and SD timecode support
  • Converts HDMI timecode to SDI

SDI Re-Clocking

  • Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
  • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

  • SDI support from NTSC and PAL up to DCI 2Kp60
  • HDMI support from NTSC and PAL up to 1080p60

Embedded Audio

  • Supports embedded HDMI input and embedded SDI output

LED Indicators

  • LED indicators for video and power signals

Versatile Power Options

  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Includes a 100-240 AC power supply with four socket adapters
