Core SWX V-Mount Bracket for Sony FX9


Product Features:

V-Mount plate for Sony FX9
Hotswap between onboard battery & 4Pin XLR DC in
19.5v Camera output
Two D-Tap AUX outputs
LED battery level indicator
Premium quality aluminium construction
Stock Level:
In Stock
Check Location Availability

Core SWX V-Mount Bracket for Sony FX9

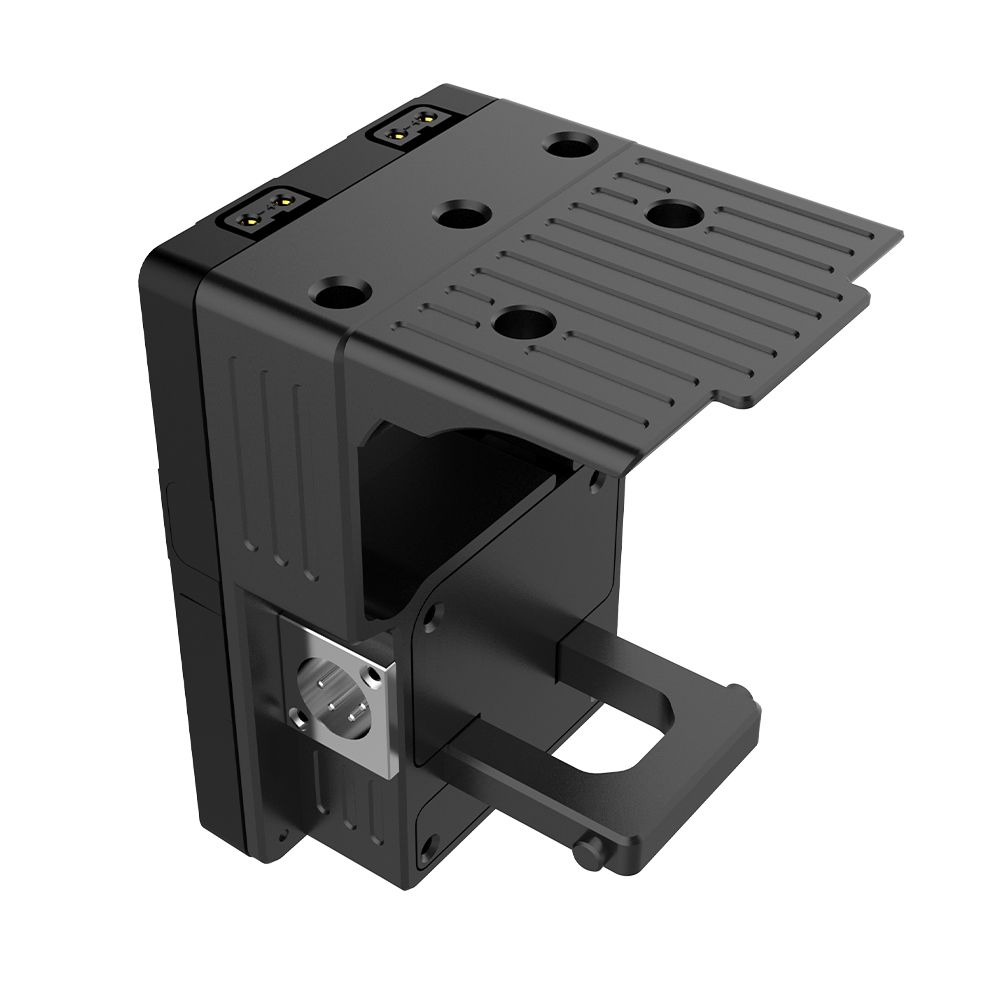

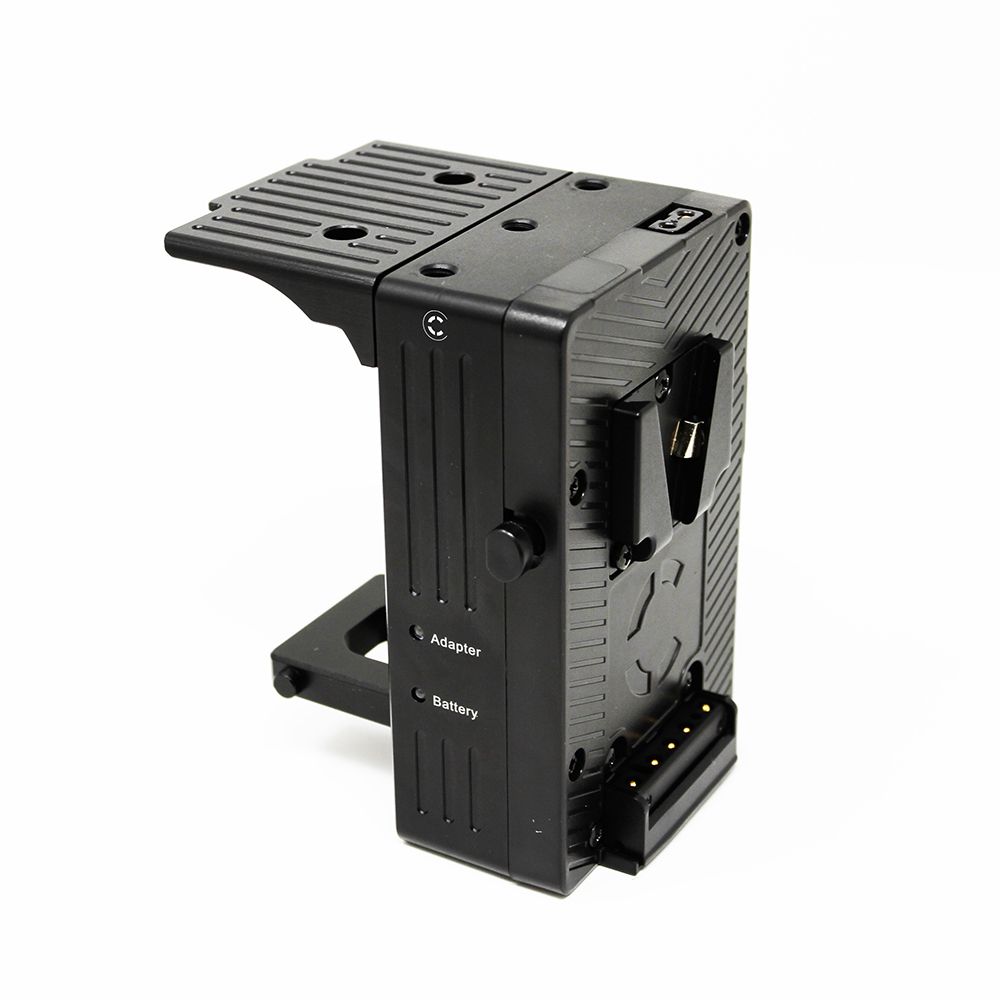

The CXV-FX9 mounts directly to the back of the Sony PXW-FX9, as an alternative power option to the Sony XDCA-FX9. The milled aluminium product inserts into the battery slot of the camera and also attaches into the top of the camera(with included screw hardware) to provide a secure platform for mounting v-mount batteries directly onto the FX9 camera.

It has a 19.5v DC output with a visual low battery warning LED and a 4-pin XLR DC input for hotswapping between external and on-board power. In addition, it’s equipped with two powertaps to power additional accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.


  • Input: 11.9vdc-16.8vdc(on-board and 4p XLR DC-in). Inputs are hot swappable.
  • Output for camera: DC 19.5v
  • Powertaps: DC 11.9-17v, Unregulated
  • Size: 13.7cm x 8.5cm 9.3cm
  • Weight: 544g
  • Firmware port: USB Micro
  • LED power indication: Bi-colour(red/green)
