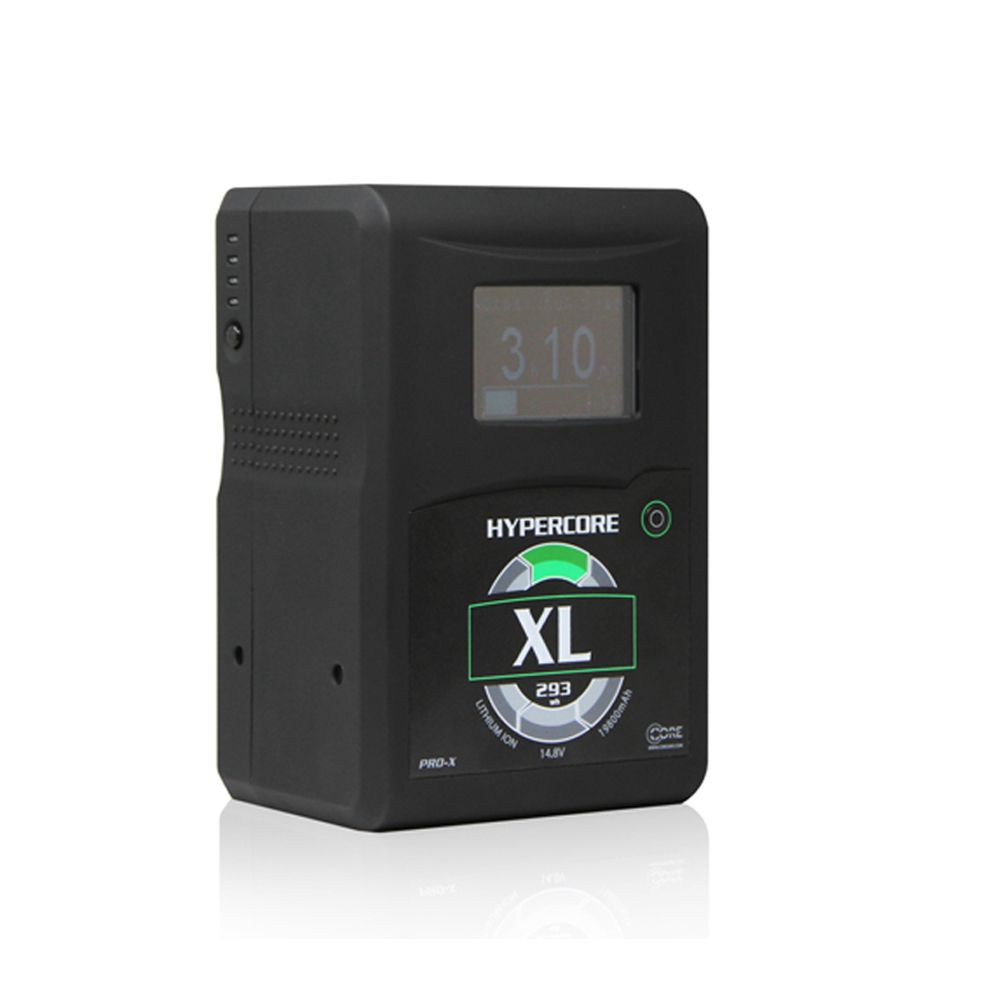

Core SWX Hypercore XL V-Mount 293wh Battery

52.HCXL-V

Product Features:

Supports up to 15A (20A Max) draw
Runtime/Chargetime LCD
2-way accelerometer built-in
Storage mode for travel
Communicates with RED DSMC2
V-Mount
Works with most chargers

Configuration Options:

$1,595.00
$1,425.00
Stock Level:
In Stock
Check Location Availability

Core SWX Hypercore XL V-Mount 293wh Battery

Essential Add-On's we recommend

Description

The Hypercore series of battery packs employ the very latest in Lithium Ion technology. The Hypercore cell was constructed with the specific purpose of handling and sustaining high power draws. The cells in Hypercore XL can withstand up to a 15A draw (20A peak) for extended periods of time while not diminishing service life. The HyperCore series delivers the most value and ROI for those who require battery packs to stand the test of time and deliver unrivalled performance.

The battery cells are incased in an over moulded, rubberised housing, something Core SWX has been offering for nearly 8 years. The case provides additional protection against accidental impacts; and the rubber texture reduces the chance of the battery slipping out of your hands.

In addition, the battery pack is outfitted with a multipurpose Runtime LCD on the front of the pack. The front provides a canvas to place a large, back-lit LCD on the most visible part of the battery. For ENG cameramen, there is also a 4-stage LED display on the side of the battery, which can be used to glance at leftover battery capacity. Getting back to the LCD, the LCD is multipurpose. Not only will the LCD inform you how much time you have left when in use(in hours and minutes), but it will also give you an estimation based on a dummy load of 30w, when in standby (disconnected from any devices). Furthermore, this serves a third purpose as a charge indicator, by computing remaining charge time when on a charger.

The battery doesn’t just compute a simple calculation when deciphering runtime. Recognising the most important feature of the battery for a video professional, Core SWX’ proprietary on-board fuel computer leverages the Hypercore’s “smart” battery platform to take an aggregate view of the past usage of the battery; charge and discharge performance, to provide the most accurate Runtime calculation, down to the minute!

Each battery is outfitted with an accelerometer to detect motion, a similar component that is in mobile devices. The accelerometer is tied to a clocking algorithm to gauge how long the battery is not in use. One of the issues with all battery packs is self-discharge when not in use. Hypercore battery packs with go to sleep or hibernate when there is no battery usage or movement after a 48hr period. The LCD shuts down as well to preserve state of charge. Once you pick up the battery, or the battery detects the slightest movement, the battery pack awakens, coming back to life at its maximum capacity.

As with all Core SWX brick battery offerings, the Hypercore series have an integrated, unregulated P-tap connection on the side of the battery allowing you to power any device accepting 12-16.8vdc. In addition it is one of the first battery products in the industry to incorporate a USB power output. Being proactive, Core SWX recognises the importance of mobile devices in production nowadays, and by adding the USB port it allows you to accessible charging for your mobile device.

Any charger within Core SWX’ charger lineup will charge Hypercore, but the battery series is also the most cross platform, charger-compatible in the industry today. The V-mount offerings (Hypercore S) will also charge on IDXTM and SonyTM, allowing you to maximise service life out of your current charger.

Specifications:

  • Capacity: 293wh (14.8V, 19800 mAh)
  • Size: 9.65cm x 14.9cm x 7.5cm
  • Weight: 1.54kg
  • Normal Runtime: (25W) 11.7Hrs
  • Max Load: 15A, 20A peak for up to 2s
  • P-tap and USB 5V
