Sekonic LiteMaster Pro L-478DR for Pocketwizard

42.L-478DR

Product Features:

Incident Metering for Ambient & Flash
Range: -2 to 22.9 EV at ISO 100
Cine Setting: Frame Rate & Shutter Angle
70mm Colour Touchscreen LCD
Flash Analyzing Function
Filtration Compensation Mode
Illuminance/Luminance Measurements
Contrast Function & Memory Mode
Custom Exposure Profiles & Calibration

Configuration Options:

$675.00
Stock Level:
In Stock
Check Location Availability

Sekonic LiteMaster Pro L-478DR for Pocketwizard

Essential Add-On's we recommend

Description

Please note due to a global shortage of semiconductors and component shortages Sekonic is experiencing delays in the production of several of its Light meters.

At this stage, we do not have an accurate ETA on all of the L-478 series light meters as well as the L-858 and the C-800 & C-7000 units.

Sekonic L-478DR-U

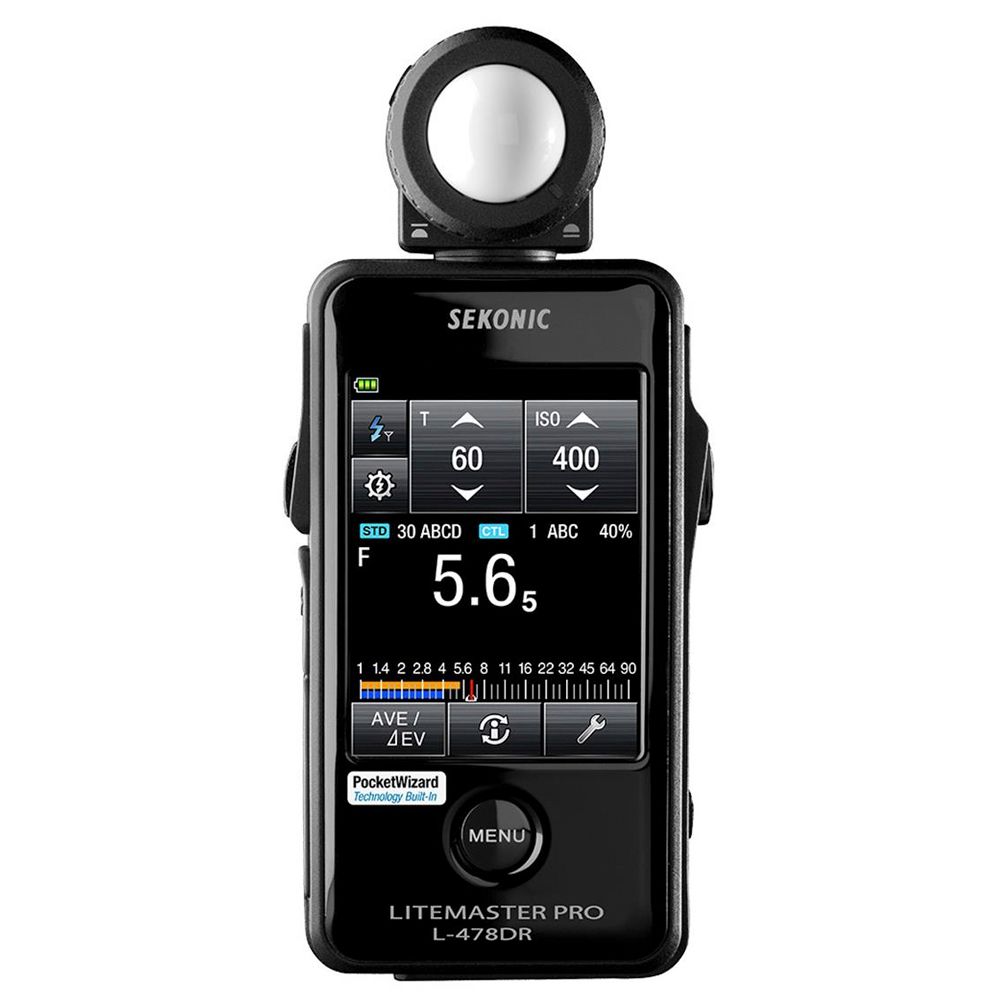

Equipped with a large and intuitive 2.7" colour touchscreen LCD and now featuring built-in radio flash power control and triggering for the PocketWizard ControlTL and standard wireless systems, the LiteMaster Pro L-478DR-U Light Meter from Sekonic will make incident metering for ambient and flashlight super simple. The ability of this system enables complete control of the flash's power in 0.1-step increments. Along with this, the radio system has a separate selection between 3 zones for ControlTL or 4 zones for standard triggering with measured values maintained for ratio determination.

Notable for the L-478 light meter series is the large colour touchscreen, which allows for fast control over settings for both ambient and flash metering. The meter is quite capable as well, able to function within a range of -2 to 22.9 EV at ISO 100. Additionally, for the current crop of hybrid shooters, this model expands on its standard stills functions with two distinct video modes: Cine and HD Cine. These settings give access to frame rate selection from 1-1,000 fps as well as shutter angle settings from 1-358° as well as ISO 850 for Canon cinema cameras.

Guaranteeing the best possible performance is a suite of functions and features that will ensure users have the best tools available to them. Among these is a flash analyzing function that uses ambient and flashes simultaneously to allow for shooters to dial in their preferred mix. Also, using the included Data Transfer Software users will be able to do Exposure Profiling for their camera by using the optional 5° viewfinder, showing dynamic range limits and knowing that you will have an accurate exposure. Alongside this is a Filtration Compensation Mode that allows for the meter to account for filter factor, which can now be done at up to 12 EV for landscape shooters using high-density ND filters. Other features include a contrast function for comparing brightness, a memory mode for 9 readings, and illuminance or luminance measurement.

  • Lumisphere receptor head rotates 90° right and 180° left and retracts for conversion to a flat diffuser
  • Optional 5° viewfinder for spot metering
  • Ambient light measuring modes include aperture priority, shutter speed priority, TF priority, CINE, HD Cine, illuminance, and luminance
  • Flash can be measured with PC sync terminal connection, cordless, or radio triggering
  • Measuring range at ISO 100 of -2 to 22.9 EV with incident light or 3 to 19.9 EV with reflected light
  • ISO range of 3 to 409,600 in 1/3 steps, including 850 for Canon cinema cameras
  • Other functions: exposure profile, mid-tone function, exposure compensation, filter compensation, multiple cumulative functions, memory/clear/recall function, average function, contrast function, auto power-off, touch panel lock
  • Runs on 2 AAA batteries
  • Firmware upgradeable via mini-USB port

Sekonic L-478DR-U Specs

Type

Digital light meter for flash and ambient light

Radio Frequency

340-354 MHz (PocketWizard)

Receptor Element

2 x Silicon photo diodes

Receptor Head

Incident Light: Lumisphere convertible to flat diffuser, rotates 90° right & 180° left

Reflected Light: Optional 5° viewfinder

Measuring Modes

Ambient Light: Aperture priority, shutter speed priority, TF priority, EV metering, HD Cine (shutter priority, FPS metering, lux, or fc), Cine (FPS metering, shutter angle setting, lux, or fc), illuminance (lux or fc), luminance (cd/m² or fl)

Flash Light: Cord (PC sync terminal), cordless, wireless radio triggering

Measuring Range

Ambient Light (ISO 100): Incident: -2 to 22.9 EV; Reflected: 3 to 19.9 EV

Flash Light (ISO 100): Incident: f/1.0 to f/128.9; Reflected: f/2.8 to f/128.9

Illuminance: 0.1 to 180,000 fc / 0.63 to 2,000,000 lux

Luminance: 0.29 to 290,000 fl / 1.0 to 980,000 cd/m²

Repeat Accuracy

±0.1 EV or less

ISO Range

3 to 409,600 in 1/3 steps, plus 850

Shutter Speed

Ambient Light: 1/64,000 sec to 30 min, plus 1/200 & 1/400 sec, in 1, 1/2, and 1/3 steps

Flash Light: 1/1,000 sec to 30 min, plus 1/75, 1/80, 1/90, 1/100, 1/200, & 1/400 sec, in 1, 1/2, and 1/3 steps

Aperture

f/0.5 to f/161.2 in 1, 1/2, and 1/3 steps

Frame Rate

1-1,000 fps

Shutter Angle

1-358°

EV Range

-27.9 to 55.8 EV (only ambient light)

Memory Function

9 readings

Zones

ControlTL: 3 zones

Standard: 4 zones

Connections

1 x PC sync terminal

1 x Mini-USB port

Screen

2.7" / 6.9 cm color touchscreen LCD

Power Source

2 x AAA batteries (alkaline, manganese, lithium, nickel hydride, or nickel)

Operating Temperature

14 to 122°F / -10 to 50°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions

2.2 x 5.5 x 1.0" / 57 x 140 x 26 mm

Weight

4.9 oz / 140 g without batteries
