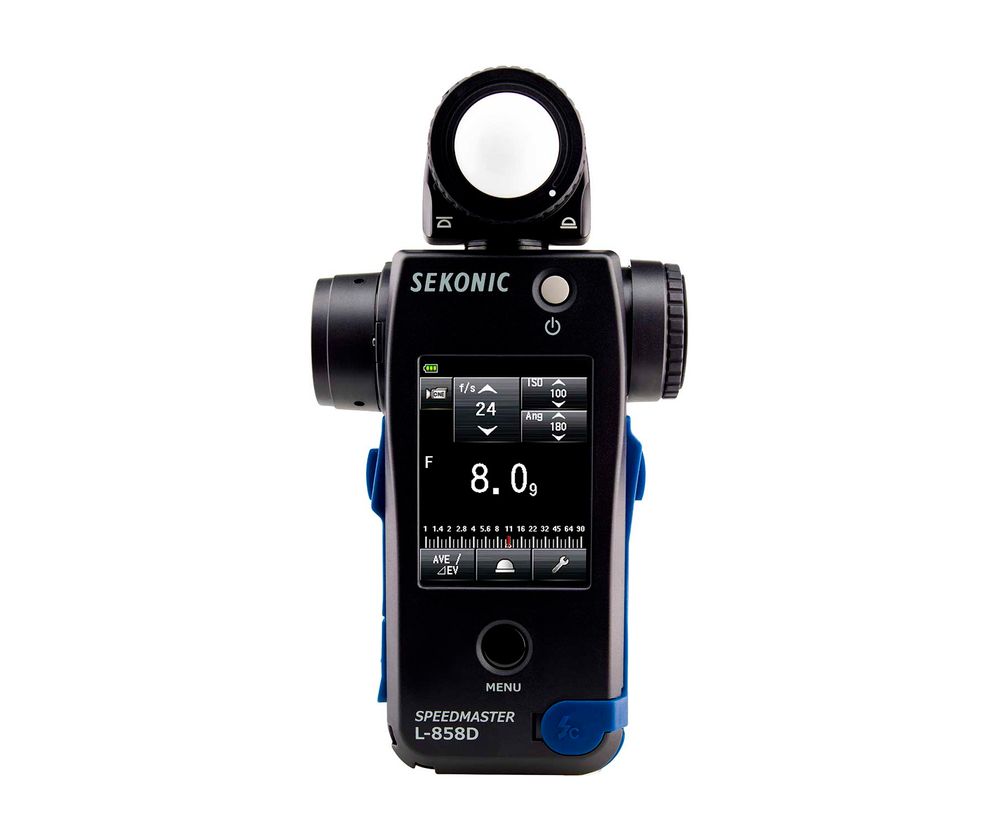

Sekonic SpeedMaster L-858D

42.L-858D
  • Watch Video
  • Watch Video
  • Product Features:

    Incident Metering for Ambient & Flash
    1deg Spot Metering with Viewfinder
    HSS Flash & Flash Duration Measurements
    Measuring Range: -5 to 22.9 EV (ISO 100)
    Illuminance Range: 0.1 to 2,000,000 lux
    Flash Analyzing Function; Extended Range
    Extensive Range of Cine & Video Settings
    Optional Radio Control Modules
    Flash Analyzing Function; Extended Range

    Configuration Options:

    $1,095.00
    Stock Level:
    In Stock
    Check Location Availability

    Sekonic SpeedMaster L-858D

    Essential Add-On's we recommend

    Description

    Please note due to a global shortage of semiconductors and component shortages Sekonic is experiencing delays in the production of several of its Light meters.

    At this stage, we do not have an accurate ETA on all of the L-478 series light meters as well as the L-858 and the C-800 & C-7000 units.

    Stock is filtering through in small quantities. Placing a backorder to get in the queue is suggested.

    Sekonic L-858D

    Aiming to provide for the needs of both photographers and filmmakers, the Speedmaster L-858D Light Meter from Sekonic comes packed with a variety of upgraded features and capabilities that make it an almost essential tool for a working professional. It is able to take an incident and reflected light readings of both flash and ambient light with an expanded measuring range of -5 to 22.9 EV at ISO 100, or within an illuminance range of 0.1 to 2,000,000 lux. Users will also find it intuitive and easy to use thanks to the use of a 2.7" colour touchscreen LCD and an all-weather design.

    The meter can use either a 270° rotating and collapsible lumisphere or an integrated 1° spot viewfinder to account for the varying needs of the user. Also, it offers an extensive range of cinema and video settings as well as the unique ability to measure flash duration and to take readings when using high-speed sync flash. The L-858D is equipped with a variety of other functions as well, including memory recall, a Flash Analyzing Function, and extended ranges on nearly every setting. Additionally, through the use of optional modules, users can add radio triggering support for PocketWizard and Elinchrom/Phottix systems.

    • Lumisphere receptor head rotates 90° right and 180° left and retracts for conversion to a flat diffuser.
    • An integrated 1° spot viewfinder with full information display provides a precise method of measuring specific parts of a scene.
    • Ability to measure flash duration within a range of 1/40 to 1/55,500 second using t0.1 to t0.9 settings.
    • Improved sensitivity of the L-858D allows it to record readings at just 0.1 lux illuminance as well as use an expanded range of -5 to 22.9 EV for incident readings and -1 to 22.4 EV for reflected light. Also, it features an extended ISO range of ISO 3 to ISO 13,107,200 with an option available for ISO 850.
    • Optional radio modules are available for PocketWizard and Elinchrom/Phottix systems for advanced wireless triggering and remote flash control.
    • High-Speed Sync support allows photographers to accurately take readings while using HSS with their flashes and cameras.
    • Flash Analyzing Function measures ambient and flashes simultaneously to provide a percentage of flash in the final exposure. Users can then adjust the mix as the display shows camera settings and the relationship between the flash and ambient light in your exposure.
    • Users can determine the dynamic range of their camera using optional targets by taking bracketed shots with their measurement data and they use the Sekonic Data Transfer Software to graph and then save the information to the meter.
    • Expanded shutter speed ranges now allow for readings between 1/64,000 second to 30 minutes with ambient light and 1/16,000 second to 30 minutes for flash.
    • A comprehensive set of cinema modes allows for settings of 1-1000 fps as well as shutter angles of 1-358°. Twenty user determined settings are also available that provide more precise options of 0.001-360° shutter angles and 0.001-99,999.999 fps.
    • 2.7" colour touchscreen LCD provides a fast and intuitive method for viewing and changing settings.
    • Micro-USB port can be used for firmware updates, applying custom settings, and using exposure profiling.
    • The L-858D features an all-weather construction that is dust and splashproof (JIS Class 4).

    Sekonic L-858D Specs

    Type

    Digital light meter for flash and ambient light

    Radio Frequency

    None

    Receptor Element

    Silicon photodiodes

    Receptor Head

    Incident Light: Lumisphere convertible to the flat diffuser, rotates 90° right & 180° left

    Reflected Light: 1° spot viewfinder

    Measuring Modes

    Ambient Light

    F priority (aperture)

    T priority (shutter speed)

    TF priority (shutter speed and aperture)

    HD Cine (shutter priority, FPS metering, lux, or fc)

    Cine (FPS metering, shutter angle setting, lux, or fc)

    Illuminance (lux or fc)

    Luminance (cd/m² or fl)

    Flash Light

    Cord (PC sync terminal)

    Cordless

    Radio triggering (optional)

    HSS Flash (cordless)

    Flash Duration Analysis (cord, cordless, or radio)

    Measuring Range

    Ambient Light (ISO 100)

    Incident: -5 to 22.9 EV

    Reflected: -1 to 24.4 EV

    Flash Light (ISO 100)

    Incident: f/0.5 to f/128.9

    Reflected: f/1.0 to f/128.9

    Illuminance

    0.01 to 180,000 fc / 0.1 to 2,000,000 lux

    Luminance

    0.03 to 290,000 fl / 0.1 to 980,000 cd/m²

    Repeat Accuracy

    0.1 EV or less (Incident light: from EV-2, Reflected light: from EV1)

    0.2 EV or less (Incident light: under EV-2, Reflected light: under EV1)

    ISO Range

    3 to 13,107,200 in 1/3 steps, 850

    Shutter Speed

    Ambient Light: 1/64,000 sec to 30 min, 1/200, & 1/400 sec, in 1, 1/2, and 1/3 steps

    Flash Light: 1/16,000 sec to 30 min, 1/75, 1/80, 1/90, 1/100, 1/200, & 1/400 sec, in 1, 1/2, and 1/3 steps

    Flash Duration

    1/40 to 1/55,500 sec (25 ms to 18 us)

    t0.1 to t0.9

    Aperture

    f/0.5 to f/128.9 (in 1 step)

    f/0.5 to f/152.4 (in 1/2 steps)

    f/0.5 to f/161.2 (in 1/3 steps)

    Frame Rate

    1-1,000 fps, and 20 user settings from 0.001-99,999.999 fps

    Shutter Angle

    1-358°, and 20 user settings from 0.001-360°

    EV Range

    Incident Light: -73.9 to 103.8 EV

    Reflected Light: -69.9 to 105.3 EV

    Memory Function

    9 readings

    Connections

    1 x PC sync terminal

    1 x Micro-USB port

    Screen

    2.7" / 6.9 cm color touchscreen LCD

    Power Source

    2 x AA batteries (alkaline or manganese)

    Tripod Mount

    Yes, 1/4"-20

    Operating Conditions

    Temperature: 14 to 122°F / -10 to 50°C

    Humidity: 0 to 85%

    Storage Conditions

    Temperature: -4 to 140°F / -20 to 60°C

    Humidity: 0 to 85%

    Dimensions

    3.7 x 6.9 x 1.9" / 94 x 176 x 49 mm

    Weight

    8.5 oz / 240 g without batteries
