Amaran Peak Winter Bundle

Name: Amaran Peak Winter Bundle
SKU: 25.MP0506013XBC
Price: 195.00 AUD
Availability: InStock

25.MP0506013XBC

Click to Enlarge

Product Features:

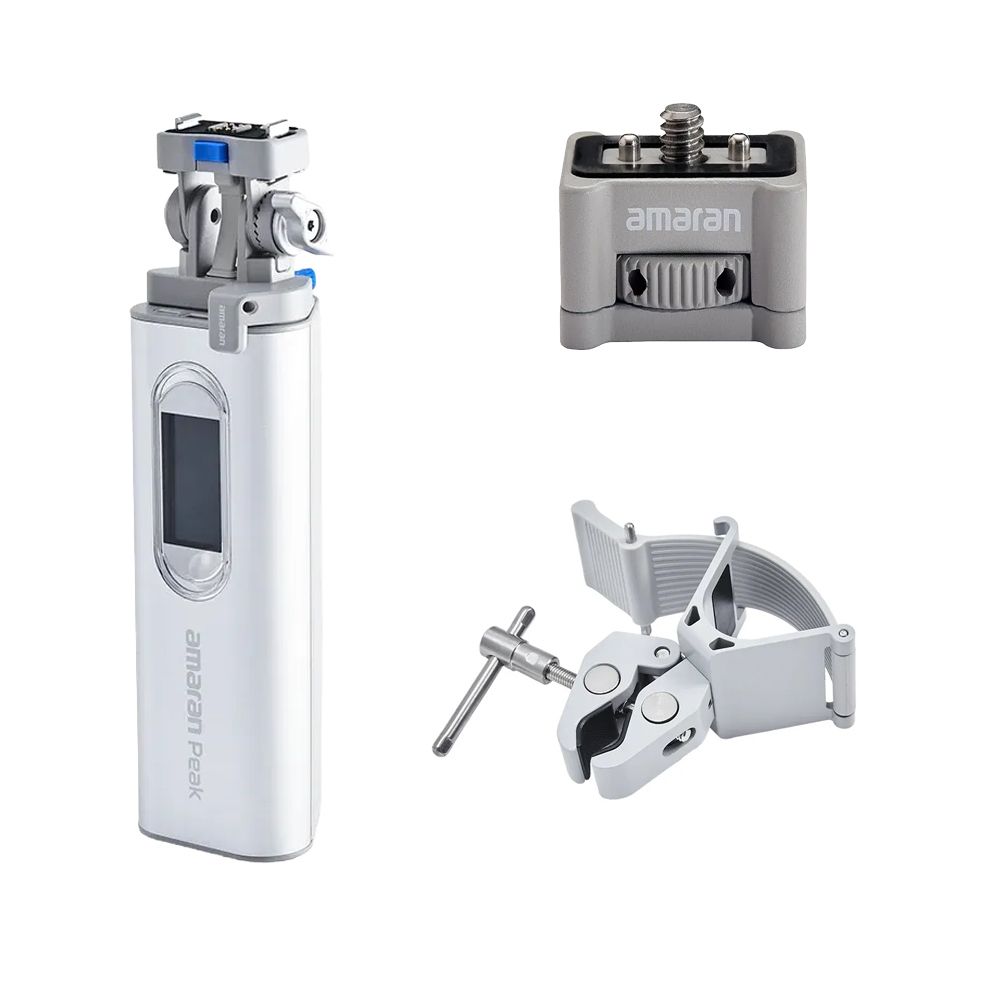

Bundle Inc: amaran Peak + amaran Ace E-Lock Adapter + amaran Peak Light Stand Clamp

ONE SYSTEM FOR All YOUR GEAR

MORE WAYS TO POWER AND MOUNT YOUR LIGHTS

MOUNT ANYWHERE. CREATE EVERYWHERE

REAL-TIME SMART DISPLAY

CABLE-FREE POWER WITH ACE E-LOCK

$310.00

$195.00

Stock Level:

Out of Stock

Check Location Availability

Make an Enquiry

Amaran Peak Winter Bundle

Add To Cart

$310.00

$195.00

Description

Bundle Inc: amaran Peak + amaran Ace E-Lock Adapter + amaran Peak Light Stand Clamp

The amaran Peak is a 86.4Wh battery system for on-the-go creators — delivering up to 170W of output to power your entire setup. With cable-free operation via the Ace E-Lock, 140W USB-C PD fast charging, and versatile mounting options, it’s built to keep you powered – anywhere, anytime.

CABLE-FREE POWER WITH ACE E-LOCK

Power your lights without cables. The amaran Peak delivers direct power to amaran Ace E-Lock compatible lights – like the amaran Pano 60c & 120c – with the included E-Lock Expansion Module. Perfect for handheld or mounted setups, or clamped to your gear.

ONE SYSTEM FOR All YOUR GEAR

Ditch bulky NP-F and V-Mount setups. With an 86.4Wh battery capacity that delivers up to 170W of output and 3 USB ports, the amaran Peak powers lights, cameras, and more – all from one compact battery.

MORE WAYS TO POWER AND MOUNT YOUR LIGHTS

Go beyond the Ace E-Lock. With the optional E-Lock Adapter and USB-C to DC Cable, the amaran Peak powers lights like the amaran COB 60d/x S and lets you mount them directly – handheld or on a stand.

MOUNT ANYWHERE. CREATE EVERYWHERE.

With built-in 3/8-16in and 1/4-20in mounting points and an optional Light Stand Clamp, the amaran Peak mounts directly onto light stands, tripods, or just about anywhere you shoot.

REAL-TIME SMART DISPLAY

Stay informed with a full-color smart display showing battery status, power flow, and alerts – so you can charge or create with confidence, wherever you are.

Output

USB-C1

5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A, 28V 5A (140W Max)

USB-C2

5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A, 28V 5A (140W Max)

USB-A

5V 3A, 9V 3A, 12V 5A (30W Max)

USB-C1 + USB-C2

100W + 65W (165W)

USB-C1 + USB-A

140W + 30W (170W)

USB-C2 + USB-A

140W + 30W (170W)

USB-C1 + USB-C2 + USB-A

65W + 65W + 18W

Input

USB-C1

5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A, 28V 5A

USB-C2

5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 5A, 28V 5A

Technical Specifications

Battery Capacity (Max)

86.4Wh / 24,000mAh

Battery Capacity (Min)

82.08Wh / 22,800mAh

Ports

2x USB-C, 1x USB-A, 1x amaran Ace E-Lock

Max Total Output

170W

USB-C Max Power Input

140W

Rated Capacity

13,200mAh (5V 3A)

Supported Protocols

PD, QC

Charge Time (65W)

75 Mins.

Charge Time (140W)

60 Mins.

Operating Temperature

-10°C - 40°C / 14°F - 104°F

Storage Temperature

-20ºC - 80ºC / -4ºF - 176ºF

Screen Type

TFT

Control Method

Button

Cooling Method

Passive Cooling

Noise Level

0dBA

Cycle Life

800+ Cycles (80% Capacity)

Conversion Efficiency

≥78%

Dimensions

amaran Peak Only

17.6 x 6.4 x6.1cm / 6.93 x 2.52 x 2.40in

Ace E-Lock Module

6.92 x 6.10 x 5.02cm / 2.72 x 2.40 x 1.98in

USB-C Cable Length

50cm / 19.69in

Weights

amaran Peak Only

791.0g / 1.74lbs

Ace E-Lock Module

243.0g / 0.54lbs

What's in the Box

1x amaran Peak

1x amaran Ace E-Lock Expansion Module

1x amaran USB-C Charging Cable (50cm)

1x 1/4-20in to 3/8-16in Screw Adapter

1x Drawstring Pouch

1x amaran Ace E-Lock Adapter

1x amaran Peak Light Stand Clamp
