ARRI Cforce Max Basic Lens Motor Kit 19mm

20.KK.0055607
  • Watch Video

    • Product Features:

    Four-Level Adjustable Torque
    Powerful Brushless Motors
    Locking Touchscreen and Button Control
    Inc 0.8/32 Gear and 19mm Rod Clamp
    Easy Integration with ARRI Ecosystem
    Soft Mode for Sensitive Lenses
    Speed Bar Visual Display
    Stealth at REC Mode Dims Touchscreen
    Compact, Lightweight Design
    Selectable Axis Colour to Match Camera
    $6,050.00
    Stock Level:
    In Stock
    Check Location Availability
    Make an Enquiry

    ARRI Cforce Max Basic Lens Motor Kit 19mm

    Add To Cart
    $6,050.00

    Description

    Advanced Lens-Control Motor

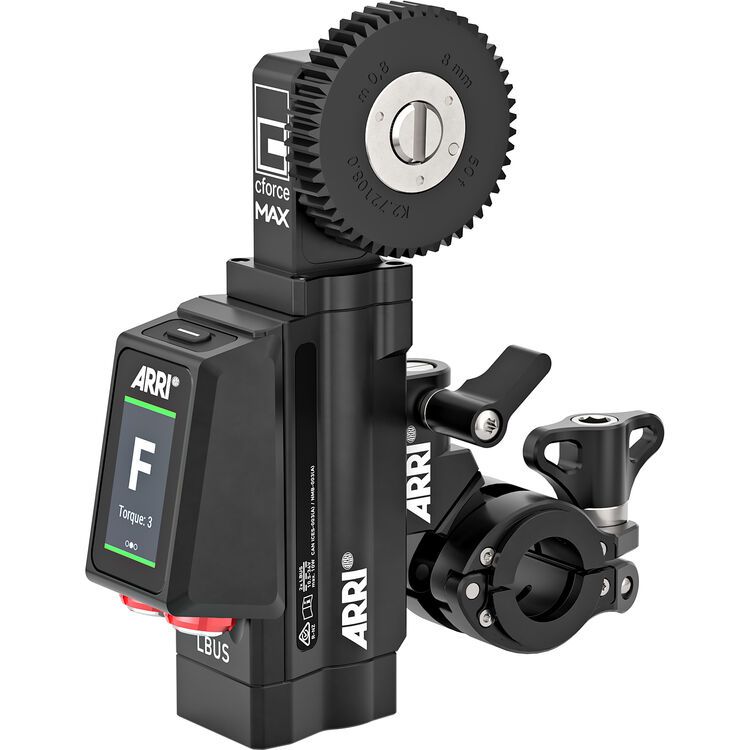

    Combining outstanding speed with superior strength, this cforce MAX Basic Kit from ARRI comprises a cforce MAX lens motor, gear, and MRC-1 19mm rod clamp. The motor offers advanced features in a compact form that is easily integrated into your ARRI ecosystem. Suitable for studio, stabilizer, handheld, and drone setups, the compact cforce MAX motor features a touchscreen display, Soft mode, and four levels of torque.

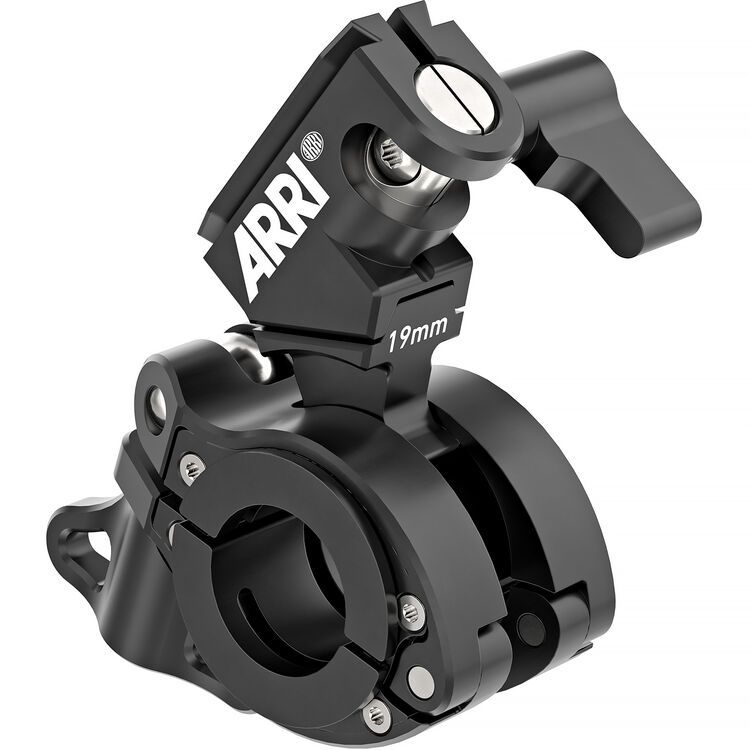

    MRC-1 19mm Rod Clamp
    Ideal for operators who use both 15mm LWS and studio setups, the MRC-1 19mm comprises a 19mm clamp and a reduction insert for use with a 15mm rod. The MRC-1 features tool-less mounting, flexible positioning with up to 200° tilt, and a rotating lever for right or left side use in tight, multi-motor camera builds. The captive 15mm insert is easy to mount yet remains securely retained to prevent it from falling out.

    Compatibility
    • Hi-5, Hi-5 SX, WCU-4, SXU-1 hand units.
    • OCU-1 controller.
    • ZMU-4 controller.
    • Master Grips.
    • cmotion cPRO, Cinefade Vari360, Steady Zoom/Pan-Bar systems.
    • ARRI ALEXA 35, 35 Xtreme, 265, Mini LF, and Mini cameras.
    • Older ARRI cameras via an RIA-1 unit.

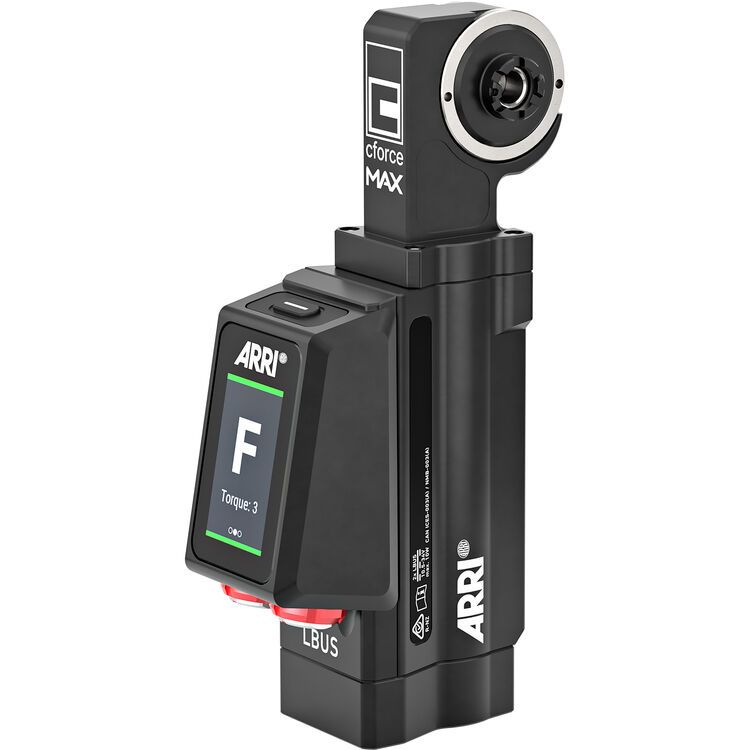

    Superior Strength and Speed

    Outputting 1.0 Nm of power and 400 t/s speed (gear teeth), the cforce MAX motor provides twice the strength and speed as the cforce mini motor in a compact form that is just 15% larger. Compared to the cforce plus motor, the MAX is twice as fast and equal in strength in a form that is 15% smaller and lighter.

    Versatile Touchscreen Display


    The versatile cforce MAX motor features both a responsive touchscreen interface and a single haptic button control. The touchscreen provides direct access to motor, display, and system settings. The weather-resistant display features an icon-driven, reduced-text interface and easy operability, even when wearing gloves. The top-mount button enables you to access essential functions like calibration and axis selection without having to navigate a menu.

    Customizable Home Screen
    • Customize the multi-segment home screen with the information critical to each setup.
    • The FIZX display shows the active Focus, Iris, Zoom, or AUX axis.
    • The torque value is displayed both as a number from 1 to 4 and in a live bar showing the current torque relative to the maximum motor torque.
    • The speed bar displays the current motor speed in real-time relative to the maximum speed.
    • The motor temperature is displayed and will show a reduction in power if the temperature exceeds 158°F.
    Visual Status Feedback

    • Colour coding gives users immediate confirmation of the motor status.
    • Calibration indicators include status requirements, encoder mode, and loss of signal.
    • Assign one of nine colours to the home screen FIZX symbol to match your camera in a multicamera setup.
    Personalized Display Control

    On-set operation is maximized with flexible display settings, including:



    • Adjustable screen brightness.
    • Configurable screen lock timing and lock-screen brightness.
    • Stealth at REC mode automatically dims and locks the display to minimize distractions on set.
    • Automatic rotation ensures that the screen remains readable when your motor is underslung.
    Flexible Calibration Modes

    • Flexible calibration modes include:
    • Automatic Calibration with end-stop detection and controlled speed and torque for safe, reliable calibration.
    • Manual Calibration with end stops set by hand or remotely via a Hi-5/SX Force-Pad to protect delicate vintage lenses or for AUX-driven setups without fixed end stops.
    • Encoder Limits mode enables users to define custom axis limits using the motor interface or by rotating your lens' barrel.
    Soft Mode
    Ideal for vintage or stiff lenses, the Soft mode features adjustable motor acceleration and Off/Low/Medium/High modes. Indicated on the display with a feather icon, Soft mode reduces mechanical stress on your lenses and provides greater control.


    Items Included

    • ARRI cforce MAX Basic Kit (19mm)
    • ARRI CLM-4 m0.8/32 Pitch & 50 Teeth Gear with Metal Gear Flange
    • ARRI Motor Rod Clamp MRC-1 (19mm/15mm)


    Note: LBUS motor cables need to be ordered separately.
