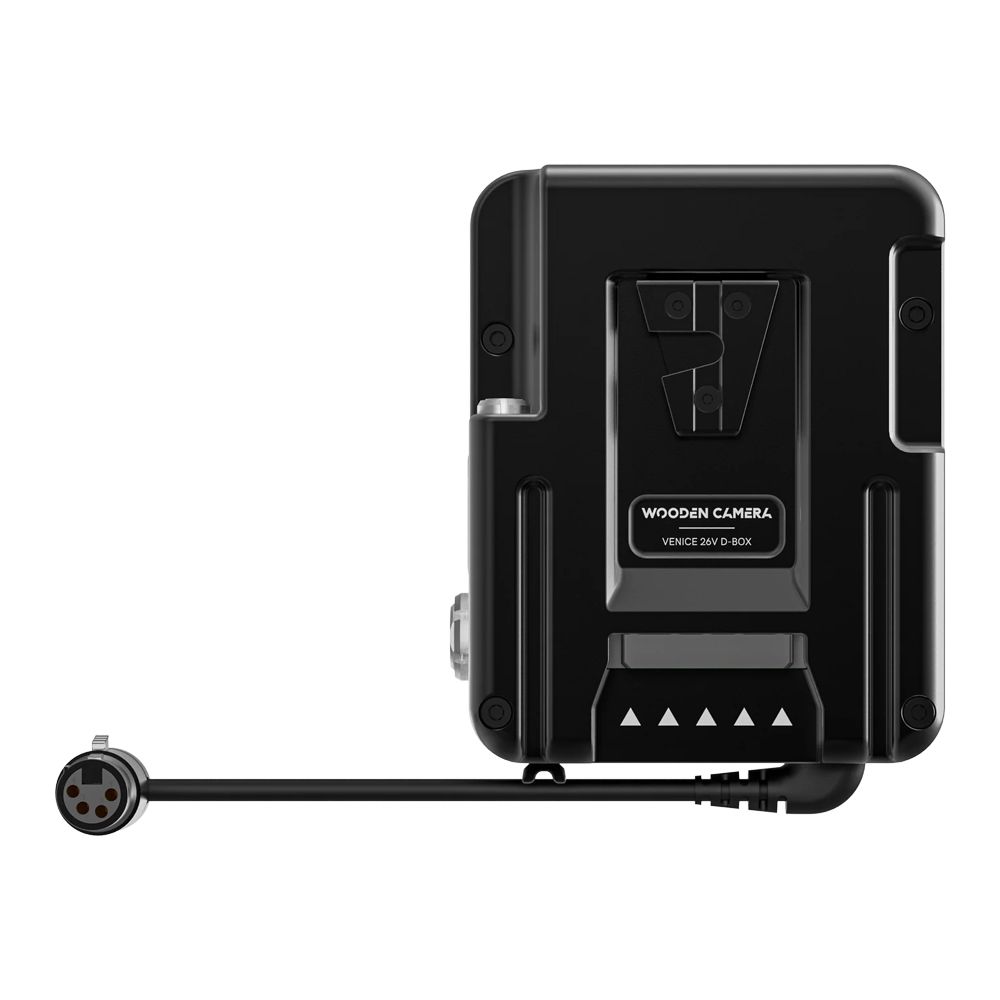

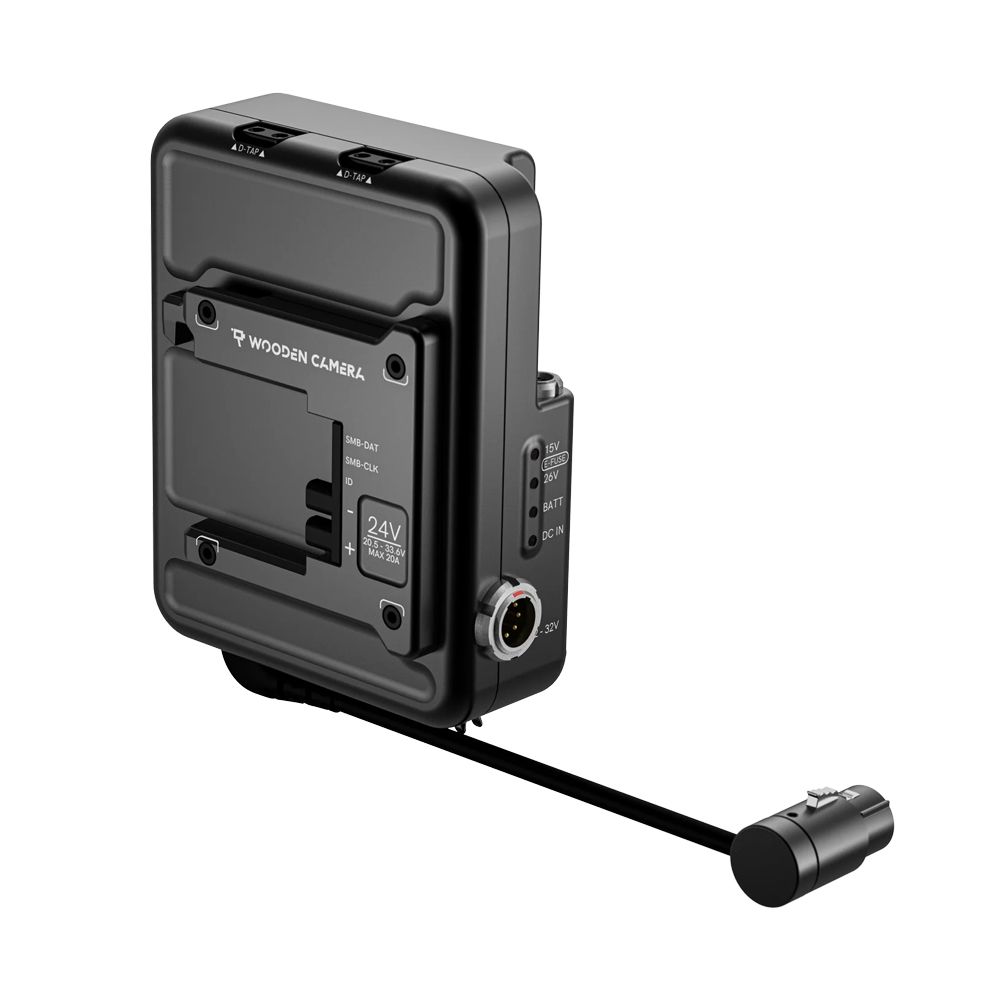

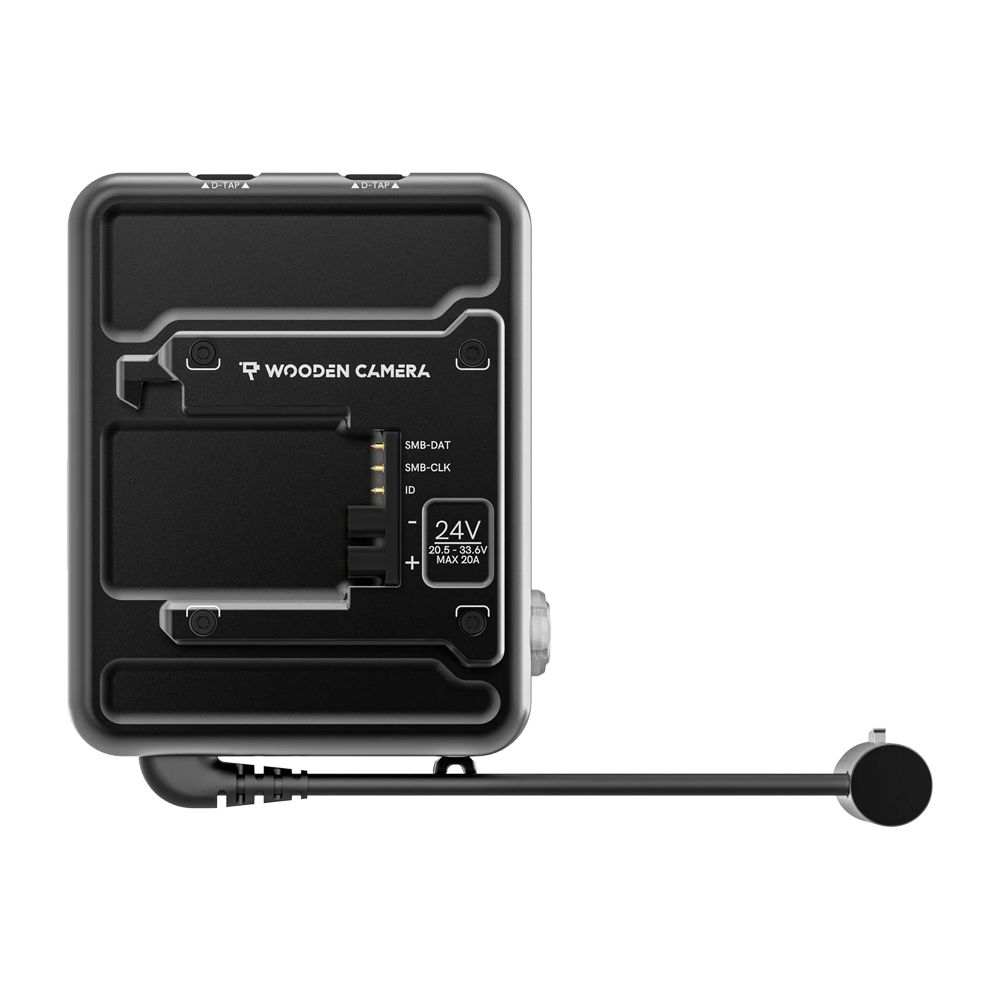

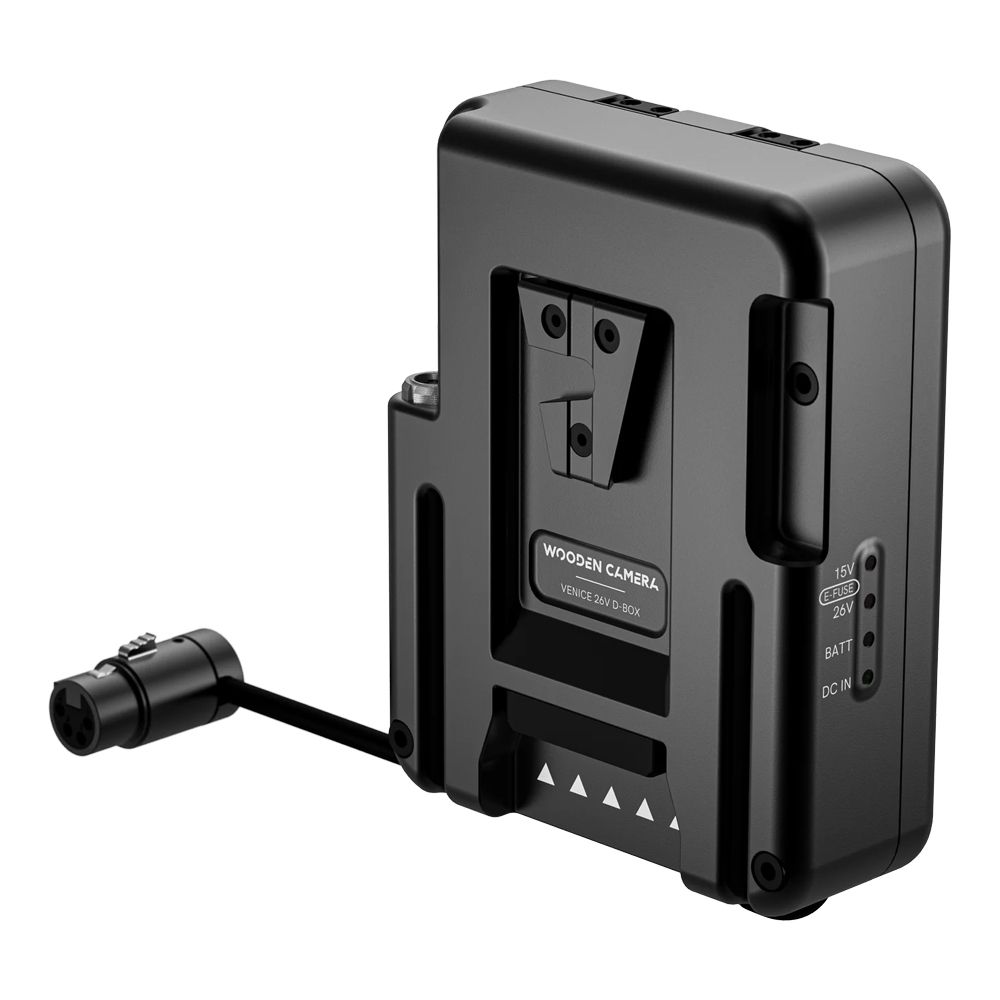

Wooden Camera - B-Mount D-Box For Sony VENICE
Description

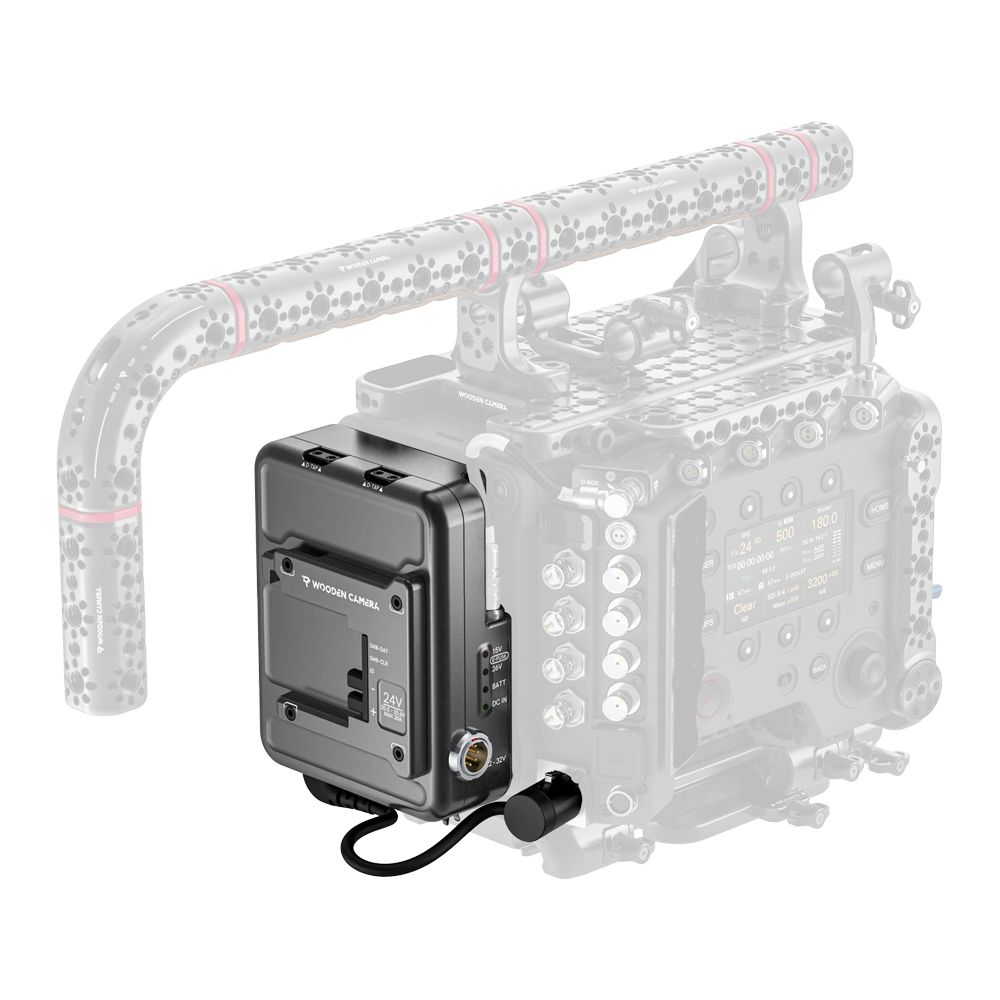

Designed to seamlessly integrate and maximize power efficiency on the Sony VENICE and VENICE 2, the B-Mount D-Box® expands power options for both the camera and accessories by adding 24V to the camera.

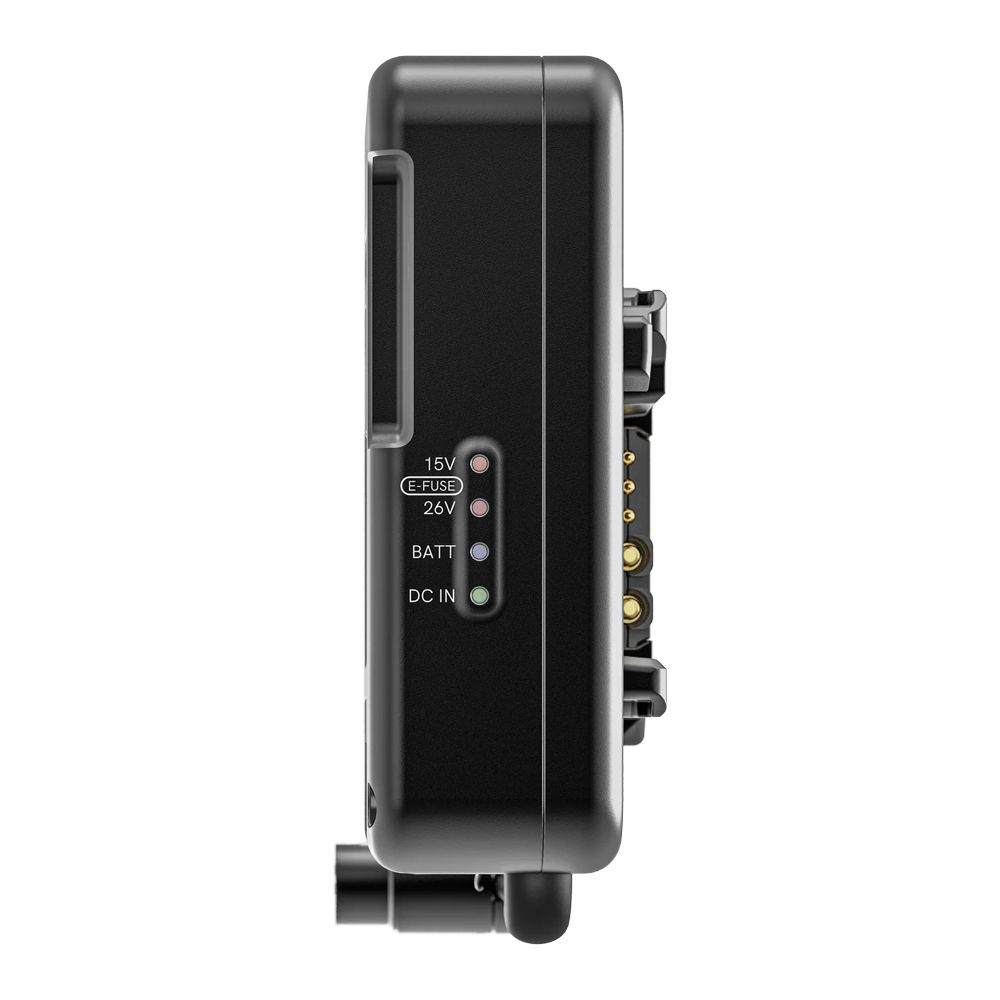

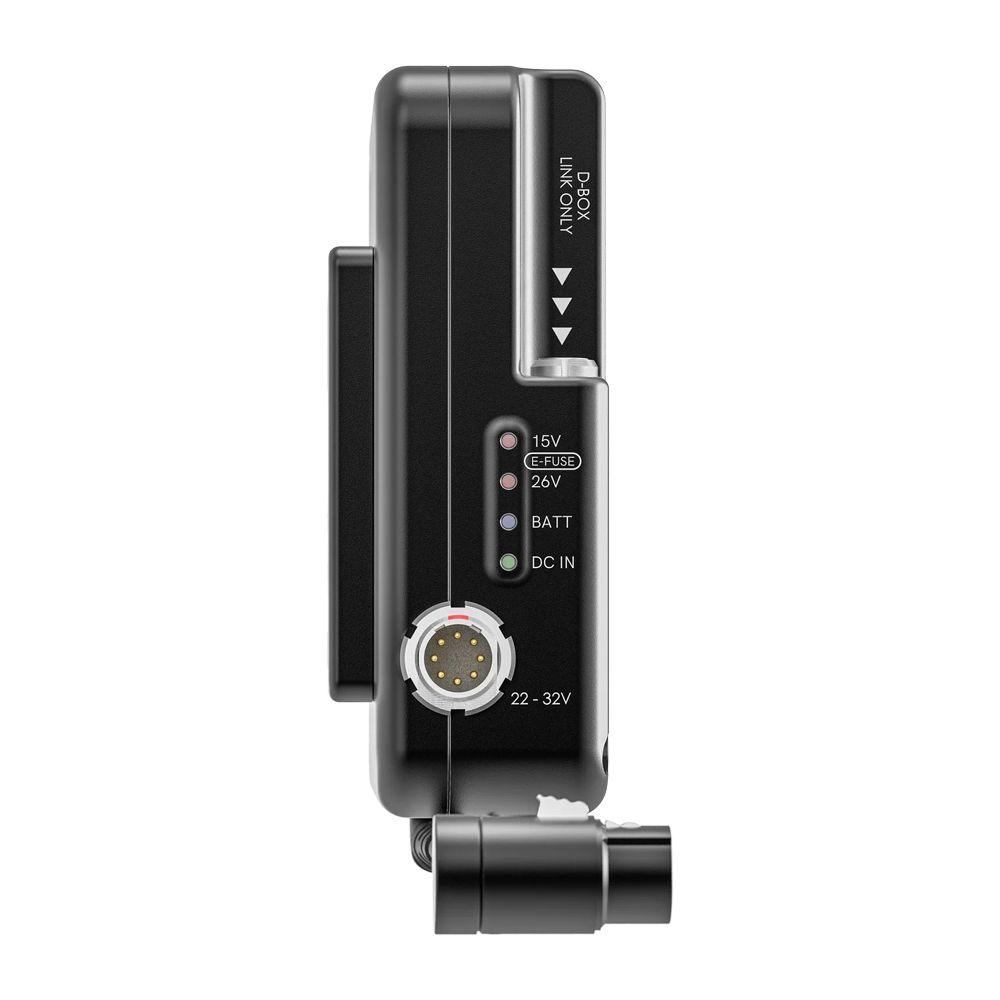

The on-board hot-swap capability with DC-In power ensures seamless transitions between power sources, while LED indicators provide real-time status updates:
- DC IN - Green when powered through the 8-pin connector
- BATTERY - Blue when the on-board battery is powering the camera
- 3.8A - Red if an overload occurs
- 5.8A - Red if an overload occurs
For expanded accessory power distribution, the 5-pin EXT port enables connection to the VENICE Power Strip (sold separately), allowing users to efficiently power multiple accessories. This upgrade is ideal for those who already own a VENICE Gold or V-Mount D-Box and want improved power efficiency without replacing their entire system.
The B-Mount D-Box® also includes 2x D-Tap connectors at 15V regulated, with a maximum 5.8A current rating shared between connectors, providing additional power flexibility for external accessories.
Connectors:
- 4-Pin XLR Cable powers camera body
- 8-Pin 2B connector for DC-In
- 2x D-Tap ports
Specifications:
Weight: 30.6 g (0.067 lbs)
Dimensions: 108 x 40.5 x 144 mm (4.25 × 1.59 × 5.67 in)
