Aputure Nova II 2x1 Tunable Colour LED Light Panel (No Case)

23.AP0403040M
  • Watch Video
  • Product Features:

    For Studio & Film/TV Production
    Output: 219,060 Lux at 1m (35º, 5600K)
    1800-20,000K CCT; BLAIR-CG Chipset
    Plus/Minus Green Adj.
    69.1 x 38.9 x 13.7 cm Panel; AC/DC Operation
    CRI 95 | TLCI 95 | TM-30 Rf 95, Rg 100
    Onboard, DMX/RDM, CRMX & Art-Net/sACN
    Fan Cooled & Front-Mounting Accessory
    IP65-Rated Weather Resistance
    Includes Yoke, Flat Diffuser & Cable
    $6,399.00
    Pre Order
    Check Location Availability

    Aputure Nova II 2x1 Tunable Colour LED Light Panel (No Case)

    Essential Add-On's we recommend

    Description

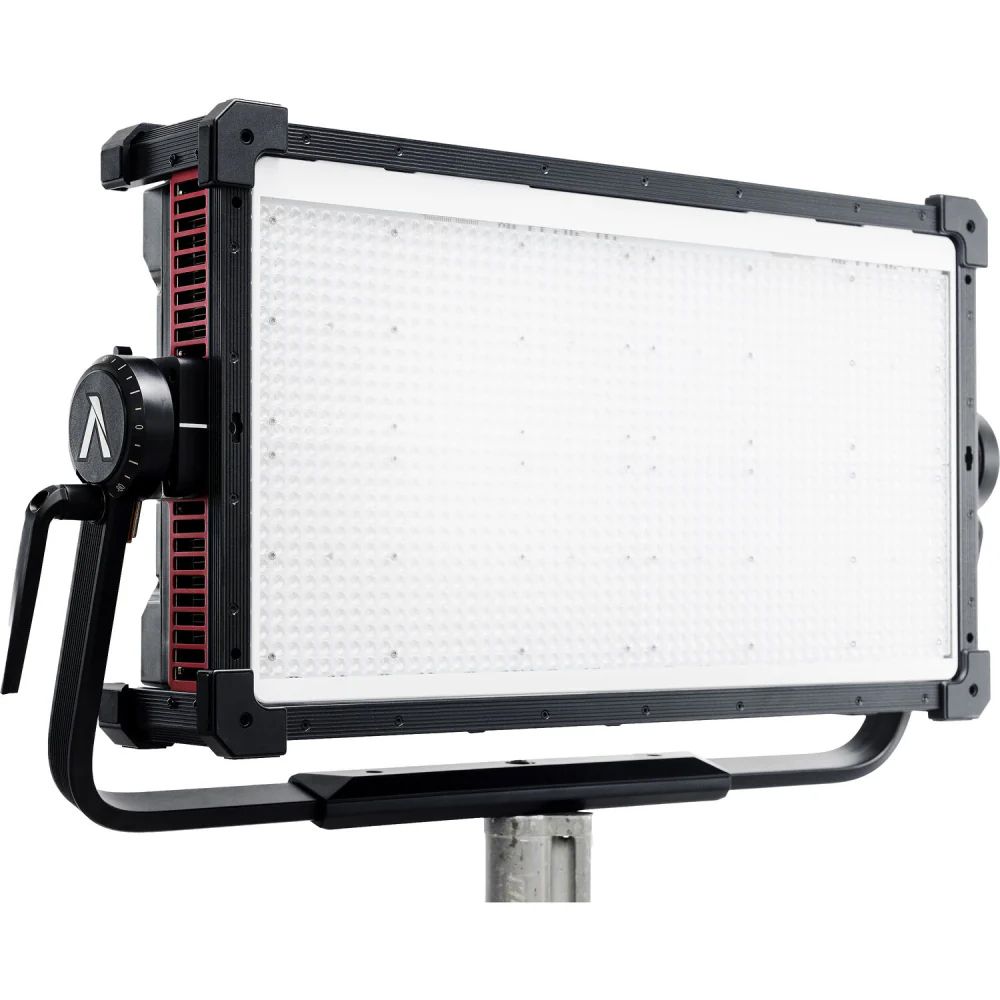

    Exceeding the output of the previous Nova P600c, Aputure introduces the NOVA II 2x1 Tunable Colour LED Light Panel, its most powerful light in the NOVA series. A design well suited for the most complex on-set workflows, at its core lies the Aputure BLAIR-CG chipset that makes the NOVA II 2x1 a versatile full-colour LED panel for professional film, television, and broadcast lighting environments. With 1000W of power, the NOVA II 2x1 uses high CRI-, TLCI-, TM-30-, SSI-, CQS-rated LEDs to render colours with optimal accuracy. Colour is widely variable from 1800 to 20,000K meaning you can take creative control of the colour range, along with plus/minus green shift, to achieve great colour precision.

    Among the NOVA II 2x1's features is reliable and advanced control. Users can opt for the intuitive onboard or app control, or go with 16-bit DMX512 in/out, LumenRadio CRMX, Art-Net/sACN, as well as USB or DMX batch firmware upgrades. Experience multiple dimming curves, four fan modes, and dual output modes with max and constant settings. Another fact that will impress gaffers and lighting technicians is a direct front-mounting accessory system that reduces the complexity of mounting slide-in modifiers by providing a quicker light shaping solution. Finally, a rugged IP65-rated body was attentively engineered for the most demanding productions. Here, Aputure includes a conveniently removable yoke, a flat diffuser, and a 6m long AC power cable.

    Impressive Output
    The NOVA II 2x1 has a native 35° beam angle with a brightness of 219,060 lux at 1m and 5600K, and it features smooth stepless dimming for adjusting light output from 0.1 to 100% with four dimming curves: linear, exponential, logarithmic, and S-shaped. This 69.1 x 38.9 x 13.7 cm LED panel is actively fan cooled and offers four DMX-controllable fan modes: smart, high, medium, and silent.

    Impressive Colour Accuracy
    Industry-leading fidelity metrics and high color accuracy ratings ensure the NOVA II 2x1's ability to faithfully reproduce colours. With CRI 95, TLCI 95, TM-30 Rf 95, and Rg 100, the fixture ensures natural and lifelike rendering that's ideal for colour-critical applications. Other noteworthy ratings include: CQS (CIE D5600) 96, SSI (P3200) 89, and SSI (CIE D5600). The light also provides advanced white point control with green/magenta colour correction by +/-G at a 100% to conform with the full ASC MITC standard.

    BLAIR-CG Chipset

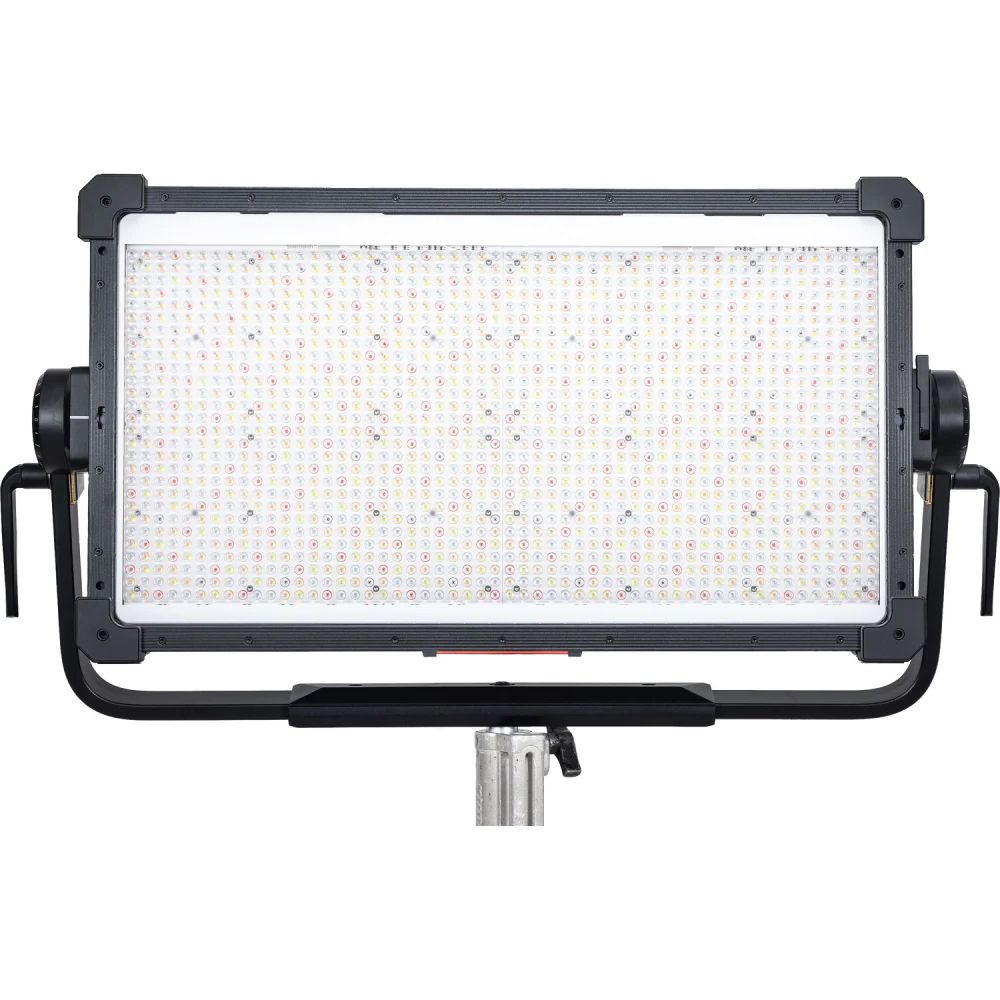

    Aputure's advanced BLAIR-CG chipset features a seven-diode structure combining blue, lime, amber, indigo, red, cyan, and green emitters. With its powerful output, expansive CCT range, and colour accuracy, the NOVA II 2x1 delivers clean, reliable illumination for high-end film and television setups. This panel is the answer for those requiring consistent, color-accurate light that can match or contrast ambient sources. Emulate ambient light sources, fine-tune white point consistency, or push bold creative contrasts with confidence.

    Batch Firmware Updates
    Batch firmware update options ensure dependable performance across productions and can improve the life of professionals working in studios, with the fixture supporting upgrades through Sidus Link Pro, Sidus Link, USB drive, or DMX. Rental houses will also appreciate the NOVA II 2x1's combination of a reliable IP65-rated body, high output, and ecosystem compatibility. Whether operating as a single key source or integrated into complex console-controlled networks, the NOVA II 2x1 ensures fast, reliable communication.

    Durable & Convenient Design

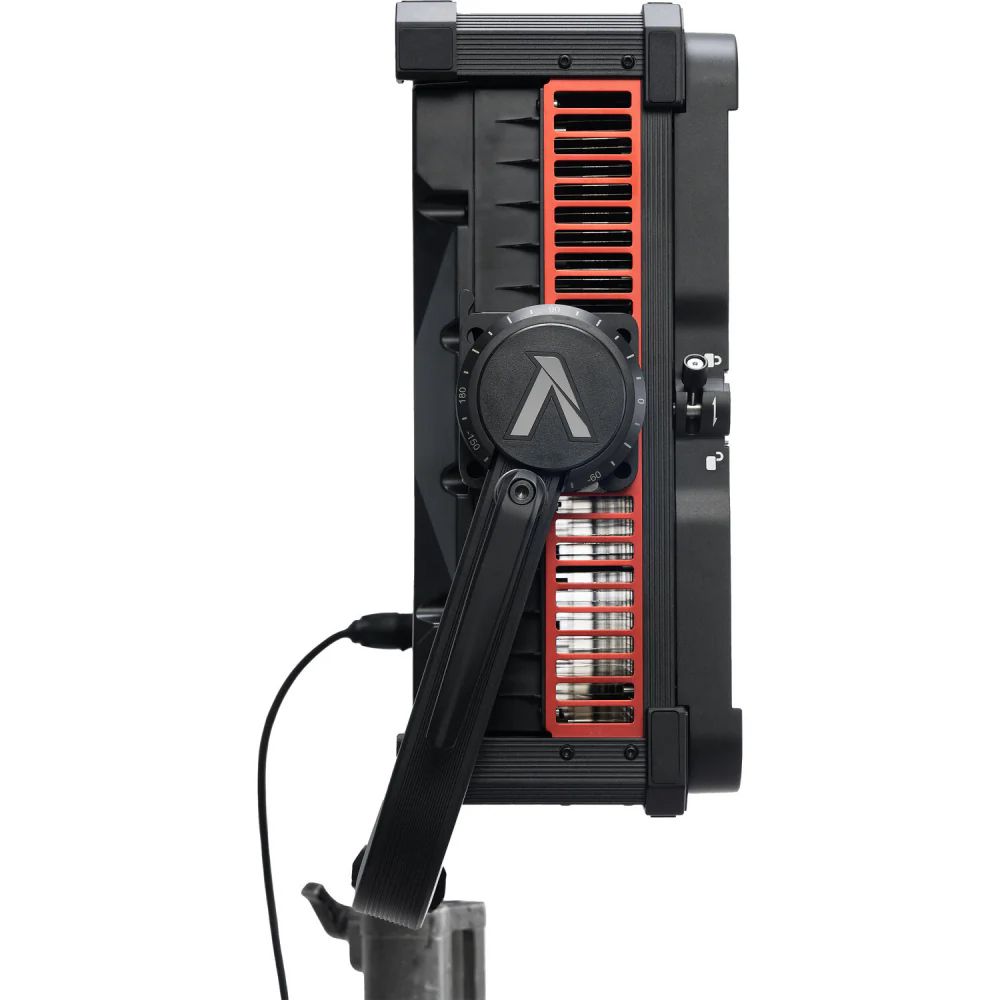

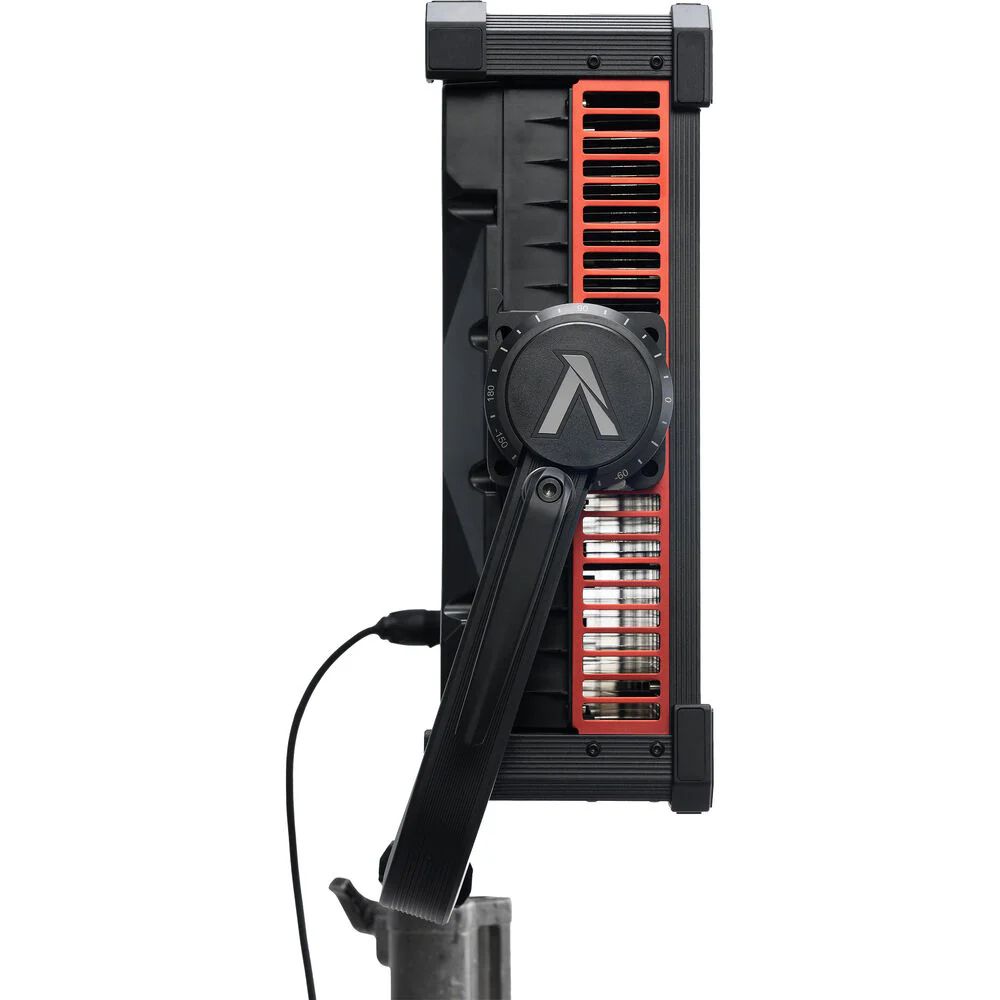

    The panel's LEDs are packed into a compact design that doesn't sacrifice power and flexibility. A removable yoke is included to facilitate rigging, while the all-new direct front-mounting accessory ecosystem improves your workflow by making light shaping easier and faster. Aputure highlights a high output-to-weight ratio with a powerful 1000W lamp head that only weighs 18.6 kg with its yoke, making the NOVA II 2x1 a durable lighting solution with rigging and control options.

    Additional Details
    • Native beam angle: 35°

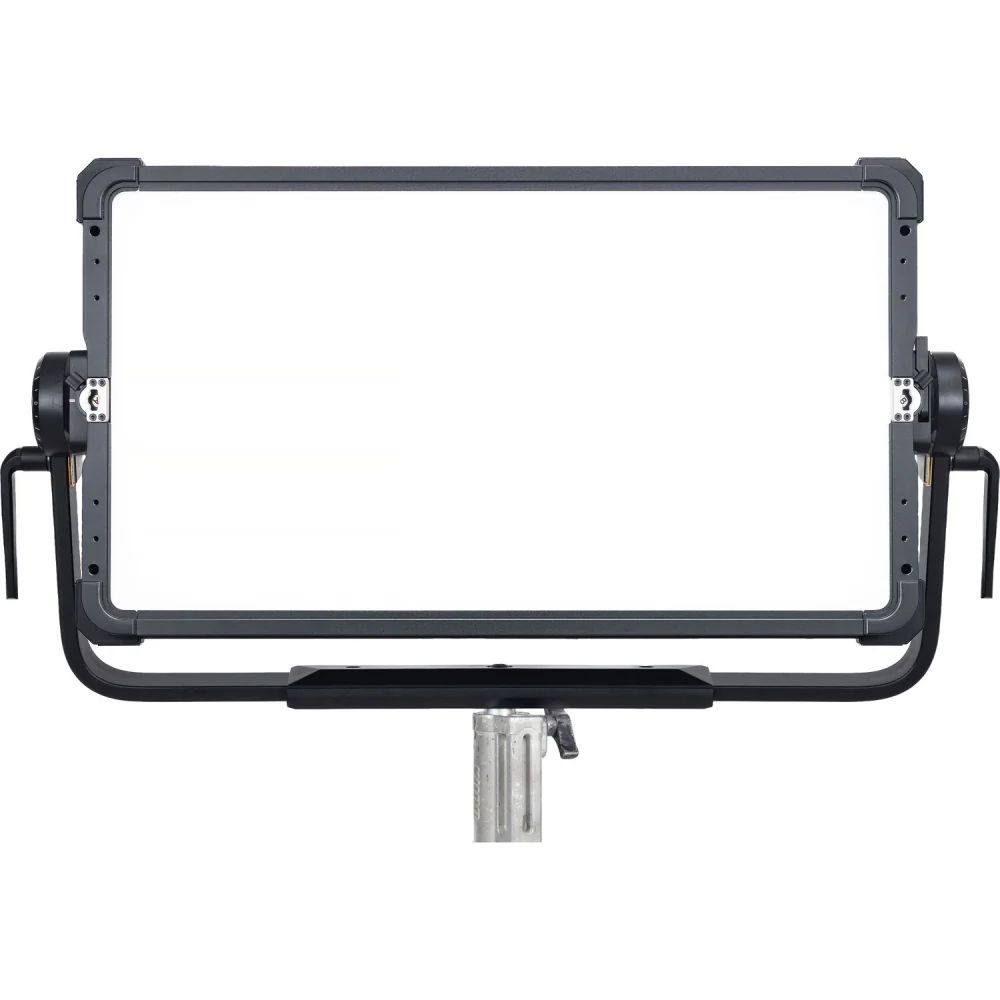

    • Flat diffuser beam angle: 95°
    • Pixel count: two pixels

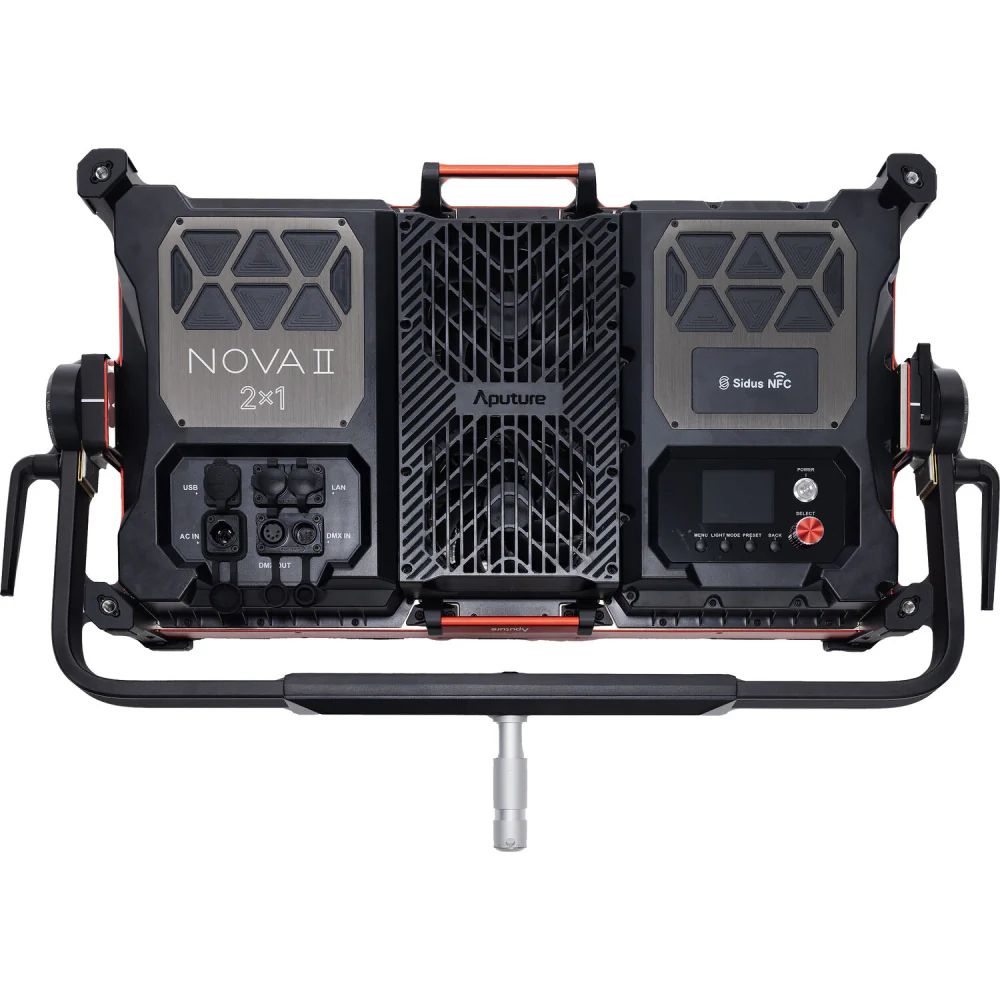

    • High-resolution rear colour screen for clear communication of status and settings
    • Two locking Ethernet ports
    • Lead-follow and Studio mode
    • 15 built-in lighting effects and 10 savable presets
    • Bluetooth and CRMX wireless range: 100m
    • AC operating voltage: 100-240V



    Aputure NOVA II Specs

    Key Specs
    Item Type
    1x LED Array LED Light Panel
    Included Light Modifier
    1x Diffuser
    Included Storage Case
    No
    Photometrics
    35° at 3200K: 18,059 fc / 194,400 Lux (Unmodified)
    35° at 5600K: 18,329 fc / 197,300 Lux (Unmodified)
    95° at 3200K: 3725 fc / 40,100 Lux (with Diffuser)
    95° at 5600K: 3781 fc / 40,700 Lux (with Diffuser)
    Color Temperature
    1800 to 20,000K
    Color Modes
    RGB, Daylight, Tungsten
    Color Accuracy Standard
    CRI 95
    TLCI 95
    SSI 90 at 3200K
    SSI 86 at 5600K
    TM-30 Rf 95
    TM-30 Rg 100
    CQS 96
    Dimming
    App-Controlled / Built-In Dimmer / DMX / RDM (Continuous)
     • 0.1 to 100%
    Front Accessory Mount
    Proprietary
    Wireless Remote Control Type
    Bluetooth
    CRMX
    Power Source
    AC Power (Cable Included)
    Input Power
    100 to 240 VAC, 50 / 60 Hz
    Power Consumption
    1000 W
    1250 W (Maximum)
    Fixture Mounting
    1x 1-1/8" Stud (Via Yoke Mount)
    Light Fixture
    Item Type
    1x LED Array LED Light Panel
    Included Light Modifier
    1x Diffuser
    Included Storage Case
    No
    Photometrics
    35° at 3200K:
    18,059 fc / 194,400 Lux at 3.3' / 1 m (Unmodified)
    2577 fc / 27,750 Lux at 9.8' / 3 m
    35° at 5600K:
    18,329 fc / 197,300 Lux at 3.3' / 1 m (Unmodified)
    2636 fc / 28,380 Lux at 9.8' / 3 m
    95° at 3200K:
    3725 fc / 40,100 Lux at 3.3' / 1 m (with Diffuser)
    468 fc / 5040 Lux at 9.8' / 3 m (with Diffuser)
    95° at 5600K:
    3781 fc / 40,700 Lux at 3.3' / 1 m (with Diffuser)
    476 fc / 5130 Lux at 9.8' / 3 m (with Diffuser)
    Color Temperature
    1800 to 20,000K
    Color Modes
    RGB, Daylight, Tungsten
    Color Accuracy Standard
    CRI 95
    TLCI 95
    SSI 90 at 3200K
    SSI 86 at 5600K
    TM-30 Rf 95
    TM-30 Rg 100
    CQS 96
    Dimming
    App-Controlled / Built-In Dimmer / DMX / RDM (Continuous)
     • 0.1 to 100%
    Cooling System
    Fan
    Beam Angle
    35° Unmodified
    95° with Included Diffuser
    Built-In Flash
    No
    Pixel Zones
    2
    Preprogrammed Effects
    Yes
    Umbrella Mount
    No
    Front Accessory Mount
    Proprietary
    Connectivity
    Wireless Remote Control Type
    Bluetooth
    CRMX
    Mobile App Compatible
    Yes: Android & iOS
    App Name: Sidus Link / Sidus Link Pro
    Functionality: Remote Control
    Wireless Range
    100 m
    Power & I/O
    Power Source
    AC Power (Cable Included)
    Inputs/Outputs
    1x Unspecified AC Power Input (100 to 240 VAC, 50 / 60 Hz)
    1x XLR 5-Pin DMX Input
    1x XLR 5-Pin DMX Output
    2x RJ45 Network Input/Output
    1x USB-A Firmware Input
    Input Power
    100 to 240 VAC, 50 / 60 Hz
    Included Adapter / Cable
    Yes
    Power Consumption
    1000 W
    1250 W (Maximum)
    Mounting
    Yoke Type
    Manually-Operated Yoke
    Fixture Mounting
    1x 1-1/8" Stud (Via Yoke Mount)
    General
    Display
    Yes
    Environmental Resistance
    Dust/Weather/Water-Resistant (IP65)
    Operating Conditions
    -20 to 45°C
    Storage Conditions
    -40 to 80°C
    Dimensions
    69.1 x 38.9 x 13.7 cm (Fixture without Yoke)
    83.1 x 56.6 x 15.5 cm (Fixture with Yoke)
    Weight
    16.25 kg (Fixture without Yoke)
    18.6 kg (Fixture with Yoke)



    Items Included

    • Aputure NOVA II 2x1 Tunable Colour LED Light Panel
    • Removable Yoke with Junior Pin
    • Flat Diffuser
    • AC Power Cable (6m)
