Wooden Camera - GFX Eterna 55 Dbox System V-Mount
Product Features:
Wooden Camera - GFX Eterna 55 Dbox System V-Mount
Essential Add-On's we recommend
Description

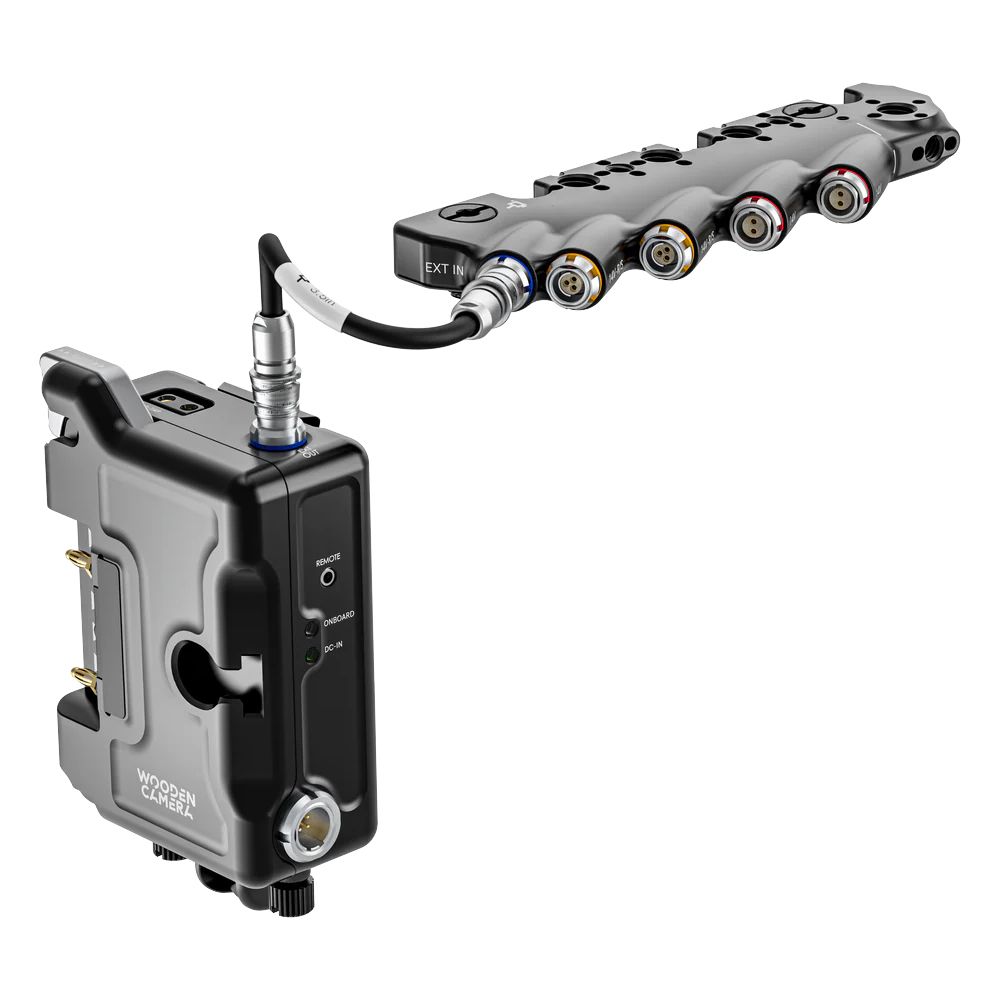

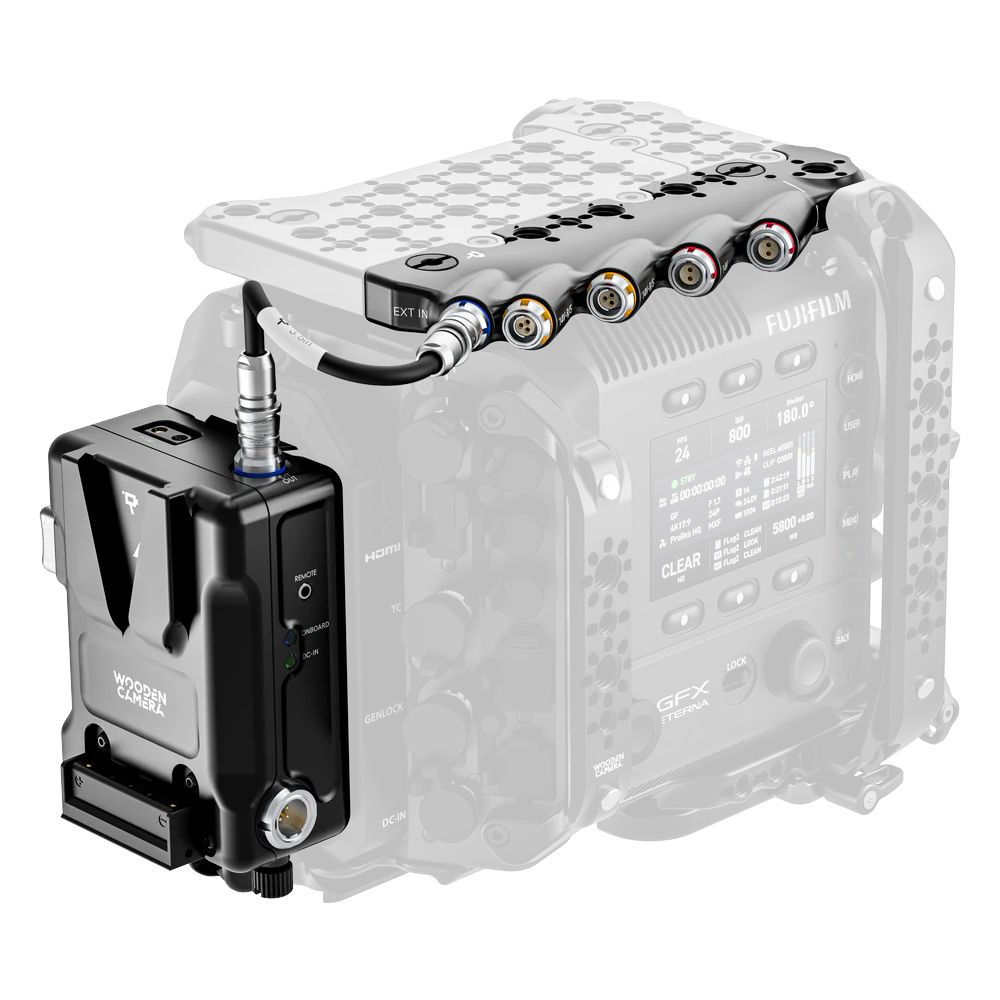

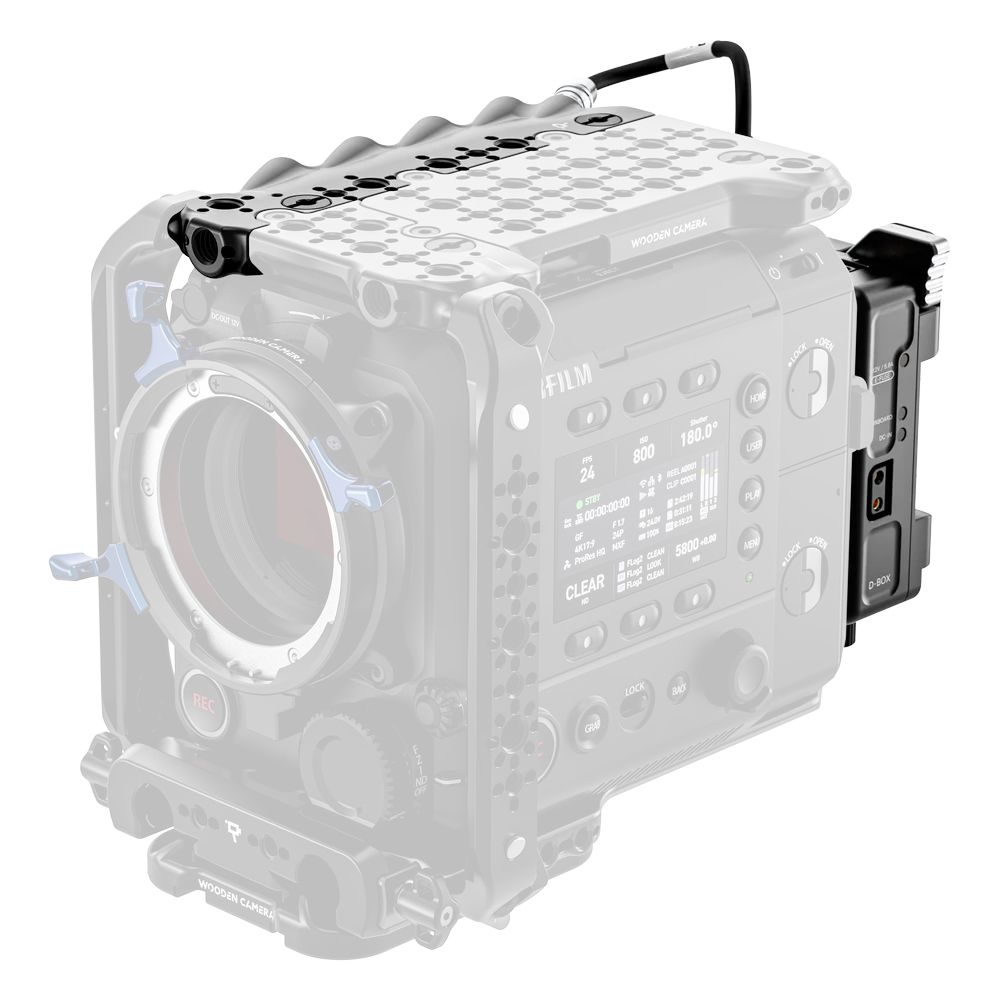

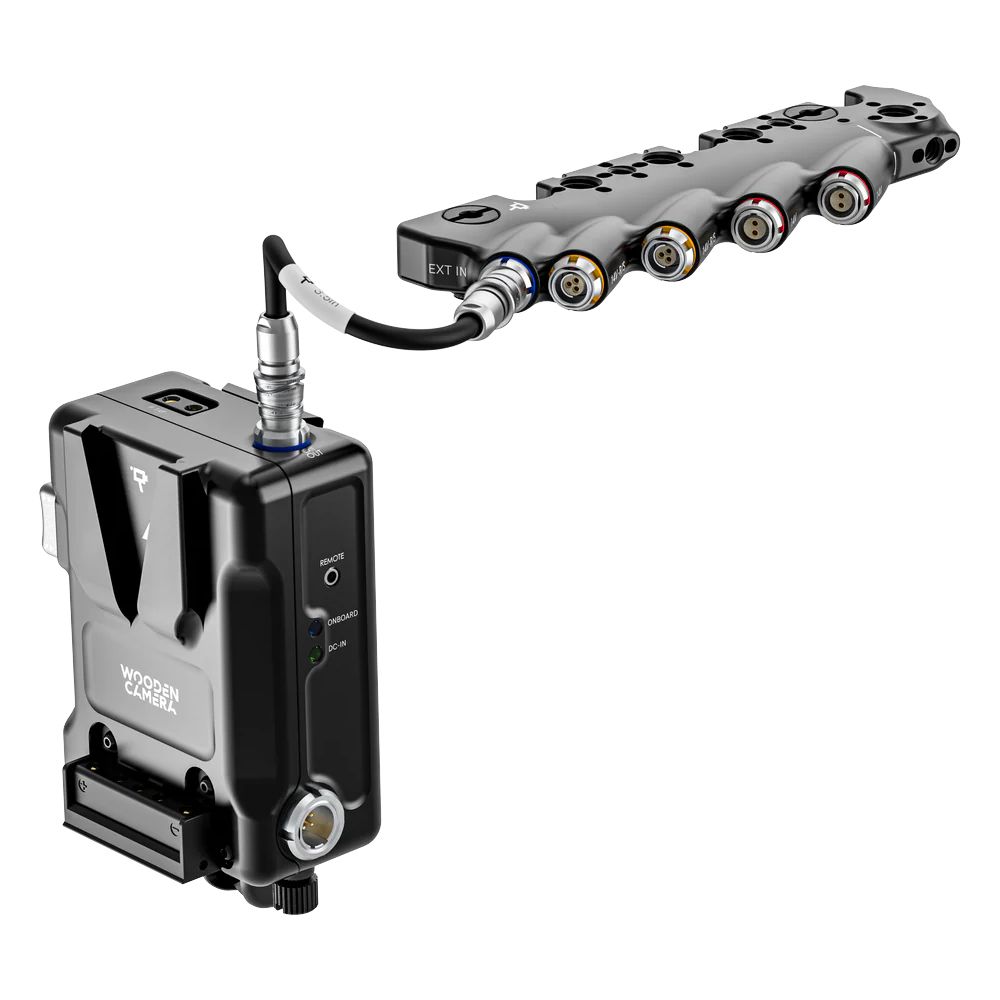

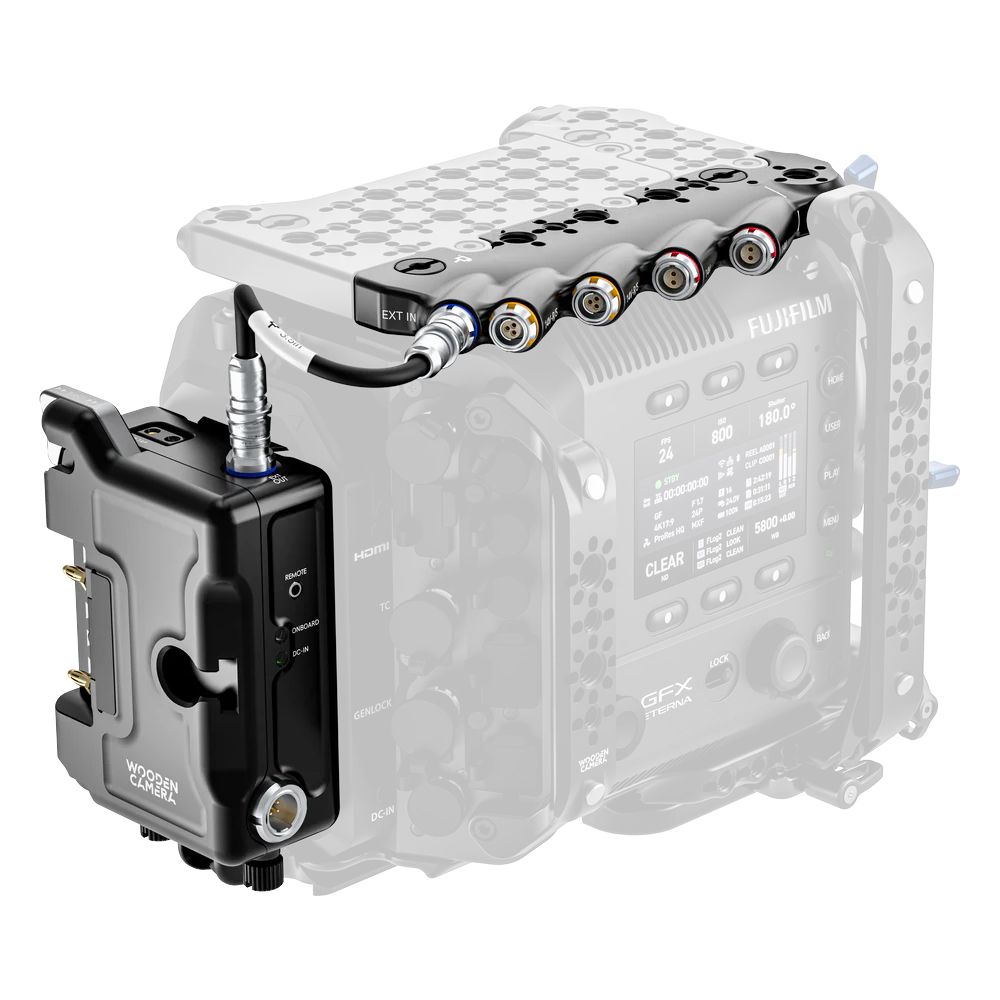

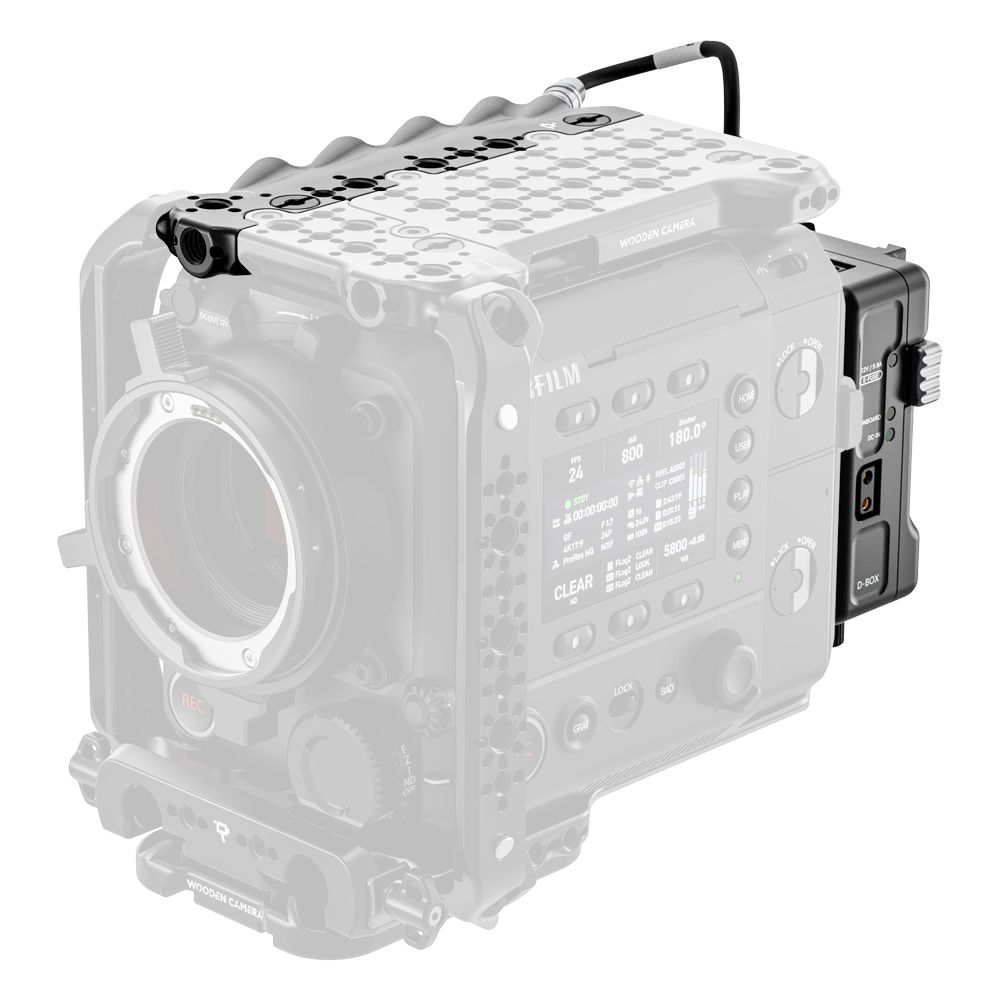

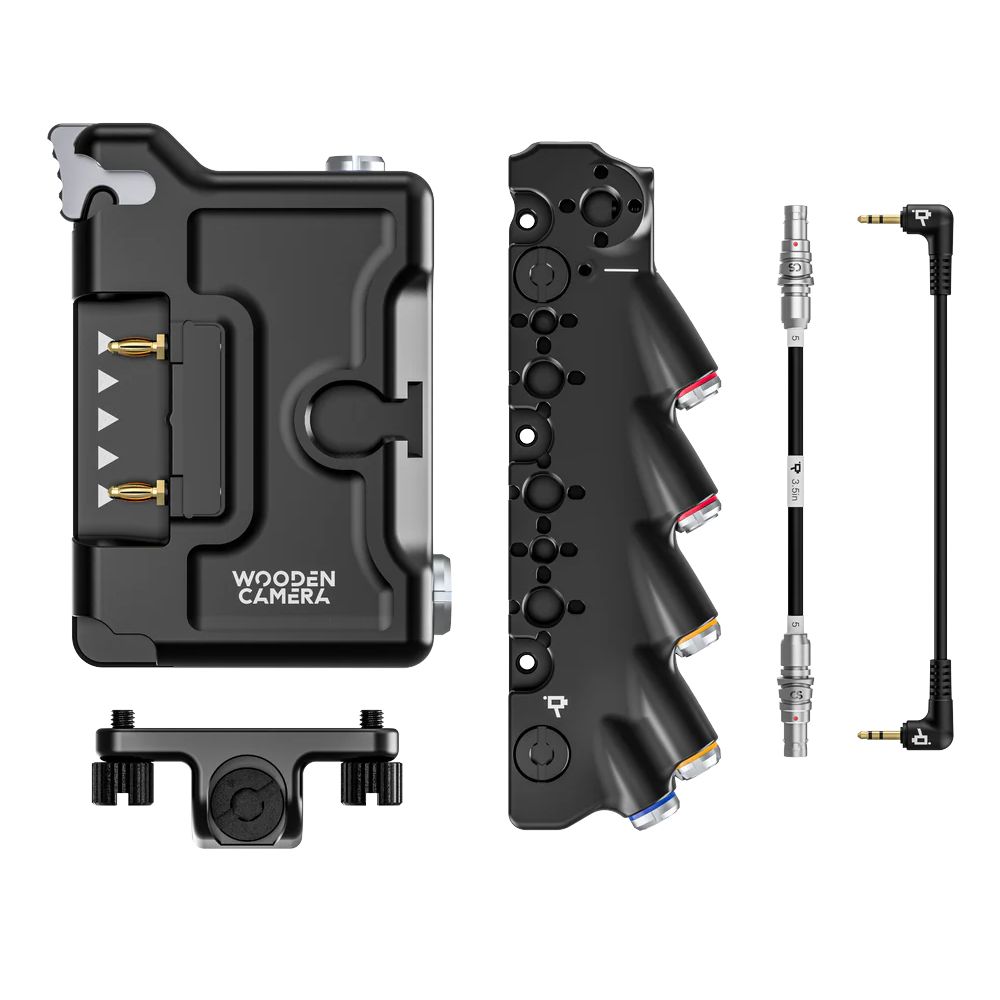

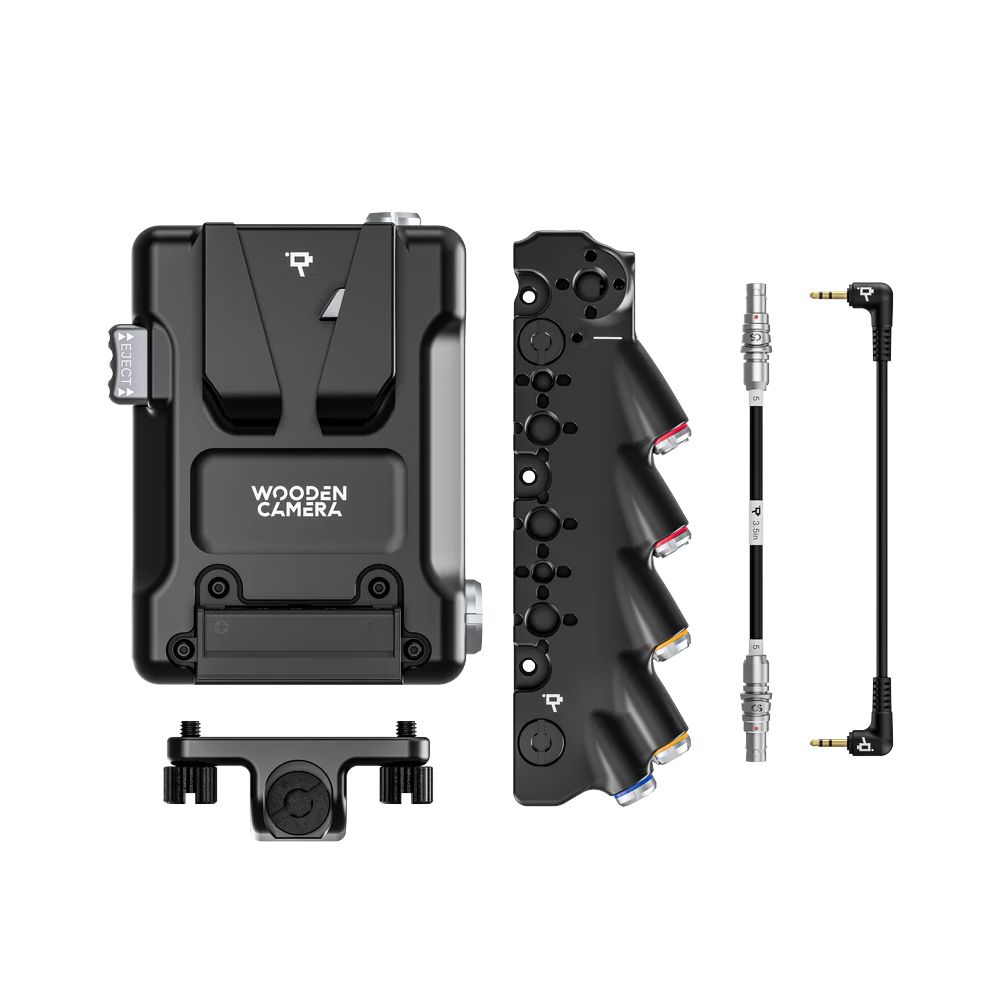

Extend the power output options of your FUJIFILM GFX ETERNA 55 cinema camera with this D-Box System from Wooden Camera. The bundle includes the D-Box power distribution unit with a V-mount battery plate, a support bracket, an extension power strip, a remote cable, and a link cable. The D-Box provides 4-pin DC input, D-Tap, and remote ports to output power for the camera and accessories from a Gold mount battery, as well as distribute trigger control. The unit also supports hot swapping when using the DC input.
The power strip features 14V 2-pin and 3-pin power outputs and connects to the D-Box with a 5-pin EXT port. The strip connects via the link cable for run/stop communication through the strip using the included remote cable. The support bracket ensures a stable installation.
Wooden Camera Power Strip for FUJIFILM GFX ETERNA 55
The Wooden Camera Power Strip secures to the top of your FUJIFILM GFX ETERNA 55 and bridges power and R/S trigger capabilities from the D-Box battery plate for efficient accessory integration. The strip mounts using two built-in 3/8"-16 screws. The 5-pin EXT input accepts power and trigger abilities from the D-Box battery plate and then outputs power via two 3-pin and two 2-pin 14V power outputs. Multiple mounting threads on the strip allow you to secure additional accessories to your rig.
Wooden Camera D-Box Link 5-Pin 0B to 5-Pin 0B Cable (3.5")
The D-Box Link 5-Pin 0B to 5-Pin 0B Cable from Wooden Camera relays both power and run/stop commands to and from your cine camera. The cable features a 5-pin 0B connector on either end, which connects to your D-Box or other compatible power accessory and FUJIFILM GFX ETERNA 55 or Sony BURANO. In total, the cable measures 3.5" long for efficient cable runs.
Wooden Camera D-Box Support Bracket for FUJIFILM GFX ETERNA 55
This D-Box Support Bracket from Wooden Camera provides additional support when attaching a D-Box to your FUJIFILM GFX ETERNA 55 camera, preventing accidental disconnections. It enables minor height adjustments and requires a separately available Riser Plate.
Wooden Camera Remote Cable for Sony BURANO B-Box
Add a 3-pin control option to your Sony BURANO cinema camera with this Remote Cable from Wooden Camera. The cable features 3.5mm connectors on each end that connect the camera's remote port with the B-Box for Sony BURANO. The connection enables the 3-pin LEMO-type connector on the B-Box to be used for run/stop control of the camera.
