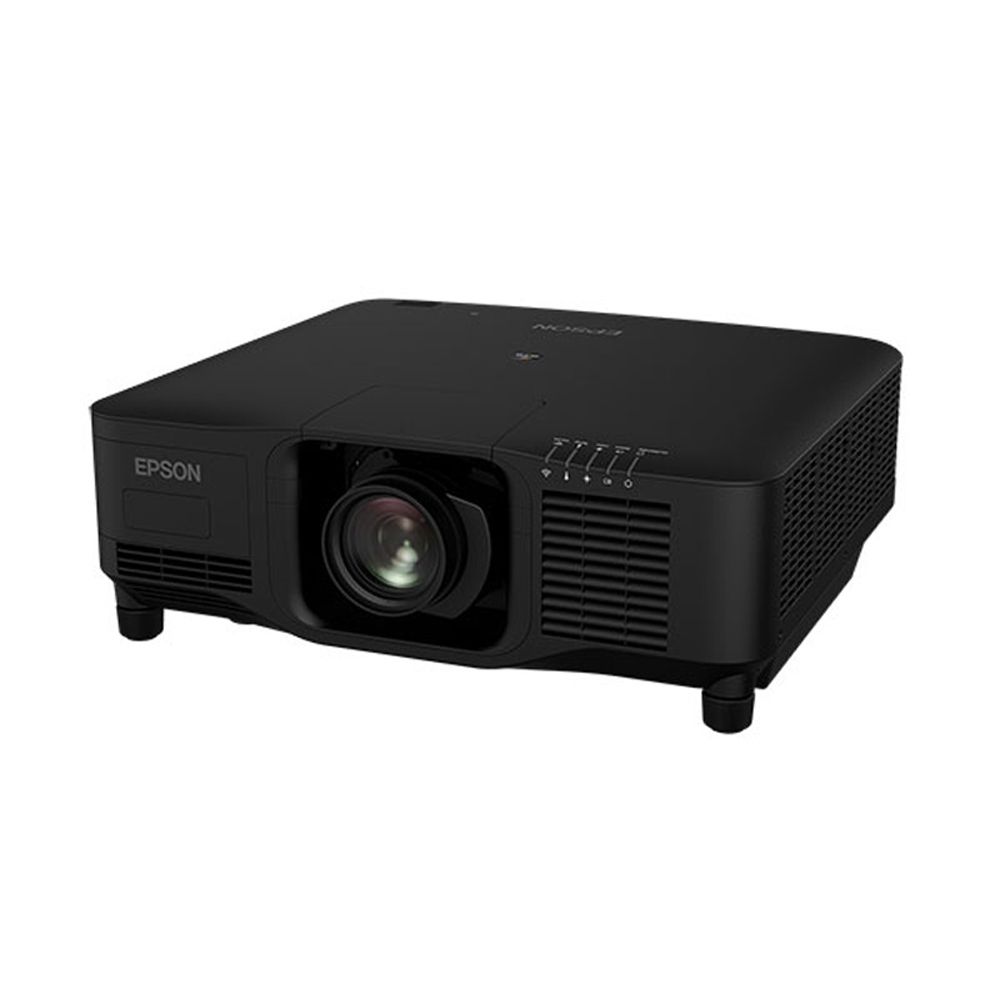

Epson EB-PQ2220B 4K Large Venue Laser Projector

94.V11HB05853BU
  • Watch Video

    • Product Features:

    Brightness of up to 20,000 ISO Lumens
    UHD 4K 3840 x 2160 On-Screen Resolution
    1920 x 1080 Native Chip Resolution
    Compact & Lightweight Design
    2 x HDMI | 1 x 12G-SDI | 1 x HDBaseT
    IP5X-Rated Sealed Optical Drive
    9 Optional Lenses (Sold Separately)
    H/V Keystone & Lens Shift Capabilities
    Powered Shift, Focus & Zoom
    Built-In NFC for Mobile Device Setup
    $73,999.00
    Available Soon
    Check Location Availability
    Make an Enquiry

    Epson EB-PQ2220B 4K Large Venue Laser Projector

    Add To Cart
    $73,999.00

    Description

    Experience high power and performance in a compact design with the Epson EB-PQ2220B 20,000-Lumen UHD 4K Laser 3LCD Projector. This energy efficient projector uses a long-lasting laser light source, vivid 3LCD color, and 4K Crystal Motion technology to produce ultra-bright images, with high contrast, and 4K on-screen resolution.

    The EB-PQ2220B can deliver up to 20,000 lumens of white and color brightness using 220V, and up to 16,000 lumens using standard 120V AC power. It is among the smallest and lightest projectors of this caliber, making it well suited for a wide variety of large venue applications, including live events. The laser is housed in a hermetically sealed optical engine for IP5X dust resistance and a filter-less cabinet for low-maintenance operation. Connect an array of professional sources via HDMI, 12-G SDI, and HDBaseT inputs, with support for up to 4K resolution and HDR color. The EB-PQ2220B pairs with nine optional motorized lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and an optional attachable PixAlign camera to streamline multi-projector setups.

    Additional Features
    • Optimized liquid cooling system
    • Frame interpolation for fast moving objects
    • HDR support and scene adaptive gamma correction
    • Two HDMI in and one HDMI out
    • 12G-SDI in and out for daisy chaining and signal monitoring
    • Auto input switching when signal is disrupted
    • NFC function built-in to reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app
    • Optional attachable PixAlign camera (sold separately) provides access to features, including edge blending assist, stacking assist function, auto color calibration, and screen matching



    Epson EB-PQ2220 Specs

    Key Specs
    Display System
    3-Chip Polysilicon TFT LCD
    Native Resolution
    1920 x 1080
    Maximum Brightness
    White: 20,000 Lumens (ISO)
    Color: 20,000 Lumens
    HDR Support
    Yes: HDR10/Hybrid Log Gamma
    Inputs/Outputs
    2x HDMI Audio, Video Input
    1x BNC (12G-SDI) Video Input
    1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
    2x USB-A Control, Data, Power Input/Output
    1x RJ45 (Ethernet) LAN Input
    1x HDMI Audio, Video Output
    1x BNC (12G-SDI) Video Output
    1x 1/8" / 3.5 mm Mini Audio Output
    1x 1/8" / 3.5 mm Mini Remote Input
    1x DE-9/DB-9 (RS-232) Control Input
    1x USB-B Service Input
    Light Source
    Laser Phosphor
    Image Display
    Display System
    3-Chip Polysilicon TFT LCD
    Native Resolution
    1920 x 1080
    On-Screen Resolution
    Up to 3840 x 2160 via Pixel-Shift Technology
    Supported Resolutions
    Maximum: 4096 x 2160 @ 60 Hz
    Maximum Brightness
    White: 20,000 Lumens (ISO)
    Color: 20,000 Lumens
    Uniformity
    85%
    Aspect Ratio
    Native: 16:9
    Supported: 4:3
    Supported: 16:10
    Supported: 21:9
    Dynamic Contrast Ratio
    5,000,000:1
    Color Depth
    10-Bit (1.07 Billion Colors)
    Lens
    Includes Lens
    No
    Features
    Keystone Correction
    Manual to Vertical: + 45°
    Manual to Horizontal: ± 30°
    HDR Support
    Yes: HDR10/Hybrid Log Gamma
    Multi-Input Support (PIP/PBP)
    No
    Ceiling Mountable
    Yes
    Rear Screen Projection
    Yes
    Built-In Speaker
    No
    Projection Tilt Option
    Yes
    Input/Output Connectors
    Inputs/Outputs
    2x HDMI Audio, Video Input
    1x BNC (12G-SDI) Video Input
    1x RJ45 (HDBaseT) Audio, Control, Data, LAN, Remote, Video Input
    2x USB-A Control, Data, Power Input/Output
    1x RJ45 (Ethernet) LAN Input
    1x HDMI Audio, Video Output
    1x BNC (12G-SDI) Video Output
    1x 1/8" / 3.5 mm Mini Audio Output
    1x 1/8" / 3.5 mm Mini Remote Input
    1x DE-9/DB-9 (RS-232) Control Input
    1x USB-B Service Input
    HDCP Support
    Yes: Version 2.3
    Media/Memory Card Slot
    No
    Hardware
    Mobile App Compatible
    Yes: Android & iOS
    Wireless LAN / Wi-Fi
    No, Optional Adapter Available
    Bluetooth
    No
    General
    Light Source
    Laser Phosphor
    Expected Lamp Life
    Medium Brightness: 20,000 Hours
    Fan Noise
    Full Brightness: 48 dB
    Low Brightness: 39 dB
    Security
    Cable Lock Slot
    Password Protection
    Input Power
    220 to 240 VAC, 50 / 60 Hz
    Power Consumption
    Full Brightness: 1431 W
    Low Brightness: 975 W
    Standby Mode (Lamp Off): < 2 W
    Certifications
    FCC Part 15B Class A, ICES-003 Class B, RoHS, UL62368-1
    Operating Conditions
    0 to 50°C at 20 to 80% Humidity
    Storage Conditions
    -10 to 60°C at 10 to 90% Humidity
    Dimensions (W x H x D)
    586.0 x 185.0 x 492.0 mm (Excluding Feet)
    Weight
    29.2 kg



    Items Included

    • Epson EB-PQ2220B 20,000-Lumen Pixel-Shift 4K Laser 3LCD Projector (No Lens, Black)
    • Power Cord
    • Remote Control with Batteries
    • Cable Cover
