ARRI EOS C400 Pro Broadcast Set
Product Features:
ARRI EOS C400 Pro Broadcast Set
Description

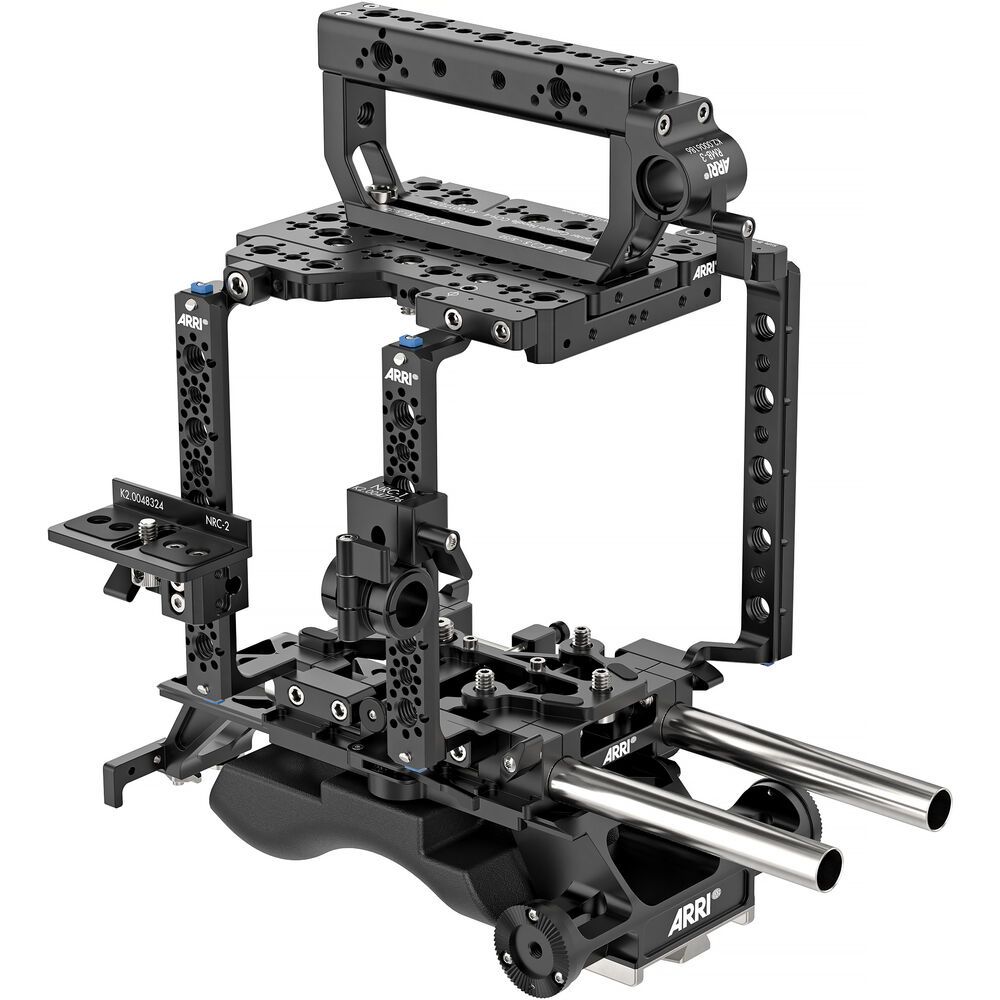

The Pro Broadcast Set for Canon EOS C400 from ARRI preps your C400 cine camera for broadcast-style handheld shooting or tripod-based capture with quick mounting transitions. This advanced, cage-based support set includes a broadcast-style, VCT-compatible baseplate with shoulder pad and handgrip rosettes, a CCH-4 top handle, a top cheese plate, a 15mm LWS bottom plate, NATO-rail cage brackets, two NATO rail clamps, a 9" pair of 15mm rods, an RMB-3 bracket, and a 15mm reducer.
The Top Mounting Plate for Canon EOS C400 from ARRI provides a variety of accessory mounting options for your C400 camera while maintaining support for a top handle. This cheese plate features a detachable center that can be removed to accommodate a Canon EOS C400 or ARRI CCH-4 top handle. It incorporates multiple M4 and anti-twist 3/8"-16 and 1/4"-20 accessory threads and interfaces for a front 15mm LWS bracket and left- and right-side brackets. Easy-to-use ARRI multi-hex screws are used for mounting the plate on your C400 camera.
- Canon EOS C400 camera
- Canon EOS C400 and ARRI CCH-4 top handles
- ARRI C400 left- and right-side brackets
- ARRI 15mm LWS rod bracket

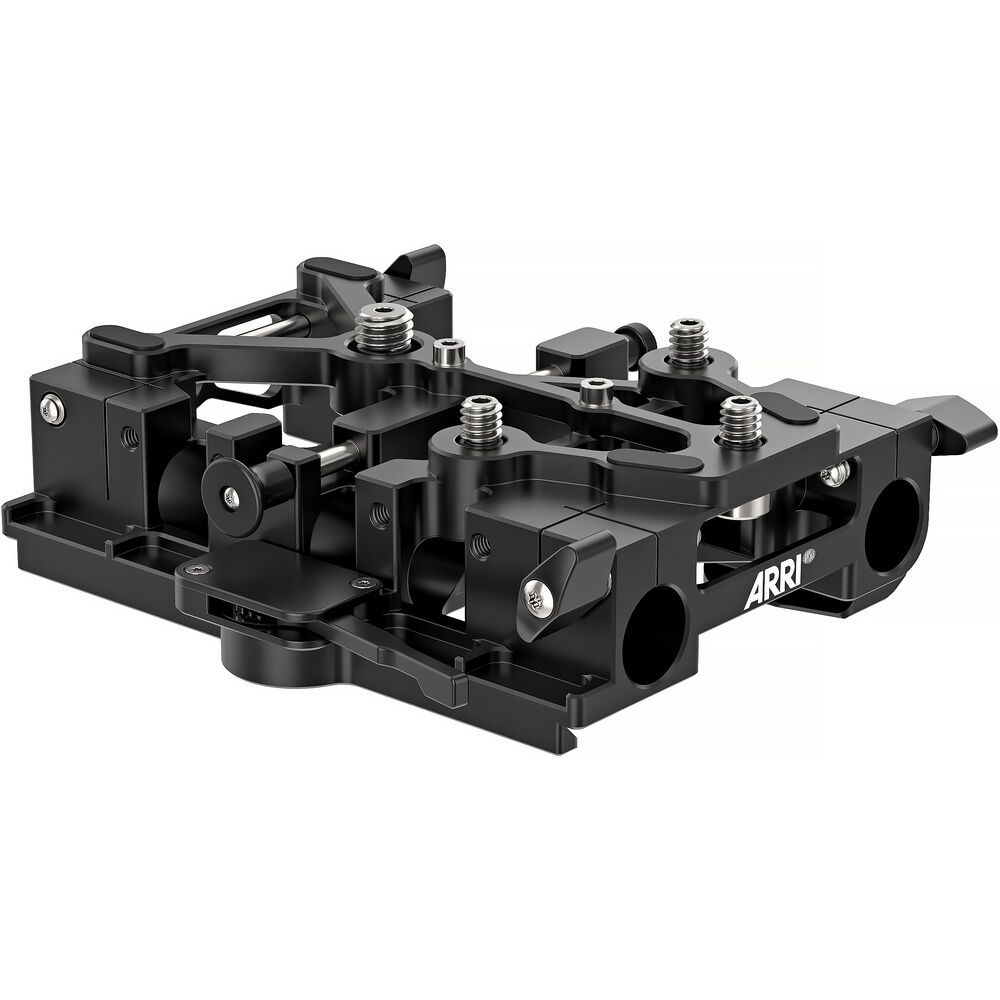

The Plate for Canon EOS C400 is a basic component of the ARRI set of dedicated accessories for the C400 digital cinema camera. This bottom plate has both front and rear 15mm LWS rod brackets. It is directly compatible with the ARRI BPA-5 bridge plate adapter and the BSA-1 shoulder mount and has M4 threads for mounting the ARRI NATO side brackets. Anti-twist pins prevent the plate from skewing when mounted on the bottom of your camera.
- Canon EOS C400 camera
- ARRI BPA-5 bridge plate adapter
- ARRI BSA-1 broadcast shoulder adapter
- ARRI NATO rail side brackets
- The BSA-1 broadcast shoulder adapter is compatible with VCT-style quick-lock plates like the ARRI QRP-1.
- Use it with the Plate for Sony VENICE 1/2 to convert your VENICE into a shoulder-mount camera.
- The integrated padded shoulder increases handheld-operating comfort.
- Maintains VCT-style mounting when used as a shoulder mount.

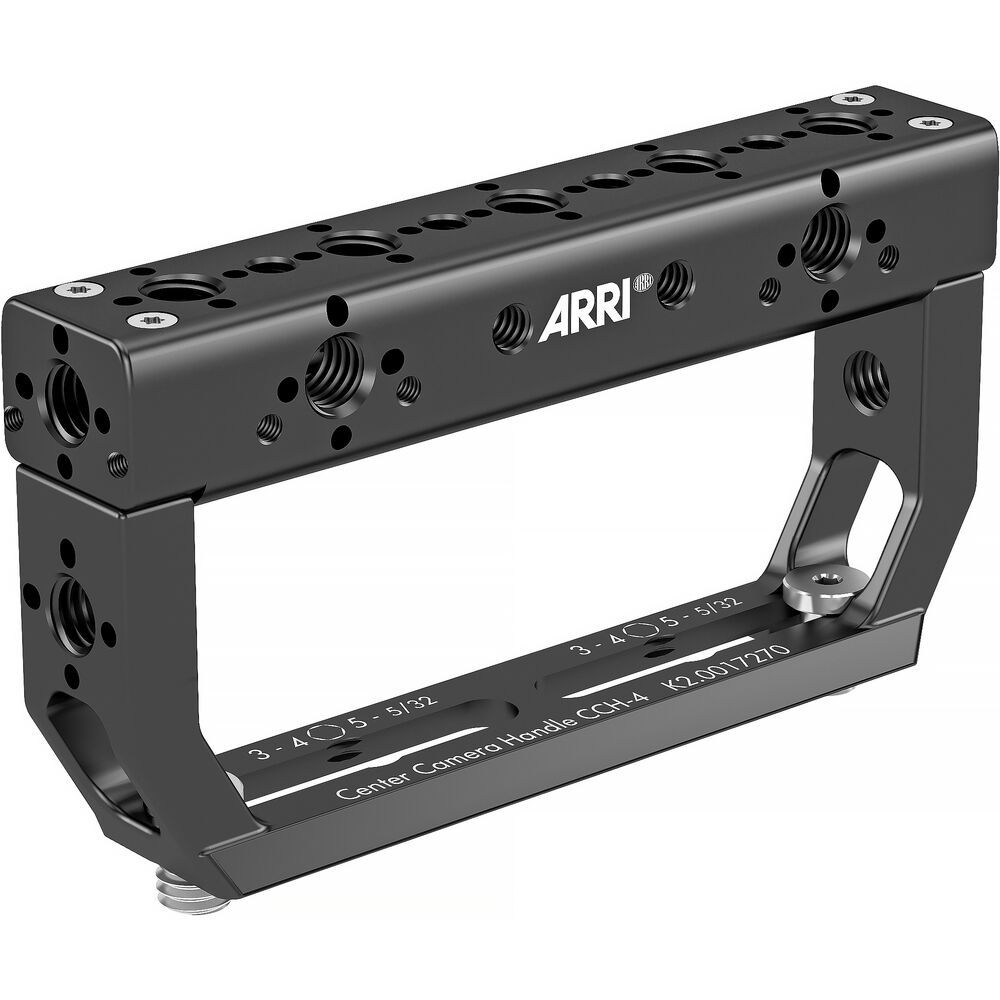

The Camera Center Handle CCH-4 from ARRI is a sturdy, completely closed camera handle. Compatible with most ARRI top plates for both ARRI and third-party cameras, the CCH-4 features multiple 1/4"-20, M4, and anti-twist 3/8"-16 accessory threads.
The versatile CCH-4 handle offers a choice of three positions for mounting on the ARRI Top Plate for the Sony VENICE. For optimal carrying balance, pair this handle with the separately available Sliding Adapter for the CCH-4.
Note:The CCH-4 handle is not compatible with the ARRI PCA top plate for RED, Canon C300 Mk II, Sony a7, or the MAP-1 and MAP-2 for the ALEXA Mini.

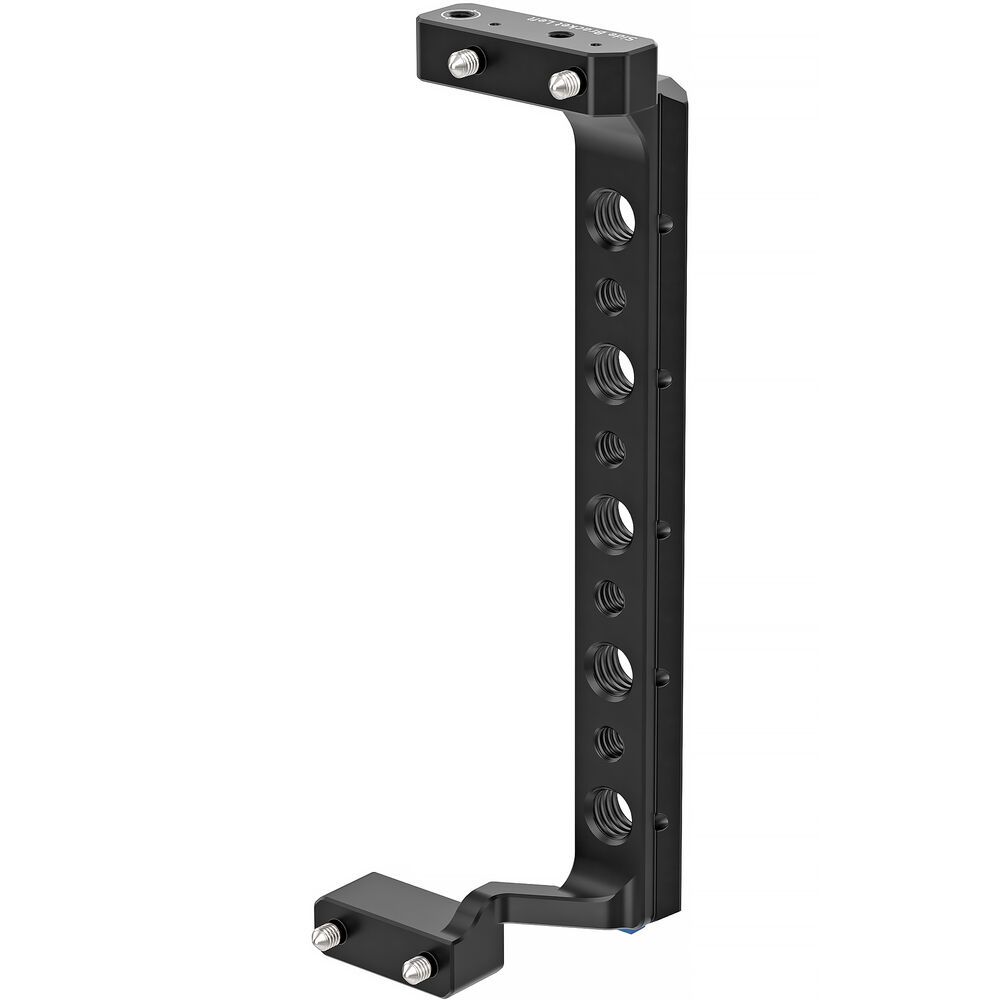

The Side Bracket for Canon EOS C400 from ARRI both protects and provides a variety of accessory mounting options for your C400 camera. This right-side bracket features a NATO rail with a built-in safety release and multiple anti-twist 3/8"-16 and 1/4"-20 accessory threads. Easy-to-use ARRI multi-hex screws are used for mounting the plate on your C400 camera. Note that the ARRI C400 top and bottom plates are required for mounting this bracket.
- Canon EOS C400 camera
- ARRI C400 top plate
- ARRI C400 bottom LWS plate
The Side Bracket for Canon EOS C400 from ARRI both protects and provides a variety of accessory mounting options for your C400 camera. This left-side bracket features a NATO rail with a built-in safety release and multiple anti-twist 3/8"-16 and 1/4"-20 accessory threads. Easy-to-use ARRI multi-hex screws are used for mounting the plate on your C400 camera. Note that the ARRI C400 top and bottom plates are required for mounting this bracket.
- Canon EOS C400 camera
- ARRI C400 top plate
- ARRI C400 bottom LWS plate
The Side Bracket for Canon EOS C400 from ARRI both protects and provides a variety of accessory mounting options for your C400 camera. This right-side rear bracket features a NATO rail with a built-in safety release and multiple anti-twist 3/8"-16 and 1/4"-20 accessory threads. Easy-to-use ARRI multi-hex screws are used for mounting the plate on your C400 camera. Note that the ARRI C400 top and bottom plates are required for mounting this bracket.
- Canon EOS C400 camera
- ARRI C400 top plate
- ARRI C400 bottom LWS plate

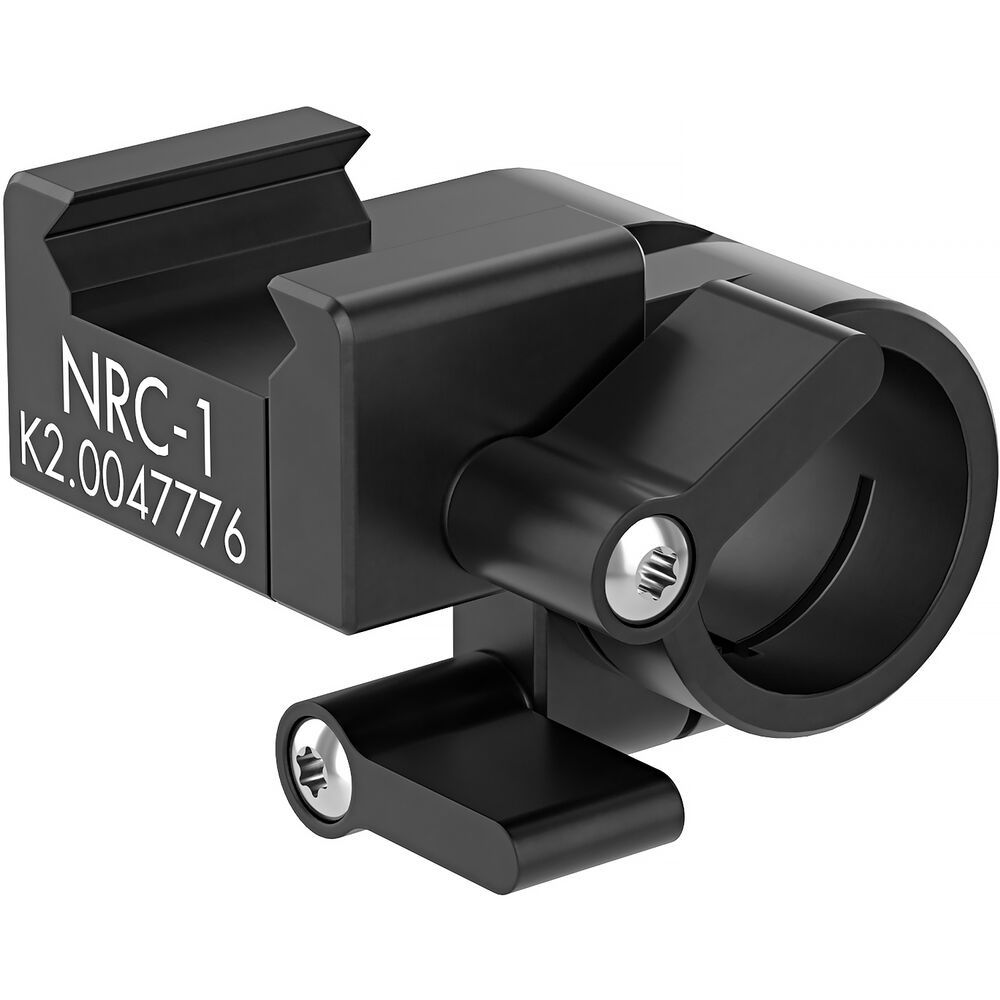

Integrate a 19mm rod clamp into your Sony BURANO configuration using this ARRI NRC-1 NATO Rail Clamp. The clamp attaches to any of the BURANO-compatible ARRI side brackets via a NATO rail clamp. It features a single 19mm rod clamp to secure rod-based lens accessories like follow focus motors. The clamp has two integrated thumbscrews to tighten both clamps independently.
This pair of 9" ARRI Lightweight Support Rods feature lightweight stainless steel construction and are designed to reduce your rig's weight. Use them with any 15mm-based accessory or bridgeplate.

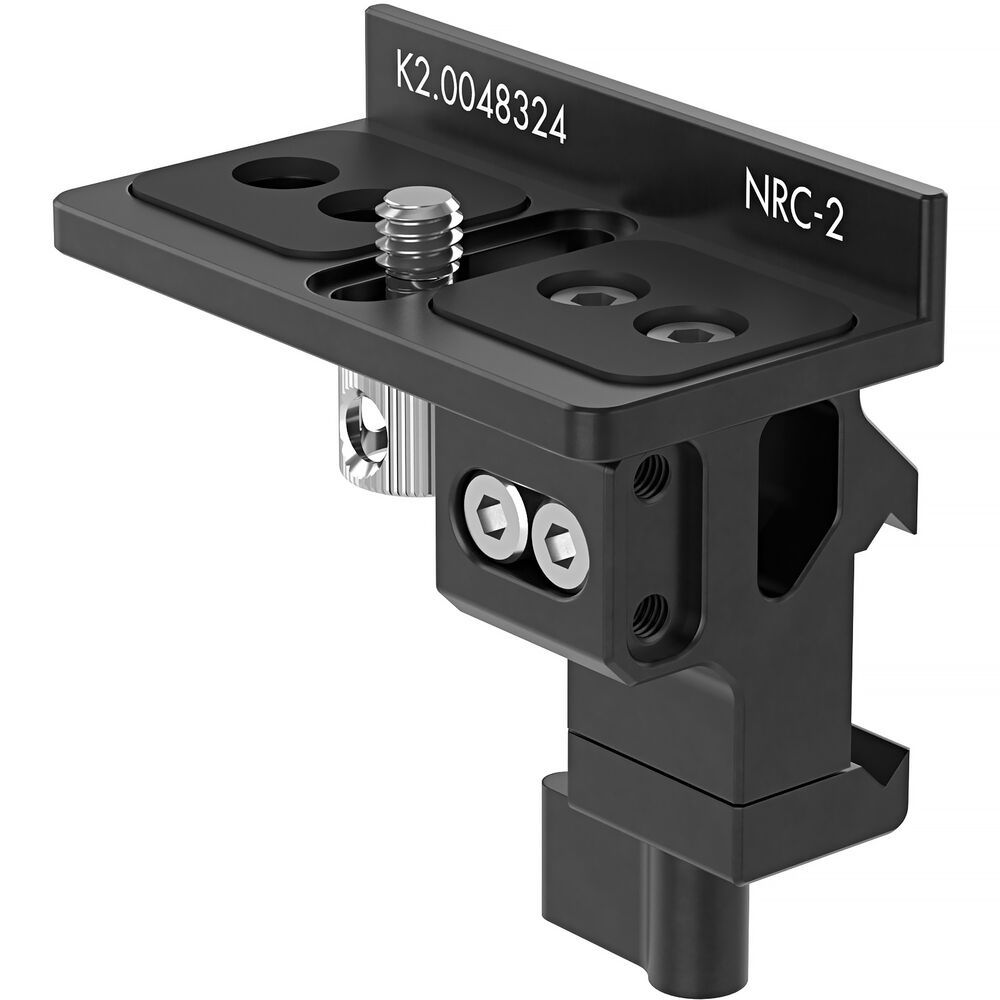

Secure a video transmitter unit to your Sony BURANO camera rig with this ARRI NRC-2 NATO Rail Clamp. The clamp attaches to any of the BURANO-compatible ARRI side brackets via a NATO rail clamp. It features a flat mounting surface with a captive screw to secure your transmitter to. The clamp has a two-part modular design for wide compatibility with most transmitter units.
Use the Rod Mounting Bracket (RMB-3) from ARRI to support a single, standard 19mm rod for mounting a lens motor, lightweight EVF bracket, etc. to your camera or cage rig. When used with a separately available insert, the RMB-3 can be used to support a 15mm rod. A mounted rod is easily secured using the thumb lever on this screw-in bracket.
15mm (with separately available insert K2.66255.0)
The ARRI 15mm Reduction Insert is used to adapt a 19mm rod bracket to accept standard 15mm rods. This insert works with any 19mm rod mount.
Items Included
- ARRI Top Plate for Canon EOS C400
- ARRI Plate for Canon EOS C400
- ARRI BSA-1 Broadcast Shoulder Adapter
- ARRI Camera Center Handle CCH-4
- Mounting Screws
- ARRI Side Bracket for Canon EOS C400 (Right Side)
- ARRI Side Bracket for Canon EOS C400 (Left Side)
- ARRI Side Bracket for Canon EOS C400 (Right Side, Rear)
- ARRI NRC-1 NATO Rail Clamp
- ARRI 15mm Lightweight Support Rods (Pair, 9")
- ARRI NRC-2 NATO Rail Clamp
- ARRI Rod Mounting Bracket (RMB-3)
- ARRI 15mm Reduction Insert for 19mm Rod
