Teradek Bolt 6 LT 750 with Internal Antennas - TX Unit
53.10-2263-I
Product Features:
3G-SDI/HDMI Transmitter
Supports 6 GHz Frequency Band
Supports up to 4K30 Resolution 10-Bit 4:2:2 HDR Support HDMI Input
3G - SDI Output
Sleek Design with Internal Antennas
Cross-Compatibility Bolt 4K series with zero delay using the 5 GHz band
Bluetooth Mobile App, Spectrum Analyzer
AES-256 Encryption
Transmit to up to 6 Receivers
NO PLATE
Configuration Options:
$2,980.00
Pre Order
Check Location Availability
Teradek Bolt 6 LT 750 with Internal Antennas - TX Unit
Essential Add-On's we recommend
You may also like...
-
Brand
Stock Level:In StockStock Code:33.1.16-0727Price:$5,199.00 -
Brand
Stock Level:Out of StockStock Code:33.1.16-0729Price:$7,499.00 -
Brand
Stock Level:Out of StockStock Code:33.1.16-0728-VMPrice:$7,839.00 -
Brand
Available SoonStock Code:88.CINECAMCPYXA60LFLWas:$4,905.00Now:$4,414.50Price:$4,414.50
Description

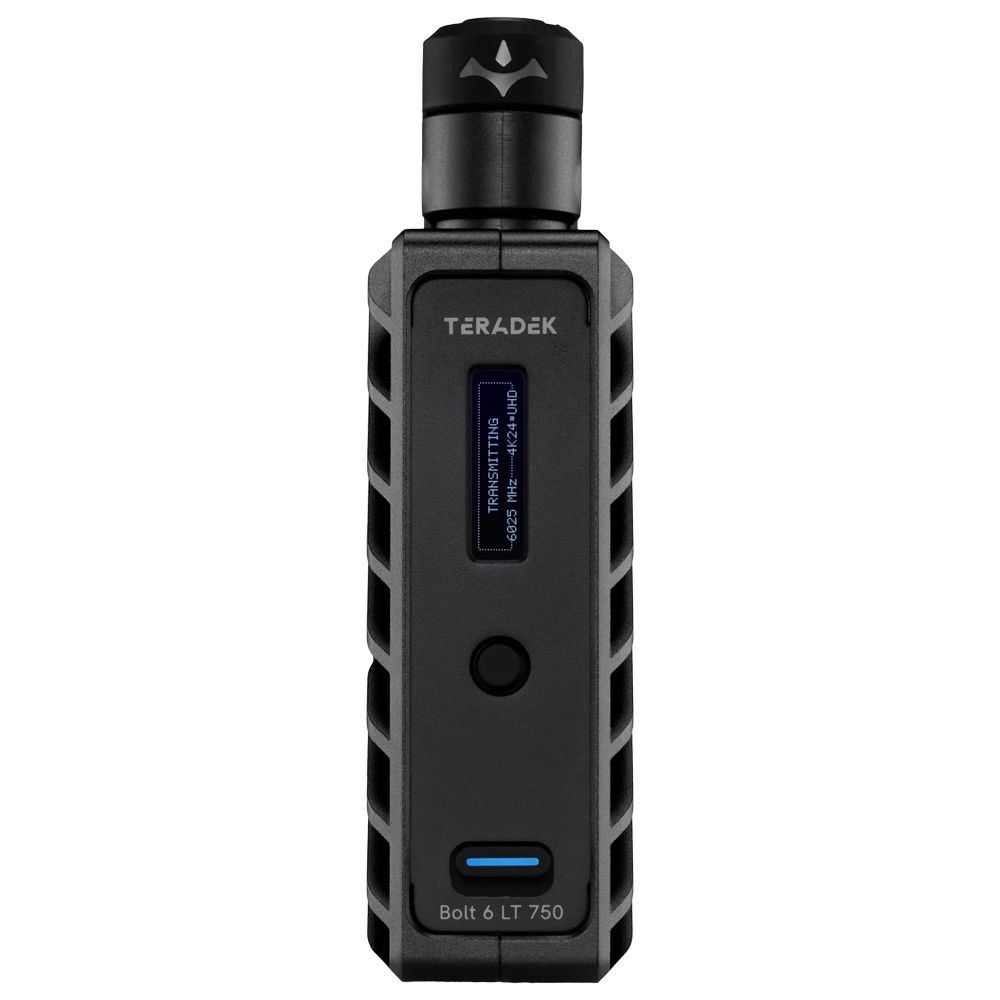

Transmit lossless HD video up at distances up to 750ft with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas from Teradek. The transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support and supports the 6 GHz wireless band. This transmitter unit provides a powerful signal that can travel up to 750' line of sight and features a sleek form with all antennas tucked inside, a bright OLED display, and an SDI loop output.
Sleek Design with Internal Antennas

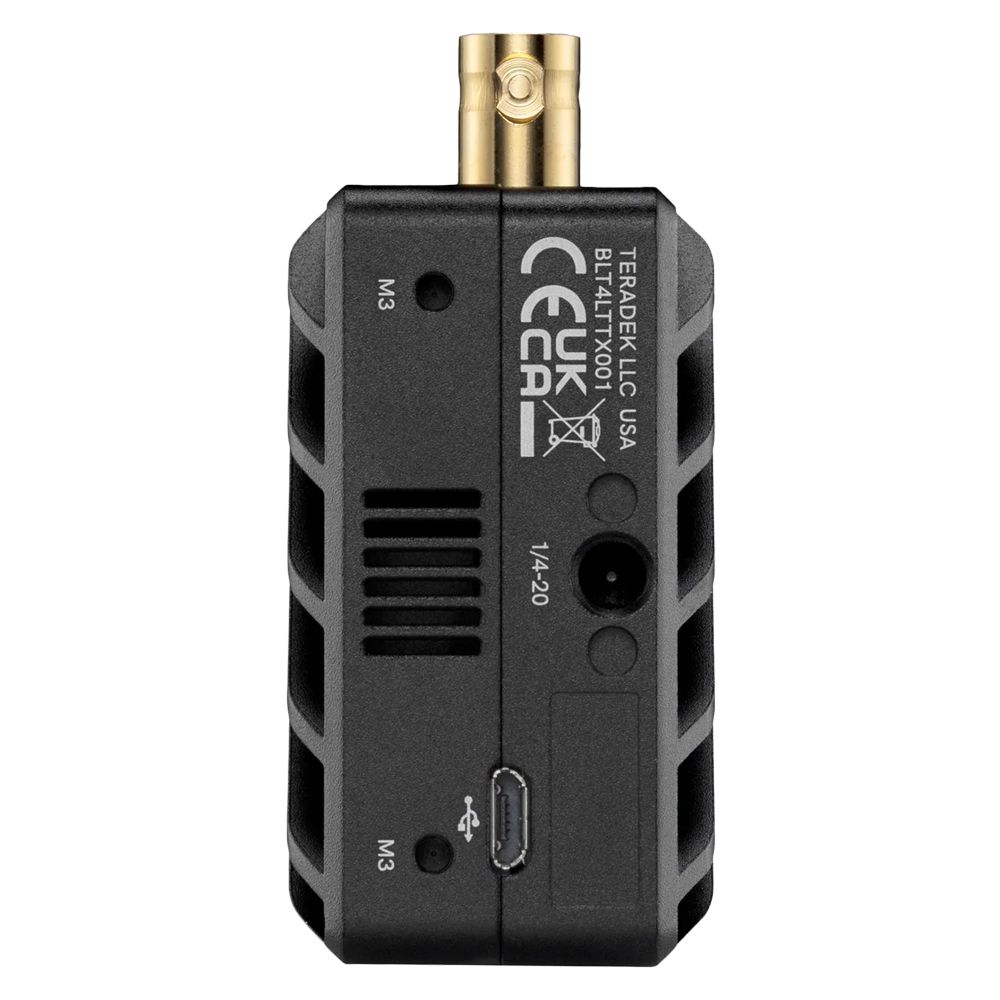

The antennas in this transmitter are all tucked inside, producing a sleek, compact form. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
Transmits to up to Six Receivers
The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.
Cross Compatibility
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
Up to UHD 4K30 via HDMI

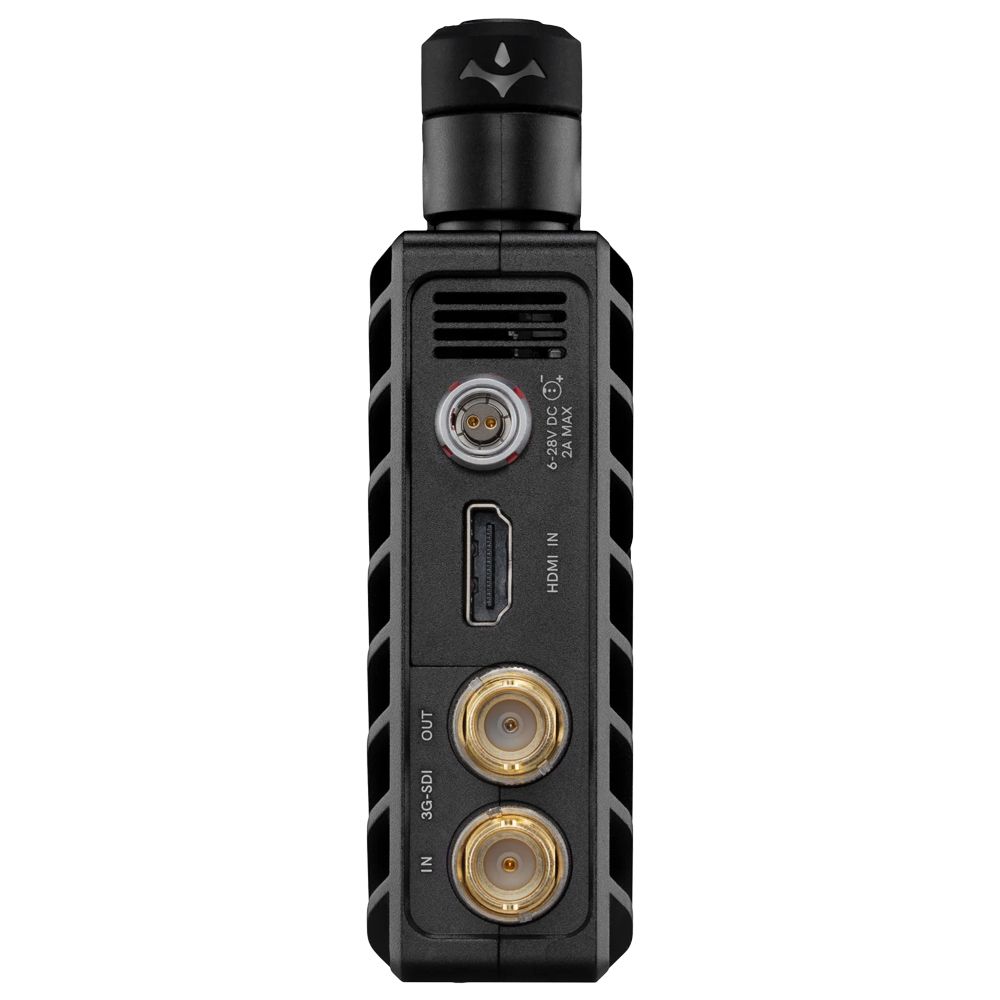

- Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI and output via an SDI loop out.
- Supports Rec 2020 HDR in 10-bit 4:2:2 colour gamut.
- The wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration.
What's In The Box?
- 1 x Bolt 6 LT 750 TX Internal Antenna
- 1 x 2pin to P-Tap Cable, 457mm
- 1 x 2pin to AC Adapter 18W, 1.8m
- 1 x Ultra Thin HDMI Male to Male Cable, 457mm
- 1 x SDI Cable, 254mm
- 1 x USB-C 2.0 Male to Male, 1m
