Blackmagic Design Fairlight Audio Interface

88.DVRFLAUDIF

Product Features:

For Postproduction Engineers
Proprietary Fairlight Host Connectivity
Inputs: 2 Mic/Hi-Z Pres, 8 Line, 20 AES
Outputs: 12 Line, 24 AES
24-Bit / 192 kHz AD/DA Converters
Internal Power Supply / Mac and Windows
Phantom Power, Timecode and GPIO In/Out
BNC Wordclock and Video Sync I/O
RS-422 Machine Control I/O
Multi-Segment Level Indicators
$4,045.00
$3,640.51
Available Soon
Check Location Availability
Make an Enquiry

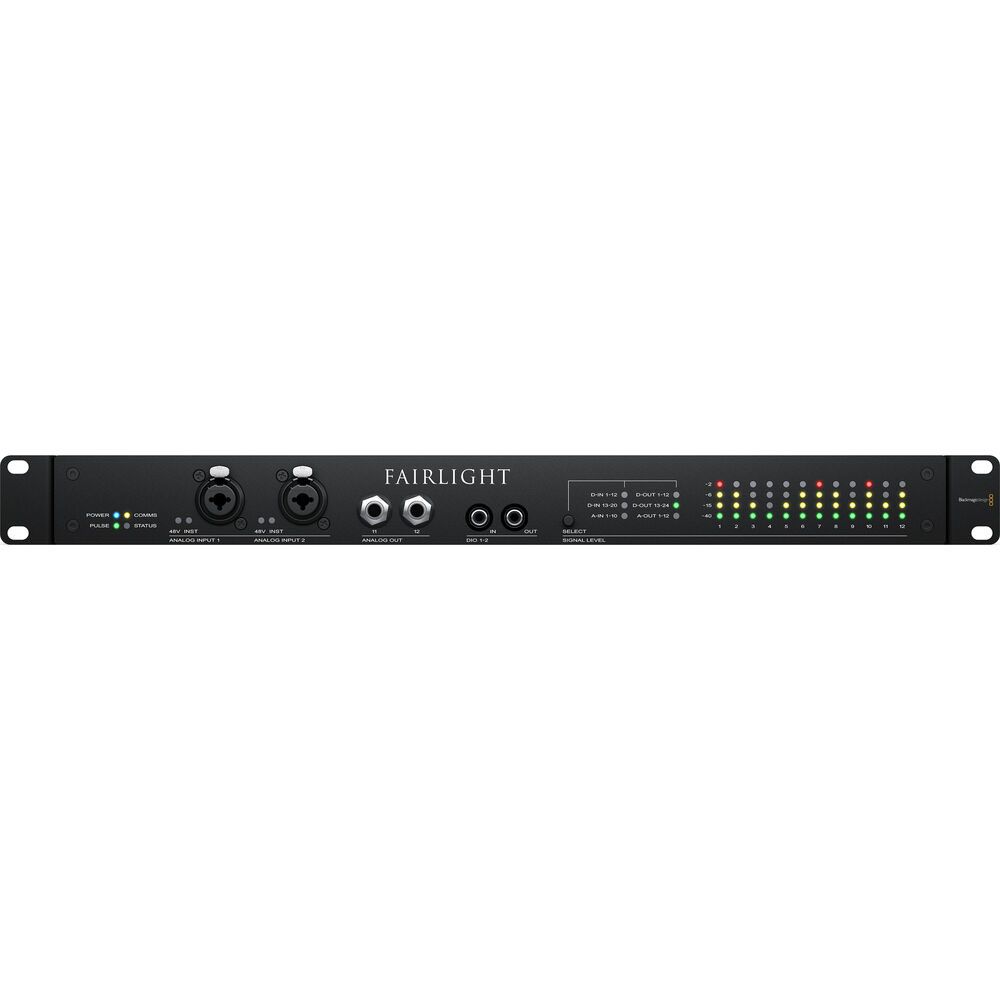

Blackmagic Design Fairlight Audio Interface

Add To Cart
$4,045.00
$3,640.51

Essential Add-On's we recommend

You may also like...

Description

Expand the I/O of your DaVinci Resolve 17 system with the Blackmagic Design Fairlight Audio Interface, a 1 RU rackmount unit packed with analog and digital connections, preamps for mics and instruments, sample rate conversion, and sync at any standard frame rate. Equipped with 24-bit / 192 kHz AD/DA converters, extensive synchronization and control I/O, it exhibits high-grade sonic performance. The Fairlight Audio Interface is optimal for professional postproduction engineers in commercial studios and mixing stages.

It features two high-gain mic/instrument preamps with switchable phantom power, an 8-channel DB25 line input, and 20 AES digital inputs, allowing it to accommodate a variety of analog and digital sources. Outputs include 12 channels of analog line-level outs and 24 AES digital channels to serve complex setups. The interface is also outfitted with BNC ports for wordclock and video sync I/O, timecode and GPIO inputs and outputs on a DB25 connector, and RS-422 machine control ports.

Note:
The Fairlight Audio Interface requires a Fairlight Audio Accelerator PCIe card (available separately).

For DaVinci Resolve 17 Systems
The Fairlight Audio Interface connects to the Fairlight Audio Accelerator PCIe card (required and available separately) with the supplied proprietary cable. It adds analog and digital connections, preamps for mics and instruments, sample rate conversion, and sync at any standard frame rate to your DaVince Resolve 17 system.

10 Analog Inputs
The interface features two remote-controlled XLR/TRS microphone/instrument inputs with 48V phantom power and up to +71.5 dB of gain, perfect for clean recording of dynamic mics, studio condensers, and electric instruments. There are also eight +24 dBu balanced analog inputs on a DB25 connector. The front panel of the interface sports multi-segment meters for easy viewing of audio levels.

12 Analog Outputs
With eight line outputs on a DB25 connector and four line outs on 1/4" jacks, the Fairlight Audio Interface can provide +24 dBu analog signal to your mixer or dedicated recording system. All analog outputs are balanced and feature mute protection.

20x24 Digital I/O
The front panel offers RCA coaxial ports for stereo AES or S/PDIF input and output. The other digital audio connections for transformer-coupled AES inputs 3-20 and AES outputs 3-24 are on the rear. Sample rate conversion is available on digital inputs 1-2.

Synchronization I/O
  • 75-ohm BNC reference input for Tri-Sync or Black Burst
  • 75-ohm BNC reference loop out for Tri-Sync or Black Burst
  • 75-ohm BNC wordclock input
  • 75-ohm BNC wordclock regenerated output
  • Syncs to all common frame rates and formats including HD Tri-level sync, video sync, word clock, and AES/EBU
Timecode and Control I/O
  • RS-422 9-pin machine control input
  • RS-422 9-pin machine control output
  • DB25 connector to handle GPI and GPO connections for cough and On-Air control as well as timecode input and output with regeneration
Internal Power Supply
The Fairlight Audio Interface incorporates an internal power supply with an IEC C14 mains input. It is automatically powered on/off only when the Fairlight Audio Accelerator is powered on/off.


Blackmagic Design DV/RFL/AUDIF Specs

Key Specs
Channels of I/O
Analog:
10 Inputs / 12 Outputs
Digital:
20 Inputs / 24 Outputs

Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Analog Audio I/O
2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Hi-Z Input (Front Panel)
1 x DB-25 25-Pin Balanced Line/8-Channel Input (AES 59/Tascam Pinout)
1 x DB-25 25-Pin Balanced Line/8-Channel Output (AES 59/Tascam Pinout)
4 x 1/4" TRS Balanced Line Output

Digital Audio I/O
1 x RCA Coaxial AES3 / S/PDIF Input
1 x RCA Coaxial AES3 / S/PDIF Output
2 x DB-25 AES3 In/Out (AES 59/Tascam Pinout)
Host Connection
1 x DVI-D (DL)
OS Compatibility
macOS 10.15 or Later
Windows 10 (64-Bit Only)
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility

Power Requirements
AC Input
Channels of I/O
Analog:
10 Inputs / 12 Outputs
Digital:
20 Inputs / 24 Outputs
Maximum Sampling Rate
192 kHz / 24-Bit
Number of Microphone Inputs
2
Input Level Adjustment
2 x via Software
Expansion Slots
No
Signal Processing
Pad
No
Gain/Trim Range
Mic Inputs:
+21.5 to +71.5 dB
Hi-Z Inputs:
+0 to +50 dB
High-Pass Filter
No
Solo/Mute
No
Connectivity
Analog Audio I/O
2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Hi-Z Input (Front Panel)
1 x DB-25 25-Pin Balanced Line/8-Channel Input (AES 59/Tascam Pinout)
1 x DB-25 25-Pin Balanced Line/8-Channel Output (AES 59/Tascam Pinout)
4 x 1/4" TRS Balanced Line Output
Phantom Power
48 V, Selectable On/Off
Digital Audio I/O
1 x RCA Coaxial AES3 / S/PDIF Input
1 x RCA Coaxial AES3 / S/PDIF Output
2 x DB-25 AES3 In/Out (AES 59/Tascam Pinout)
Host Connection
1 x DVI-D (DL)
Host Connection Protocol
Blackmagic Design Fairlight Proprietary
USB (Non-Host)
No
Sync I/O
1 x BNC Word Clock Input
1 x BNC Word Clock Output
1 x BNC Video Sync Input
1 x BNC Video Sync Output/Thru
Network I/O
No
MIDI I/O
1 x DIN 5-Pin Input
1 x DIN 5-Pin Output
Other I/O
1 x DB-25 25-Pin GPIO In/Out
1 x DE-9/DB-9 9-Pin Control Input
1 x DE-9/DB-9 9-Pin Control Output
Performance
Frequency Response
Inputs:
20 Hz to 20 kHz ±0.05 dB
Outputs:
20 Hz to 20 kHz +0.05/-0.5 dB
Maximum Input Level
Mic Inputs:
+2.5 dBu
Line/Hi-Z Inputs:
+24 dBu
Maximum Output Level
Analog Outputs:
+24 dBu
Impedance
Mic Inputs:
2 Kilohms
Hi-Z Inputs:
> 1 Megohm
Line Inputs:
15 Kilohms
Analog Outputs:
50 Ohms
BNC Inputs:
75 Ohms
BNC Inputs:
75 Ohms
Dynamic Range
Combo XLR-1/4" Inputs:
108 dB (Unweighted, Min Gain)
DB-25 Inputs:
110 dB (Unweighted)
Outputs:
109 dB (Unweighted)
THD+N
Combo XLR-1/4" Inputs:
0.001% (Unweighted, 1 kHz, Min Gain, at -1 dBFS)
DB-25 Inputs:
0.001% (Unweighted, 1 kHz)
Outputs:
0.002%
EIN
Mic Inputs:
-127 dBu (150-Ohm Source, +40 dB Gain)
Digital Audio
Sample Rates
44.1 / 48 / 96 / 192 kHz
Sample Rate Conversion
On S/PDIF Inputs
Bit Depths
24-Bit
Sync Sources
AES3, Internal, S/PDIF, Word Clock
Compatibility
OS Compatibility
macOS 10.15 or Later
Windows 10 (64-Bit Only)
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Included Software
No
Supported Drivers/API & Plug-Ins
Proprietary
Mobile Device Compatibility
No
Power
Power Requirements
AC Input
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
40 W
Physical
Rackmount Size
1 RU
Operating Humidity
0 to 90%
Operating Temperature
30 to 40°C
Storage Temperature
-20 to 60°C
Dimensions
 48.18 x 27.9 x 4.42 cm
Weight
4.1 kg

In the Box

  • Blackmagic Design Fairlight Audio Interface
  • Multipin Cable to Connect to Fairlight Audio Accelerator
  • Limited 1-Year Warranty
