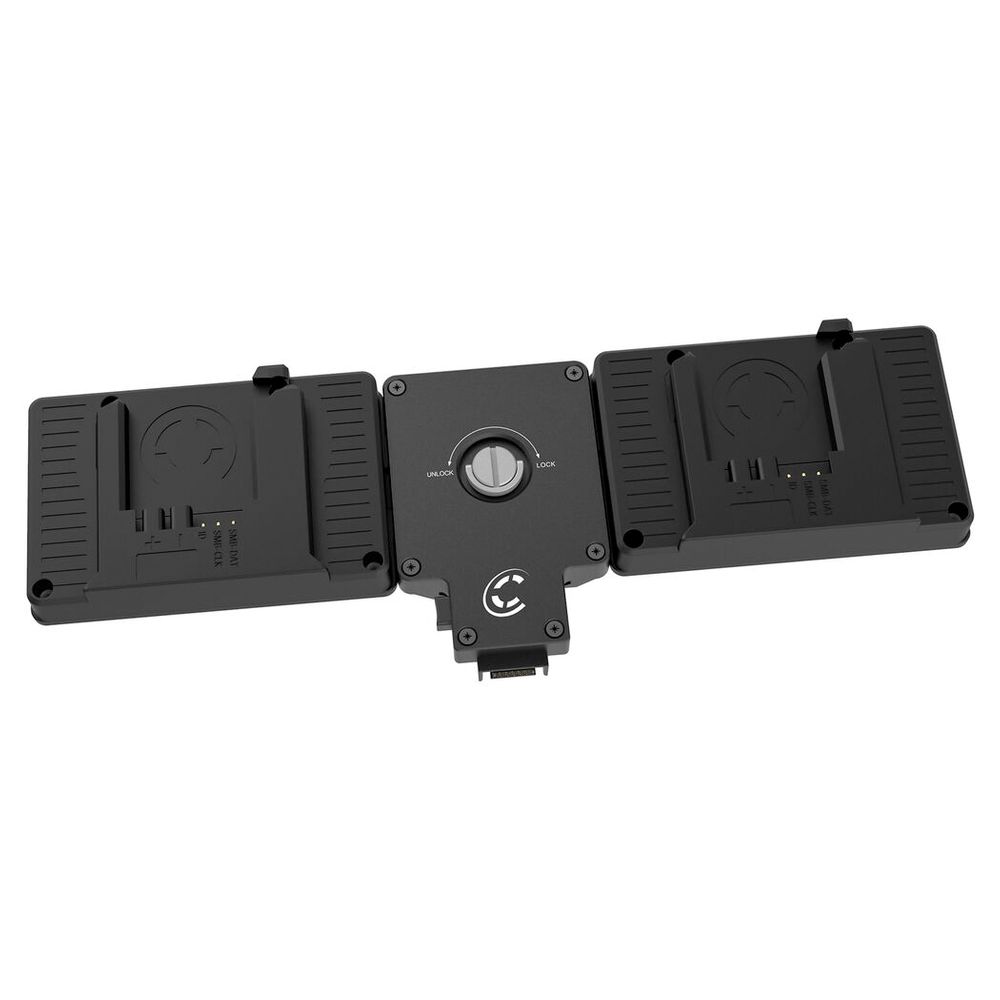

Core SWX Dual Battery Bracket For SmallHD Production Monitors Helixmax B
52.HLX-SHD-DBMT
Product Features:
Mounts on Back of 4K Monitor
Direct Plug-In Design, No Cable Required
Powers Monitor with 1 x or 2 x Batteries
For Helix Max Batteries
Enables Hot-Swapping using 3-Pin XLR
2 x D-Tap Outputs with 2A Output
Mounts on Monitor's Arca-Swiss SmartRail
$710.00
$635.00
Stock Level:
Out of Stock
Check Location Availability
Description
The Dual Battery Bracket from SmallHD is designed to power your SmallHD 4K production monitor using one or two Core Helix Max B-mount batteries. This battery plate features a direct, cable-free plug-in design and easy mounting on the monitor's Arca-Swiss SmartRail.
The bracket's dual design enables hot-swapping between two batteries as well as the monitor's 3-pin XLR power port. The bracket also features two D-Tap outputs that provide 2A output to also power a variety of accessories.
*While it may potentially work with other battery packs, Core does not provide any warranty regarding its compatibility with them. In this case we recommend using Core Helix Max B-Mount batteries only with this B-Mount Battery Bracket.
Core SWX HLX-SHD-DBMT Specs
Power
| Power Input | XLR 3-Pin: VDC |
| Power Output | Proprietary: 22 to 34 VDC |
General
| Inputs/Outputs | 2 x D-Tap 1 x XLR 3-Pin |
| Plate Front / Battery Mount | B-Mount |
| Plate Rear Mount | Proprietary Battery Plate |
| Number of Battery Bays | 2 |
| Hot-Swap Support | Yes |
| Dimensions | 31.5 x 10.7 x 2 cm |
| Weight | 590 g |
In the Box
- Core SWX Dual Battery Bracket for SmallHD Monitors (B-Mount)
- Limited 1-Year Manufacturer Warranty
