Teradek RT MOTR.S Lens Motor
53.15-0050
Product Features:
Compact Lens-Control Motor
Includes 0.8 MOD Lens Gear
15/19mm Rod Clamp
Two 0B 4-Pin Connectors
0.96nm Maximum Torque
297 Teeth per Second
Balanced Cable Management
Up to 32V Operating Voltage
$2,695.00
Stock Level:
Out of Stock
Check Location Availability

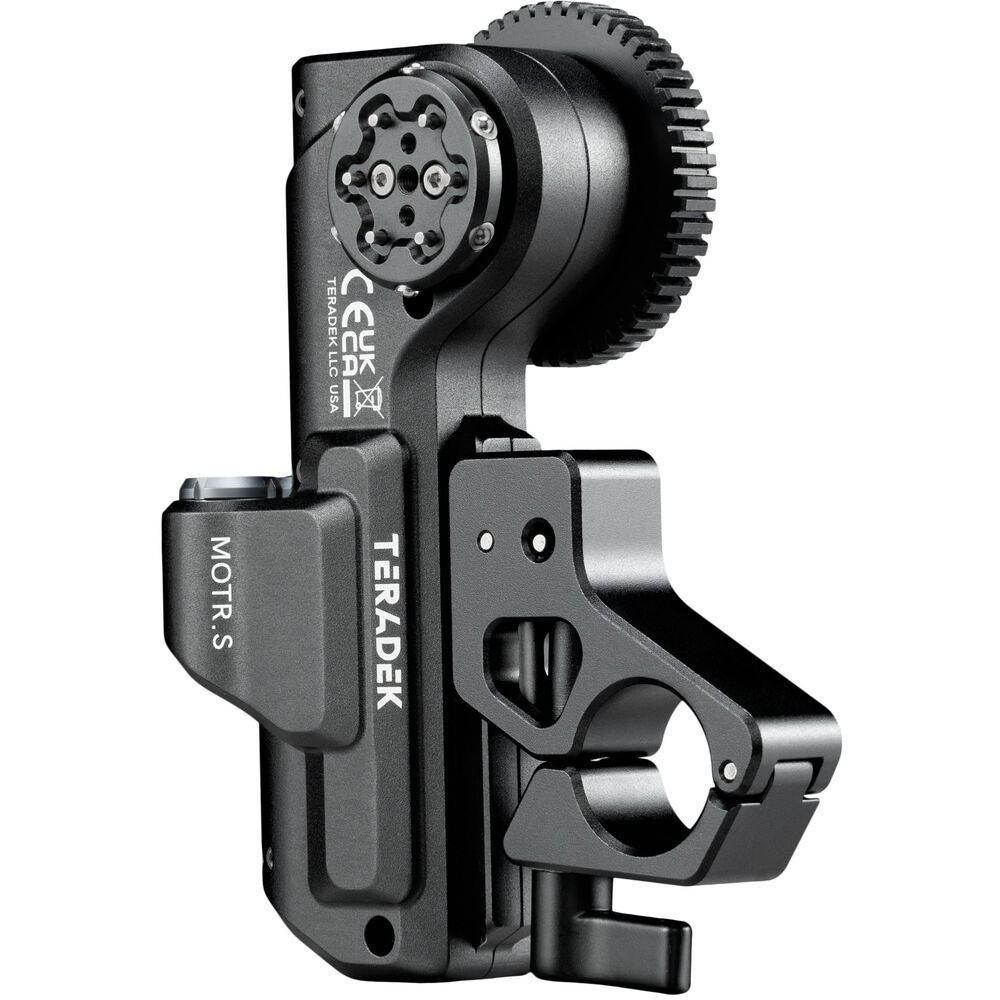

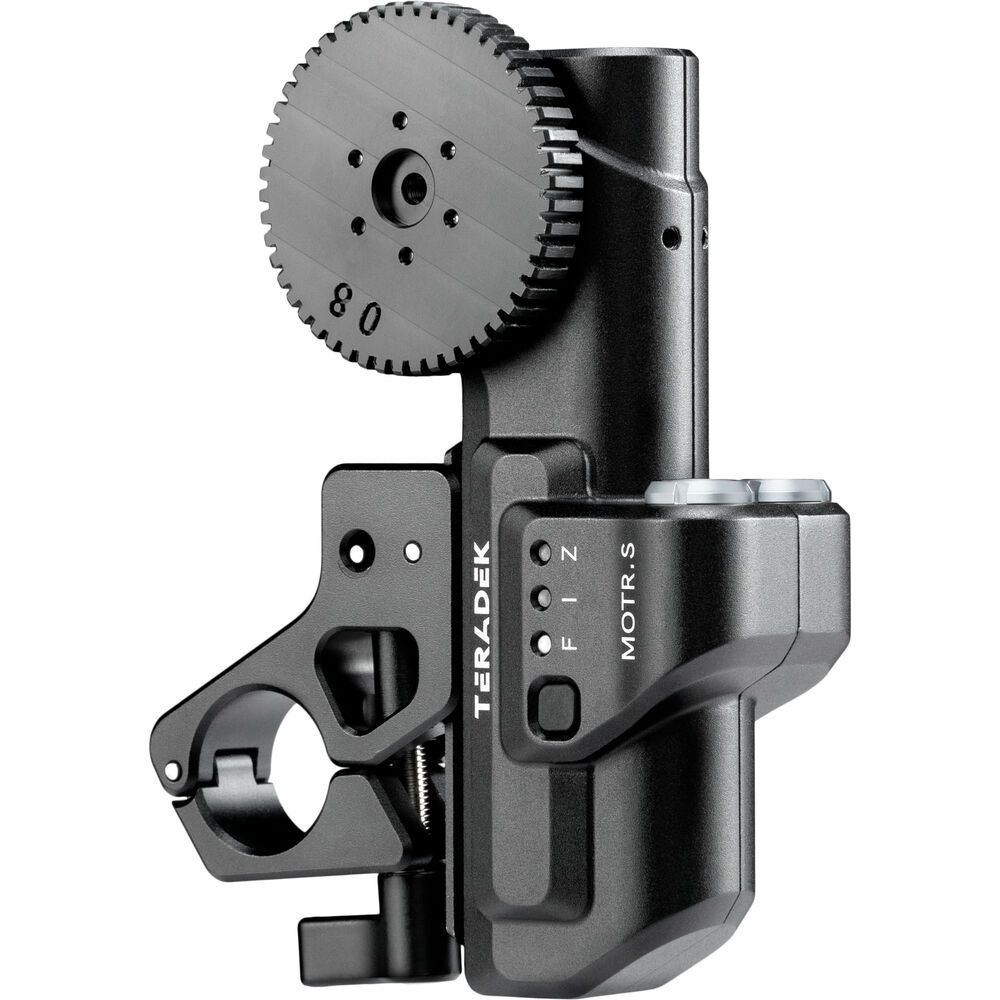

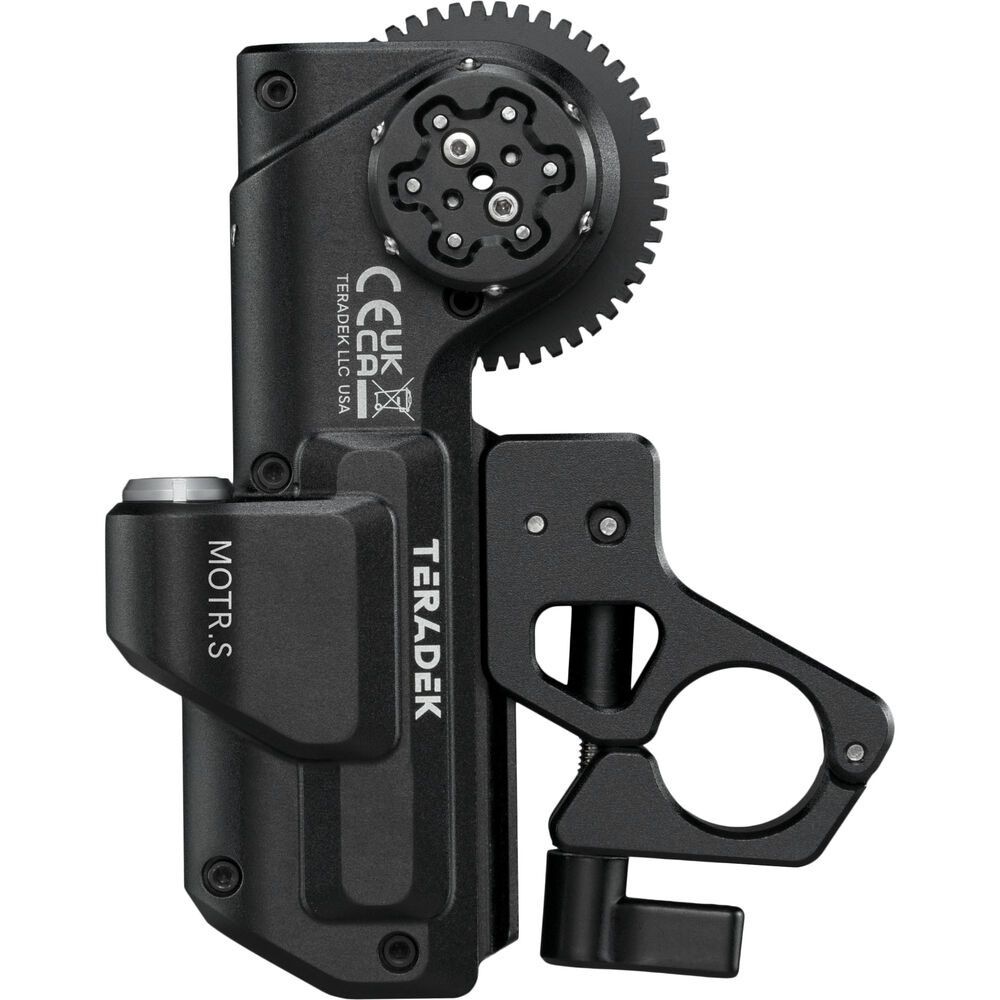

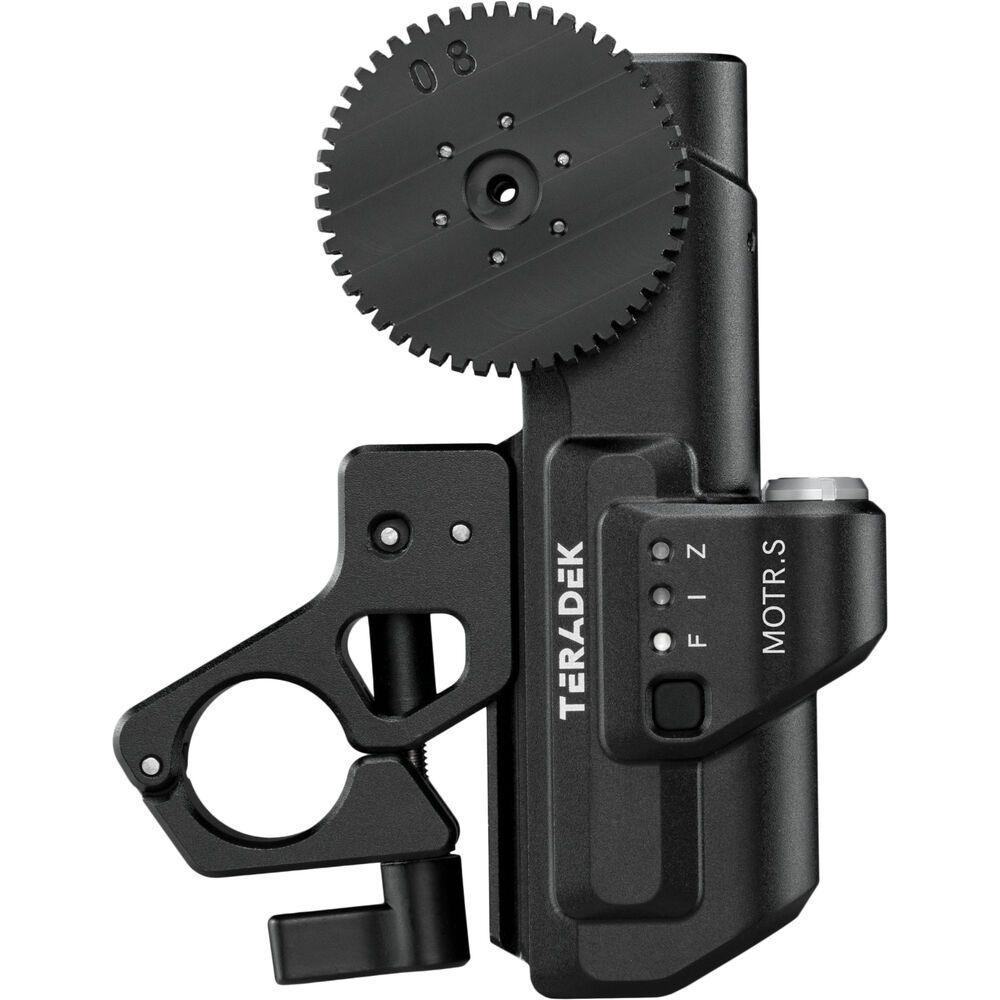

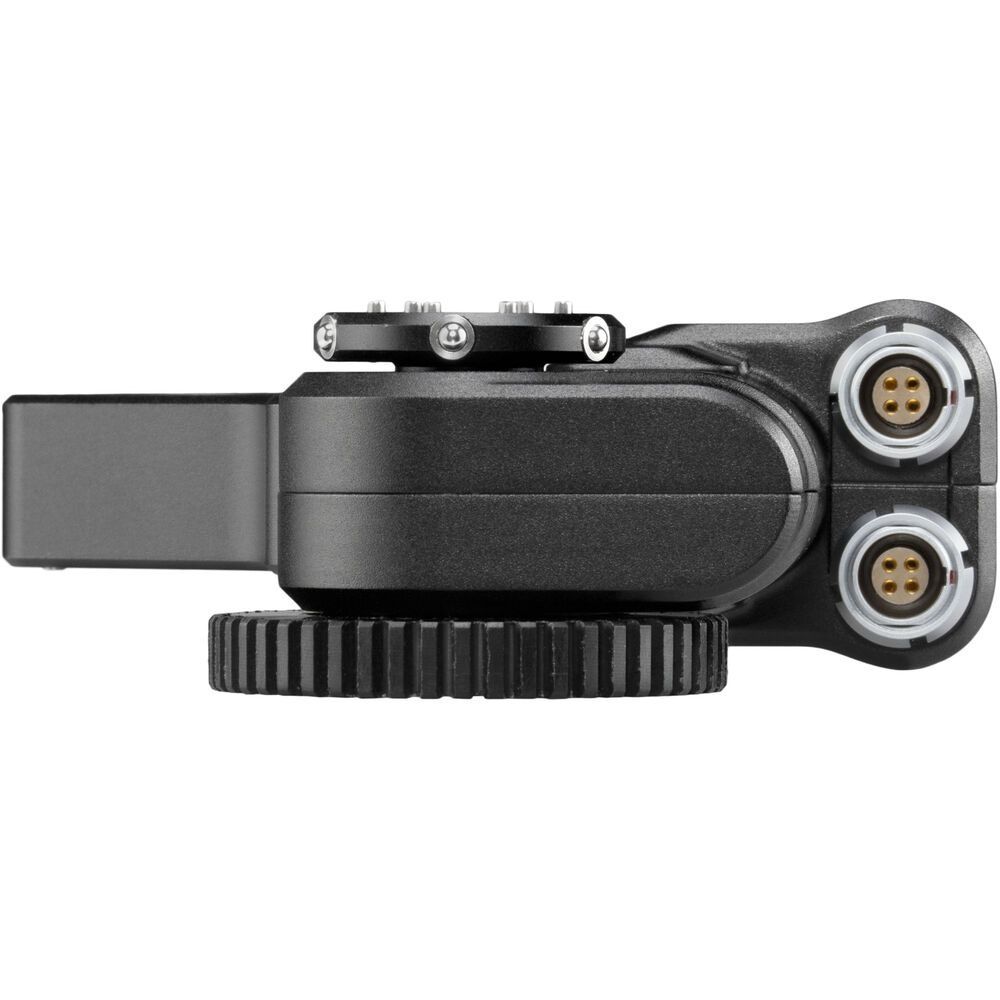

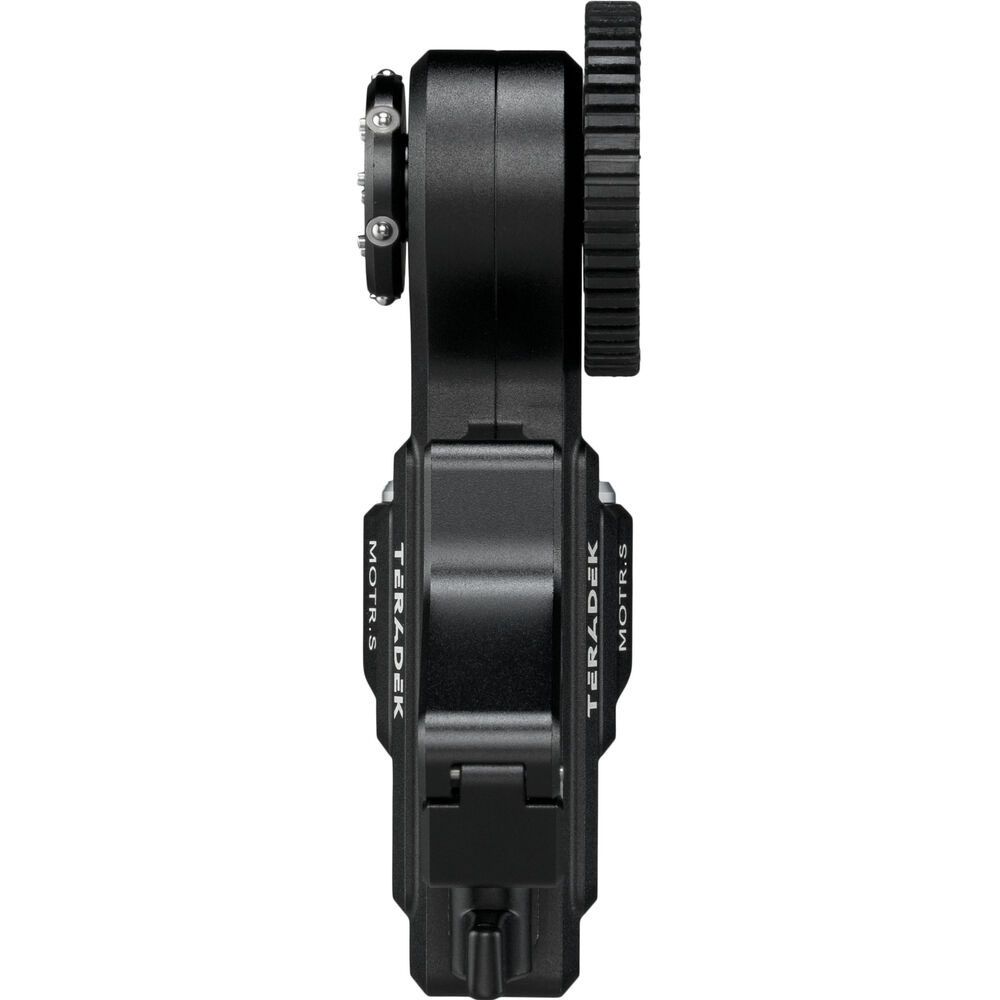

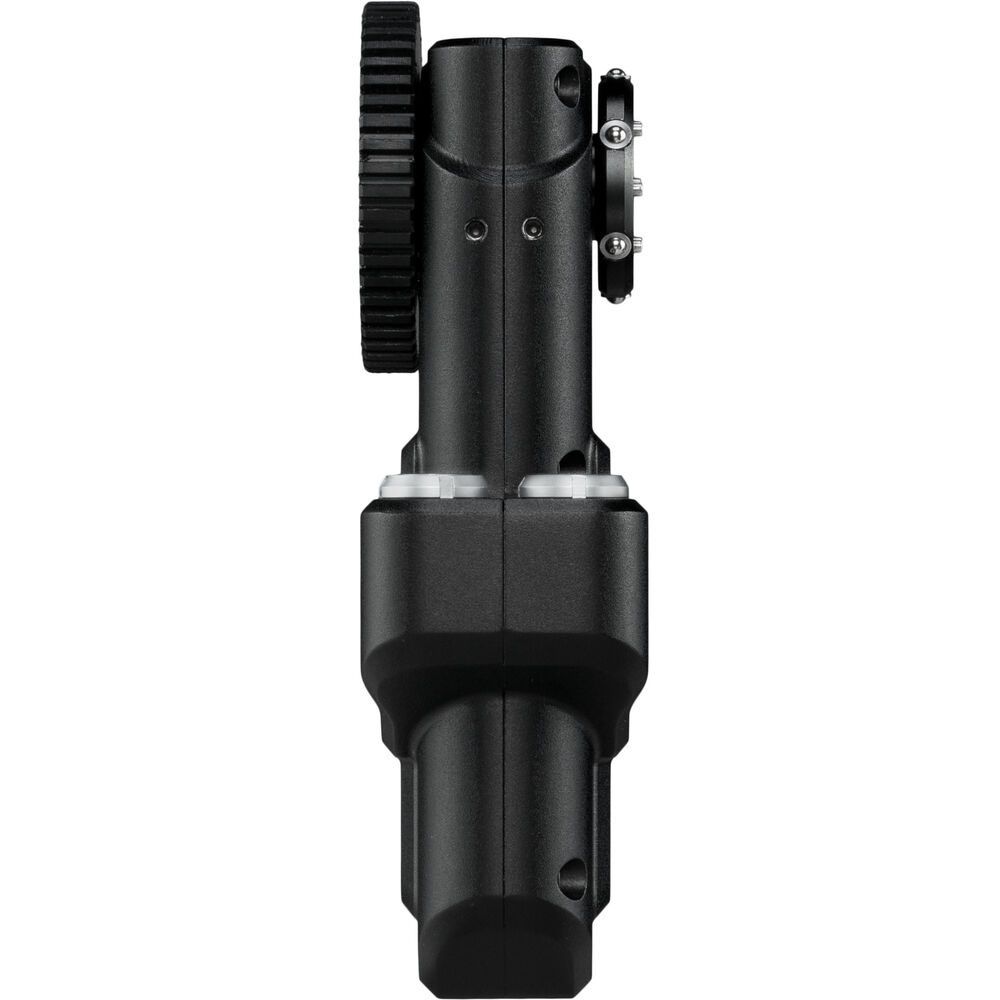

Teradek RT MOTR.S Lens Motor
Description
Designed to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.
An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.
MOTR.S Upgrades
- More compact and lightweight form factor
- Redesigned aluminum chassis, reinforced sockets, next gen circuit boards
- New 15/19mm rod clamp with better located handle
- 0.95nm maximum torque, 297 teeth per second
Teradek MOTR.S Specs
Power
| DC Input Power | 7 to 32 VDC |
| Operating Current | 1 A (Standby) 2 A (Maximum) |
Environmental
| Operating Temperature | 0 to 50°C |
Physical
| Mounting | 1 x 15mm Rod Clamp 1 x 19mm Rod Clamp |
| Color | Black |
| Material of Construction | Aluminum |
| Dimensions | 105 x 56 x 31 mm |
| Weight | 184 g |
In the Box
- Teradek RT MOTR.S Lens Motor
- 0.8 MOD Gear
- MOTR.S Bracket
- Limited 1-Year Manufacturer Warranty
