Wooden Camera - Teradek Bolt LT TX Cradle V To Gold Mount

54.A00138

Product Features:

For Bolt LT Transmitter
Dual-Sided Battery Plates
3 x D-Tap Ports
1/4"-20 Screw Secures Transmitter
$810.00
Stock Level:
In Stock
Check Location Availability

Wooden Camera - Teradek Bolt LT TX Cradle V To Gold Mount

Essential Add-On's we recommend

Description

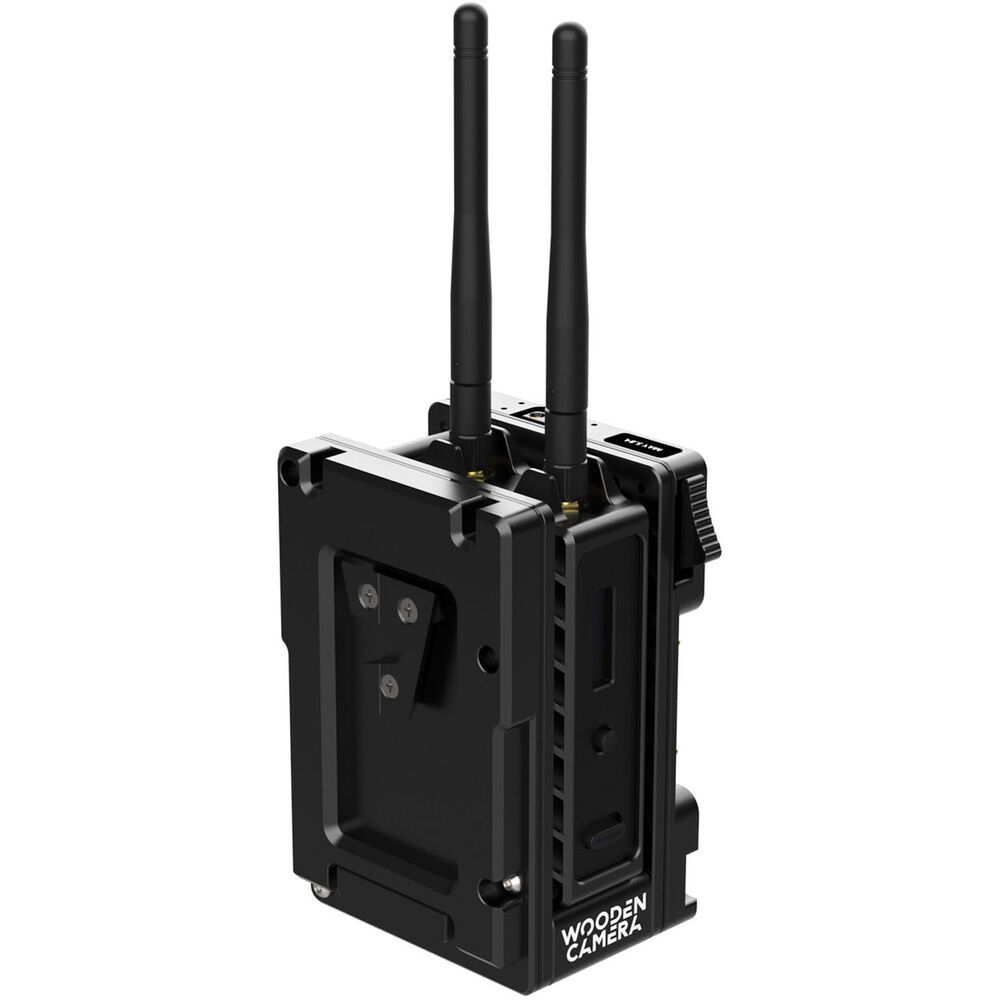

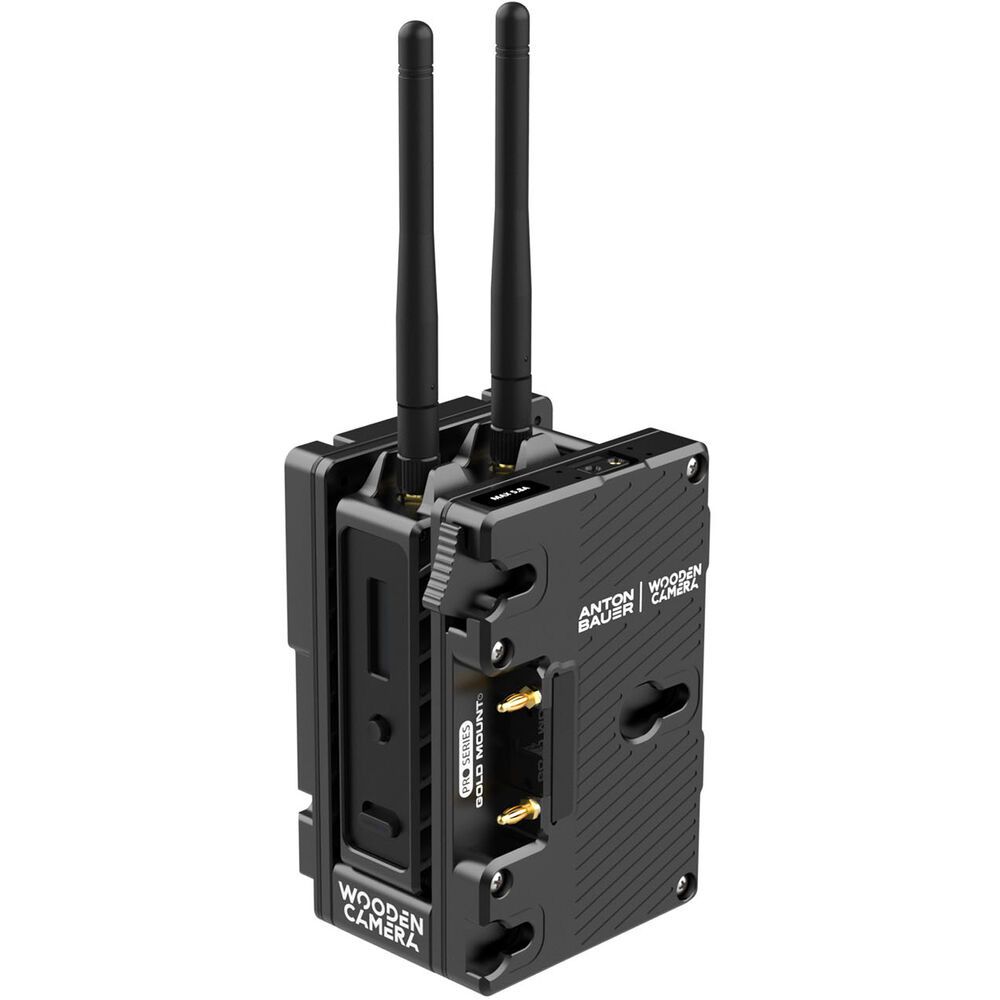

Cradle for Bolt LT TX allows you to mount the Teradek transmitter in-line with Gold or V-Mount camera-back power. Seamlessly integrate your Teradek Bolt 4K LT Transmitter into your camera build with the Cradle for Bolt LT TX.

Choose from a selection of Gold Mount, V-Mount, or V-Mount to Gold Mount. V-Mount to Gold Mount adapts a camera-side V-Mount to a Gold Mount on-board battery.

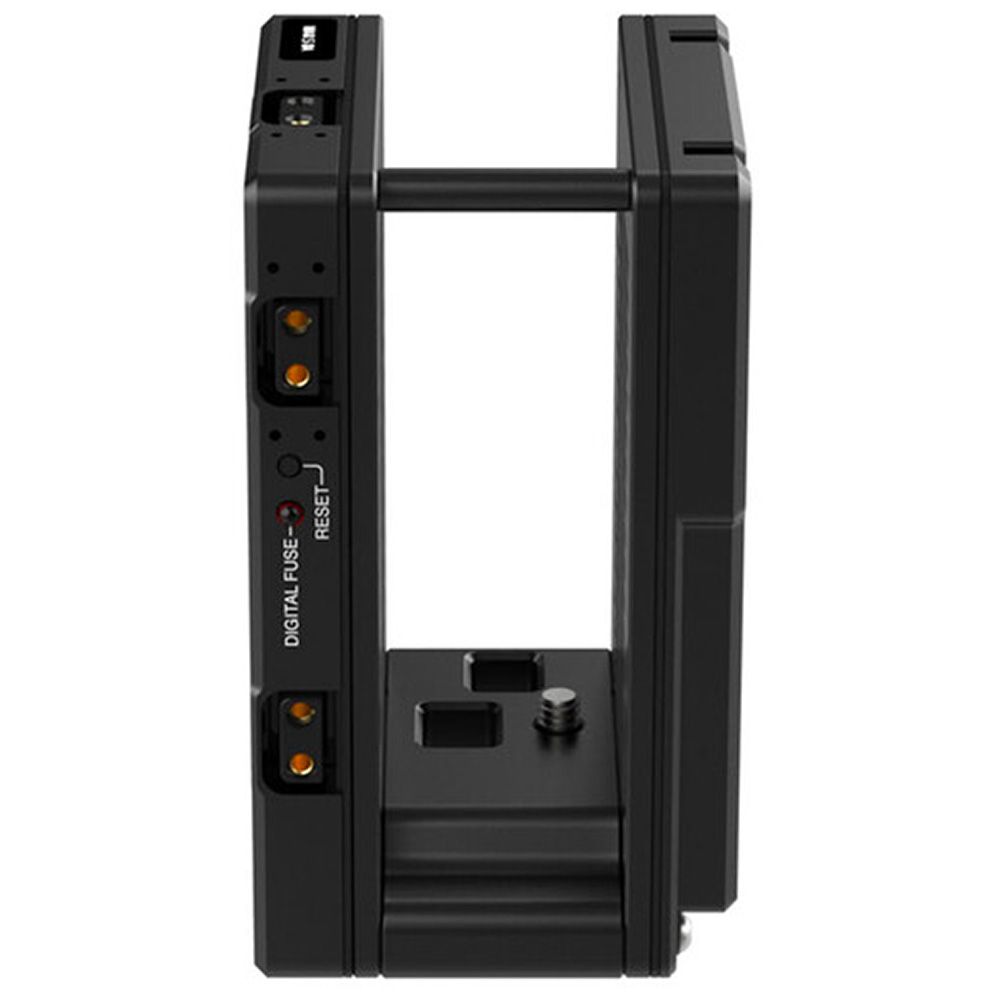

Rear (battery-side) battery plate features 3x D-Taps for accessory power at battery voltage (12-16V) and a digital fuse with reset button. Should the user exceed the set current for accessories, only the accessory outputs are disabled leaving the camera running normally. Once the current load has been reduced by either removing accessories or reconfiguring, the reset button can be pressed to enable accessory power again.

The Teradek Bolt LT TX mounts into the cradle via one captive 1/4-20 at the bottom of the unit. The bottom of the unit features two openings - one for USB access and the other for airflow ventilation.

Specifications:
Weight: 447 g (.99 lbs)
Dimensions: 77 x 88 x 119 mm (3.04 x 3.47 x 4.69 in)
