Miller 3702 CX2 Toggle LW 1 Stage Alloy Tripod Kit
Product Features:
Essential Add-On's we recommend
Description

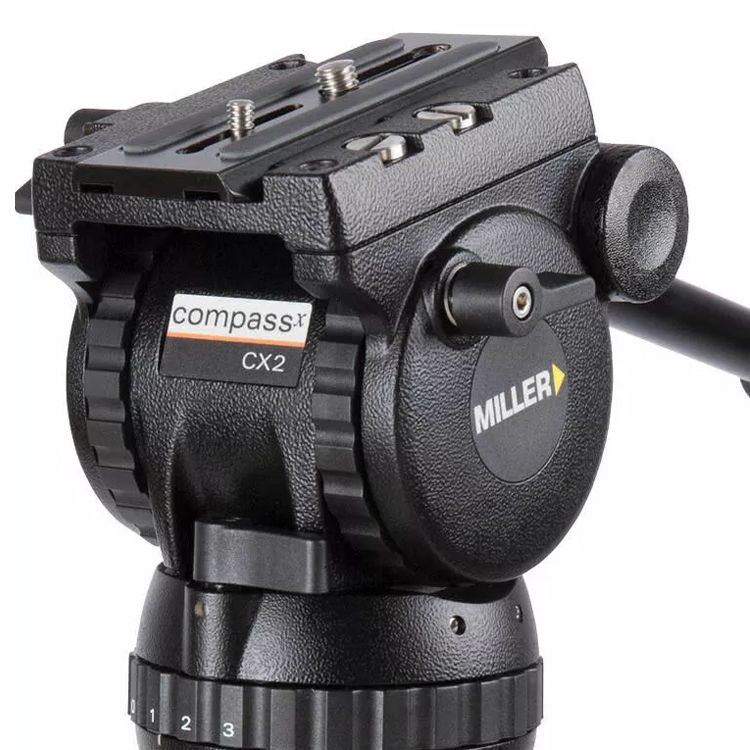

The 3702 CX2 Toggle LW 1-stage (alloy) tripod system is designed for "on the go" creative professionals needing a versatile and affordable solution with uncompromised performance. Whether you shoot with a mirrorless camera, DSLR, mid-sized cine-rig or an ENG camera, CX2 is capable of balancing payloads from 0kg to 8kg. It features advanced precision fluid drag, intuitive controls, and fast set-up.

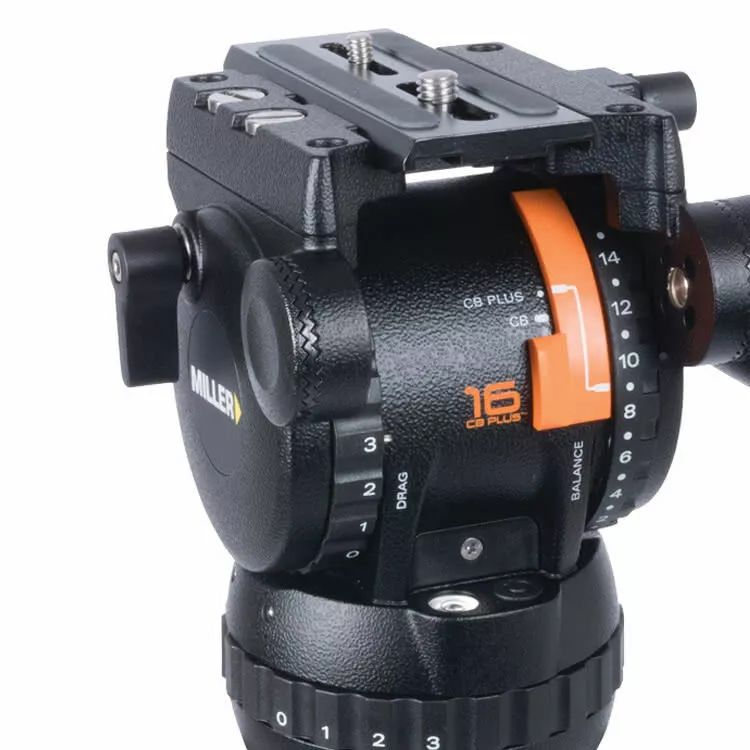

The CX2 employs CB Plus technology providing 16 positions of counterbalance and, with 3+0 settings of Miller's unrivalled fluid drag coupled with 60mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.

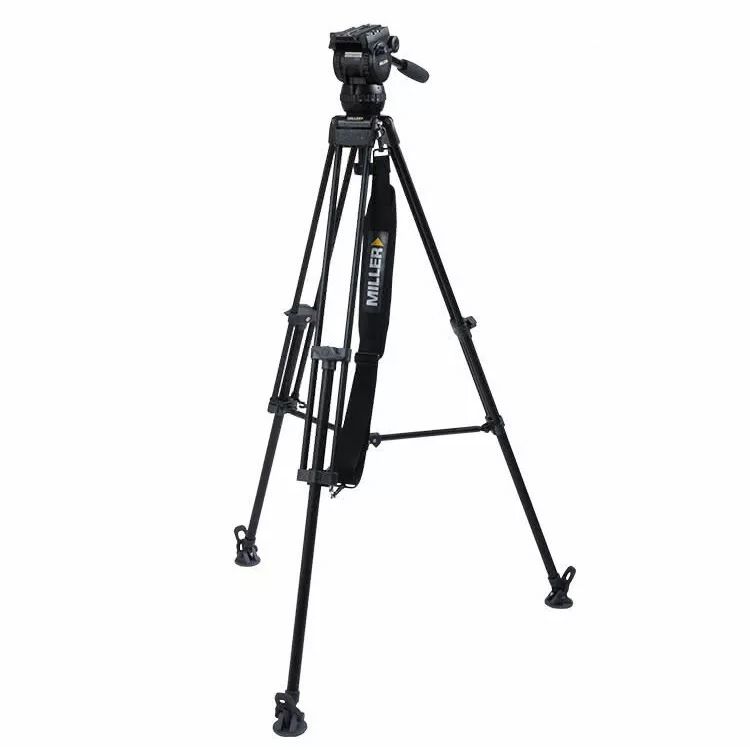

The CX is matched with the LW Toggle tripod (alloy) with above ground spreader, where the positive Toggle locks mean quick set-ups while the rubber feet mean the system can be used over any terrain.
Specification - CX2 Toggle LW 1 Stage Alloy
| Payload Range | 0-8.0kg (0-17.6lbs) | ||||||||||||||
| Weight | 5.9kg (13.0lbs) | ||||||||||||||
| Height Range | 790-1500mm (31.1-59") | ||||||||||||||
| Transport Length | 1000mm (39.4") | ||||||||||||||
| Counterbalance Positions | 16 selectable positions (15+0) | ||||||||||||||
| Pan Tilt Drag | 3 selectable fluid drag positions + 0 | ||||||||||||||
| Pan Tilt Locks | Positive lock calliper brake system | ||||||||||||||
| Tilt Range | + 90°/ -75° | ||||||||||||||
| Pan Range | 360° | ||||||||||||||
| Camera Platform | Quick release, side load camera plate | ||||||||||||||
| Sliding Range | 60mm (2.4") | ||||||||||||||
| Mounting Base | Ø75mm (2.9") ball levelling | ||||||||||||||
| Height Above Bowl | 167mm (6.6") | ||||||||||||||
| Illuminated Controls | Bubble level | ||||||||||||||
| Pan Handle | Fixed length 390mm (15.4") | ||||||||||||||
| Temperature Range | -40° to +65°C (-40° to +149°F) | ||||||||||||||
| Leg Extension | 1-stage | ||||||||||||||
| Lock Type | Toggle | ||||||||||||||
| Leg Material | Alloy | ||||||||||||||
| Components |
|
