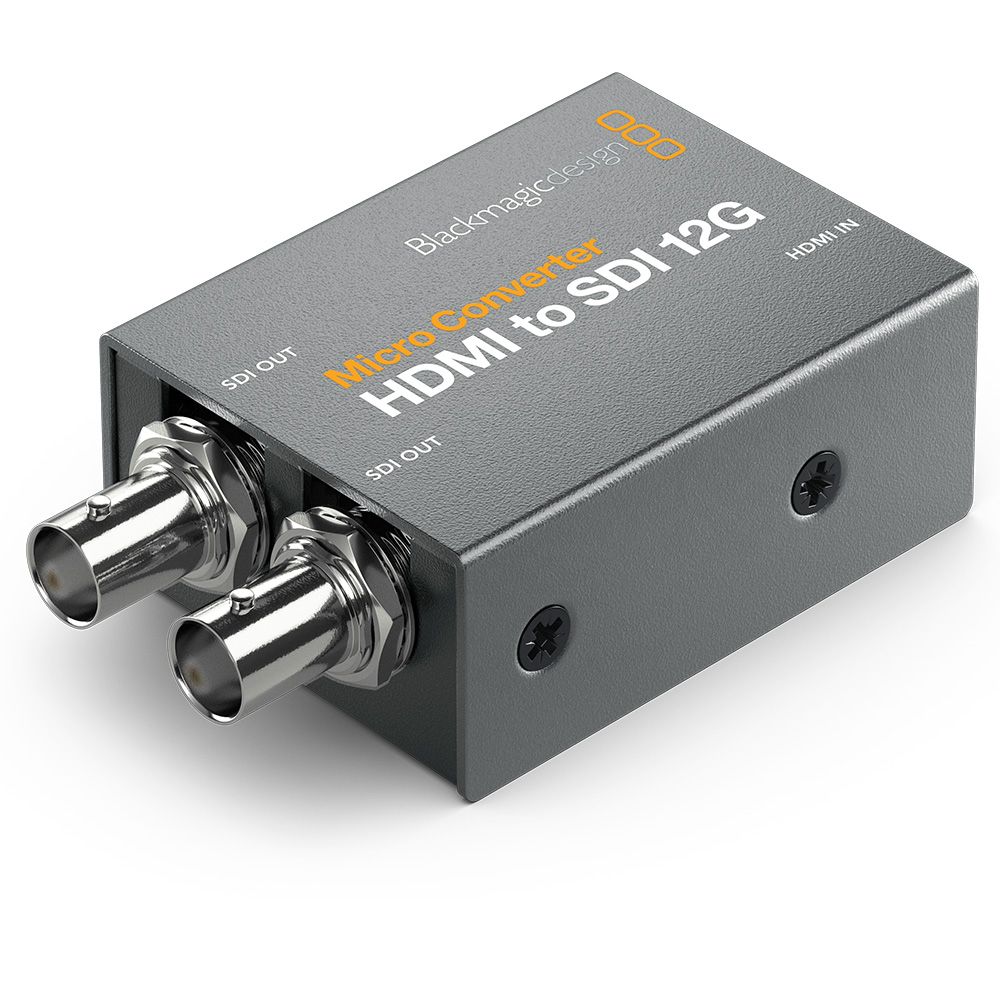

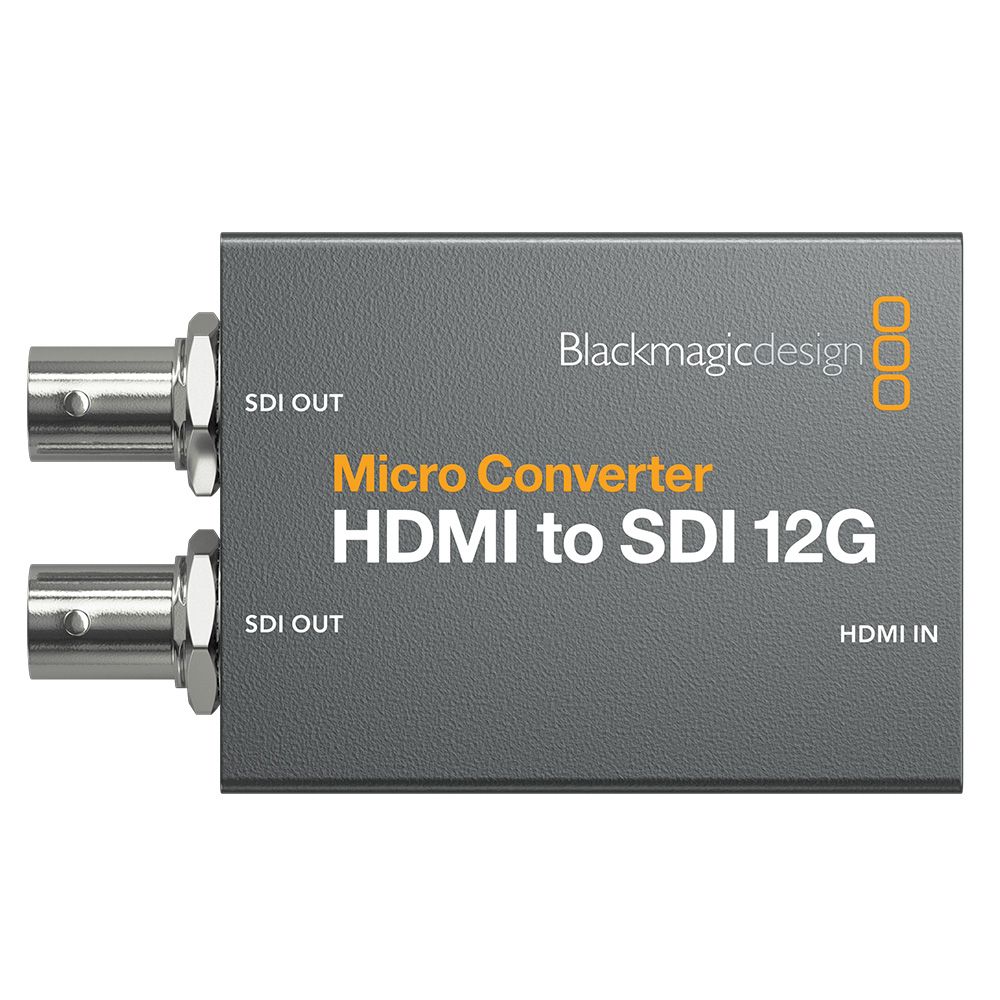

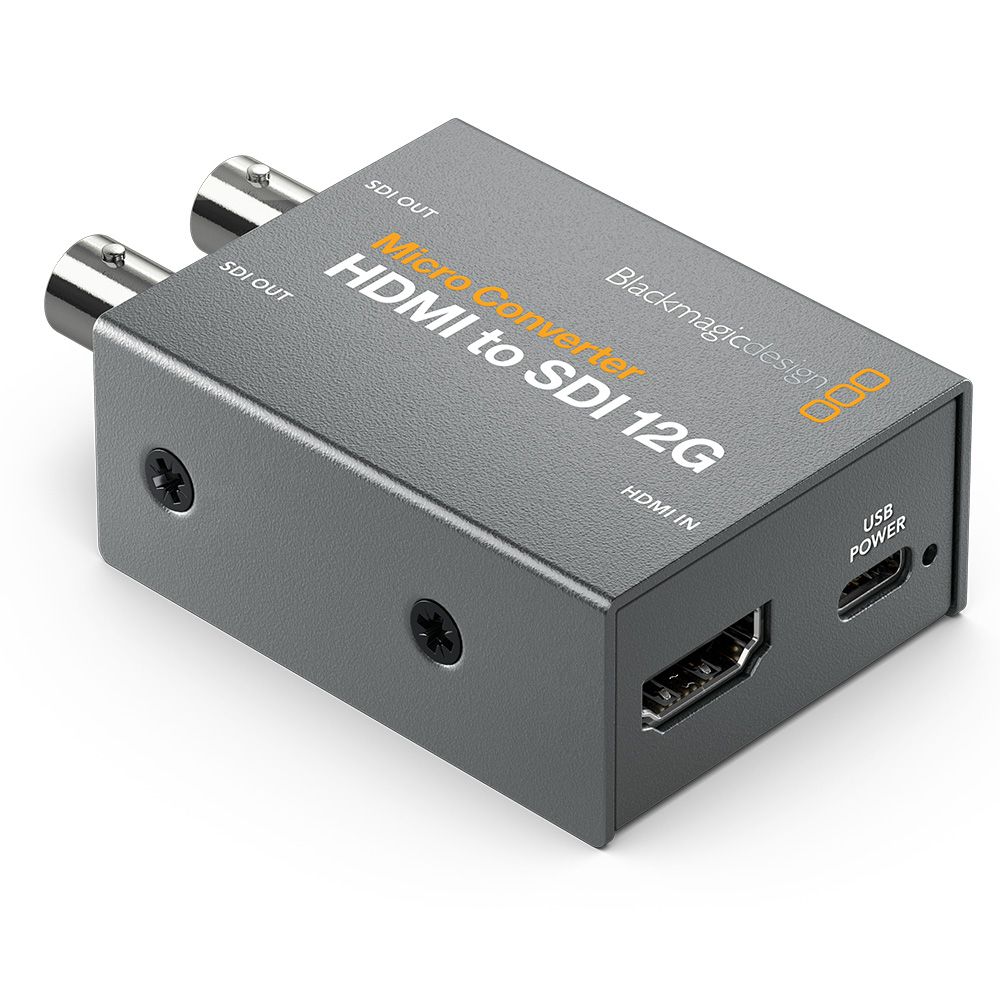

Blackmagic Design Micro Converter HDMI To SDI 12G With PSU

99.BM.CONVCMICHS12GWPSU
  • Watch Video
  • Product Features:

    Converts HDMI to a SDI signal
    Full Size Connections
    Includes Power supply unit
    Miniaturized Design
    Automatic Input Signal Detection
    SDI & HDMI Timecode
    $225.01
    $204.55
    Available Soon
    Check Location Availability

    Blackmagic Design Micro Converter HDMI To SDI 12G With PSU

    Essential Add-On's we recommend

    Description

    The pocket-sized Micro Converter HDMI to SDI 12G features HDMI timecode support, SDI re-clocking for stability over long cable runs, HDMI copy protection, and support for a wide range of pro broadcast resolutions, including cine-style 48 fps. The converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. The USB Type-C port enables the HDMI to SDI 12G converter to easily connect to and be powered by adapters, monitors, laptops, or desktop computers, and it also facilitates firmware updates from a Windows or macOS computer. A 5V power supply and an international plug adapter set is included with the converter.

    Features

    Dual SDI Outputs

    • One HDMI input
    • Two 12G-SDI outputs
    • Selectable A and B level formats

    Compact, Rugged Design

    • Robust metal housing and rugged connectors
    • USB Type-C port for powering via a compatible component like a monitor or laptop
    • Updatable via the USB Type-C port and your Mac or Windows computer

    SDI & HDMI Timecode

    • HD and SD timecode support
    • Converts HDMI timecode to SDI

    SDI Re-Clocking

    • Built-in re-clocking on 12G-SDI output enables stable output over longer cable runs
    • Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

    Wider Resolution Support

    • SDI support from NTSC and PAL up to DCI/UHD 4K60
    • HDMI support from NTSC and PAL up to DCI/UHD 4K60

    Embedded Audio

    • Supports embedded HDMI input and embedded SDI output

    LED Indicators

    • LED indicators for video and power signals

    Versatile Power Options

    • Power from a monitor, laptop, or other component using the USB Type-C port
    • A 5V power supply and an international plug adapter set is included

    Operating System Support

    • macOS 10.15 Catalina
    • macOS 11.1 Big Sur or later
    • Windows 10, 64-bit
