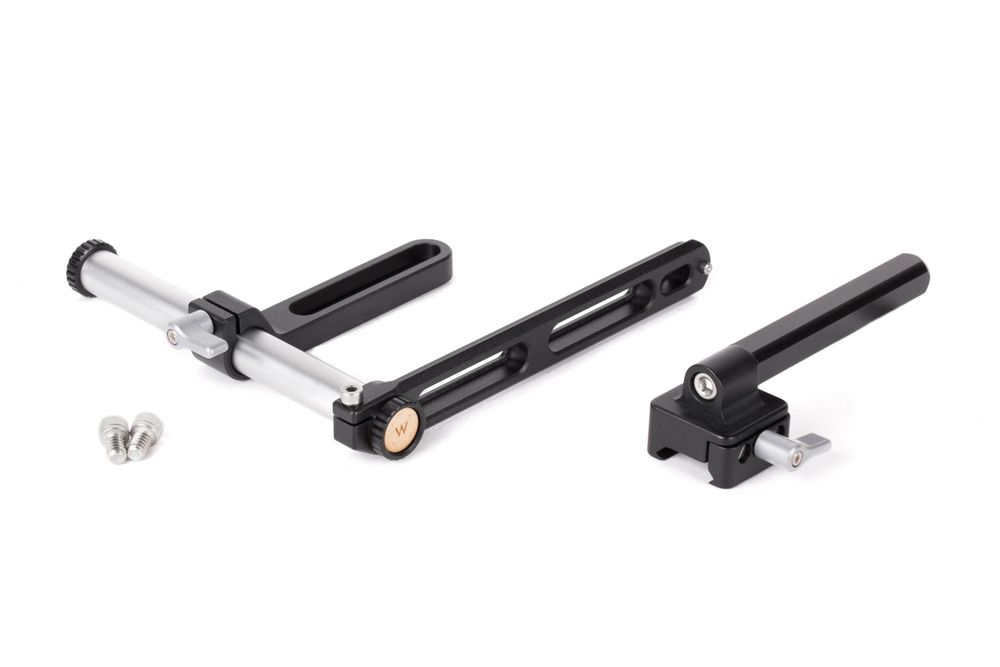

Wooden Camera - UVF Mount (Sony FS5, Panasonic EVA1)

DM.54.245800

Product Features:

Showroom Demo Stock
Approx 5" in length
Three points of adjustment
NATO thumbscrew for positioning on NATO Rail
For Sony FS5 & Panasonic EVA1
$689.00
$345.00
Stock Level:
In Stock
Check Location Availability

Wooden Camera - UVF Mount (Sony FS5, Panasonic EVA1)

Essential Add-On's we recommend

Description

UVF Mount (Sony FS5, Panasonic EVA1) replaces the original viewfinder mount system included with the Sony PXW-FS5 and Panasonic EVA1 to provide a permanent level horizon to the camera.

Three points of adjustment: 15mm Tube Clamp for tilt and distance to the camera, NATO thumbscrew for positioning on NATO rail, and tension knuckle built into Sony EVF to adjust tilt. Tool-less design allows quick installation andx removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach to any NATO-style rail.

NATO Arm length approximately 5" however longer distance can be reached via the integrated 15mm rod that attaches the EVF.

15mm Tube Clamp bolts directly to two 1/4-20 screw holes spaced between 25mm and 36mm centre to centre. This can be used in conjunction with the Top Plate (Sony FS5) or directly to the top of the Panasonic EVA1 camera.

Includes:
(2) 1/4-20 x 3/8" screws

Specifications:

  • Weight: 282g
  • Dimensions: 158.8 x 145.5 x 45.4 mm
