Teradek RT CTRL.1 1-Axis Wireless Lens Controller
Product Features:
Teradek RT CTRL.1 1-Axis Wireless Lens Controller
Description
The CTRL.1 is a single-axis handheld controller for precision wireless lens control. Part of the Teradek RT ecosystem, CTRL.1 allows for either focus, iris or zoom control, is compatible with all Teradek RT motors & receiver and will work simultaneously with other RT Units controlling the other axes on the same lens.
CTRL.1 introduces low-latency information overlays showing lens data on SmallHD monitors. Lens mapping and overlaying is an upgrade that can be added on at any time for an additional price. Available in metric and imperial units.
Ergonomic Lightweight Design
The controller features a large focus knob, flexible mounting options and an OLED display for critical lens data. Its lightweight ergonomic design makes it extremely easy to take anywhere, and a removable Canon LP-E6 battery offers up to 36 hours of continuous use.
Lens Mapping
CTRL.1 introduces built-in lens mapping, which allows for auto-calibrating lenses to pre-marked focus rings and accessing configurations at any time with the touch of a button. Pre-marked rings cover multiple lenses, saving time on set from manually calibrating after every lens swap.
SmallHD Overlay (Coming Soon)
Connected to compatible SmallHD monitors, CTRL.1 allows focus pullers to view a variety of lens data directly on the monitor screen.
*The overlay feature will be available soon after release.

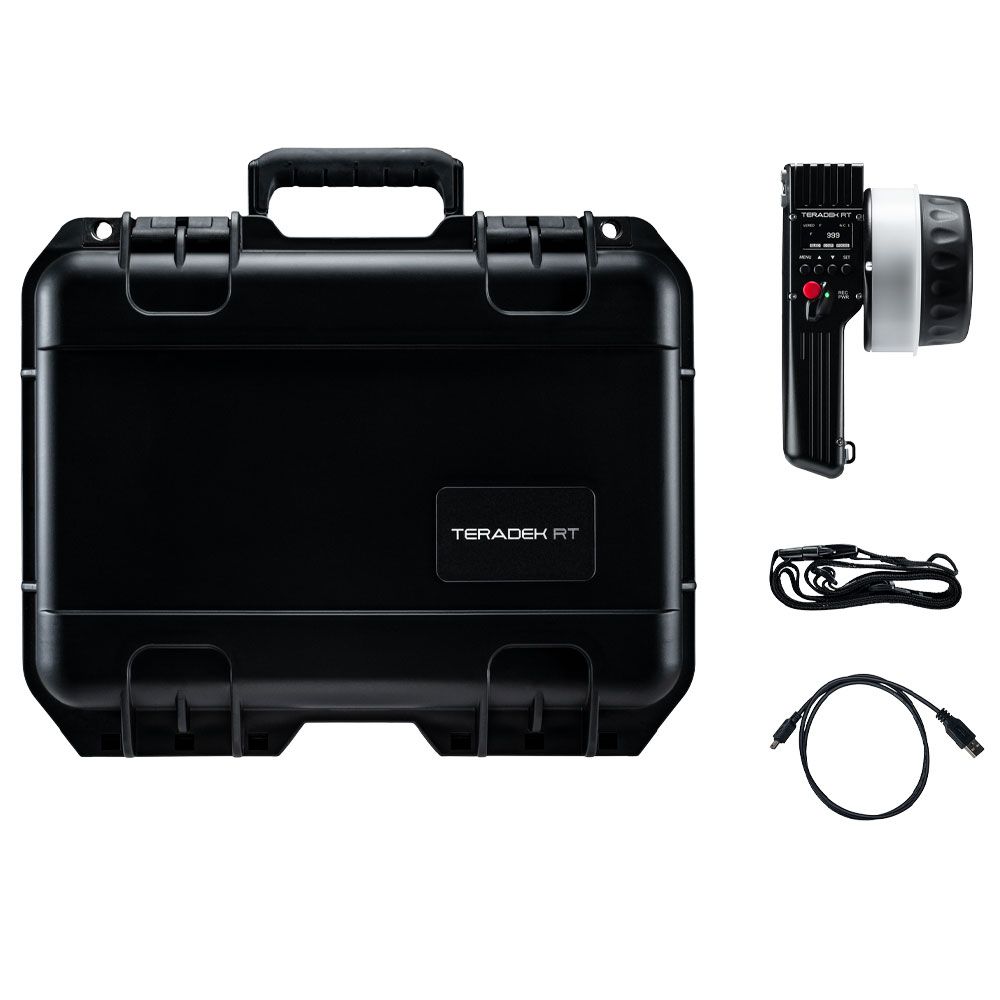

What's in the box:
- 1 x Controller Neckstrap [11-1443]
- 1 x CTRL.1 - Single Axis Wireless Lens Controller
- 1 x Mini-USB (5pin) to USB - 18 in Cable (Firmware) [11-1267]
- 1 x Teradek Case Large - Black with RT Motion Single Channel Controller Set Foam
Specifications:
Power
- Power Input:
- Canon LP-E6 Battery: 6.2 to 8.4 V
- USB Port: 4.75 to 9 V (maximum)
Interfaces
- Connectors: 1 x 5-pin locking connector for Wired Mode
- Runstop Control
- RED (Epic, Scarlet, Weapon, Raven, etc.)
- ARRI (Alexa, Amira, etc.)
- Phantom
- Sony F55
- LANC (Blackmagic, Canon C100/300/500 Sony FS7)
Network
- Wireless
- Teradek RT FHSS 2.4GHz
- WiFi 2.4GHz
- Wireless Range:
- Up to 1500 m line-of-sight (in USA/FCC mode)
- Up to 150 m indoors
Environmental
- Operating Temperature: -4 to 122ºF (-10 to 50ºC)
- Storage Temperature Range: -40 to 185°F (-40 to 85ºC)
Physical
- Dimensions: 91mm x 81mm x 150mm (3.6”W x 3.1”D x 5.9”H)
- Weight: 482g
- Construction: Aerospace-grade aluminum billet
- Mount-ability
- M6 Rosette block mount,
- 4 x M3 mounting holes
