Description

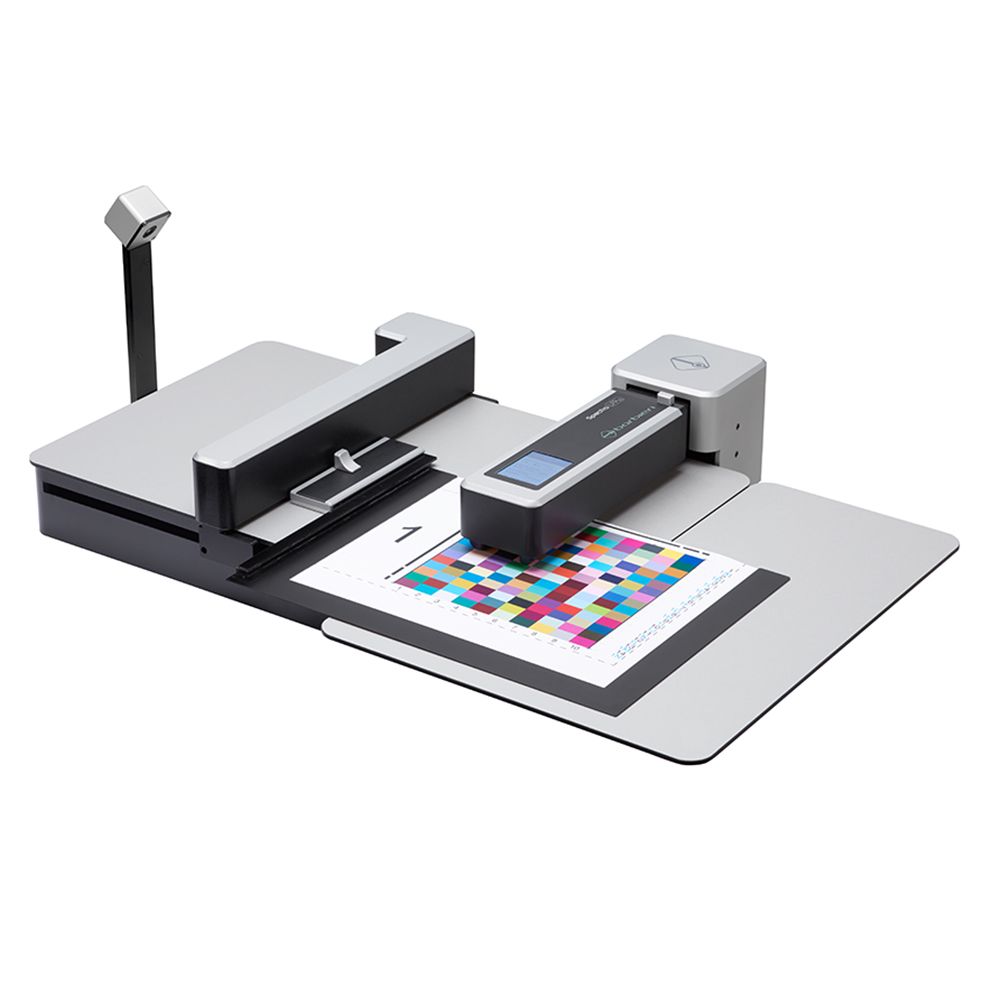

Spectro LFP qb

The new spectrophotometer platform: build for flexibility!

The Spectro LFP qb combines incredible universality and precision with a range of new features and supports the M1 measurement mode, which is now a must for many customers. It is a platform that satisfies the most stringent customer requirements and an investment in the future that optimizes the workflow in the spirit of sustainability.

Application fields

• Linearization and profiling of professional digital output devices on a wide variety of materials (reflective and transparent)
• Suited for Fogra 51 and G7: Conformance to new ISO 13655-2017 "M1 part 1/ method a", M0, M2, M3 measurement condition reflection and transmission!
• Detachable spectral unit for spot color measurements
• Measurement of fluorescent inks
• Working as a team on one device

Who needs this device?

Printing labs who need

• M1 measuring condition (f.i. Fogra 51, G7)
• to measure manually spot colors and automatically whole charts
• to measure any kind of substrates
• to measure many charts
• to measure fluorescent inks
• different user to work on one device
• Color management consultants

Main features

• Real D50 illumination to guarantee conformance to new ISO 13655-2017 "M1 part 1/ method a", M0, M2, M3 measurement condition reflection and transmission!
• Removable measuring head (spectral unit) for measuring spot colors
• Camera-supported sensing unit for instant automatic positioning
• Switchable apertures (2, 6, 8 mm) for measuring different materials, surfaces, inks and resolutions
• For transparent and reflective media
• Also for heavy and thick materials (max. media thickness 20 mm)
• Measurement of fluorescent inks
• Supported by most RIP-software
• Some examples of materials which can entirely be automatically measured: textiles, glass, backlit film, paper, vinyl, silk, fabrics, fine art paper, plexiglas, adhesives, banner, canvas, polyester, PVC, wrap film, cardboard, plastic plates, gypsum plates, wood, stone, ceramic plates.
• Ethernet and USB connection
• Includes free measurement software Barbieri Gateway for Mac and PC
• Calibration and Certification Service recommended every 18 months

VIEW BROCHURE
