Description

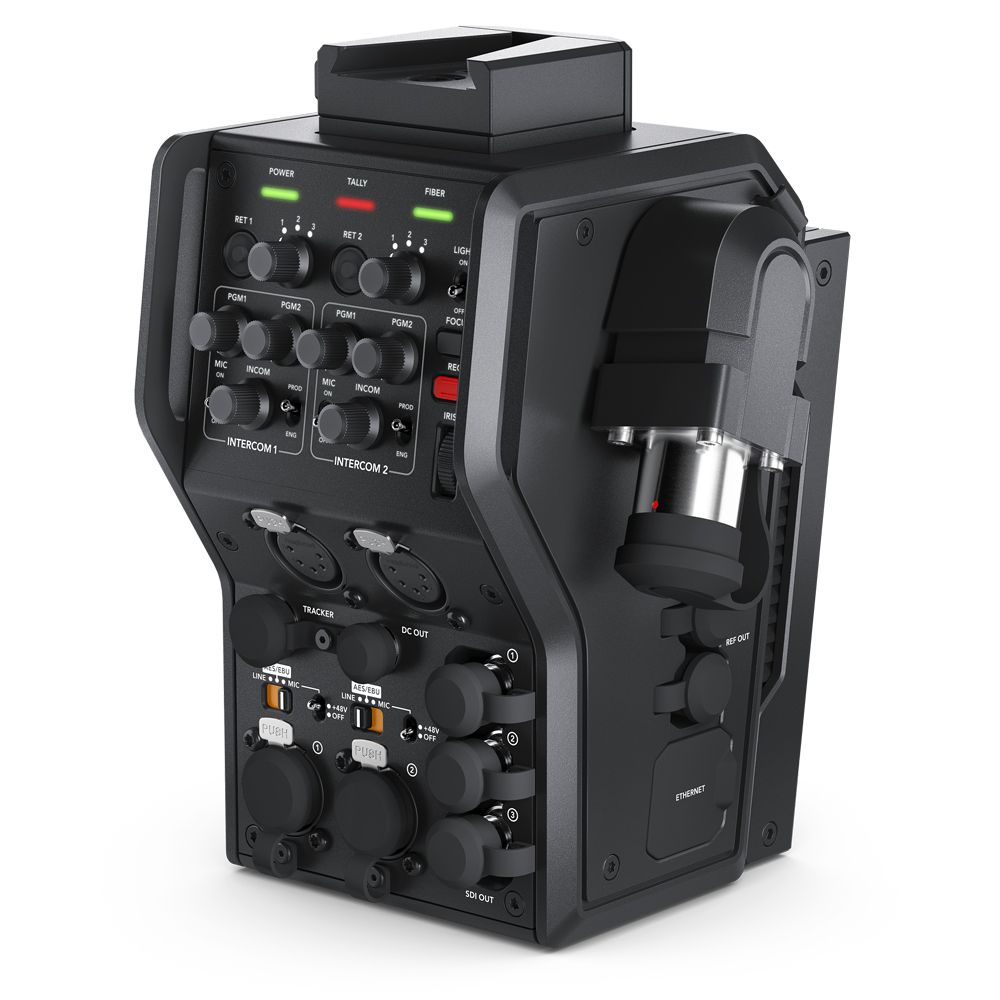

The Blackmagic Camera Fibre Converter attaches to the back of your URSA Mini or URSA Broadcast camera. In addition to converting all of the audio, video, camera control and talkback into fibre, it also adds professional studio camera controls to the back of your camera.

You get control for return feeds, dual intercom controls with the ability to mix in program audio, record, focus and iris controls, headset connectors, audio and more. The camera converter also includes a V-Lock mount plate on the top for attaching accessories such as a professional Blackmagic Studio Viewfinder. The Blackmagic Camera Fibre Converter has connections for your Ultra HD camera feed, 3 HD return feeds, full remote camera control, PTZ, multiple channels of talkback, tally and more!

Add Studio Camera Controls

Studio cameras are typically operated from the rear of the camera, but broadcast cameras usually have controls on the side of the camera. To solve this problem, the Blackmagic Camera Fibre Converter adds support for SMPTE fibre to your camera along with a wide range of controls and features to the rear of the camera, transforming it into a professional studio camera.

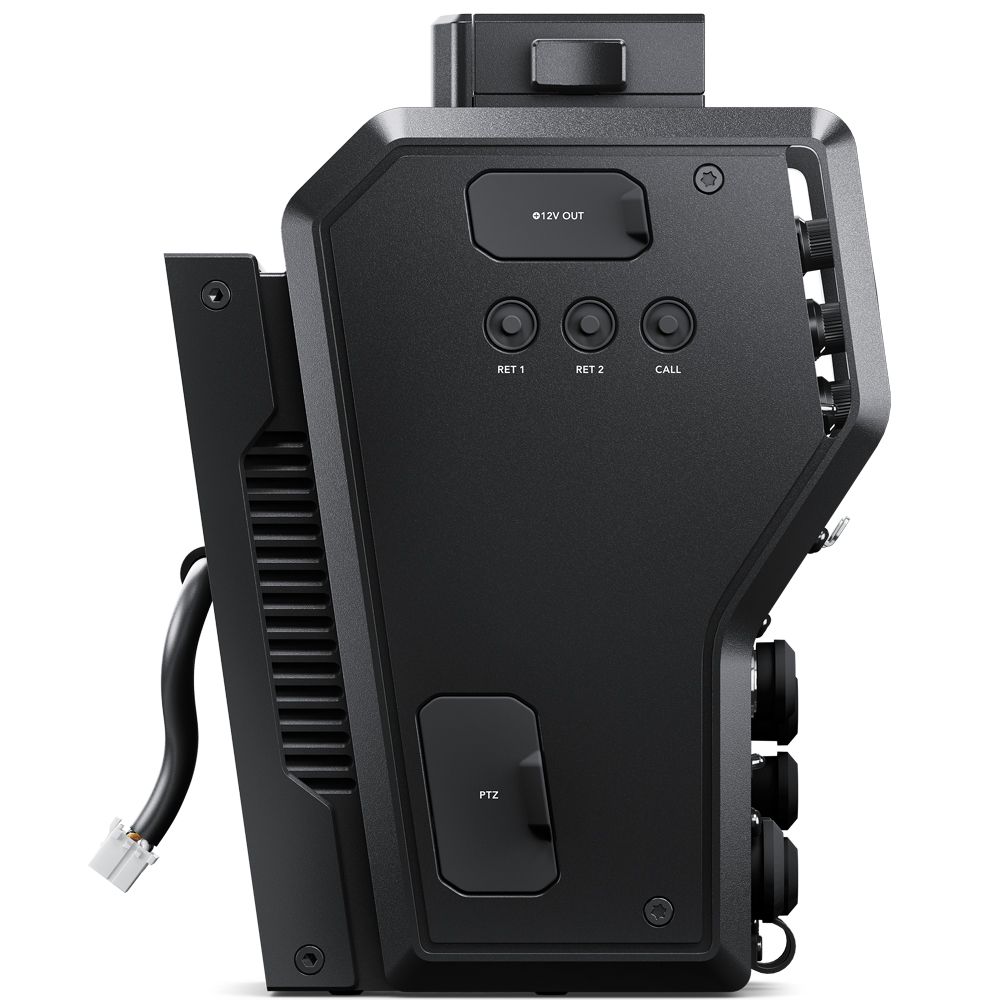

You get 2 separate broadcast standard 5 pin talkback connections, 3 return video feeds, 2 extra audio inputs, connections for PTZ and trackers, plus additional DC and D-tap outputs for powering accessories. With all these extra controls added to the rear of the camera, you can operate the camera in the same way as traditional studio cameras!

Place Cameras Anywhere

If you’re working in a studio or out at a large sporting venue, you often need to place cameras far apart. While SDI connections are common, the limited range of SDI makes it hard to use it over long distances. Traditionally, you would need to run multiple cables and expensive extenders for power, talkback, tally, video and audio. This makes set up incredibly complex and increases the chances of a technical problem. Now you can solve this problem by converting all essential connections and power into a single convenient SMPTE fibre cable that can run incredibly long distances.

That means cameras can be placed anywhere and connected back to broadcast trucks parked outside of a venue or back to a central control room in a studio. Best of all, SMPTE fibre is a global broadcast industry standard so you can use cables and connection points that are commonly available. Blackmagic fibre converters are also affordable, so traditional broadcasters, new web broadcasters, AV producers, houses of worship and educators can all use the same high end broadcast technology!

SMPTE Fibre for Industrial Strength and Safety

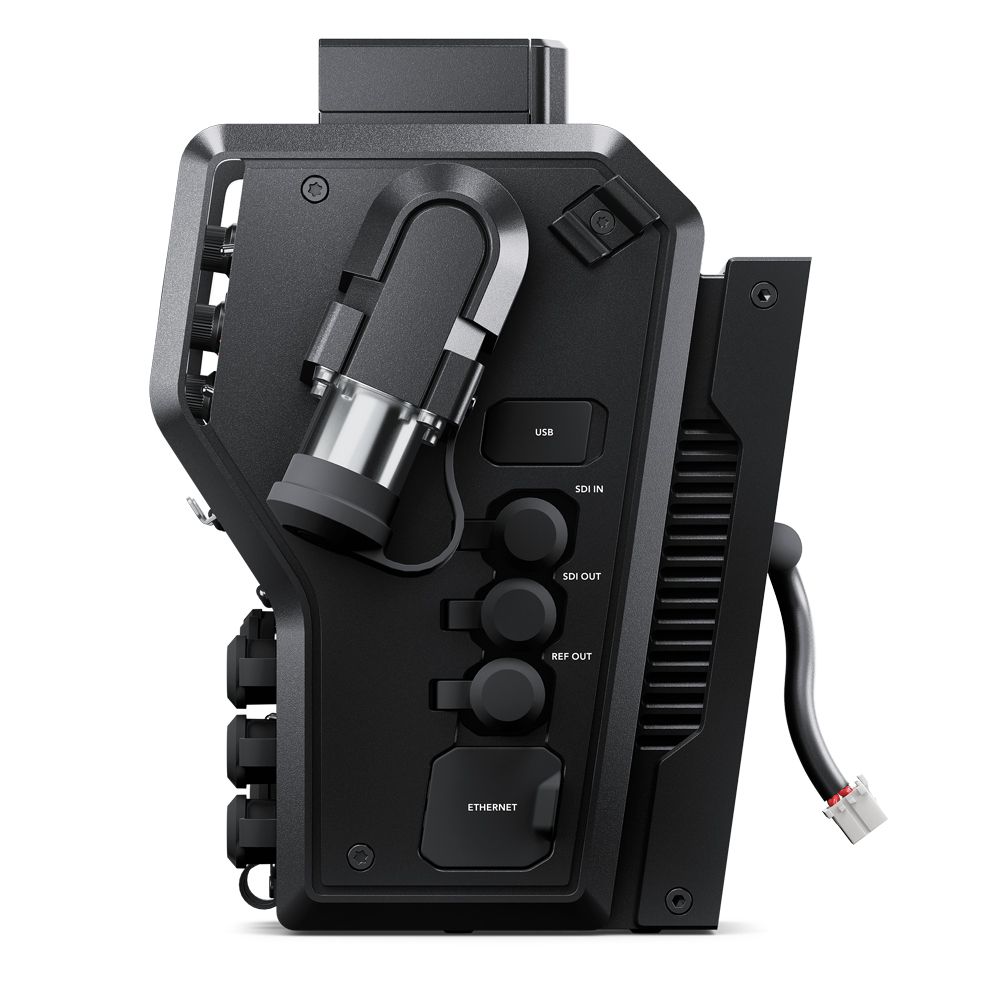

Blackmagic fibre converters work with standard SMPTE 311M hybrid electrical and fibre optic cables with standard SMPTE 304 connectors on each end. These cables feature a 2 way fibre pair, data pair and power pair, along with a central strength member that gives it the needed durability for continuous use. Once plugged in, the Blackmagic Studio fibre Converter automatically performs safety checks and then powers up, sending an industry standard 200 volts of power over the SMPTE cable for the camera and accessories. This means you can install cameras in remote locations without having to worry about power drops over long distances. Both the studio and camera converters at each end have dedicated micro controllers that continuously monitor power status. The converters communicate with each other to ensure that both a stable optical signal is present and that the power supply is operating within safe parameters. If a damaged cable or an earth leak is detected, the power is instantly shut down to eliminate any danger to personnel.

10G Ethernet for IP Video

The Blackmagic Camera Fibre Converter and the Blackmagic Studio Fibre Converter use IP video because the SMPTE fibre connection is an open standard 10G Ethernet link. That means all of your video and return feeds are IP video based using high end, lossless broadcast quality 10-bit video encoding and decoding. All other connections such as talkback, tally, camera control and lens control are also converted to low latency IP so you get incredibly reliable performance and high quality. Using IP video means the Blackmagic fibre converters are future proof and ready for customisation using high speed Ethernet infrastructure in future!
