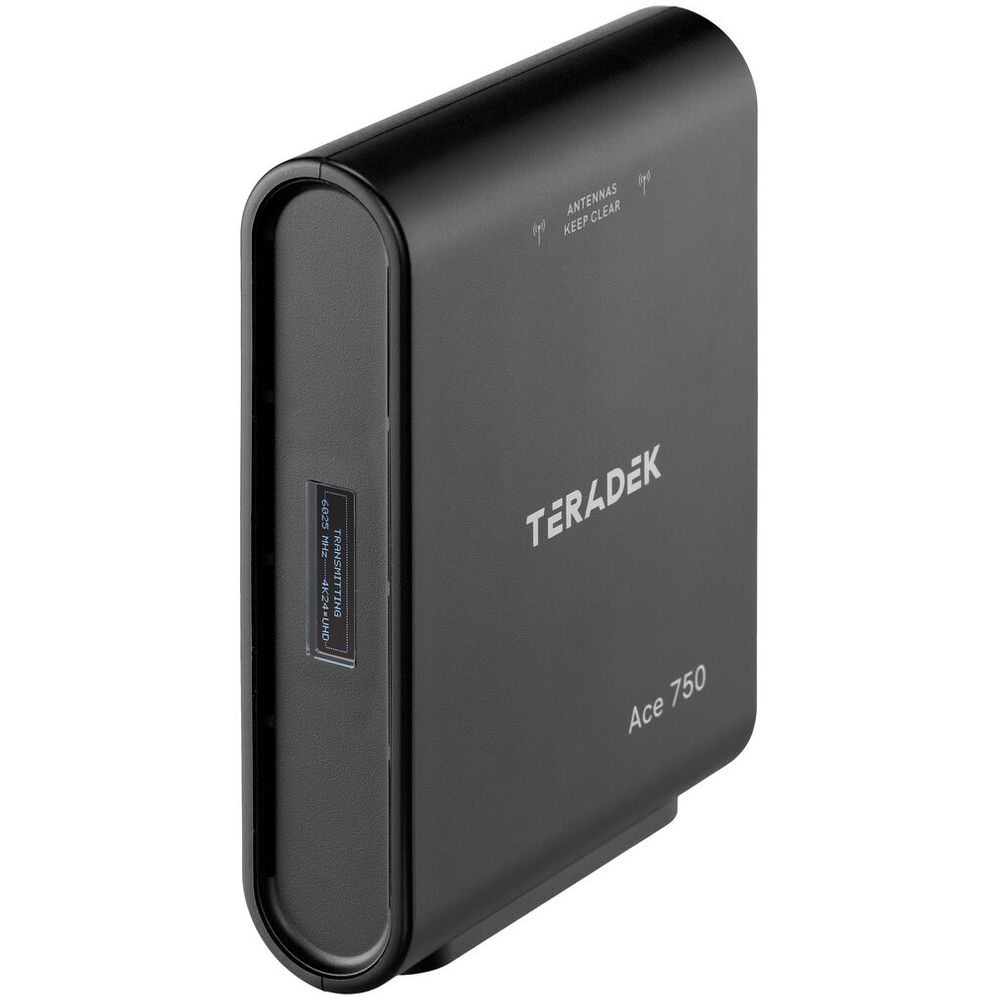

Teradek ACE 750 4K HDMI Video Transmitter Only

53.10-2241

Product Features:

Inputs/Transmits up to 4K30 HDR Video
Compatible with Bolt 4K and Bolt 6 Units
Transmission up to 228m Line of Sight
HDMI Input/Output, Built-In Antennas
Transmit to up to 6 Receivers/Devices
5 and 6 GHz Frequency Support
Also Transmits Embedded Audio
Less than 1 ms Latency

Configuration Options:

$1,150.00
$1,035.00
Stock Level:
Out of Stock
Check Location Availability

Teradek ACE 750 4K HDMI Video Transmitter Only

Description

With the Teradek Ace 750 HDMI Wireless Video Transmitter, you can transmit visually lossless, uncompressed 10-bit 4K30 HDR video signals from your camera to one or more Ace 750 receivers with no delay up to 228m line of sight. The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt receivers. Built-in antennas make the unit more compact and easy to install.

The Ace 750 features an HDMI input, and power is provided using a DC power source or L-series battery plate, both available separately. The transmitter can send the video signal simultaneously to up to six devices, including Ace or Bolt receivers and devices running the Bolt Manager app. The unit can be secured to a mount or stand via built-in threads.

Zero-Delay Wireless Video
Transmit uncompressed 4K30 video to receivers up to 228m away with less than a 1 ms delay.

Bolt Compatibility
Supporting 5 and 6 GHz frequency ranges, Ace 750 transmitters are compatible with all Bolt 4K, Bolt 6, LT, and XT receivers, as well as integrated wireless SmallHD Bolt monitors.

Reliability
Built with the same reliability and performance as the Bolt, the Ace 750 ensures you have a continuous video feed when you need it most.

Mounting Options
The Ace 750 transmitter includes multiple mounting threads for mounting onto a rig or stand.

Power Options
The Ace 750 is powered by using a separately available DC power source or by a separately available L-series battery plate attached directly to the transmitter.
