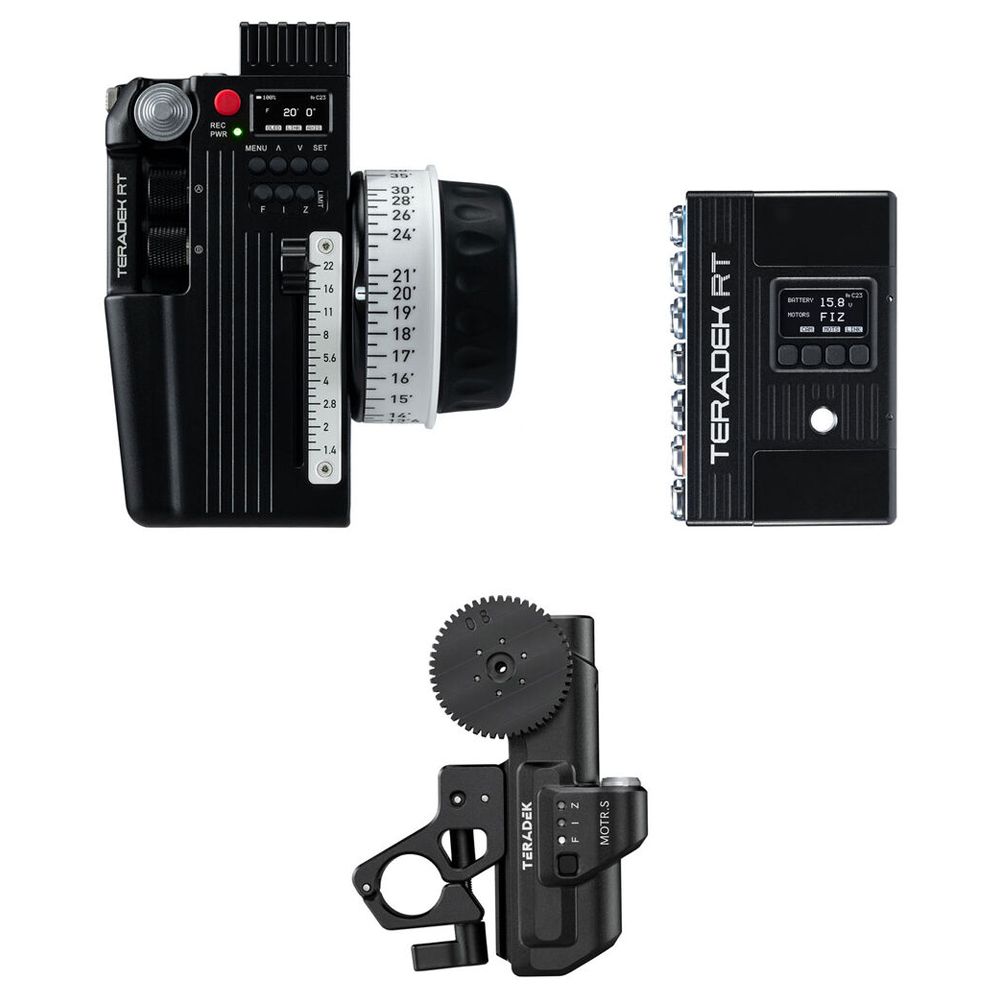

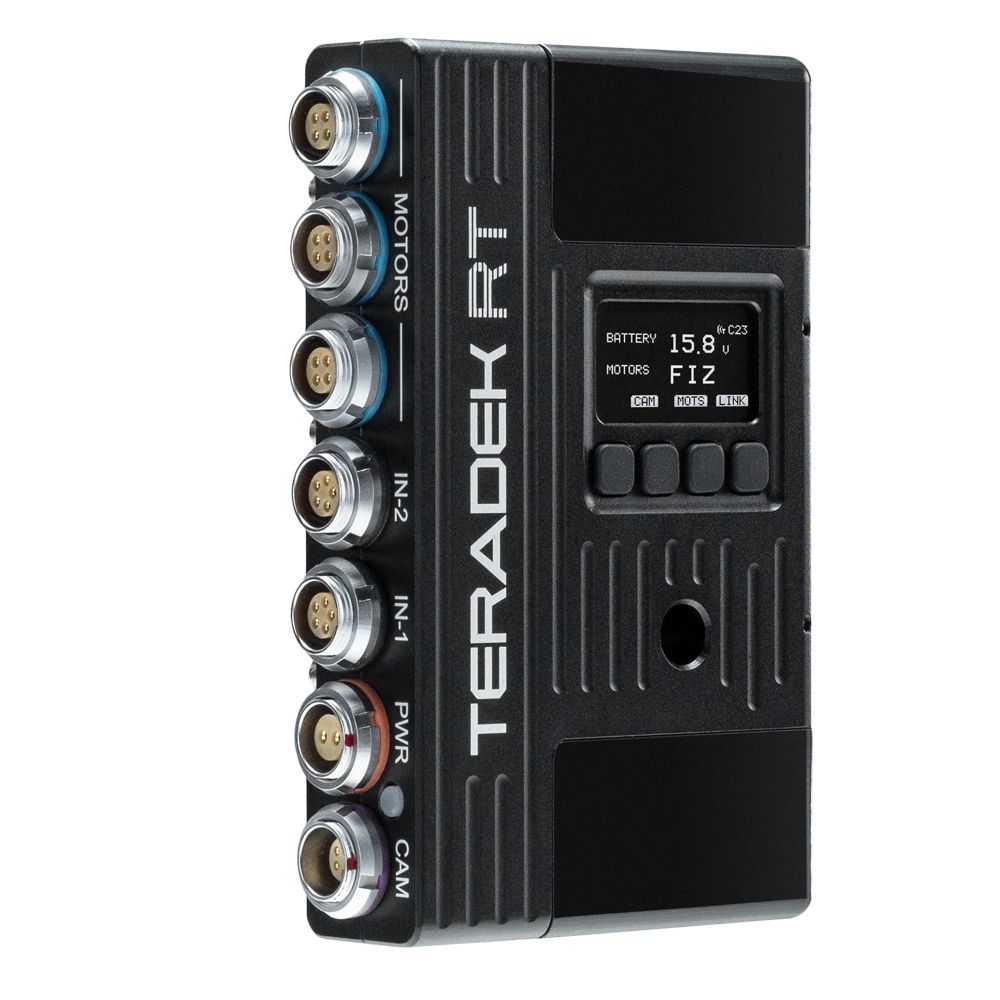

Connect this to your camera's lens support motors and drive your focus, iris, and zoom wirelessly with the MDR.X 3-Channel Lens Control Receiver with Bluetooth from Teradek. The unit is compatible with all RT motors and controllers, allowing run/stop control with a variety of cameras and camera control with RED DSMC2 cameras. The unit features two auxiliary control ports, letting you use available hardwired controllers.

An integrated OLED display allows you to easily set your device and see the settings, and you can also use the available Teradek RT app to manage, update, and configure the device. This ultracompact, lightweight unit weighs 4.8 oz and is powered via a 2-pin LEMO connector requiring 7 to 17 VDC.

For precise lens control with your Teradek RT motors and receivers, the Teradek CTRL.3 Three-Axis Wireless Lens Controller can control focus, iris, or zoom with ease. The CTRL.3 has an outdoor wireless range of 5000' and an indoor wireless range of 500'. You can also use the included 5-pin monitor interface cable to connect directly to a monitor.

The large focus knob, flexible mounting options, OLED display for configuration and lens data, and its lightweight design make the CTRL.3 accessible and easy to use. It's powered by a single LP-E6 battery (available separately) which provides approximately 36 hours of usage time. Features include a lens mapping firmware update to utilize the included pre-marked focus or iris rings for quick autocalibration when switching lenses during a shoot. The CTRL.3 comes with five white discs Type-B, a 3' USB cable, a SmallHD monitor interface cable, a large case, six pre-marked focus rings, and four Iris strip sliders.

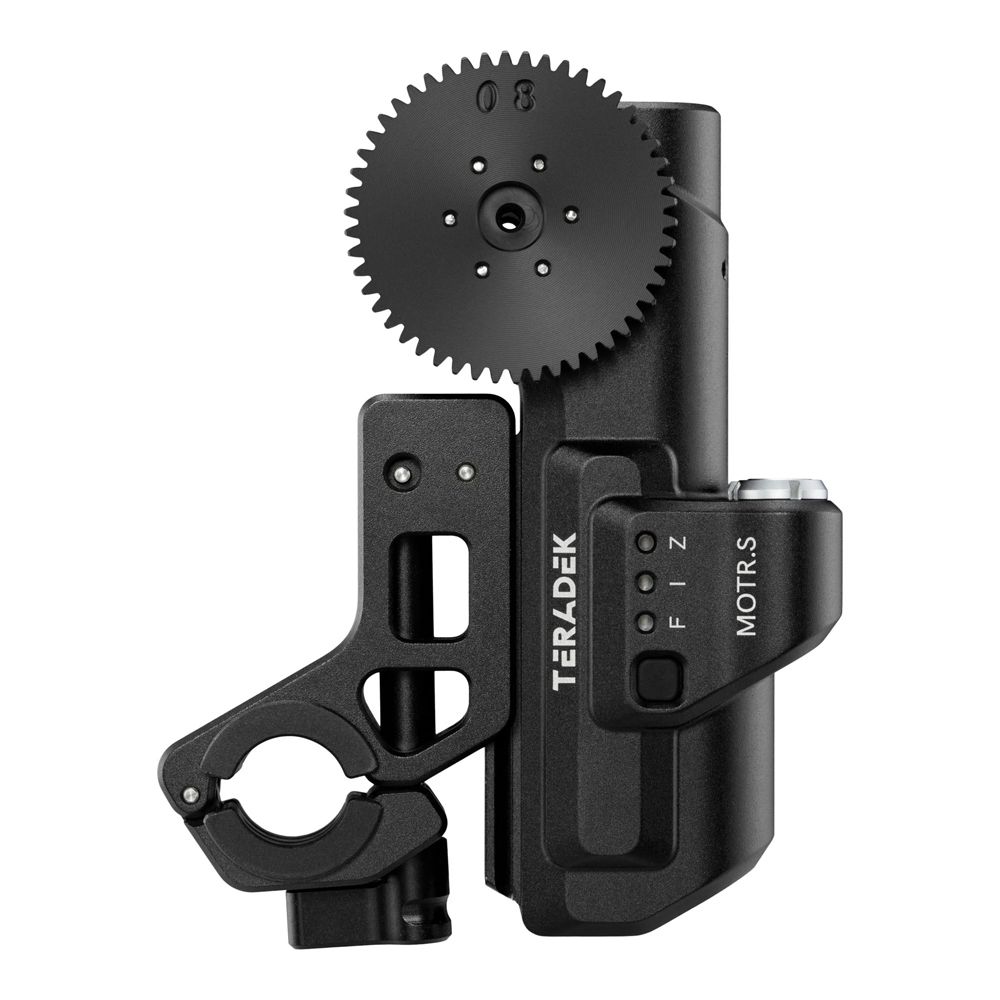

Designed to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.

An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.

The 18" Teradek Bit 718 2-Pin LEMO to LEMO Cable enables you to power LEMO-compatible Teradek products such as the Teradek Bond, Cube, or Bolt via an ARRI Alexa accessory power output.

This is an 18" 2-Pin LEMO to P-Tap Cable, from Teradek, for powering the 2-pin LEMO version Cube, Bolt, Bond, and Link from a P-Tap power source.

Teradek ARRI Run/Stop Cable for MDR.X Receiver (24")

The 24" Run/Stop Cable from Teradek is designed to connect an MDR.X receiver to an ARRI ALEXA or AMIRA camera.

The 16" Run/Stop Cable from Teradek is designed to connect an MDR.X receiver to a RED camera equipped with a CTRL socket. It enables run/stop control of EF lenses.

The 16" Run/Stop Cable from Teradek is designed to connect an MDR.X receiver to a LANC-equipped camera such as the Sony FS-700 or FS7, Canon C300, and Blackmagic Design cameras.

The 16" 5-Pin to Micro-USB 2.0 Type-B Monitor Cable from Teradek is designed to connect the CTRL.1 or CTRL.3 controller to a FOCUS Bolt and CINE 7 receivers, running PageBuilder OS3 to enable lens data overlays.

Teradek RT 5-Pin to USB Type-A Interface Cable for SmallHD 1300 & 1700 Series Monitors

The Teradek RT 5-Pin to USB Type-A Interface Cable allows you to connect the Teradek CTRL.1 or CTRL.3 lens controller to SmallHD 1300 and 1700 series monitors running the PageBuilder OS to enable lens data overlays.

Use the 24" long Teradek RT SmallHD Monitor Interface Cable to connect your Teradek RT to your SmallHD 703 monitor. The cable features a 5-pin right-angle connector that attaches to your Teradek RT unit and a straight 5-pin connector that attaches to your SmallHD 703 monitor.

Use this 6.6' RT Wired-Mode Controller Cable from Teradek to connect an RT controller to an RT receiver in settings like hospitals where wireless use is not practical, or not permitted. This cable is compatible with the MK3.1 Controller, MK3.1 Receiver, all Latitude MDR models, Smartknob, other RT controllers, and supported OMOD controls.

Design features include two LEMO connectors, both straight-angled. One of three lengths available, this RT Wired-Mode cable enables you to work up to 6.6' away from your camera rig.

This 8" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

This 16" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

This 24" Motor Cable from Teradek has a 4-pin straight-angle connector on each end. The flexible cable exits downward from the MOTR.X brushless lens motor for easy routing back to the receiver or daisy-chaining to another motor.

Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers

This Monitor Bracket from Teradek is designed to mount the SmallHD FOCUS, CINE 7, or 703 Bolt monitor directly on the CTRL.1 or CTRL.3 hand controller.

Teradek White Disc for CTRL.1/CTRL.3 Controller

This White Disc from Teradek is designed to be used with the CTRL.1 or CTRL.3 controller. Use a dry-erase marker to clearly mark the disc. Permanent marker pens can also be used and cleaned with isopropyl alcohol.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 10". The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 20". The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 3.5'. The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 6'. The pre-marked ring saves calibration time when swapping out lenses.

This Pre-Marked Focus Ring from Teradek features imperial measurements and is designed for use with the CTRL.1 lens controller unit for automatic calibration and RT lens mapping. It supports a minimum focus distance of 10'. The pre-marked ring saves calibration time when swapping out lenses.
