Teradek RT MDR.S Receiver
53.15-0049
Product Features:
3-Channel Lens Control
Camera Run/Stop Support
5000' Line-of-Sight Wireless Range
OLED Display with Control Buttons
28V Input Range
Configure via Teradek RT App
$1,595.00
Stock Level:
Out of Stock
Check Location Availability
Teradek RT MDR.S Receiver
Description
With 3-channel lens control in an ultracompact form factor, the MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth from Teradek allows you to control compatible RT motors for wireless focus, iris, and zoom functionality. The MDR.S has FHSS wireless technology that prevents interference and a 5000' line of sight range. A 6-pin port on the receiver allows you to trigger run/stop on the camera from your connected hand unit.
The MDR.S features a built-in OLED display with four buttons for control over various functions. Further parameters can be controlled via the device's integrated Bluetooth and the Teradek RT smartphone app. A 28V input range allows you flexibility in powering the receiver.
Features at a Glance
- Daisy-chain up to three motors
- 28V input range increases power compatibility
- Remotely configure lens maps and more settings via the Teradek RT app
- Replace and customize the external antenna
- Integrated overlays for SmallHD monitors to display lens information like focus distance, focal length, iris, zoom, etc.
- Onboard buttons toggle menu, display, link, and motors
- OLED displays battery and motor information
In the Box
- Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
- USB 2.0 Type-A to Type-C Male Cable (3.3')
- Teradek RT Power 3-Pin D-Tap Cable
- Straight 2.4 GHz Wi-Fi Antenna
- MDR.S Bracket
- Black Screw Socket Head (M2 x 6mm)
- Screw Socket Cap (1/4"-20 x 3/8"-16)
- Limited 1-Year Warranty
Teradek MDR.S Specs
General
| Compatibility | Teradek RT |
| Bluetooth Range | 5000' / 1524m |
Display
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
Inputs / Outputs

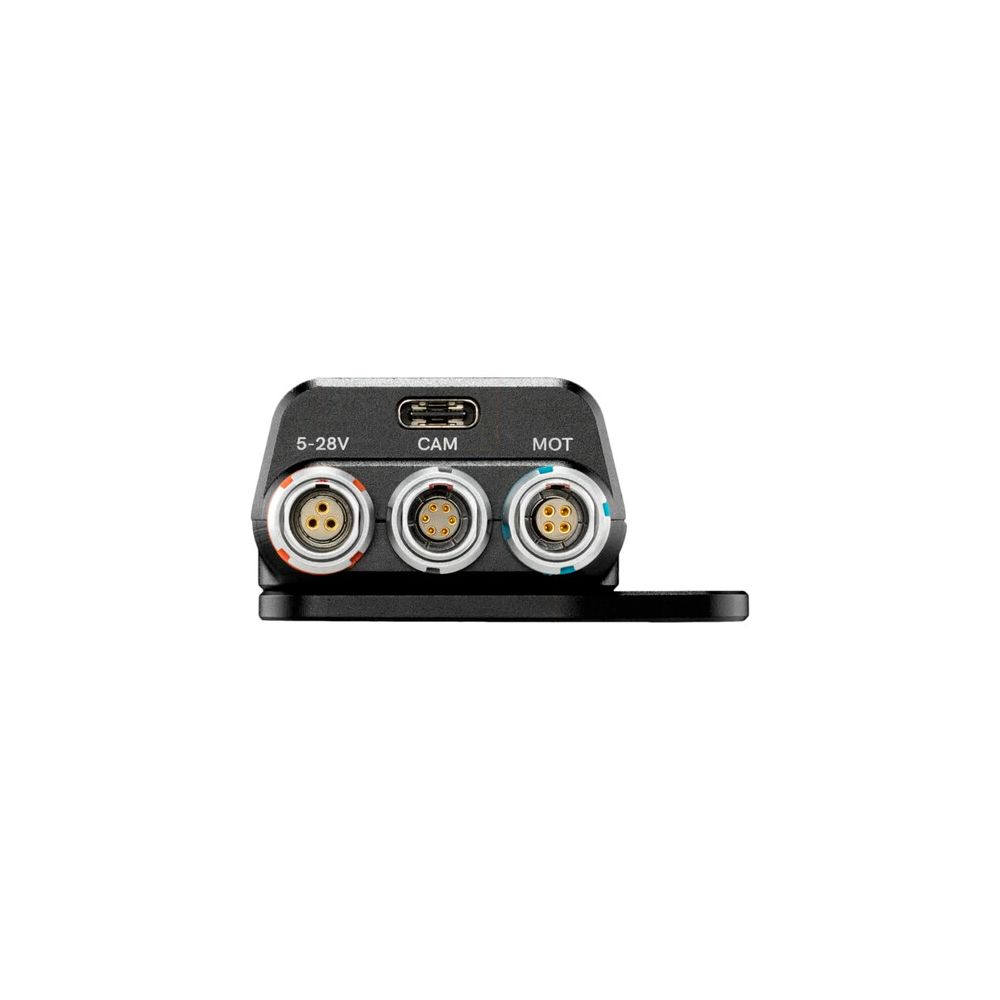

| USB I/O | 1 x USB-C Female Input |
| Video I/O | 1 x Mini Hirose 6-Pin Input 1 x Mini-DIN 4-Pin Input |
Power
| Power Source | Proprietary Interface |
| DC Input Power | 5 to 28 VDC |
| Power Connector | 1 x LEMO 3-Pin |
Physical
| Mounting | 1 x Rail |
| Color | Black |
| Dimensions | 58 x 42 x 24 mm |
| Weight | 68 g |
