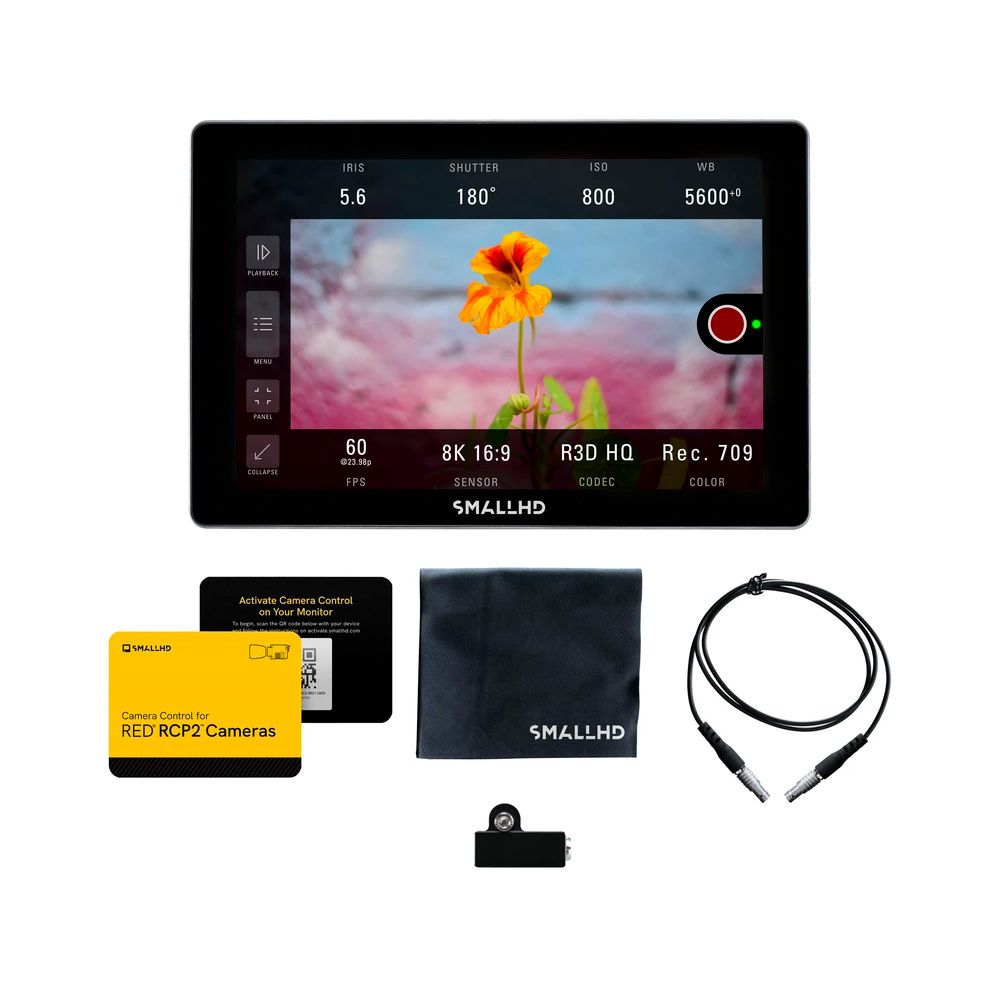

SmallHD Indie 7 Komodo Kit / DSMC3

33.1.MON-16-0712-R2
  • Watch Video
  • Watch Video
  • Watch Video
  • Product Features:

    Optically Bonded 7-inch IPS LCD touchscreen
    1920x1200 resolution
    1000 nits brightness
    10-bit color processing in 100% Rec 709
    4K & HDR compatible
    Micro-USB to 5-Pin Adapter & Cable
    L-Series Battery Plate
    RED RCP2 Camera Control Upgrade
    HDMI and 3G-SDI inputs and outputs
    Cross conversion: HDMI to SDI, SDI to HDMI
    $3,460.00
    Stock Level:
    In Stock
    Check Location Availability

    SmallHD Indie 7 Komodo Kit / DSMC3

    Essential Add-On's we recommend

    Description

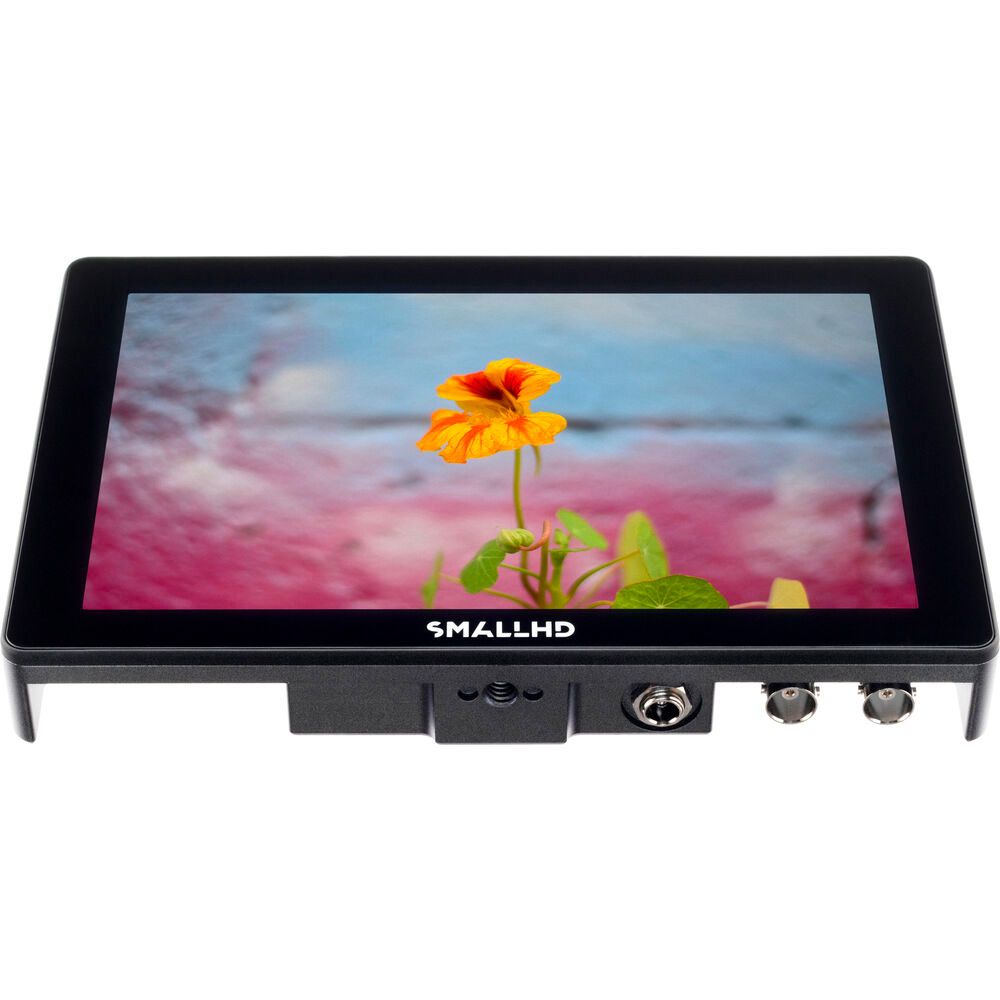

    The lightweight Touchscreen On-Camera Monitor provides professional monitoring in a sharp 7" IPS LCD with 1920 x 1200 resolution, 10-bit colour processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen control, and updated SmallHD PageOS 4 firmware. It features HDMI and 3G-SDI inputs and outputs, and it supports up to UHD 4K video input via HDMI.

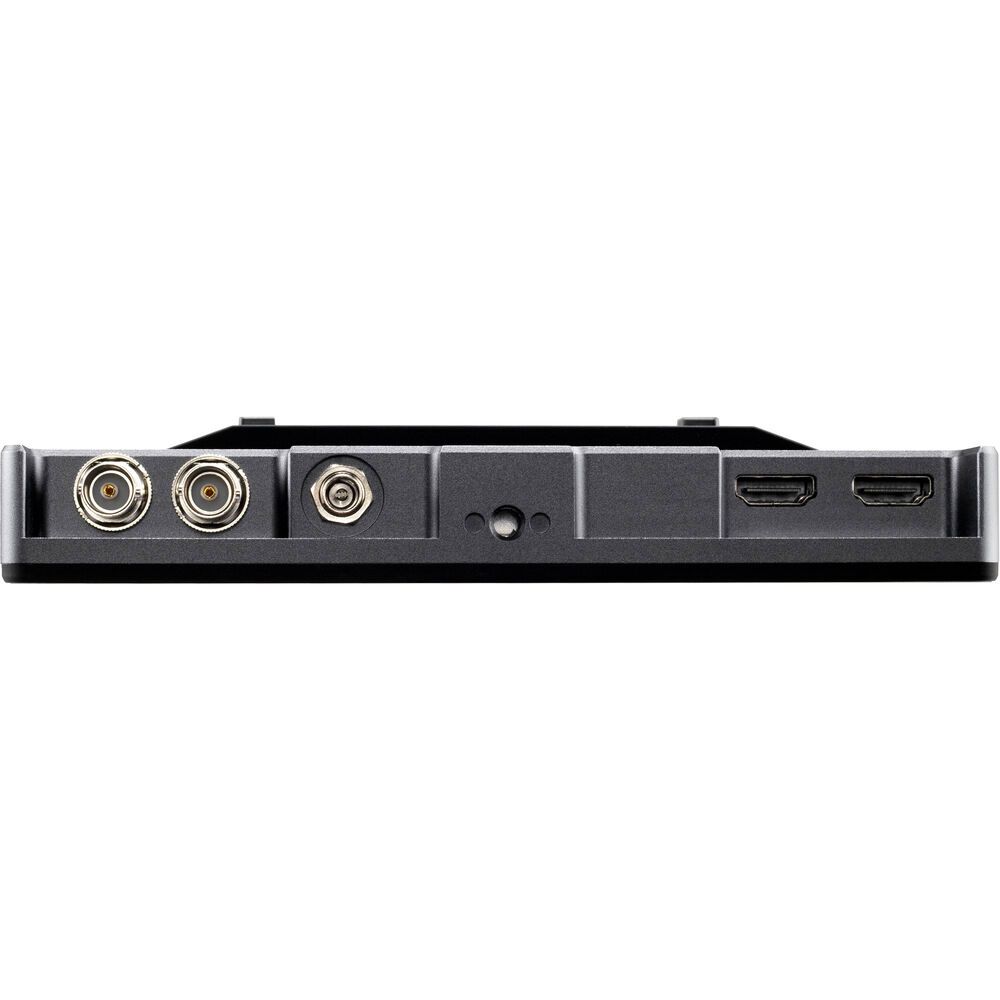

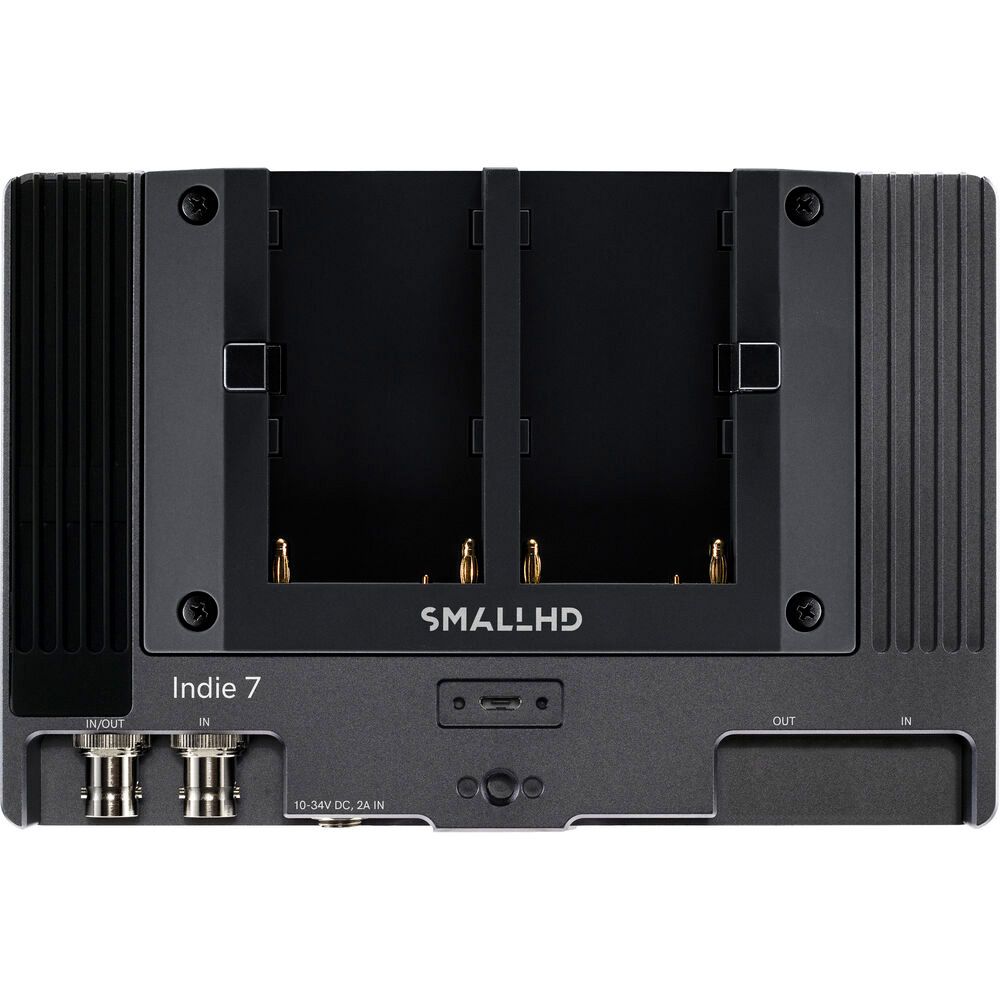

    The INDIE 7 is powered using the included L-series battery plate or using the 2mm barrel input with a DC adapter. It can also be powered using separately available Gold mount or V-mount battery plates. An SD card slot allows you to import custom 3D LUTs and a micro-USB port to provide upgrades to the display. Four 1/4"-20 threads allow you to mount the monitor in a variety of configurations. The 3.5mm headphone jack allows you to monitor the embedded audio from the HDMI or 3G-SDI inputs.

    Using the intuitive SmallHD PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, pre-configured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements, while maintaining all the features of its predecessor, OS3.

    Features

    • Daylight-viewable, 7" touchscreen on-camera monitor with 1000 cd/m² brightness
    • Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
    • HDMI and 3G-SDI inputs and outputs; supports video input up to UHD 4K30 via HDMI

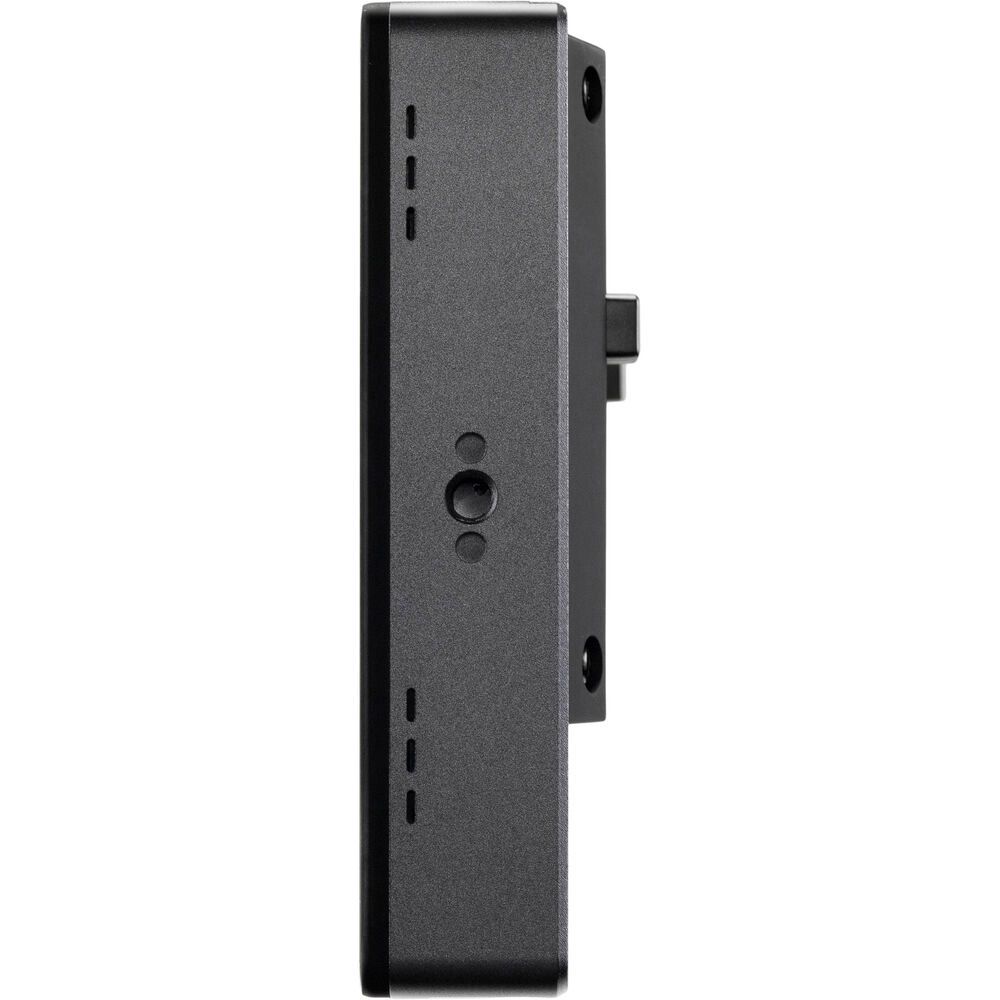

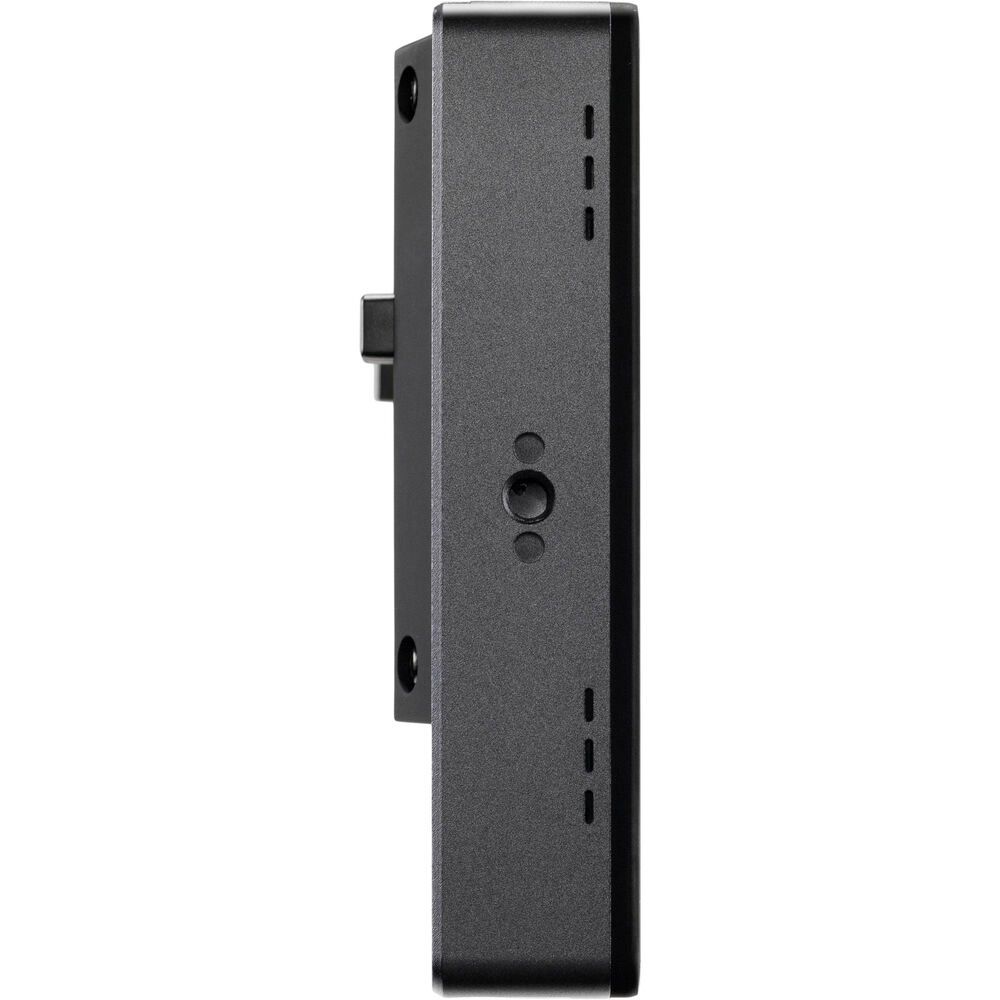

    • Four 1/4"-20 mounting threads on left, right, bottom, and back of the monitor
    • SmallHD PageOS 4 has all the features of OS3 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false colour overlays, improved function buttons, pixel zoom, focus assist, peaking, and more
    • Power using a barrel input or with the included L-series battery plate, or use a separately available Gold mount or V-mount plate
    • Durable aluminium chassis

    Display Tools

    Pixel zoom: 2x and 4x with pinch-zoom
    Aspect ratios: Preset and customizable
    DSLR scale: Canon 5D Mk II and Canon 7D
    Custom scale: Underscan only
    Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
    Image flip: Auto and manual
    Image rotation: Auto and manual
    Cross conversion: HDMI to SDI, SDI to HDMI
    Colour focus assist: Adjustable style and intensity
    Peaking: Adjustable intensity
    False-colour: Spectrum, ARRI-style, and customizable
    Zebra: Dual, customizable
    Waveform: Luma and RGB, customizable with region-of-interest highlighting
    Vectorscope
    RGB parade, customizable
    Histogram: Luma and RGB
    Image capture, with dedicated button and image gallery
    Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
    LUT import: Via SD card or USB storage device
    Image overlay: Opacity slider and blink setting
    Image capture
    Audiometers: Up to 8 channels


    RED KOMODO Camera Control

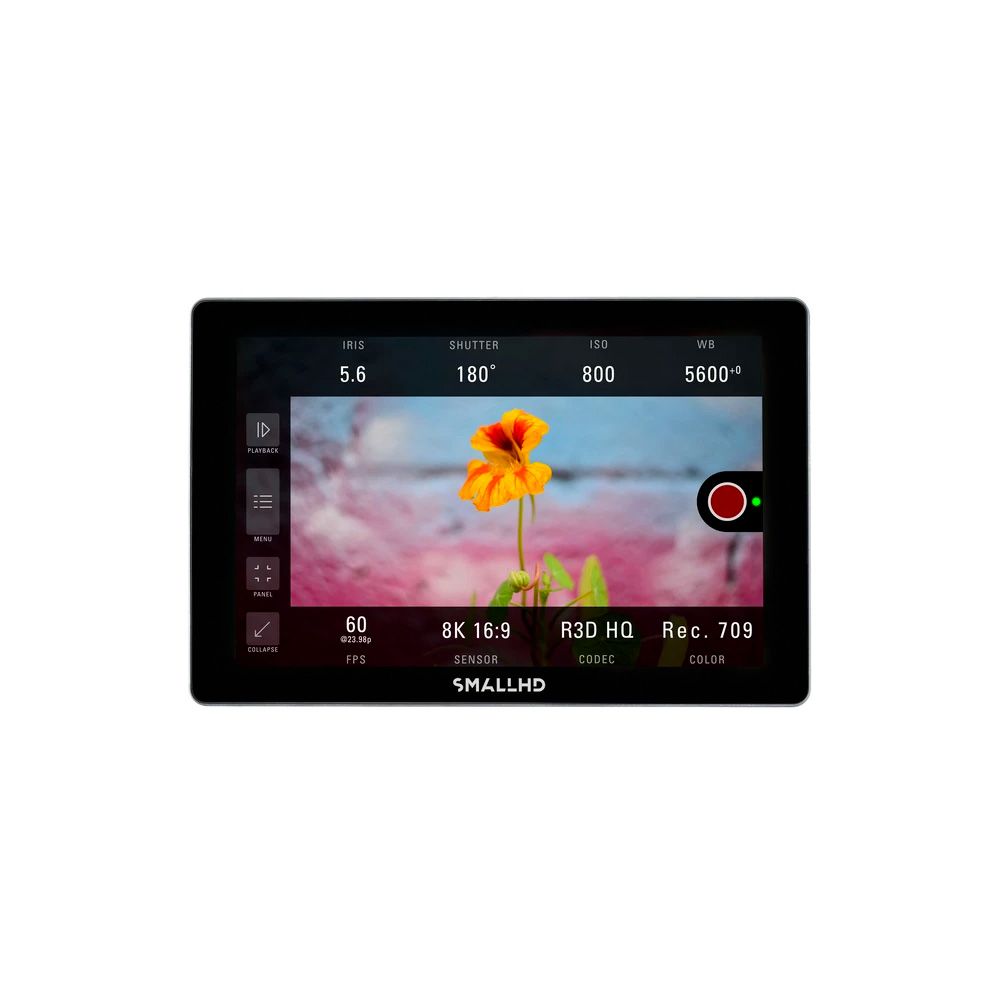

    The INDIE 7 unleashes the full potential of the RED KOMODO 6K cinema camera with intuitive touchscreen menu control using RCP2 functionality to enable access to camera operations and project settings such as recording formats, resolution, frame rates, shutter speed, aperture adjustment, autofocus, output tone map, highlight roll-off, 3D LUTs, Run/Stop, and more
    access to RED® RCP2™. Unlock access to camera control for RED® ​​KOMODO® and RED® V-RAPTOR™ (DSMC3™) cameras via  with a software activation code, and tap into the internal camera settings with intuitive touchscreen configuration tools.
