Xrite I1IO Table (3nd Generation)

57.03.EO3AST

Product Features:

Will Not work with Gen 2 or Gen 1 units
For the i1Pro3 Units
$6,699.00
Available Soon

Xrite I1IO Table (3nd Generation)

Essential Add-On's we recommend

Description

Automation for Color Perfectionists

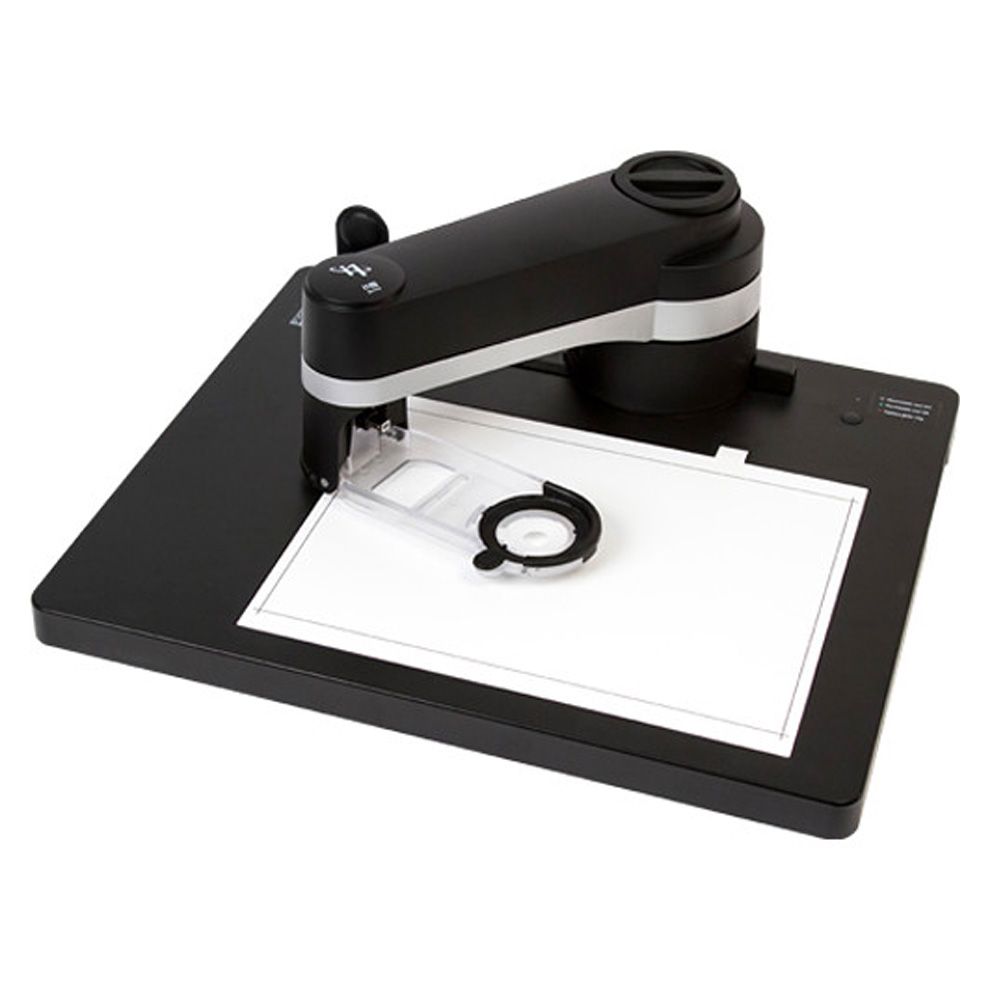

Automate your color workflow and extend the value of your i1Pro 3. The i1iO for the i1Pro 3 is a robotic, automatic chart reading system that is designed to work specifically with the i1Pro 3 device. It’s ideal for color perfectionists who want to speed up and automate the measurement process and eliminate manual strip reading!

i1iO provides fast measurements for reflective test charts on various substrates up to 10 mm – from thin polybag material to ceramics and textiles. Add the optional Z-axis spacer to measure substrates up to 33 mm thick!

Combine i1Pro 3 and i1iO to quickly create a custom profile delivering consistent and reliable results, reduce measurement errors and increase your productivity. i1iO is simple to operate and you’ll still maintain all the great versatile functionality provided by your i1 Pro 3 solution.

The i1iO provides a new level of automation for fast, accurate test chart reading for all Color Perfectionists!

i1iO for the i1Pro 3

Manually reading test charts for profiling and color validation is time-consuming and leaves room for human error. The new model of i1iO has been developed to accommodate i1Pro 3 Plus, providing a simple way to enhance functionality, versatility, and speed up the measurement process.

Simple. Quick. Versatile.

  • Measures reflective test charts on a variety of substrates up to 10 mm thick, or up to up to 33mm with the optional Z axis spacer.
  • Ideal for thin polybag material, thicker photo media, corrugated, ceramics, etc.
  • Reads more than 500 patches per minute in scanning mode under the M0 measurement condition to quickly create custom profiles.
  • Offers ultimate flexibility through hands-free automation and ease-of-use.

Paper/Chart/Positioning
Positioning Area: 32 x 23 cm, 12.6” x 9” (Width x Height)
Media Thickness: Max. 10 mm, 0.39”
Patch Size: Min: 6 mm x 7 mm (Width x Height)

Chart Measurement
Measurement Speed: > 500 patches / Minute, IT8.7/3 chart (924 patches) <= 2.2 minutes *
Calibration: Automatic on internal calibration reference

*with scanning mode in M0 measurement condition

General Interface: USB 1.1
Power Supply: Auto rating 100 to 240 VAC, 50 / 60 Hz
Physical Dimensions: 510 x 460 x 170 mm, 20 x 18.1 x 6.7 (Width x Depth x Height)
Weight: 4.5 kg, 9.9 lb (without i1 Pro device)
Measurement background: White

The i1iO package includes:

  • Replacement Glider Ring
  • Auto rating power supply 100 – 240 VAC, 50/60Hz
  • Main power cable
  • USB cable
  • Quick Start Guide
