i1Basic Pro 2 is the new standard of perfection for colour Perfectionists looking for an affordable, professional level spectral colour measurement solution offering display and projector profiling, monitor and print quality assurance and spot colour measurement.
With i1Basic Pro 2 you can quickly and easily create custom monitor and projector profiles that ensure the colours you view are true, verify soft proofs and print quality with built in Quality Assurance tools, and easily capture and manage spot colours.
The new i1Basic Pro 2 is easier to use, more versatile, accurate, reliable and affordable than any spectral colour measurement solution available, making this a must-have product for colour Perfectionists.
* Monitor Profiling
* Monitor Quality Control
* Printer Quality Control
* Pantone Colour Software
* The extraordinary new i1Pro 2 Spectrophotometer
* The latest release of i1Profiler Software
* PANTONE colour Manager Software

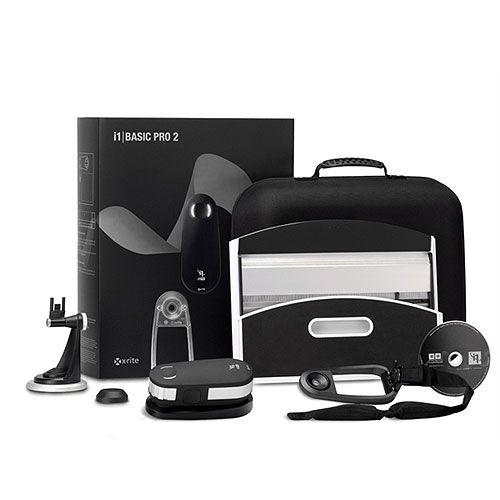

* All new, more robust i1 accessories: Ambient Light Measurement Head, Monitor Holder, Scanning Ruler, Backup Board, Spot colour Positioning Target, Soft Carrying Case
New illuminant design allows for 3 standard measurement conditions (ISO 13655 M0: Tungsten; ISO 13655 M1: D50; ISO 13655 M2: UV Cut) plus Optical Brightener Compensation (OBC) without changing filters or needing a second instrument and ensures your investment well into the future.
Enhanced Optical Brightener Compensation allows for the most accurate profiling for todays enhanced range of substrates. Now users can predict what colours printed on optically brightened paper will look like under both standard and specific light conditions using a single hand-held device.
Positioning Detection Sensor provides a more robust scanning experience even on special substrates and low-resolution printers. It allows for the measurement of smaller patch sizes (as low as 7mm) in manual mode saving time and money on consumables and enabling dual measurement workflows for OBC, M1 and M2.
New Status LED guides users through the measurement process and provides feedback on device status, improving the user experience and saving time.
New Design Ergonomics throughout allows for greater usability, flexibility, cleaning, protection, and storage of the precision i1Pro 2 device, assuring the highest level of reliability and productivity.
Better temperature stability and higher brightness levels improve emissive measurement, resulting in the best possible calibration and profiling of monitors and projectors.
All new diagnostics and self-correction features
Built in wavelength calibration technology allows for self diagnosis of optical grating in relation to sensor during white calibration (with automatic correction and notifications) eliminating worry about your devices measurement accuracy.
Maintaining and protecting the device is easier than ever Self cleanable aperture protection glass and calibration white tile cover provides additional built in protection from dust and dirt keeping your device working at top performance at all times.
i1Pro 2 is equipped with the X-Rite Graphic Arts Standard (XRGA) to make it quicker and easier for companies and professionals involved in digital production printing to adhere to ISO standards and have confidence that data sent or received from all links in the supply chain is reliable and repeatable.
i1 technology with built-in wavelengths check
Spectral analyzer: Holographic diffraction grating with 128-pixel diode array
Spectral Range: 380 - 730 nm
Physical sampling interval: 3.5 nm
Optical resolution: 10 nm
Spectral reporting: 380 ... 730 nm in 10 nm steps
Measurement Frequency in scanning mode: 200 measurements per second
Measurement geometry: 45/0 degree ring illumination optics, ISO 13655:2009
Measurement aperture: 4.5 mm (0.18 inch) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
Illumination Spot Size: 3.5 mm (0.14 inch)
Light source: Gas filled tungsten (illuminant type A) and UV LED
Data Format: Spectral Reflectance [dimensionless]
UV included - ISO 13655:2009 measurement condition M0
D50 - ISO 13655:2009 measurement condition M1
UV excluded Filter - ISO 13655:2009 measurement condition M2
OBC: Optical Brightener Compensation (OBC) with i1Profiler software
Calibration: Manual on external ceramic white reference
Measurement Background: white, ISO 13655:2009; for measurements on backup board
Maximum Media Thickness: 3 mm on backup board
Minimum Patch Size in Scanning Mode: 7 x 10 mm (Width x Height) with sensor ruler 10 x 10 mm (Width x Height) without sensor ruler
Inter-instrument agreement: 0.4 嚙踝蕭嚙踝蕭嚙踝蕭嚙瘟94* average, 1.0 嚙踝蕭嚙踝蕭嚙踝蕭嚙瘟94* max. (deviation from X-Rite manufacturing standard at a temperature of 23C on 12 BCRA tiles (D50, 2 degrees))
Short-term repeatability: 0.1 嚙踝蕭嚙踝蕭嚙踝蕭嚙瘟94* on white (D50,2 degrees, mean of 10 measurements every 3 seconds on white)
Data format: Spectral radiance (mW/nm/m2 /sr); Luminance Y (cd/m2)
Measurement range: 0.2 - 1200 cd/m2 on a typical LCD-Monitor
Short-term repeatability: x,y: +/- 0.002 typical (5000K, 80 cd/m2)
Ambient Light Measurement
Data Format: spectral irradiance [mW/nm/m2], illuminance [lux]
Type: Cosine-corrected diffuse light measurement head
Temperature: 10 degrees C to 35 degrees C
Humidity: 0 to 80 percent non-condensing
Interface, dimensions & weight
Interface: USB 1.1
Power supply: Device powered by USB. No additional charger or battery required. USB 1.1 high power device.
i1Pro device: Length 155 mm, width 66 mm, height 67 mm
i1 Ruler: Length 337 mm , width 102 mm
i1 Backup Board: 355 mm x 265 mm folded or 355 mm x 400 mm unfolded
Weight i1Pro device: 245
