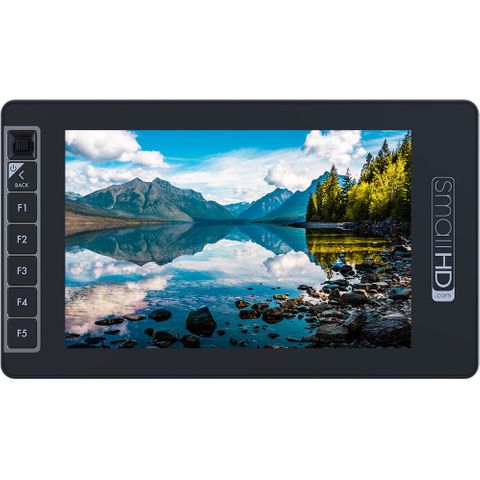

SmallHD 703UB Ultra Bright V-Mount Bundle

X.33.1.MON-703U-VM-DK

Product Features:

703 UltraBright 7" Monitor
Bright 2500 cd/m² 1920 x 1080 LCD
HDR Preview
Milled Aluminum Unibody Housing
SDI and D-Tap Power Cables
Soft Neoprene Storage Sleeve
$5,795.00
$5,350.00
Stock Level:
Out of Stock
Check Location Availability
Make an Enquiry

SmallHD 703UB Ultra Bright V-Mount Bundle

Add To Cart
$5,795.00
$5,350.00

Description

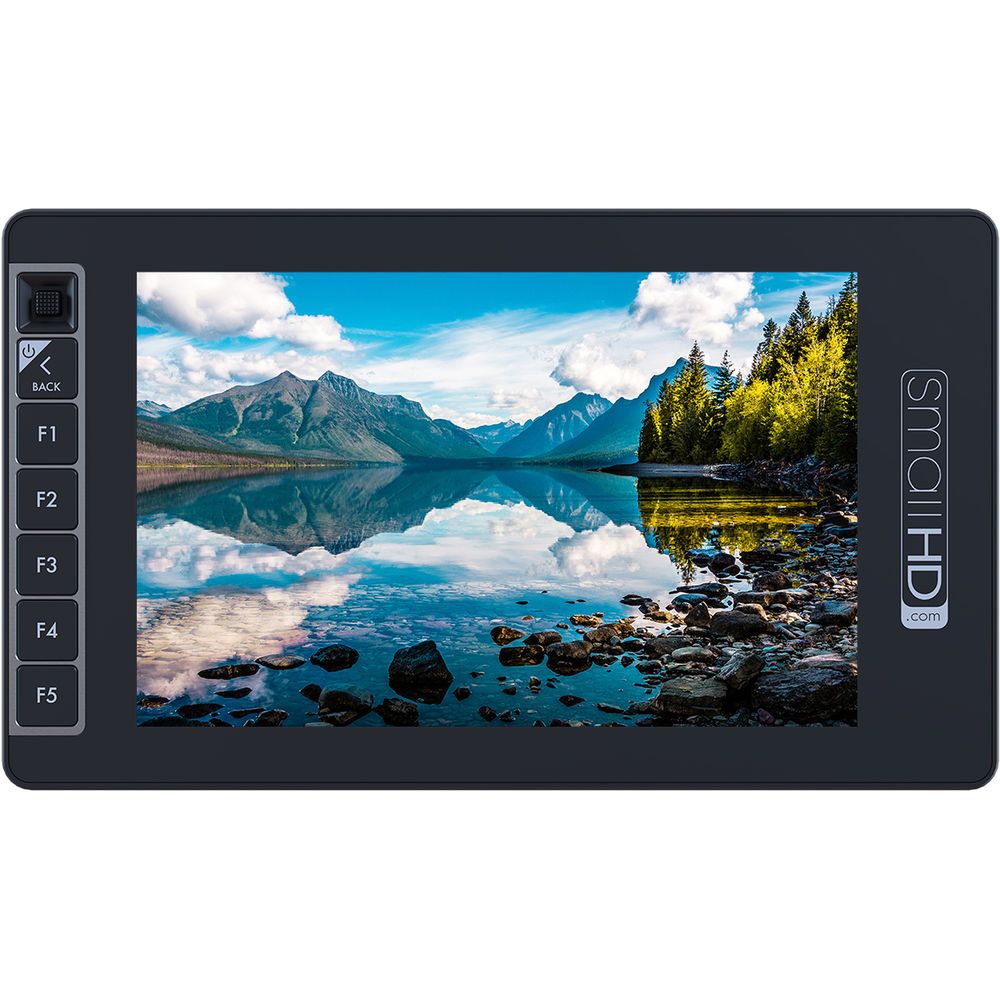

Though monitoring HD video signals outdoors can be difficult, the SmallHD 703 UltraBright On-Camera Monitor Bundle, with its 2500 cd/m² bright backlight, overcomes this environmental difficulty. The 7" 1920 x 1080p LCD provides a sharp image, ideal for focus pulling and image analysis on set and in the field. Another advantage of the high brightness panel is the monitor's ability to preview HDR content. HDR preview extends the display's dynamic range to portray a greater range of brightness in the image.

A unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. The LCD panel itself is protected by a layer of optically-bonded Gorilla Glass, notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out and reduces the harshness of reflections.

On the sides of the display are the SDI and HDMI I/O. Having dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the Page Builder OS, which provides advanced functionality with a simple and efficient graphical user interface.

Page Builder OS
Page Builder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 703 UltraBright at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.


SmallHD 703 UltraBright Specs

Display
Display
7.7" / 19.6 cm LTPS LCD
Resolution
1920 x 1080
Pixel Density
323 PPI
Aspect Ratio
16:9
Brightness
2500 cd/m²
Contrast Ratio
1200:1
Color Gamut
70% NTSC
Bit Depth
8-bit
Viewing Angle
178°
Backlight
White LED
Temperature Adaptive Color
Not specified by the manufacturer
Technical
Inputs
1 x BNC, HD/3G-SDI
1 x HDMI Type A
Outputs
1 x BNC, HD/3G-SDI
1 x HDMI Type A
1 x 3.5 mm stereo headphone
Input Signal
SDI: 10-bit YCC 4:2:2
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL

HDMI: 8/10/12-bit color
1080p 23.98/24/25/30/50/59.94/60
1080PsF 23.98/24/25/30
1080i 50/59.94/60
720p 23.98/24/25/30/50/59.94/60 (high-speed: 720p 100/119.88/120)
576p 50 (high-speed: 576p 100)
480p 59.94/60 (high-speed: 480p 119.88/120)
NTSC (high-speed: 480i 119.88/120/239.76/240)
PAL (high-speed: 576i 100/200)

Audio:
HDMI and SDI embedded
Output Signal
SDI: 10-bit YCC 4:2:2
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60
720p 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL

HDMI: 8/10/12-bit color
1080p 23.98/24/25/30/50/59.94/60
1080PsF 23.98/24/25/30
1080i 50/59.94/60
720p 23.98/24/25/30/50/59.94/60 (high-speed: 720p 100/119.88/120)
576p 50 (high-speed: 576p 100)
480p 59.94/60 (high-speed: 480p 119.88/120)
NTSC (high-speed: 480i 119.88/120/239.76/240)
PAL (high-speed: 576i 100/200)

Audio:
HDMI and SDI embedded
General
Storage
SD card slot
Compliance
FCC, IC, CE, RoHS
Screen Protection
Bonded Gorilla Glass
Mount Type
2 x 1/4"-20 threaded holes (bottom and top)
Environmental
Operating Temperature: -17.8 to 37.8°C
Storage Temperature:  -20 to 48.9°C
Dimensions
12.4 x 21.3 x 2.9 cm
Weight
Not specified by the manufacturer

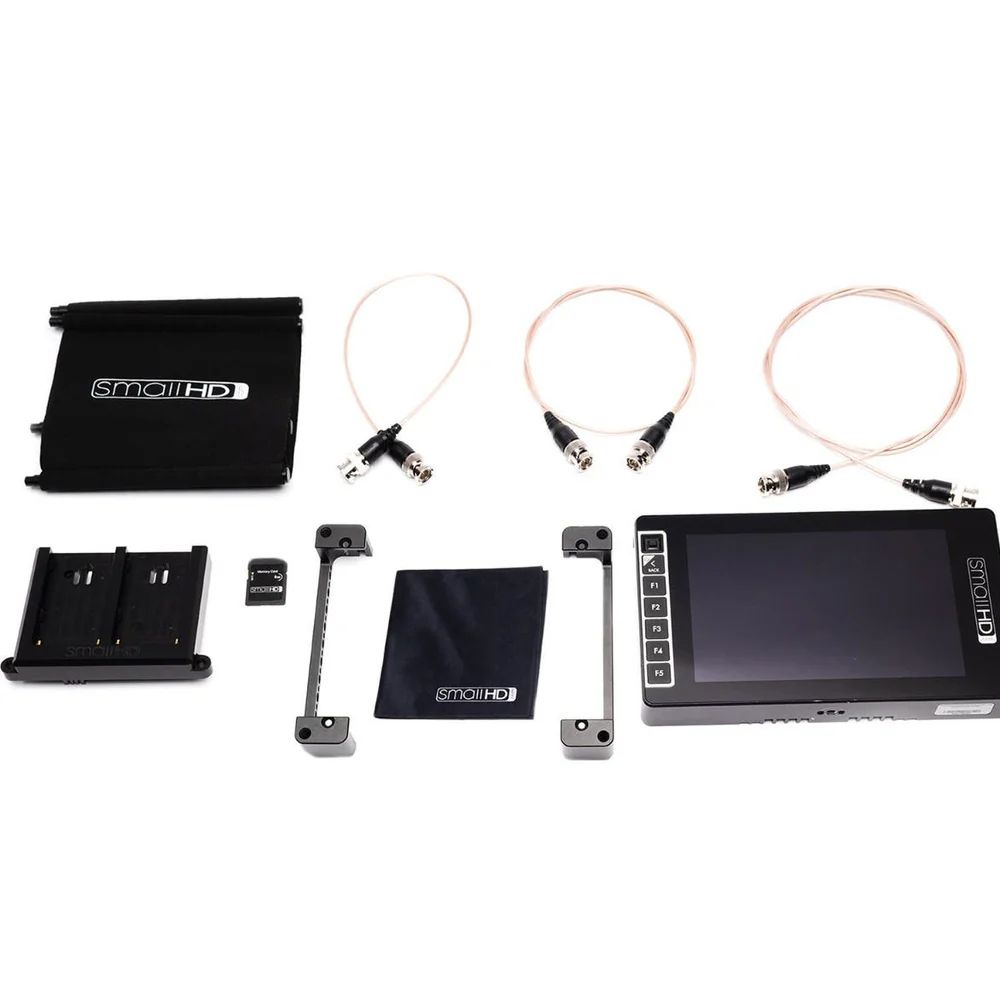

Items Included

  • SmallHD 703 UltraBright On-Camera Monitor Bundle
  • SmallHD Medium Hard Case for 500/700-Series Monitors
  • SmallHD Neoprene Sleeve for Select 7-9" Monitors
  • SmallHD Thin BNC Cable (12")
  • SmallHD Thin BNC Cable (12")
